Home >> Mercury >> 2001 >> Cougar L4-122 2.0L DOHC VIN 3 SFI >> Repair and Diagnosis >> Accessories and Optional Equipment >> Antitheft and Alarm Systems >> Testing and Inspection >> Pinpoint Tests >> Passive Anti-Theft System (PATS) >> Test D: Invalid Key Code - Encoded Ignition Transponder

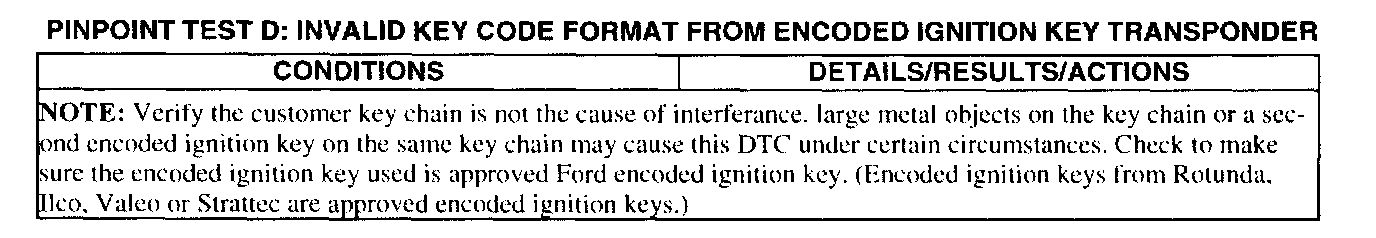

Test D: Invalid Key Code - Encoded Ignition Transponder

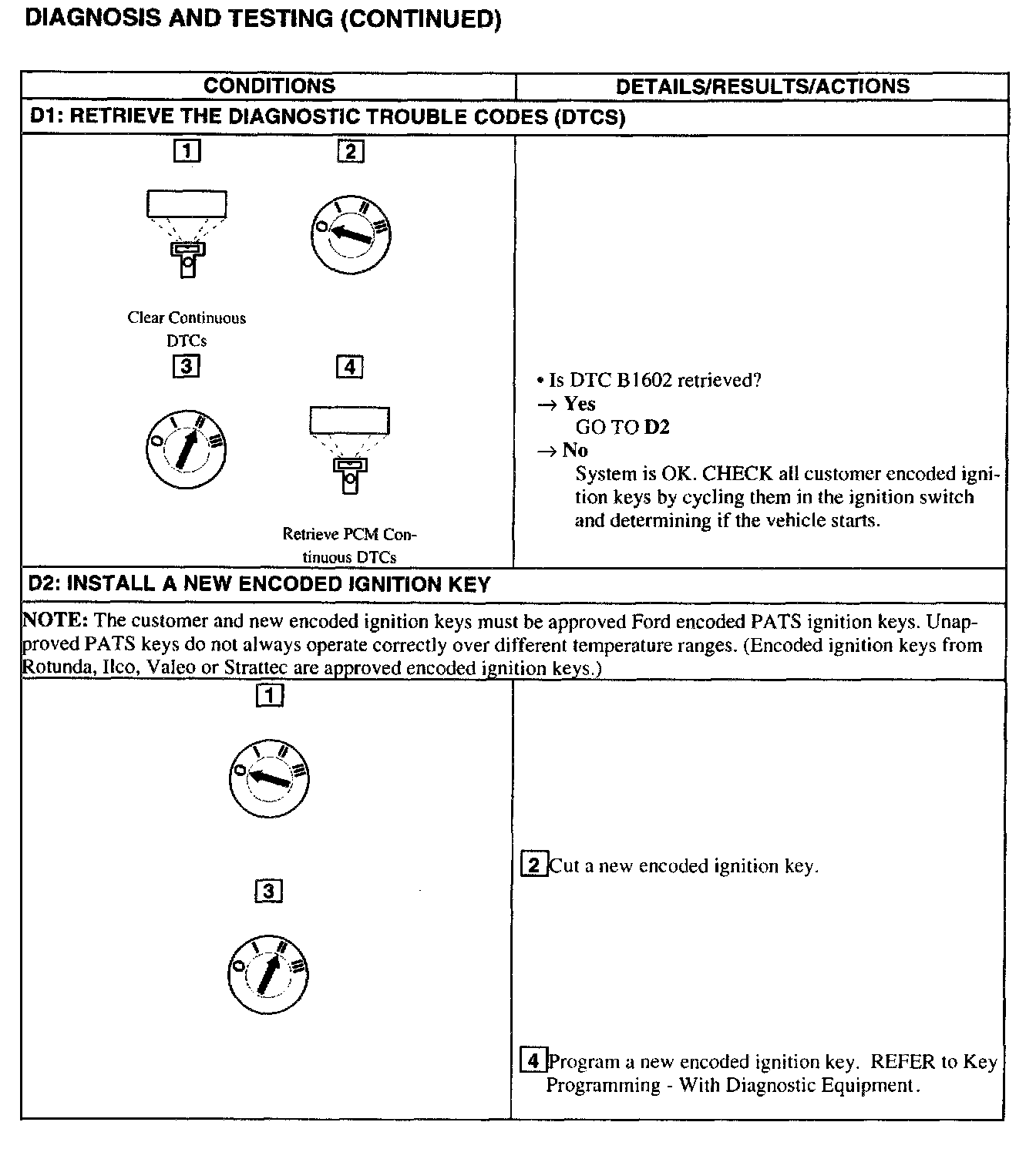

D1:






D1 - D2:

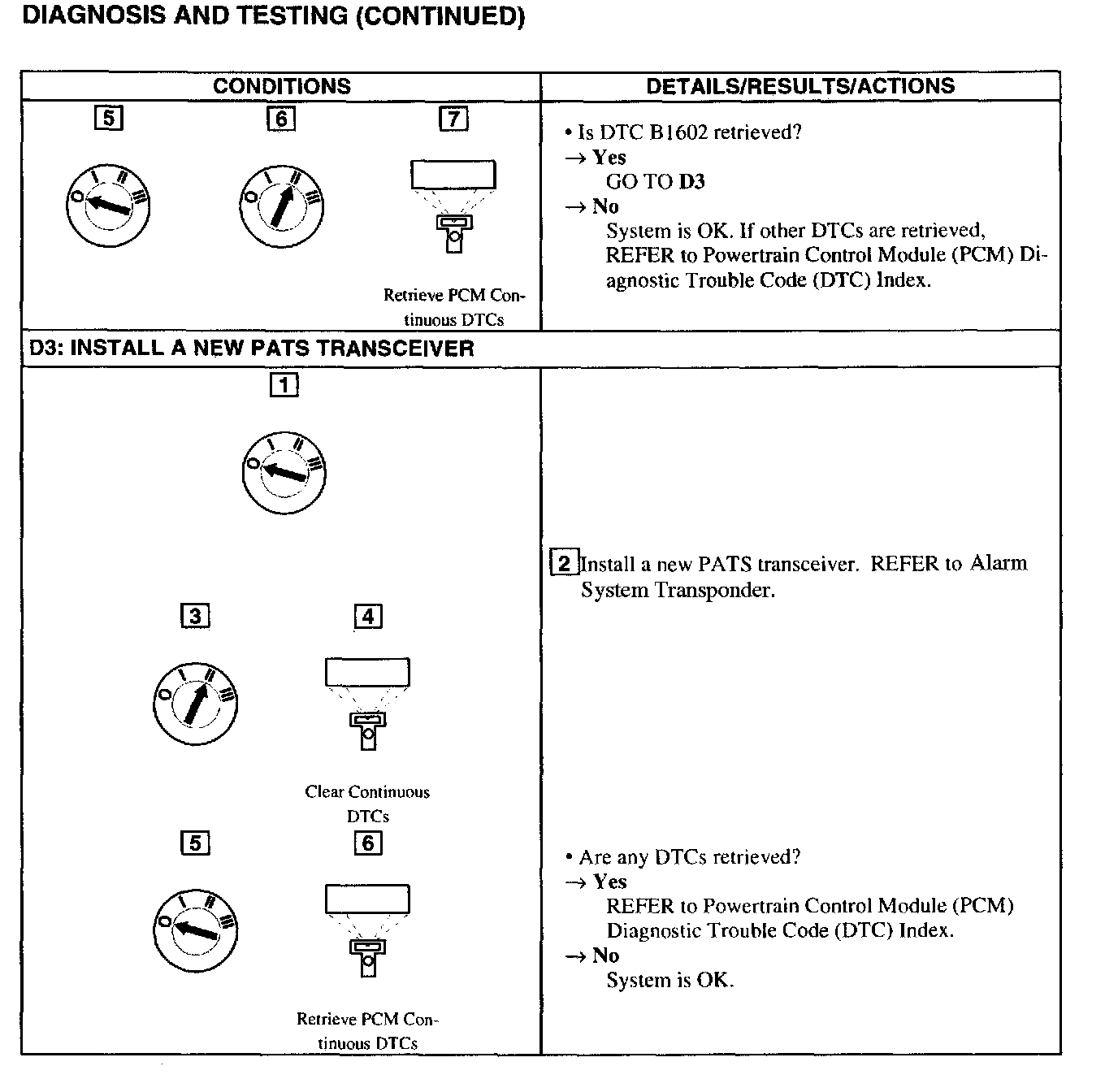

D2 - D3:
