Cougar L4-122 2.0L DOHC VIN 3 SFI
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Antitheft and Alarm Systems
>>
Testing and Inspection
>>
Pinpoint Tests
>>
Passive Anti-Theft System (PATS)
>>
Test B: No Key Code Received / Damaged Encoded Ignition Key
Test B: No Key Code Received / Damaged Encoded Ignition Key

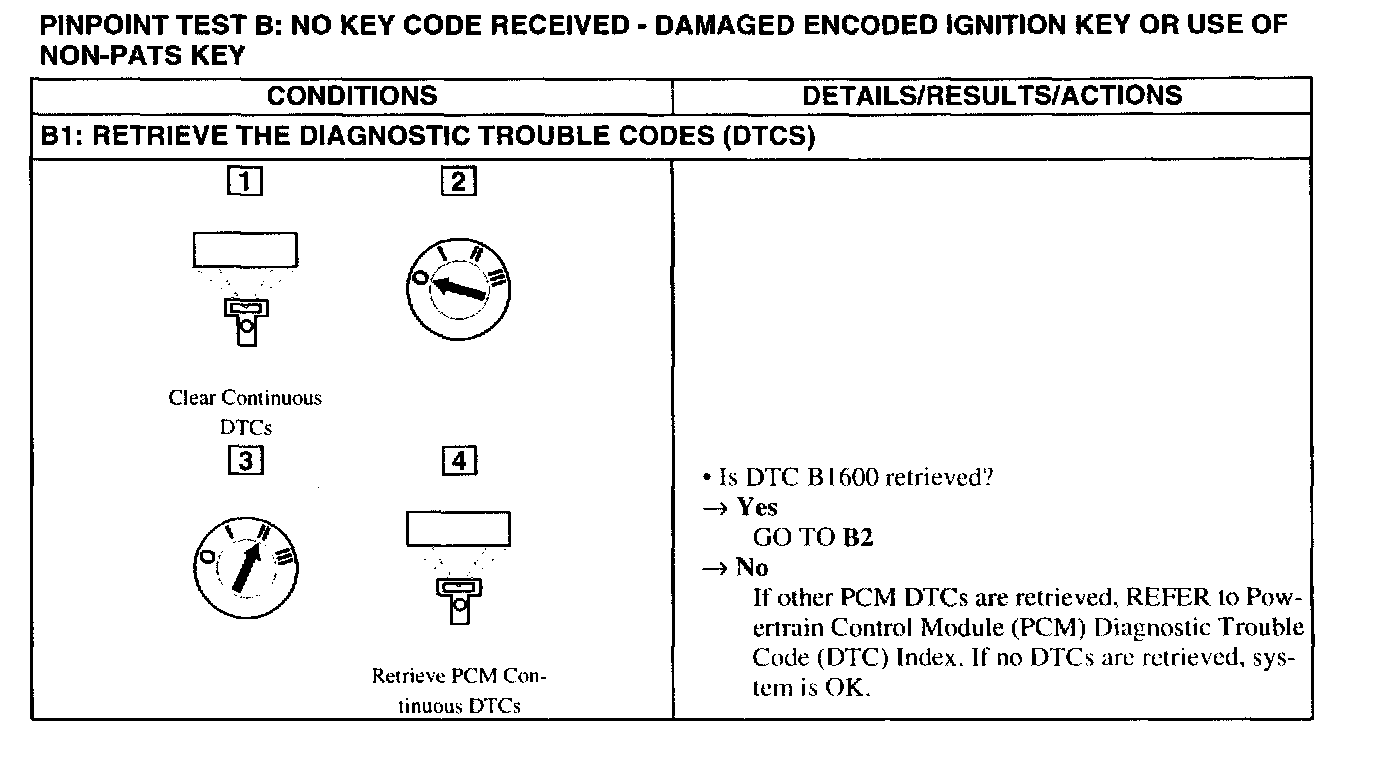

B1:

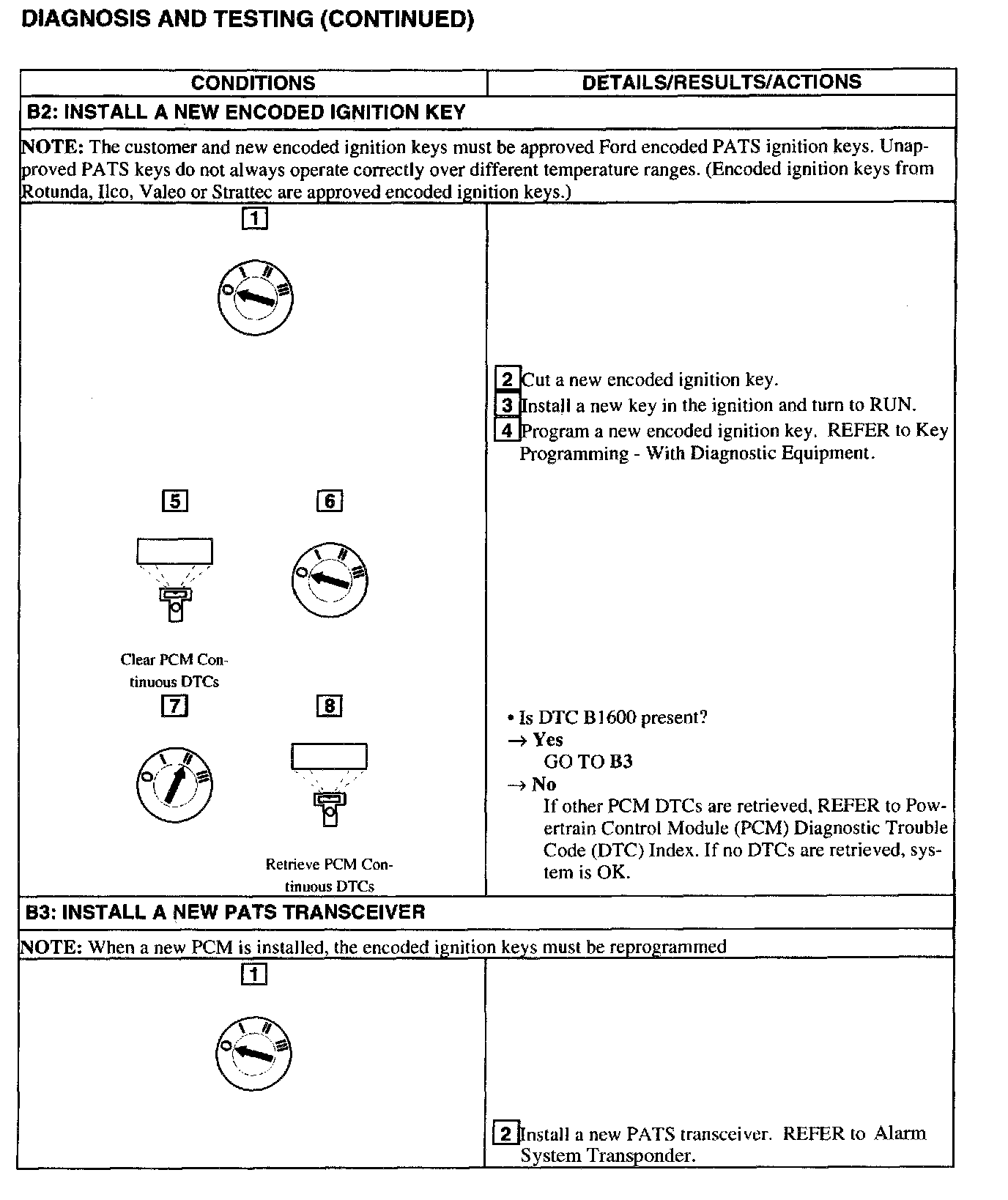

B2 - B3:
B3:
B: No Key Code Received - Damaged Encoded Ignition Key or Use of Non-Pats Key
