Windshield Wiper Motor

REMOVAL
1. Remove the wiper mounting arm and pivot shaft assembly. For additional information, refer to Wiper Motor Linkage.

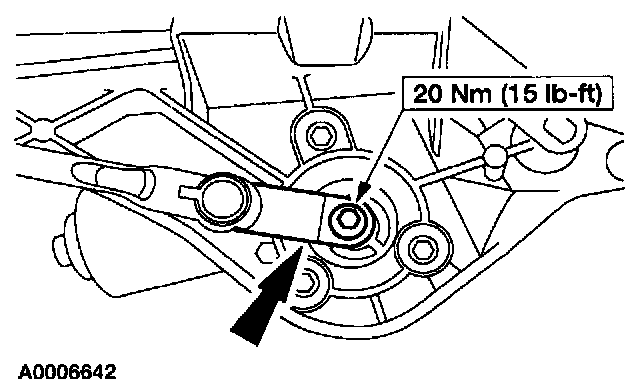

2. Remove the bolt and the windshield wiper motor operating arm from the motor.

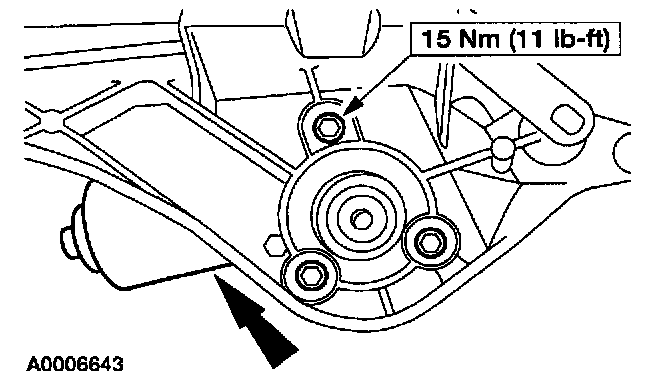

3. Remove the three bolts and remove the windshield wiper motor.

INSTALLATION
1. To install, reverse the removal procedure.
