Wiper Pivot Arm - Rear

REMOVAL

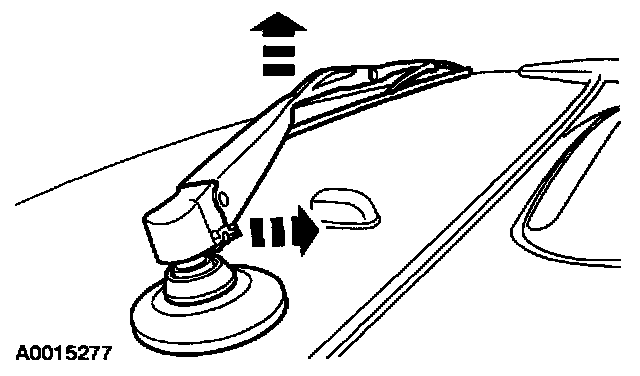

1. Raise the wiper pivot arm off the rear glass, and pull the latch lever out away from the wiper arm.

CAUTION: To prevent glass or paint damage, do not use metal or sharp tools to remove the wiper pivot arm.

2. Lower the wiper pivot arm towards the rear glass to relieve pivot arm spring tension.
3. Remove the wiper pivot arm.

INSTALLATION
1. To install, reverse the removal procedure.
