Windshield Washer Reservoir

REMOVAL

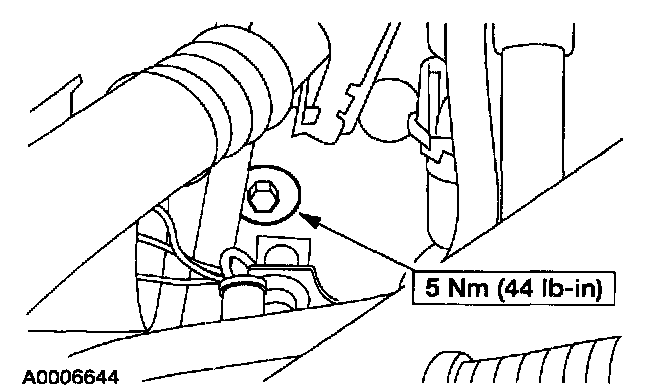

1. Remove the bolt.

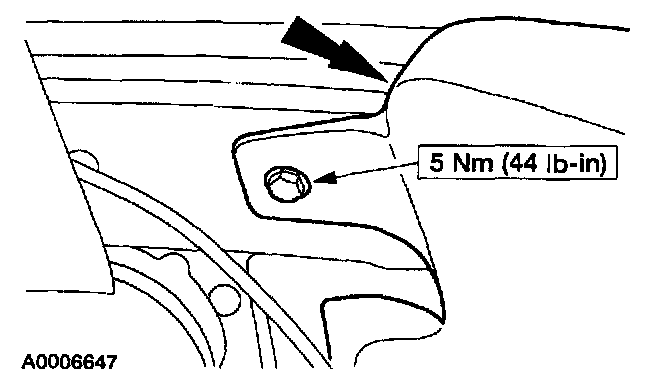

2. Remove the nut.
3. Remove the RH front wheel. For additional information, refer to Wheels, Tires, and Alignment.







4. Remove the four screws, the pin-type retainer and remove the RH front inner fender well.







5. Disconnect the washer hose and the electrical connector from the washer pump.

WARNING: WINDSHIELD WASHER SOLUTION CONTAINS METHANOL WHICH IS POISONOUS. OBSERVE ALL CAUTIONS AND WARNINGS INDICATED ON LABEL OF WASHER SOLUTION CONTAINER.

NOTE: The windshield washer reservoir will drain when the washer hose is disconnected.







6. Remove the bolt and the washer reservoir.

INSTALLATION
1. To install, reverse the removal procedure.
