A4XN - Transaxle Support Insulator

Removal
1. Disconnect the battery ground cable.
2. Raise the vehicle.
3. Remove the LH wheel and tire.

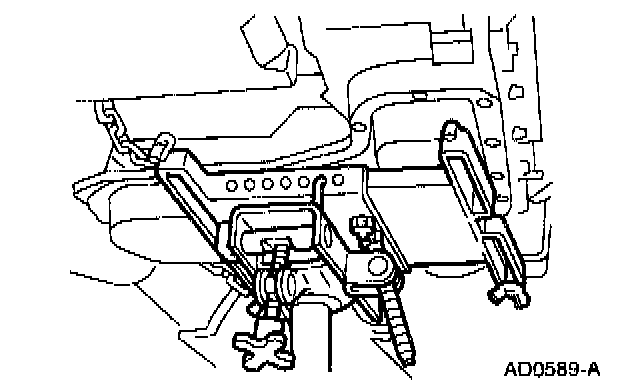

4. Place the High Lift Transmission Jack under the transaxle.

5. CAUTION: Do not excessively raise the engine. Over-extension of the tripod CV joint could result in separation of internal parts, causing failure to the halfshafts.

Note: Transaxle will need to be raised to remove the transmission support insulator.

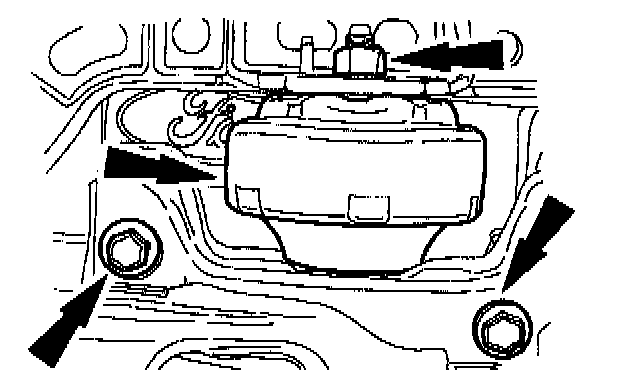

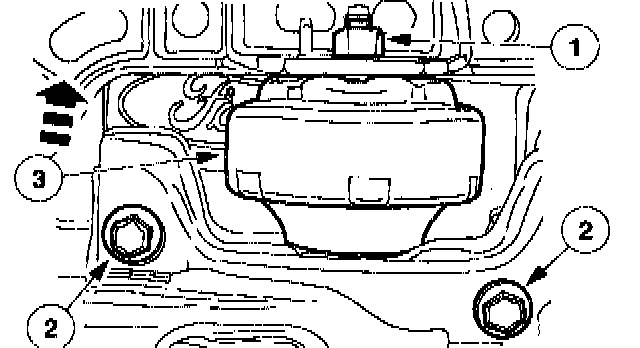

Remove the engine and transaxle support insulator.





1 Remove the nut.
2 Remove the bolts.
3 Raise the transaxle and remove the engine and transmission support insulator.

6. Remove the rear engine support bracket.





1 Remove the bolts.
2 Remove the rear engine support bracket.

Installation





1. Install the rear engine support bracket and bolts.





2. Install the engine and transaxle support insulator and loosely install the bolts.

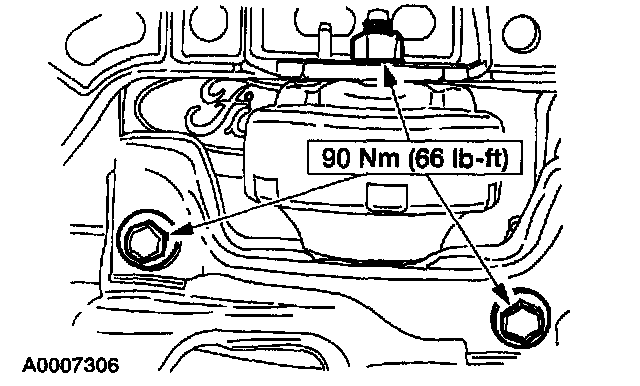

3. Lower transaxle and tighten the bolts.
4. Remove the High Lift Transmission Jack.
5. Install the LH wheel and tire.
6. Lower the vehicle.
7. Reconnect the battery ground cable.
