Transmission Cooler: Service and Repair

Removal
1. Raise and support the vehicle.

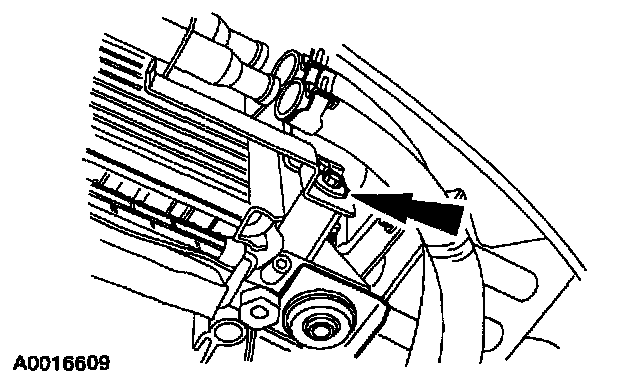

2. Remove the splash shield.





1 Remove the five screws and air deflector, if equipped.
2 Remove the remaining seven screws and the splash shield.

3. Note: Place a drain pan under the transaxle fluid cooler.

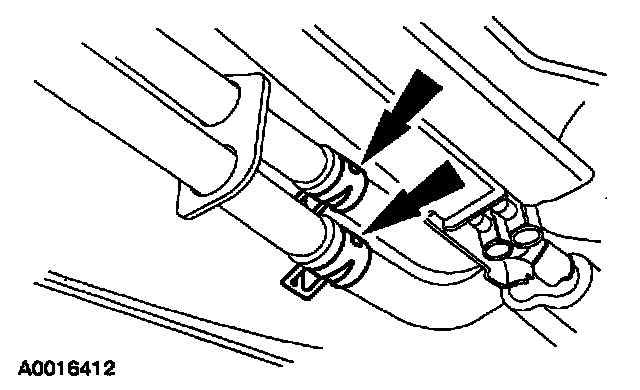

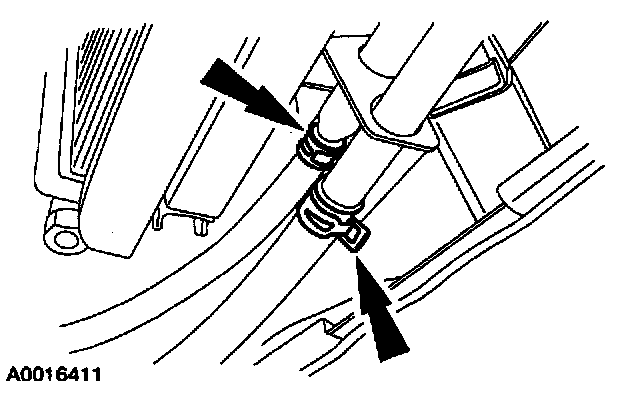

Disengage the clamps and remove the transmission fluid cooler hoses and the power steering fluid cooler hoses.








4. Remove the bolts and the combination fluid cooler.

Installation
1. To install, reverse the removal procedure.
- Fill the transaxle to the specified level.
- Fill and purge the power steering system of air.
