Tests MB: Output Test Mode (OTM) Not Functioning

NOTE
This pinpoint test is intended to diagnose:
- Connection between the scan tool and the Powertrain Control Module (PCM) or Transaxle Control Module (TCM)
- Connection between the scan tool and the battery power supply
- Proper key sequence executed for output(s)

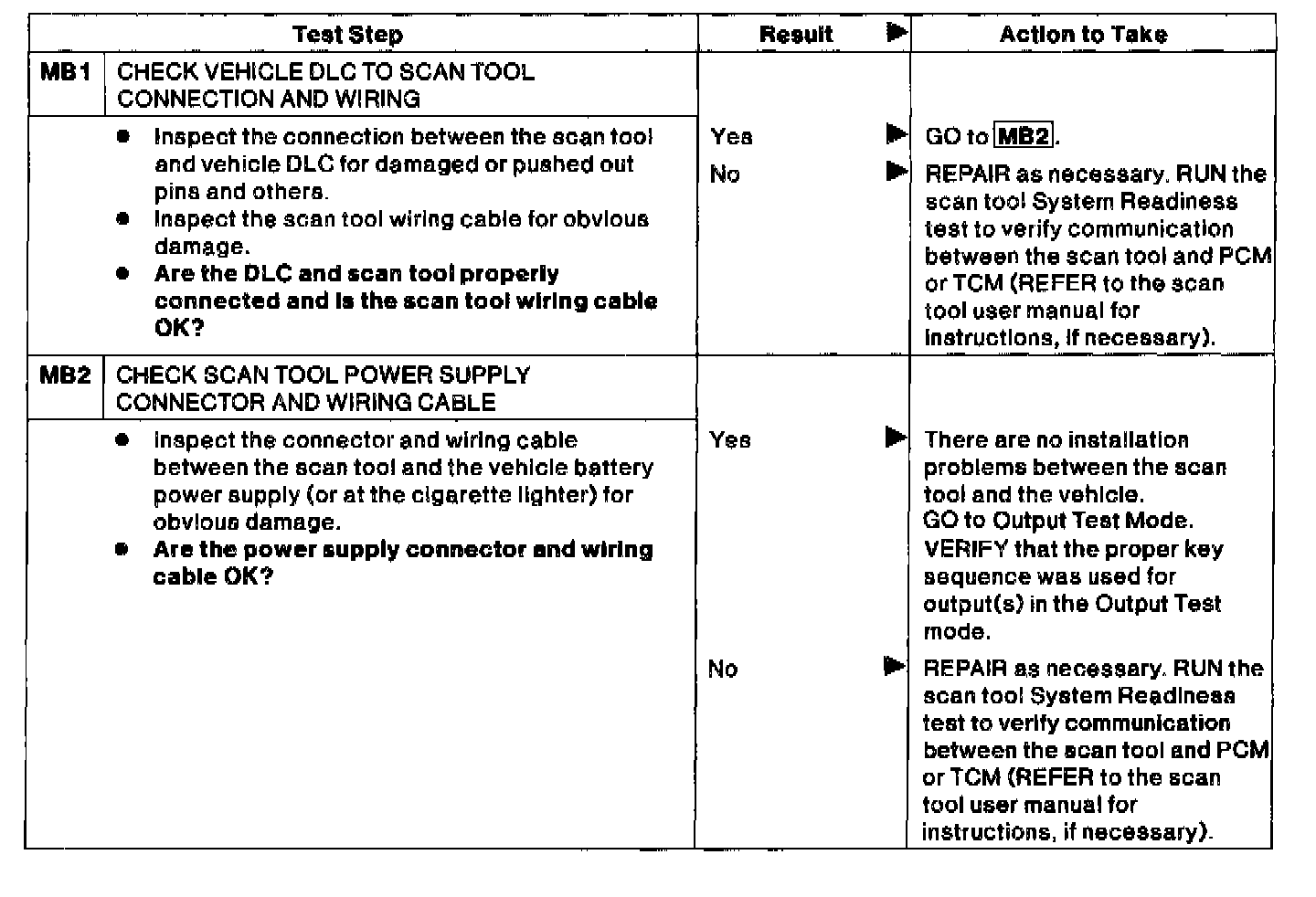

MB1 - MB2:
