Test F: Turbine Shaft Speed (TSS) Sensor





F1

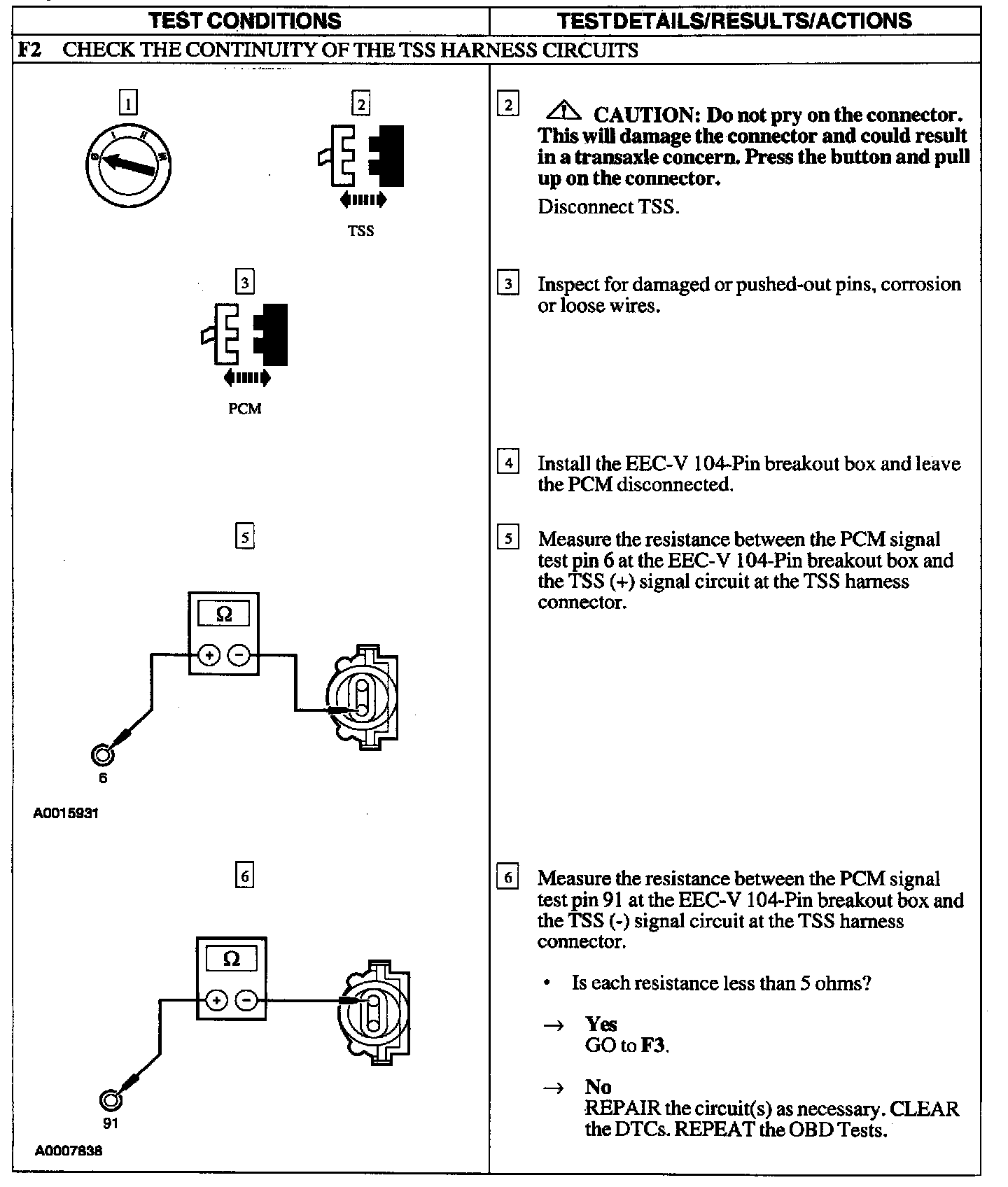

F2

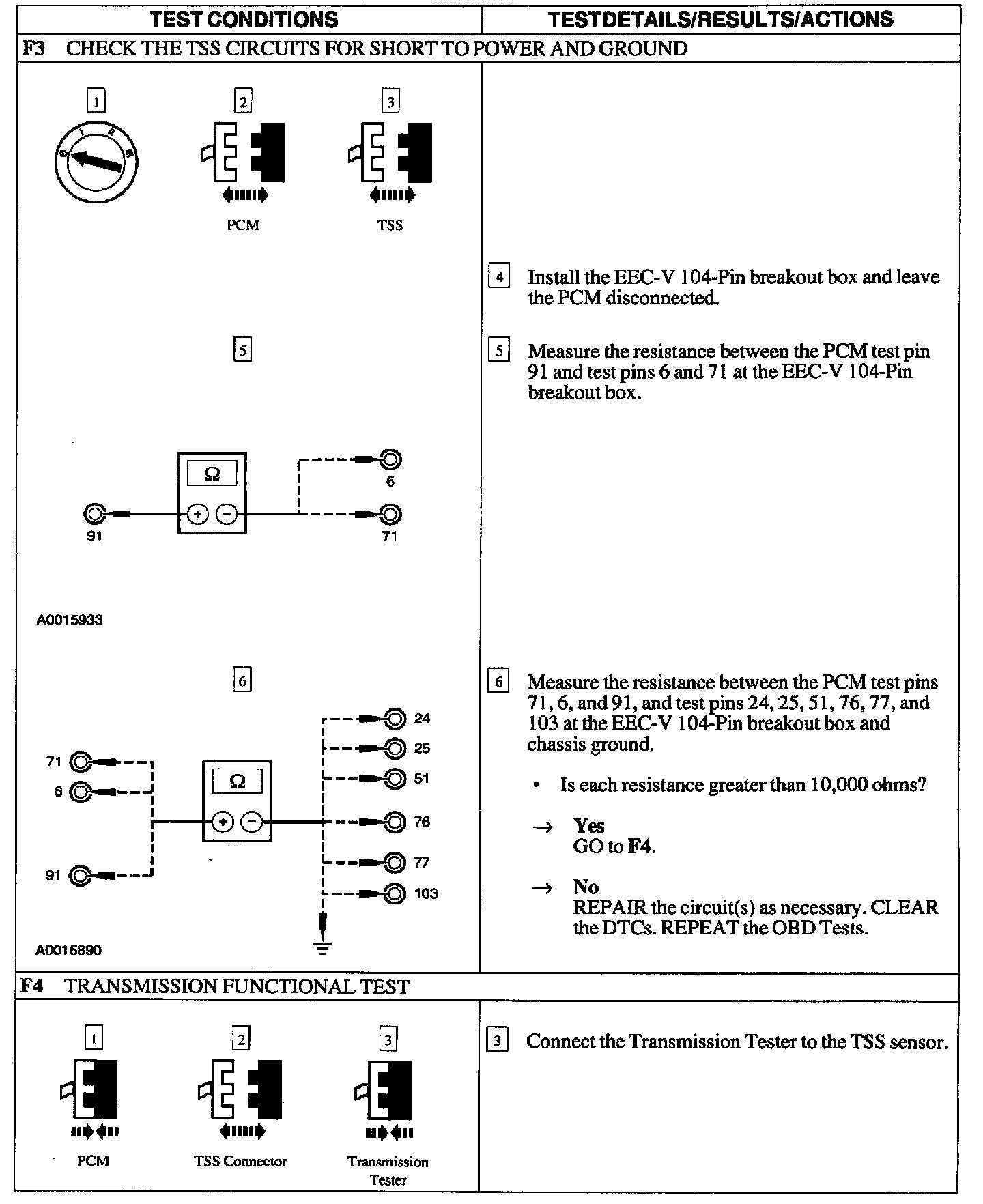

F3 - F4

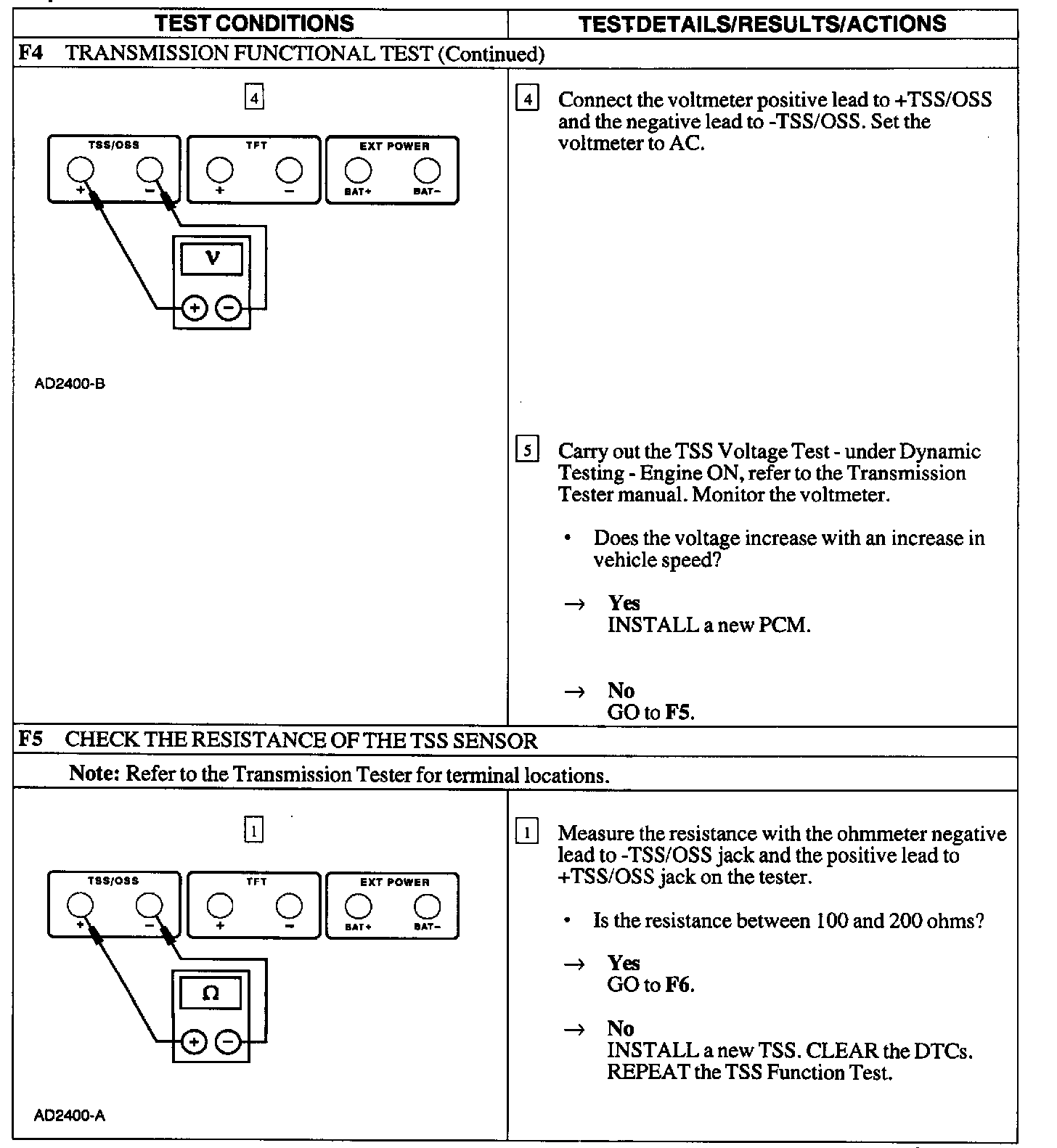

F4 - F5

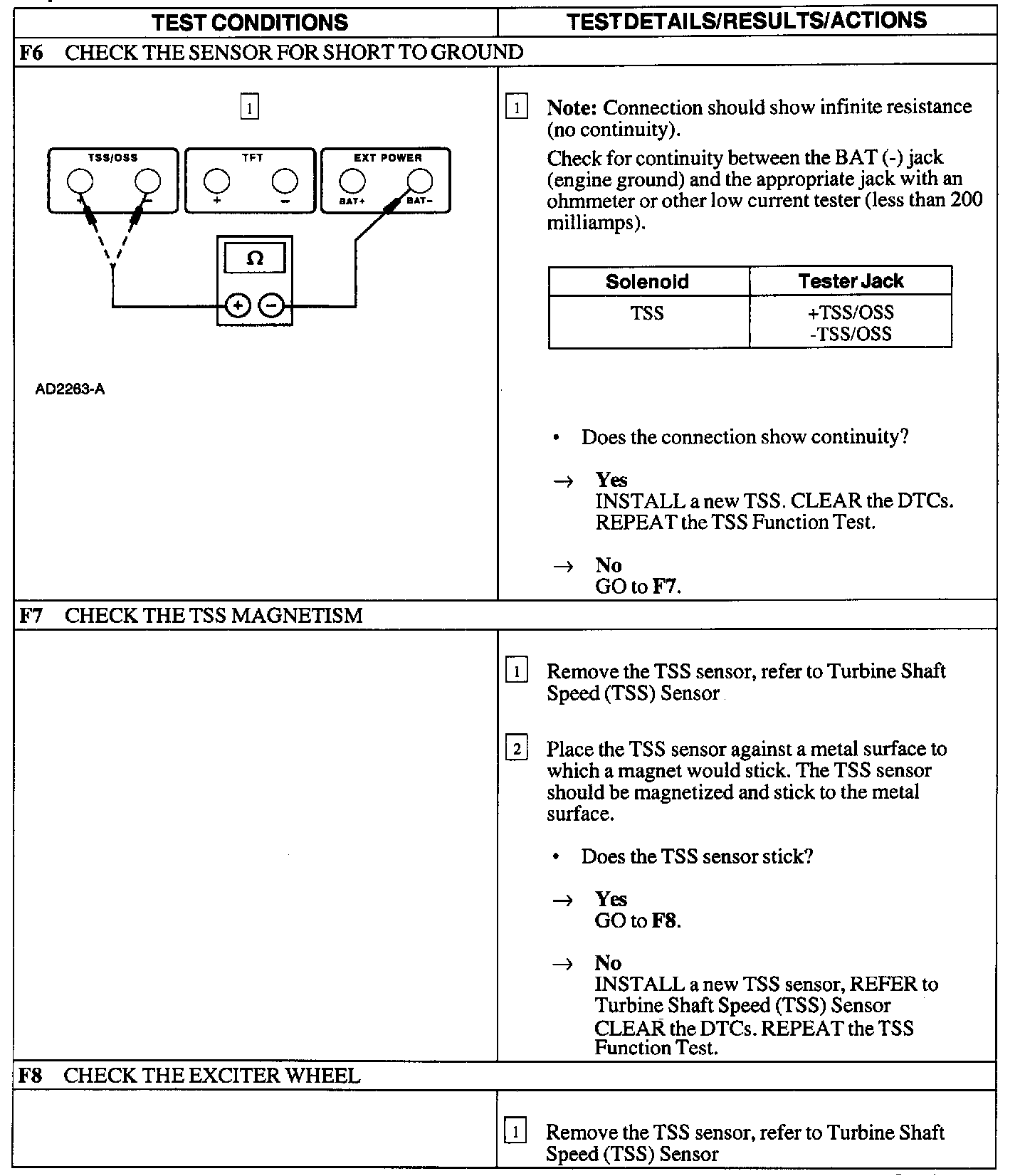

F6 - F8

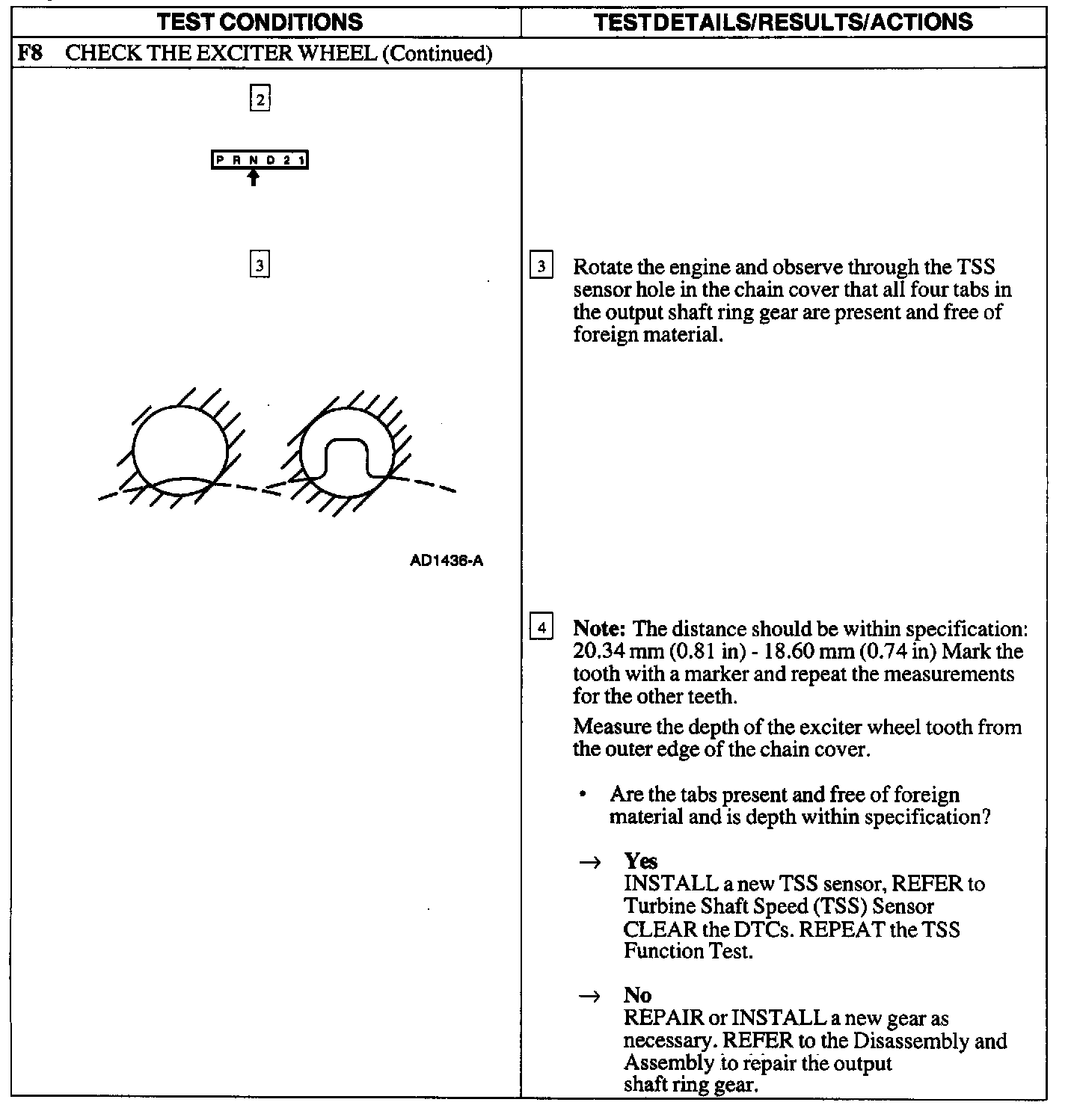

F8

Note: If necessary, refer to the Transaxle Connector Layouts.
