Test A: Shift Solenoid

SHIFT SOLENOID PRE-DIAGNOSIS
Use the following shift solenoid operation information when carrying out pinpoint Test A.

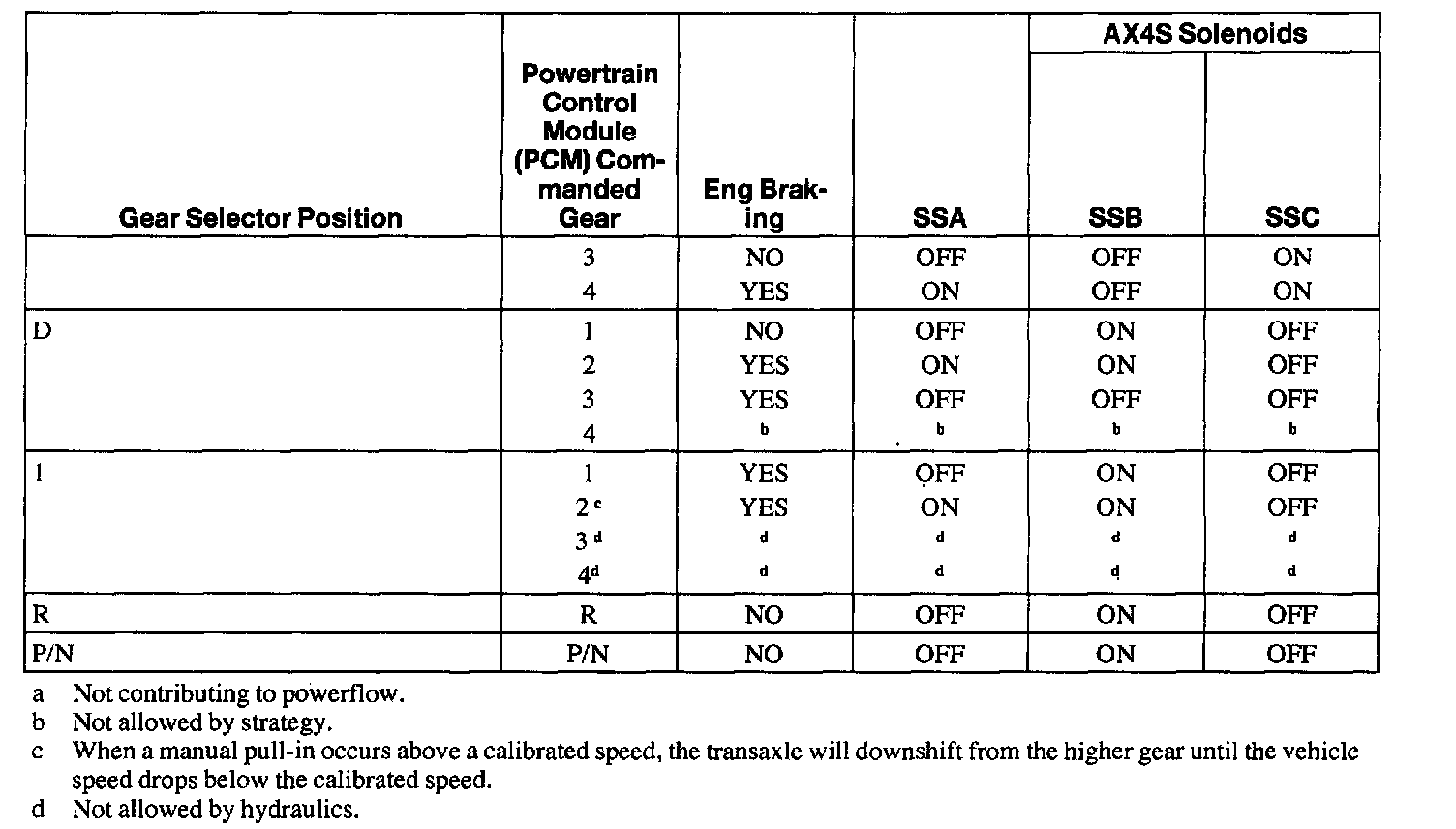

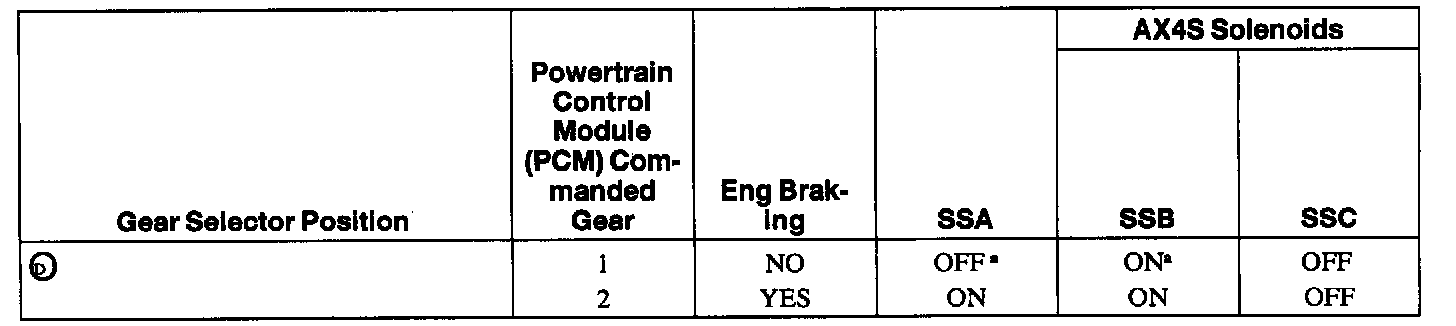

Solenoid Operation Chart

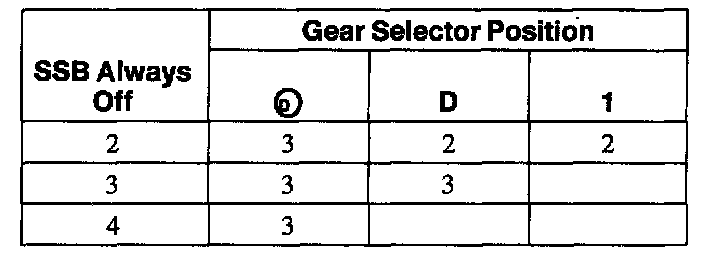

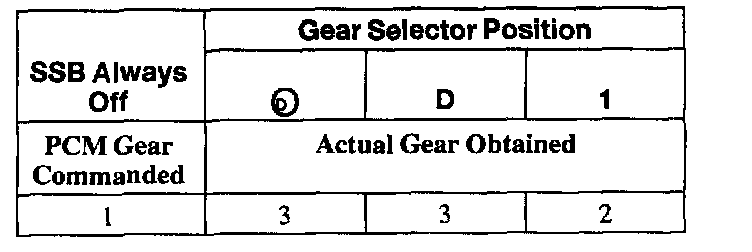

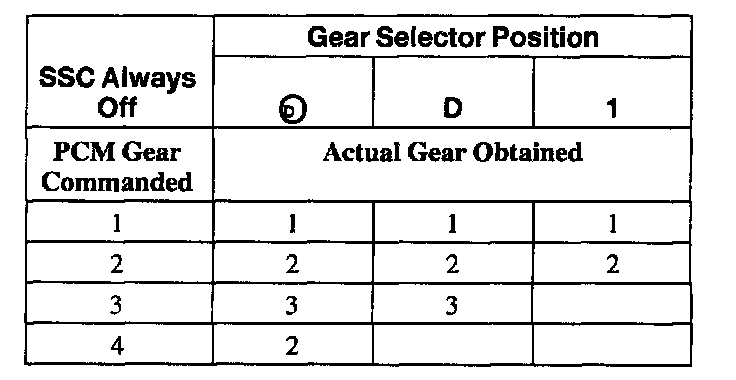

Shift Solenoid Failure Mode Chart "Always Off"
Failed OFF due to Powertrain Control Module (PCM), vehicle wiring concerns, solenoid electrically stuck off, or hydraulically stuck off.

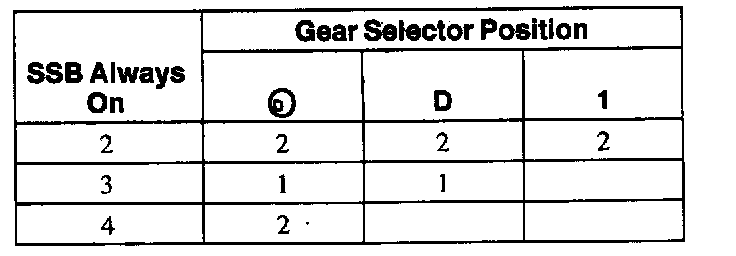

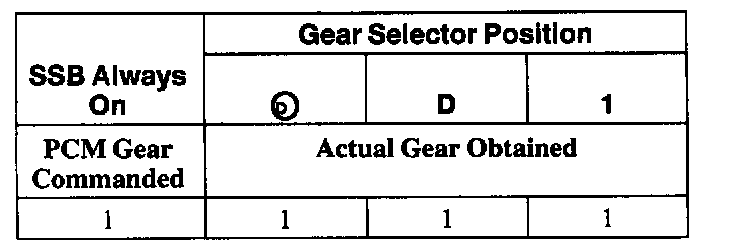

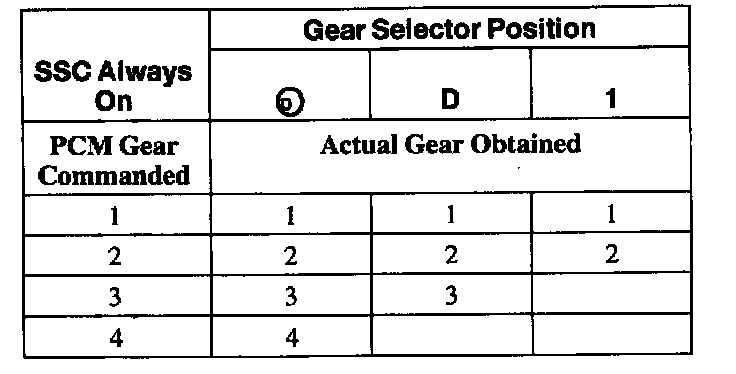

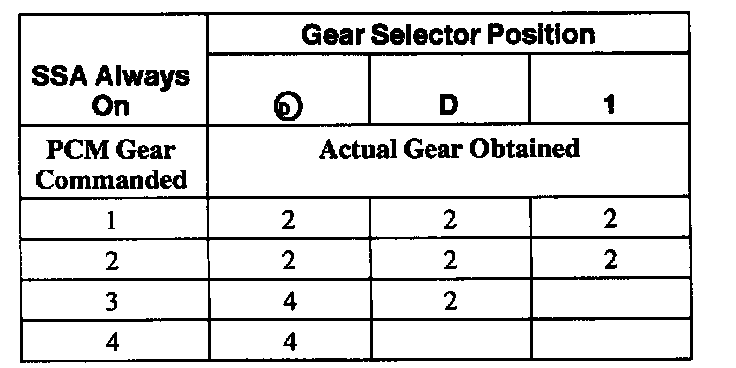

Shift Solenoid Failure Mode Chart "Always On"
Failed ON due to PCM, vehicle wiring concerns, solenoid electrically or mechanically stuck on.


PINPOINT TEST STEPS:

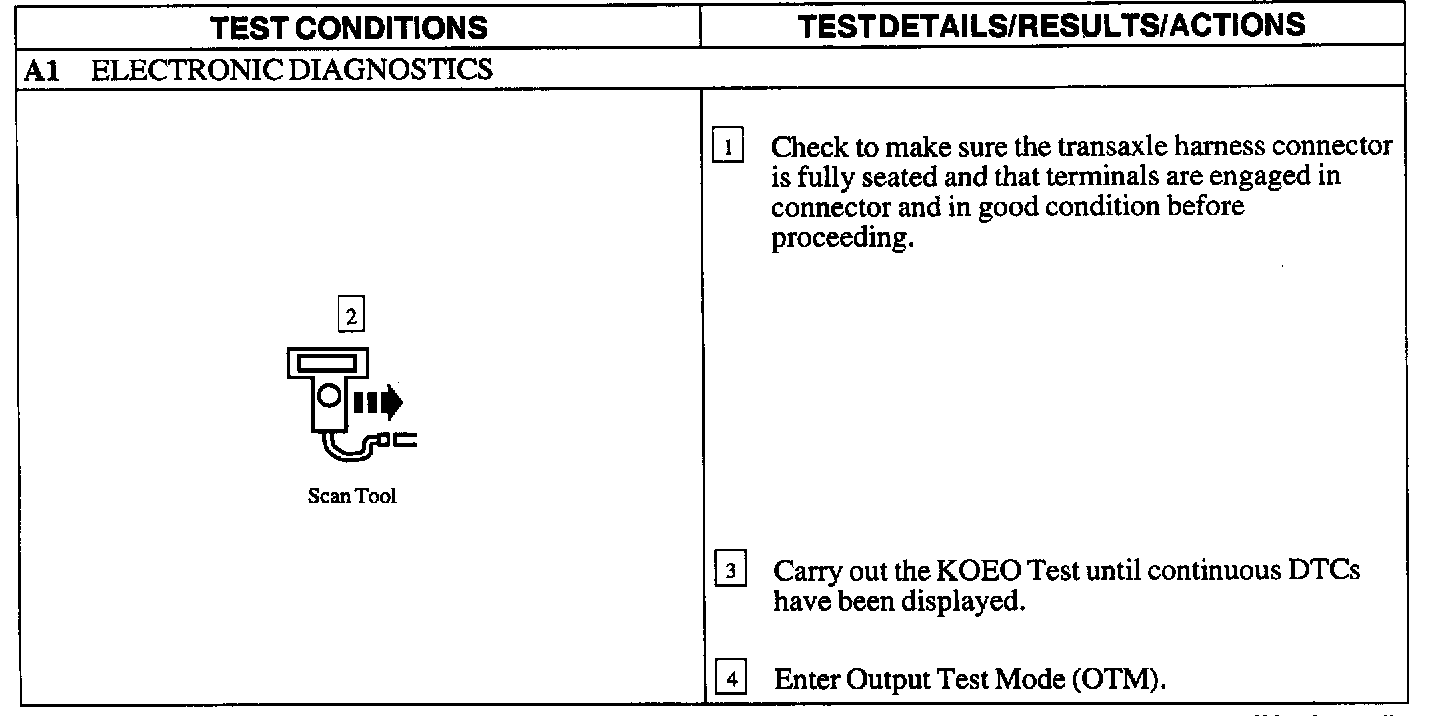

A1

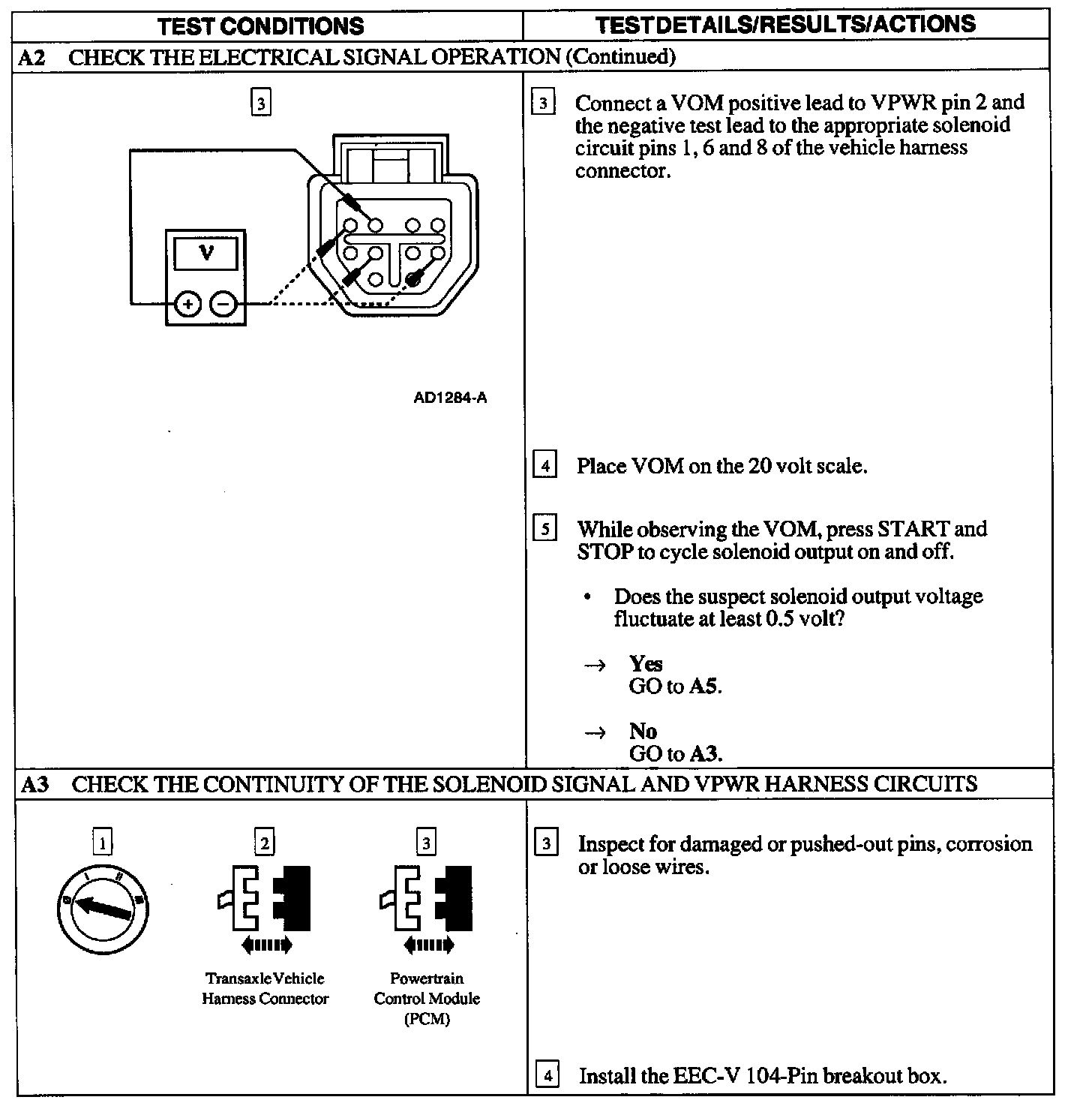

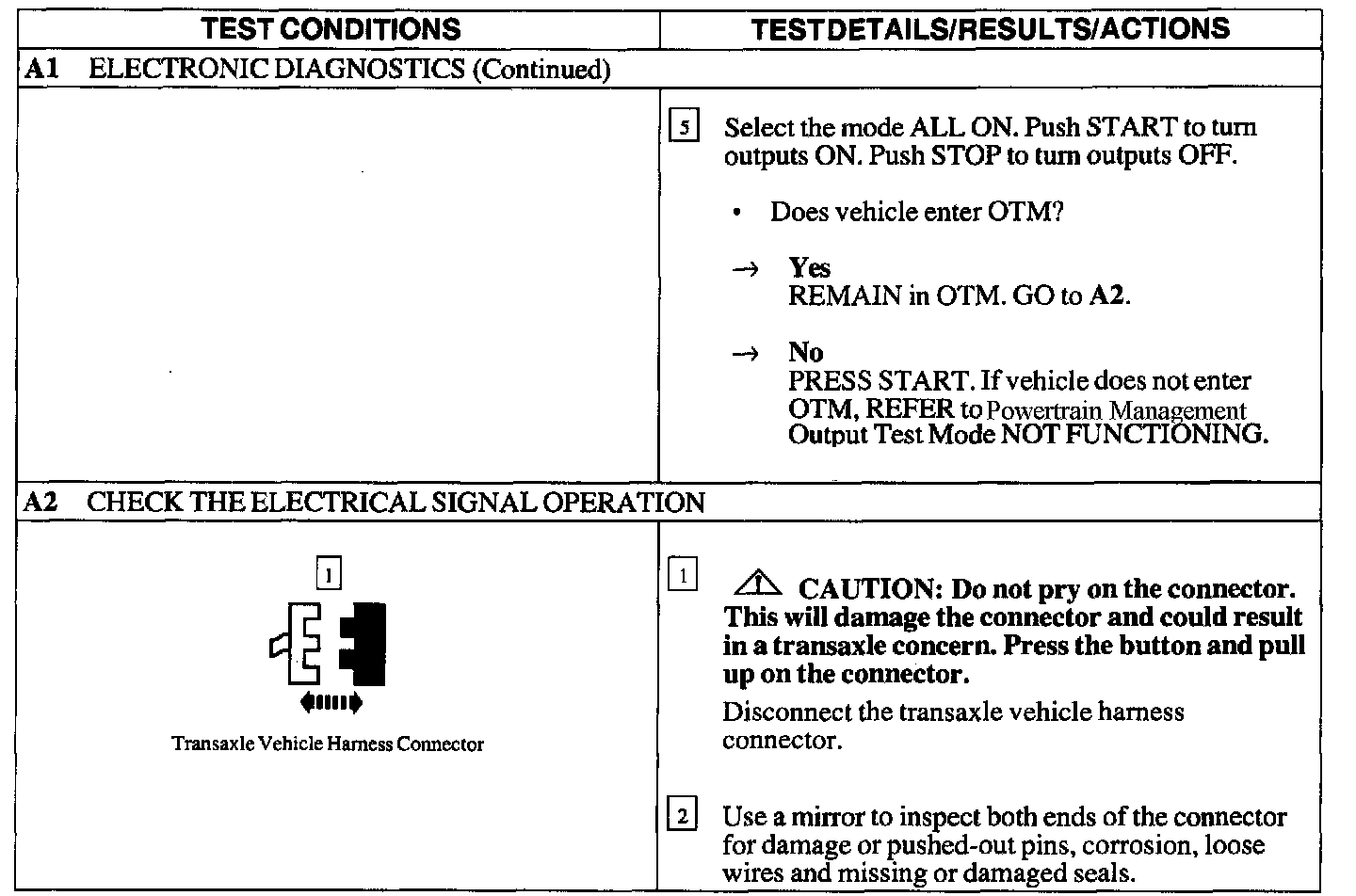

A1 - A2





A2 - A3

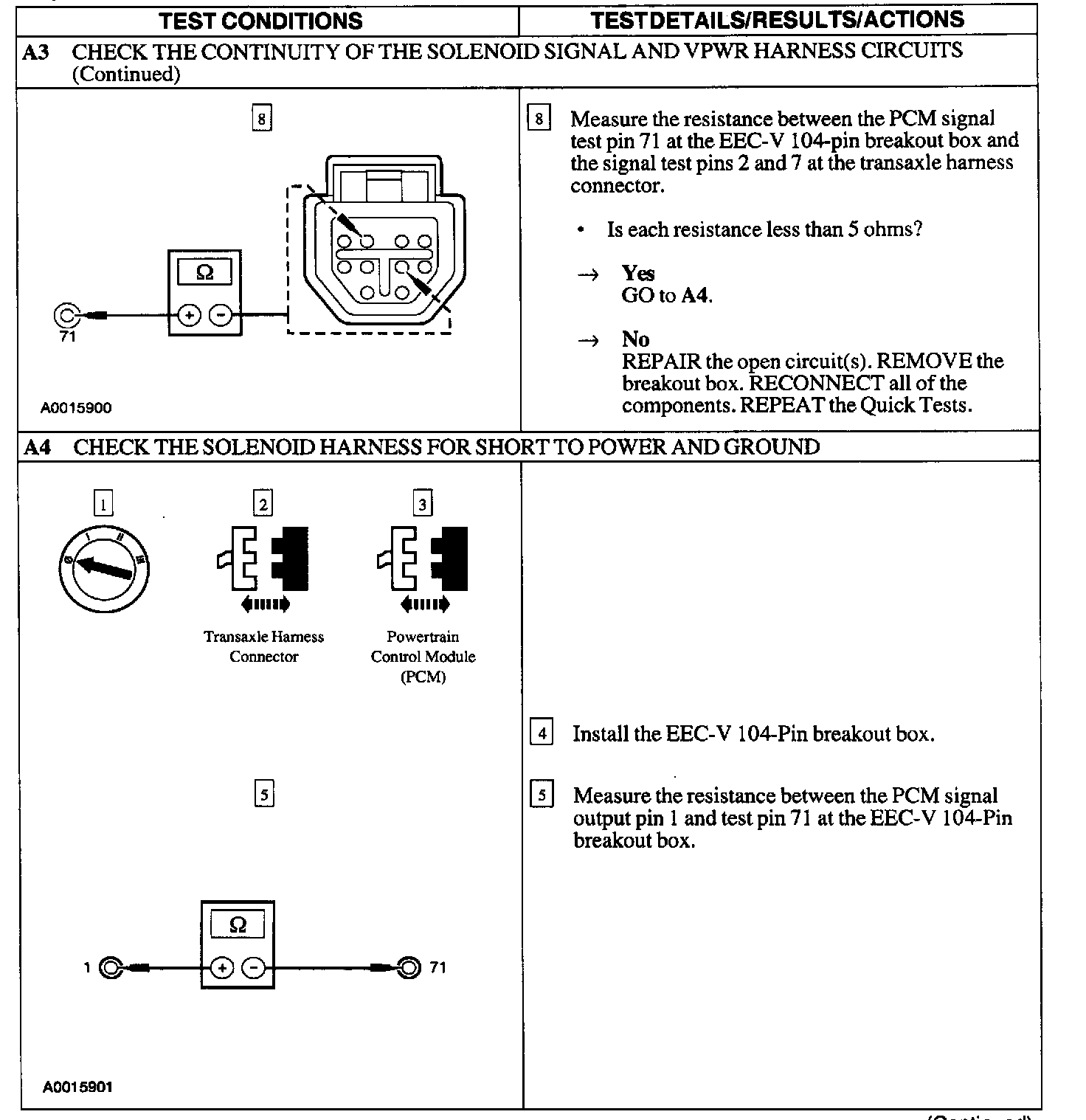

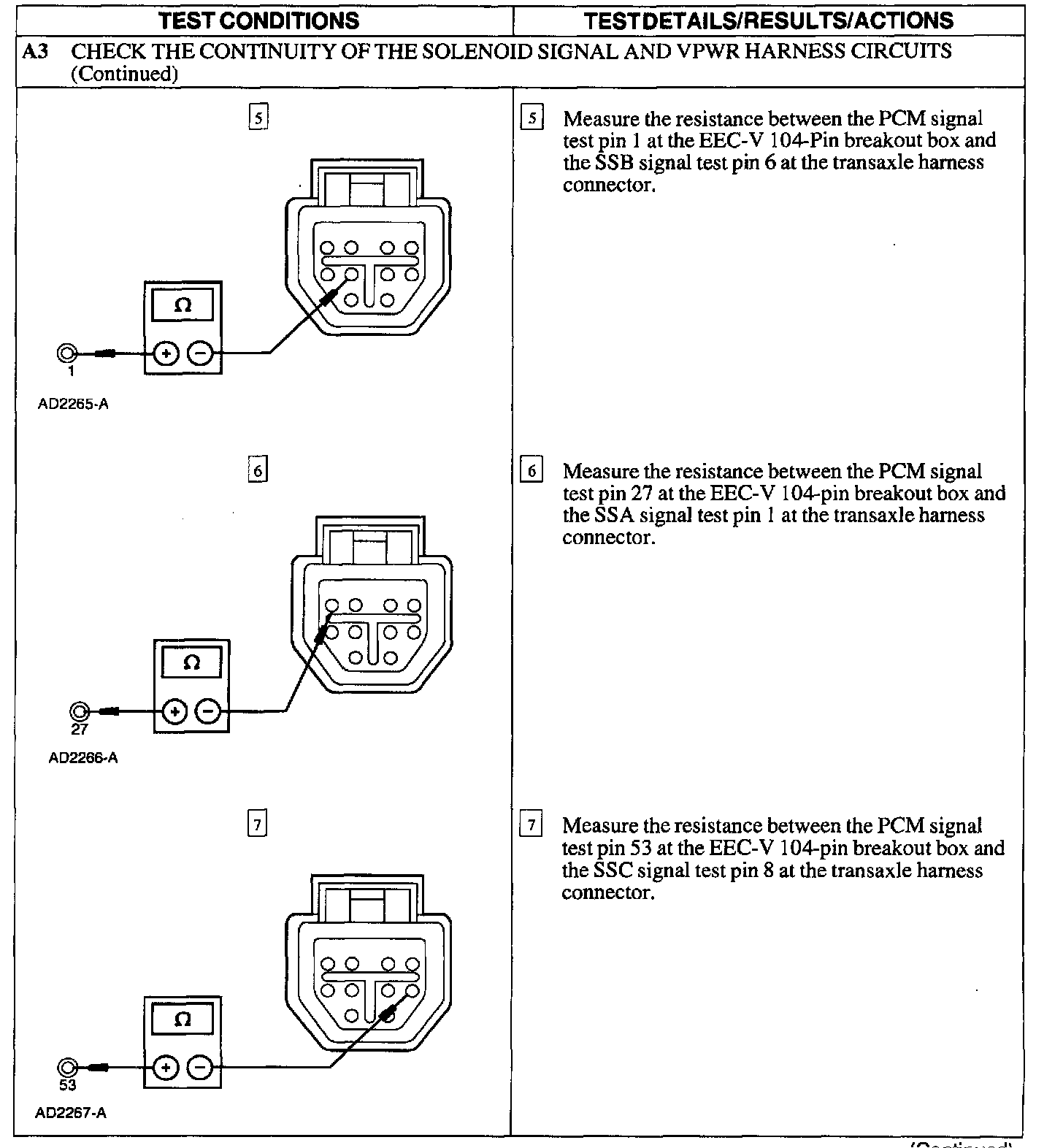

A3





A3 - A4

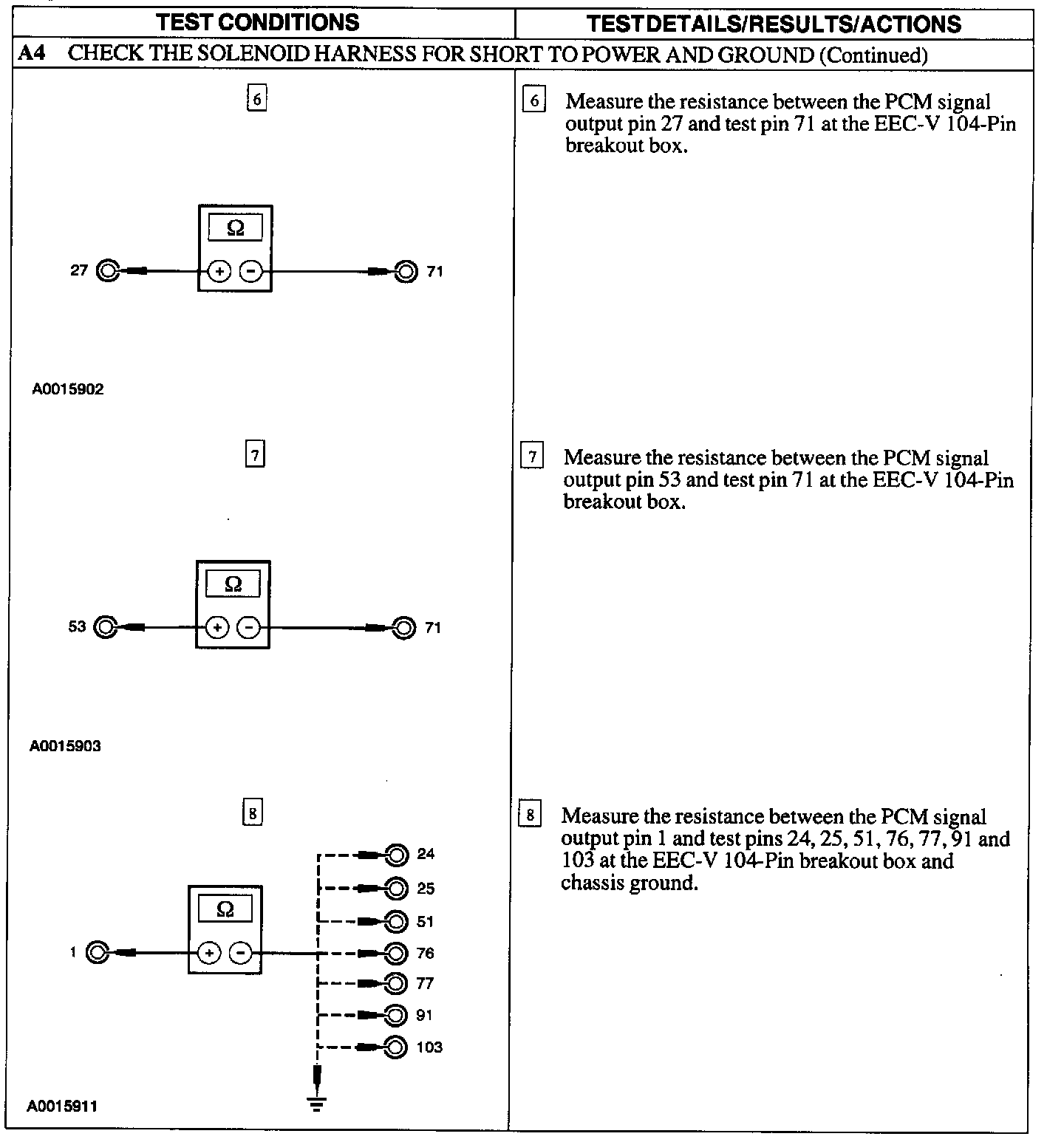

A4

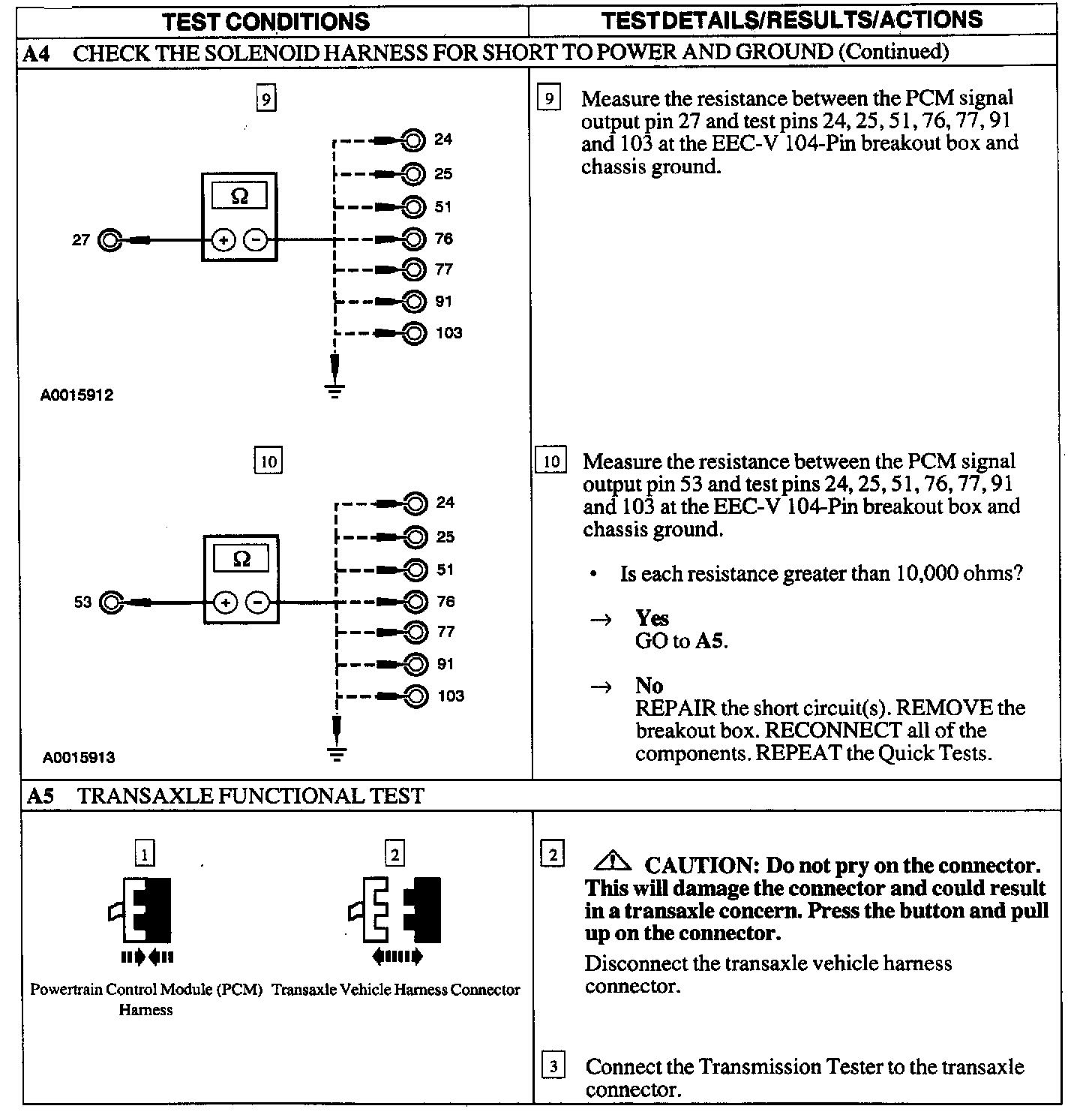

A4 - A5

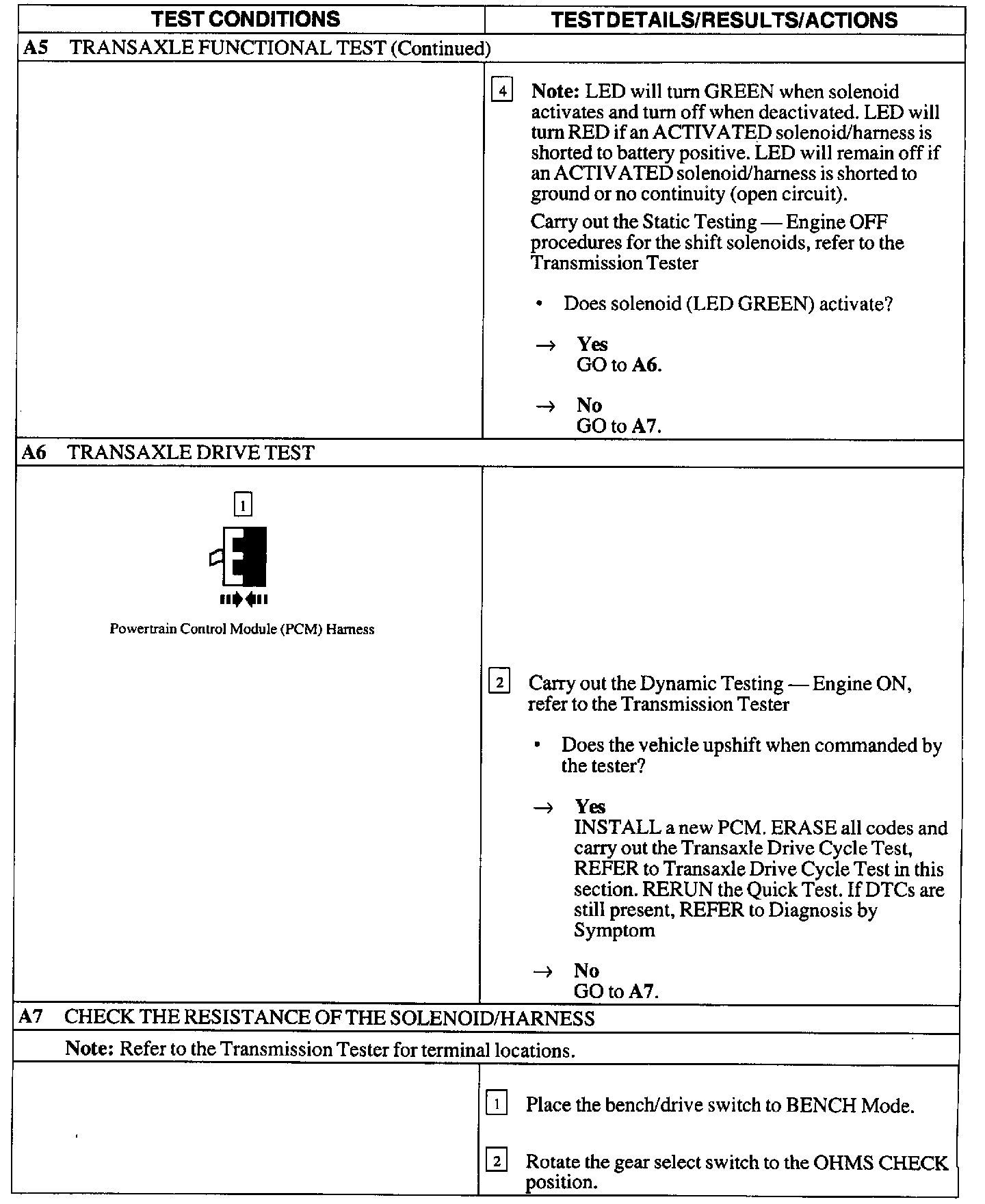

A5 - A7

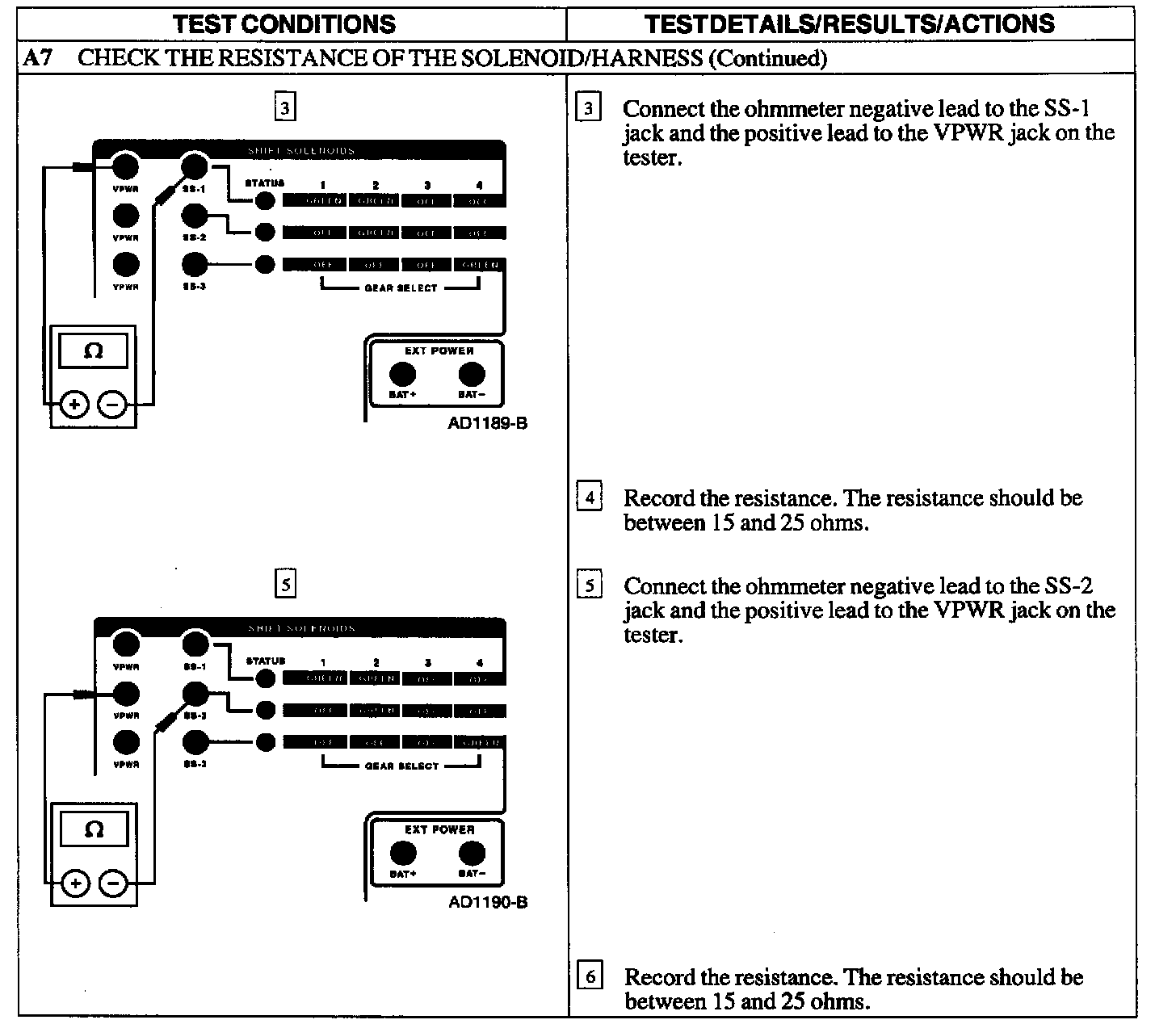

A7

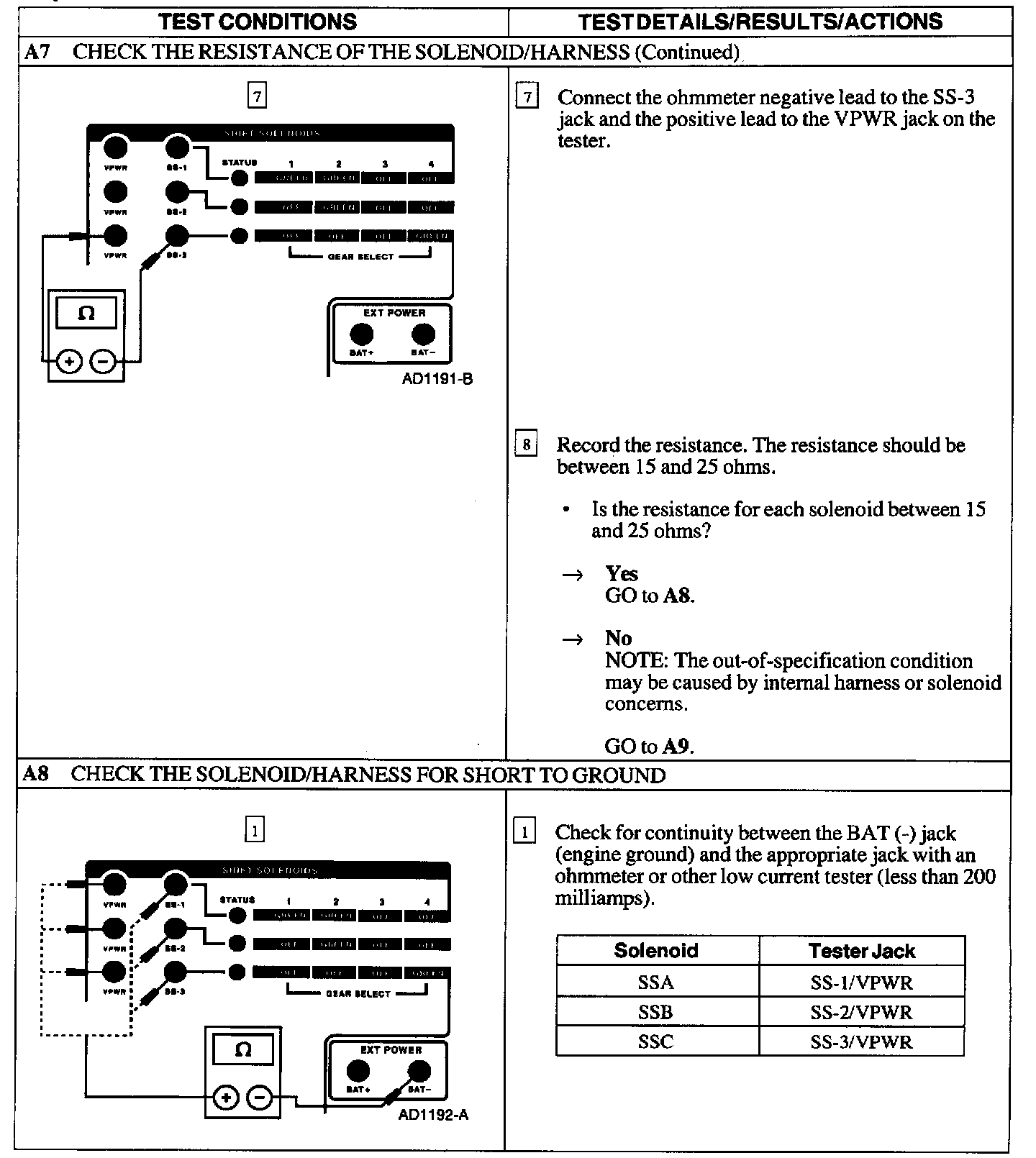

A7 - A8

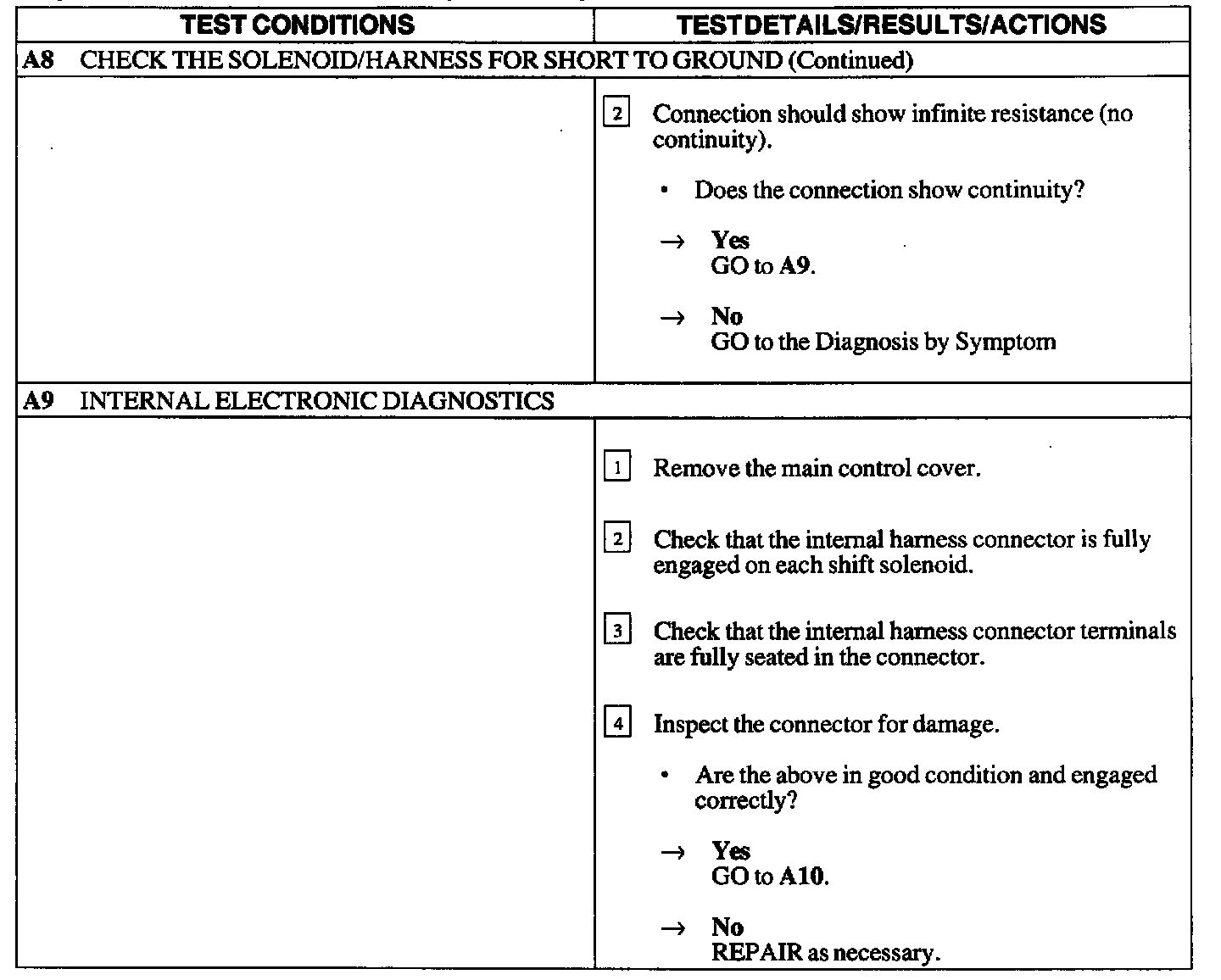

A8 - A9

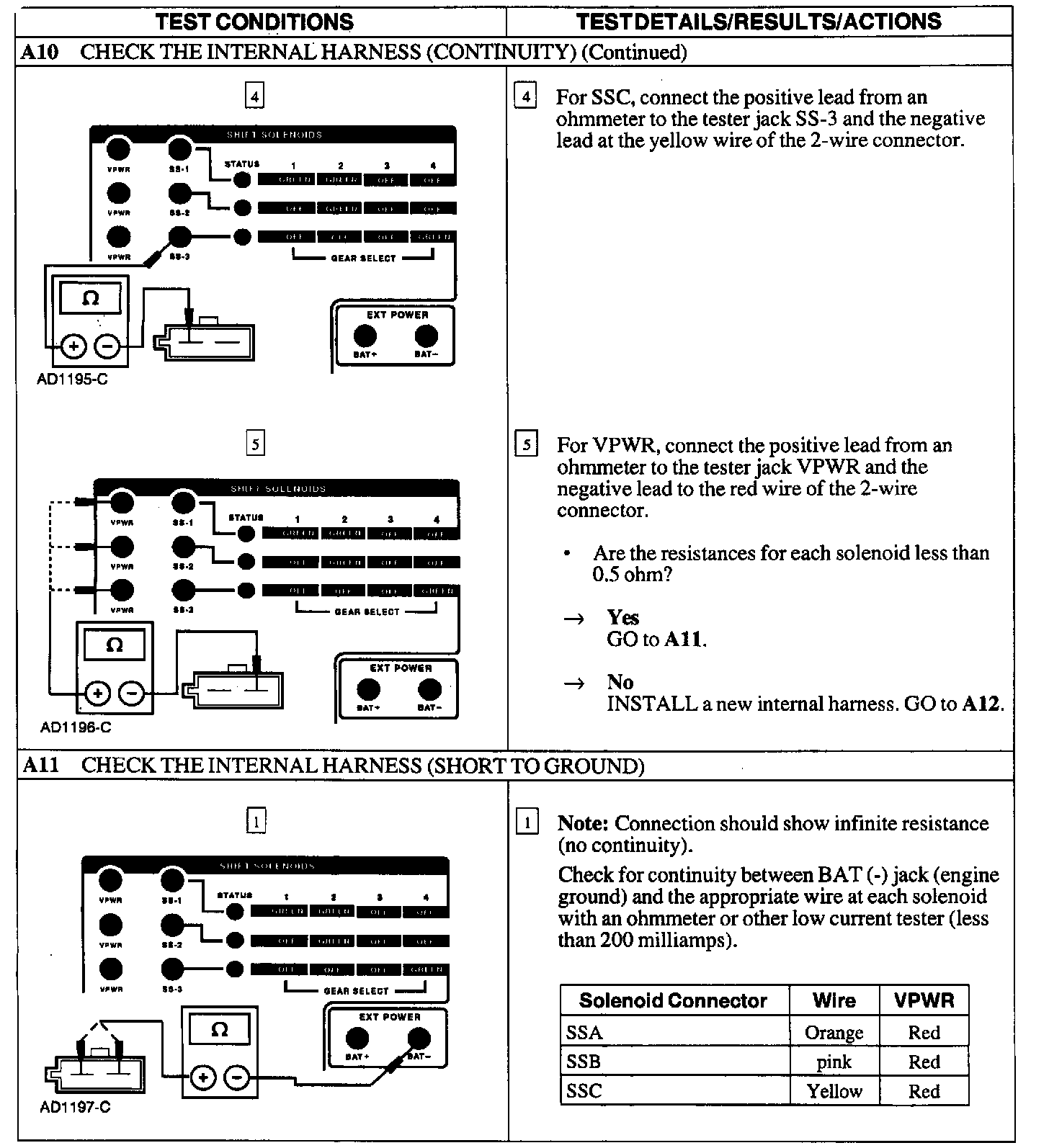

A10





A10 - A11





A11 - A12

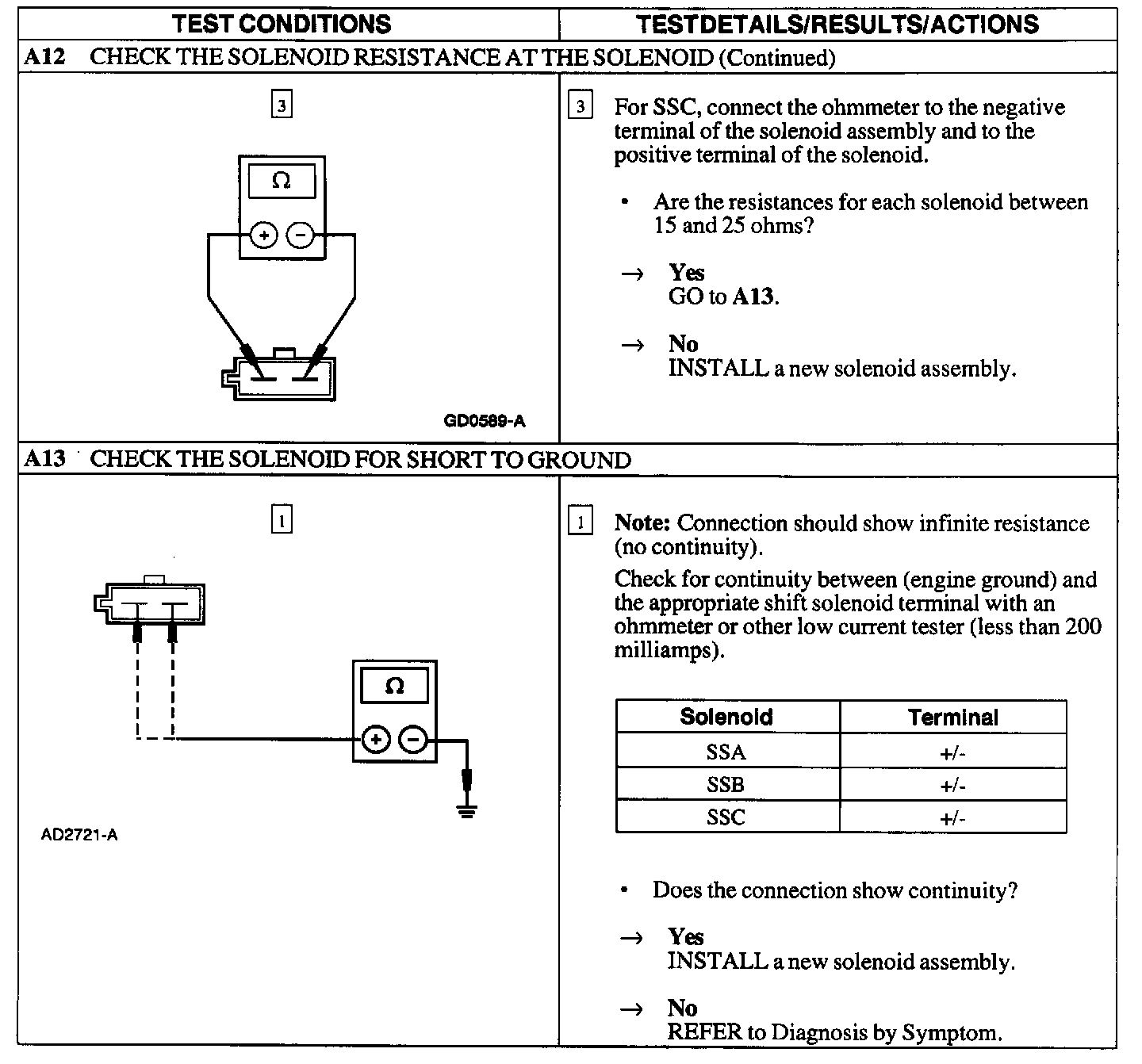

A12 - A13

Note: If necessary, refer to the Transaxle Connector Layouts.
