Transaxle Connector Layout

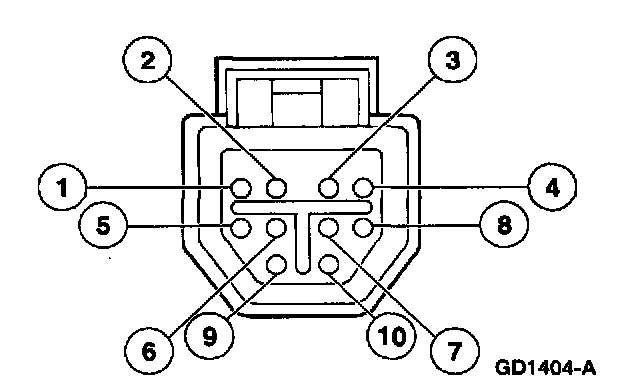

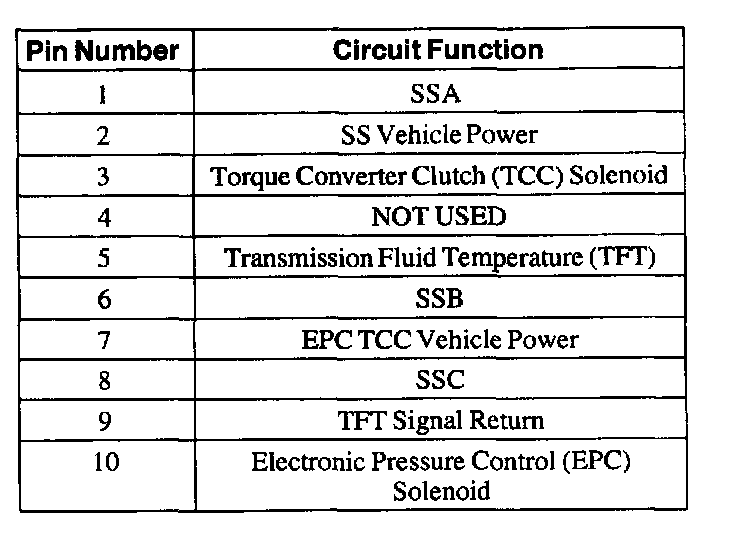

Transaxle Vehicle Harness Connector

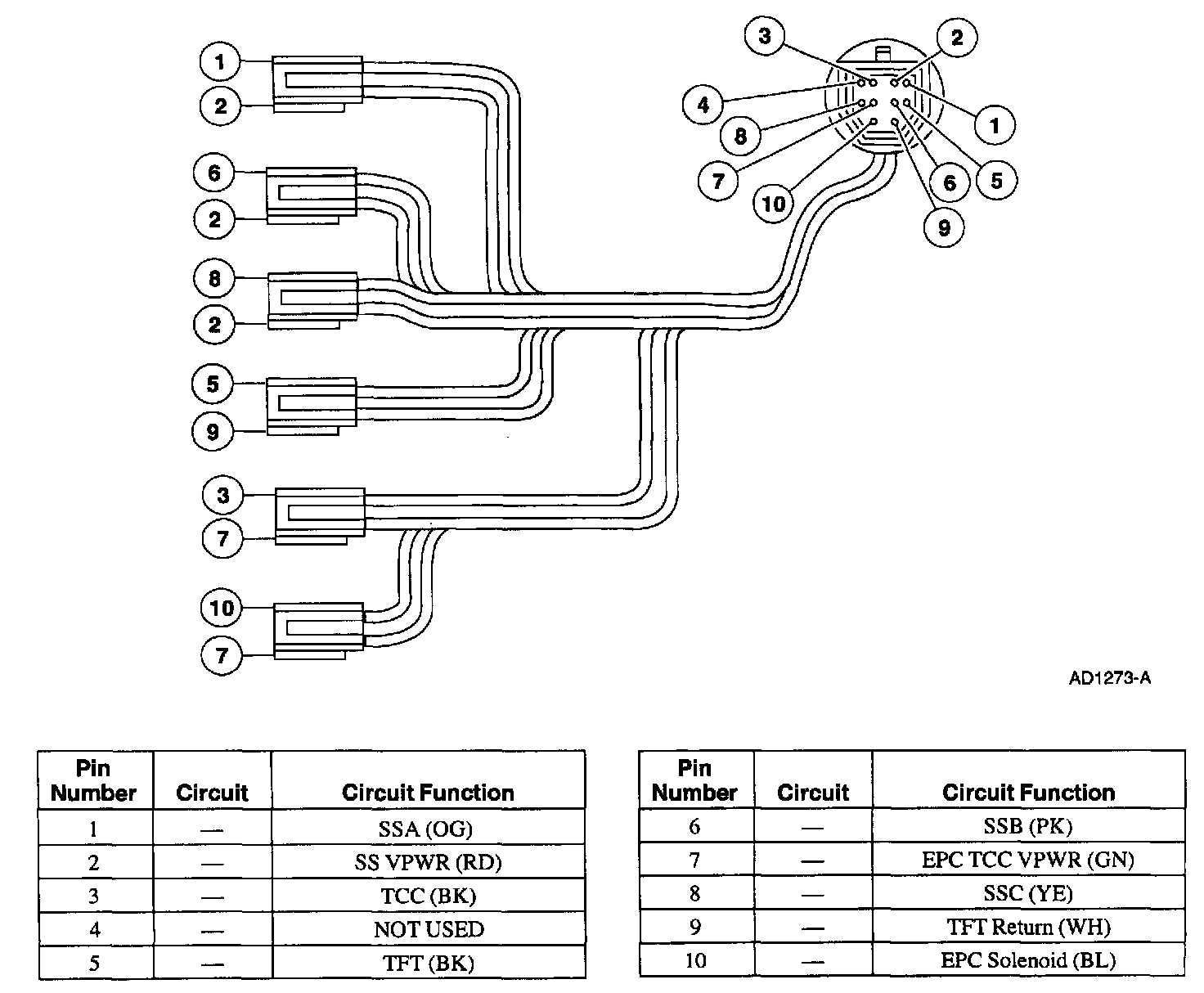

Transaxle Internal Harness Diagram

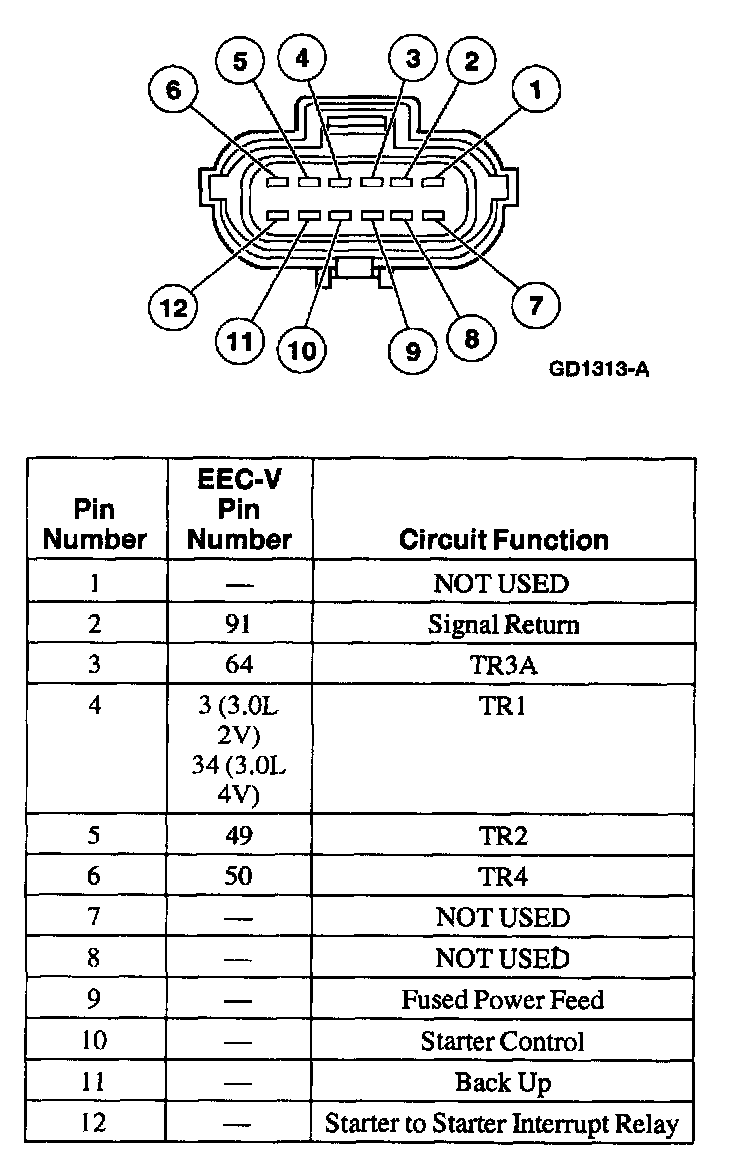

Digital Transmission Range (TR) Sensor Connector

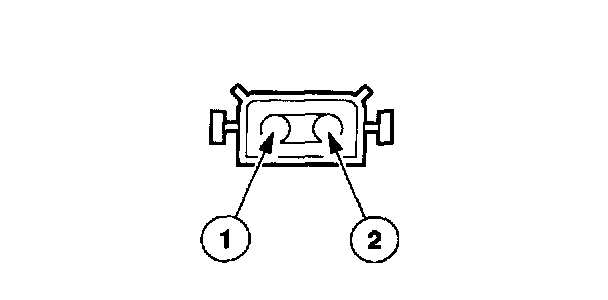

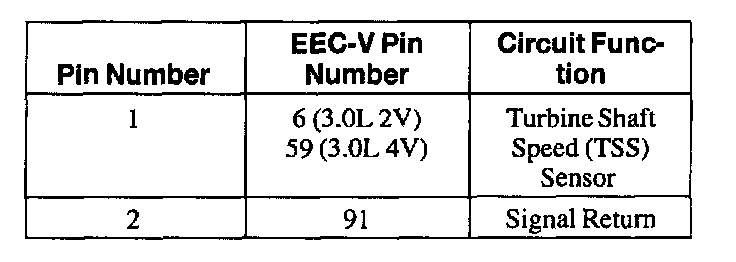

Turbine Shaft Speed (TSS) Sensor

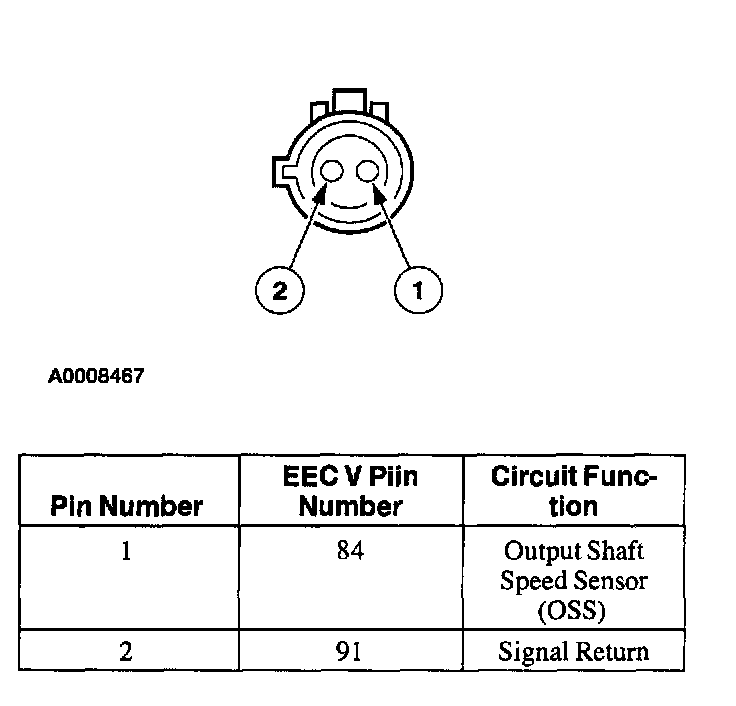

Output Shaft Speed (OSS) Sensor Connector
