Test G: Output Shaft Speed (OSS) Sensor

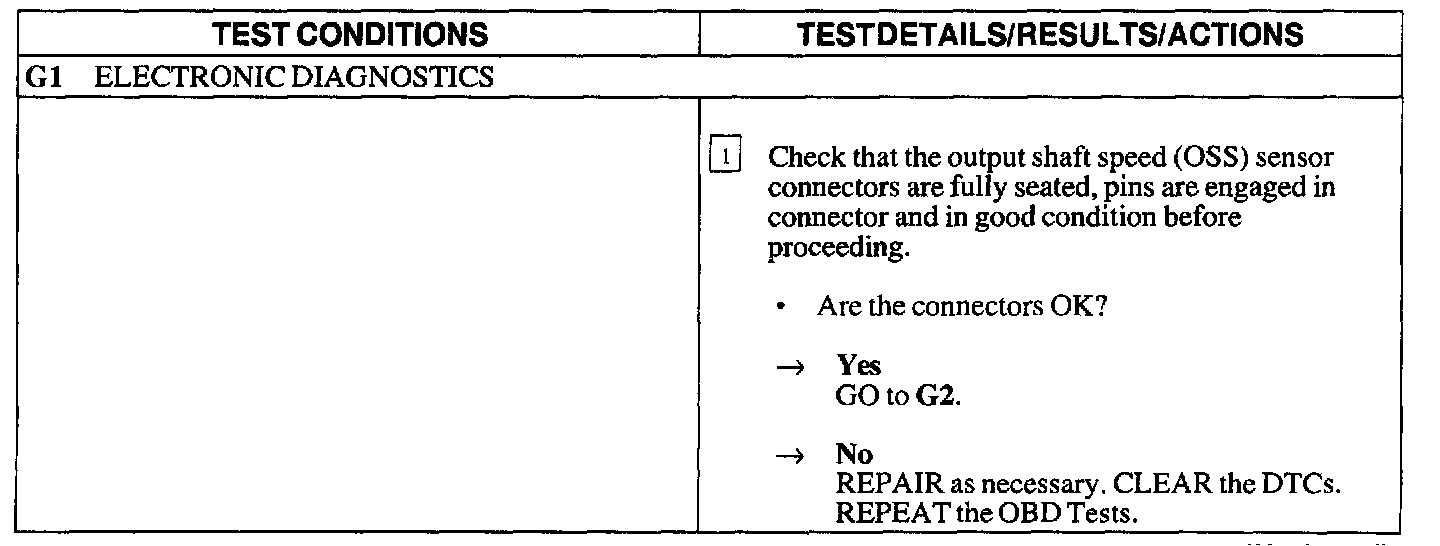

G1

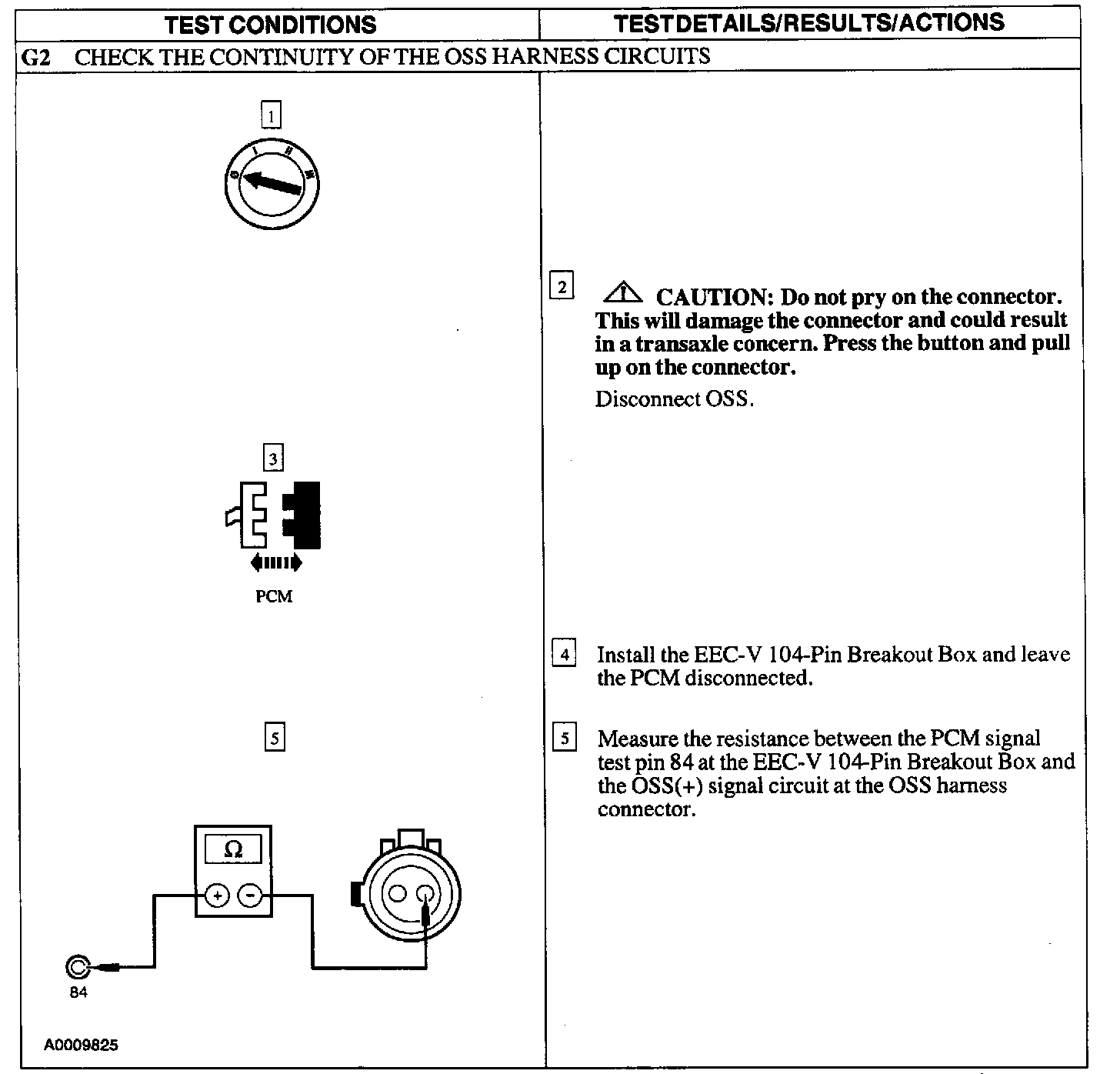

G2

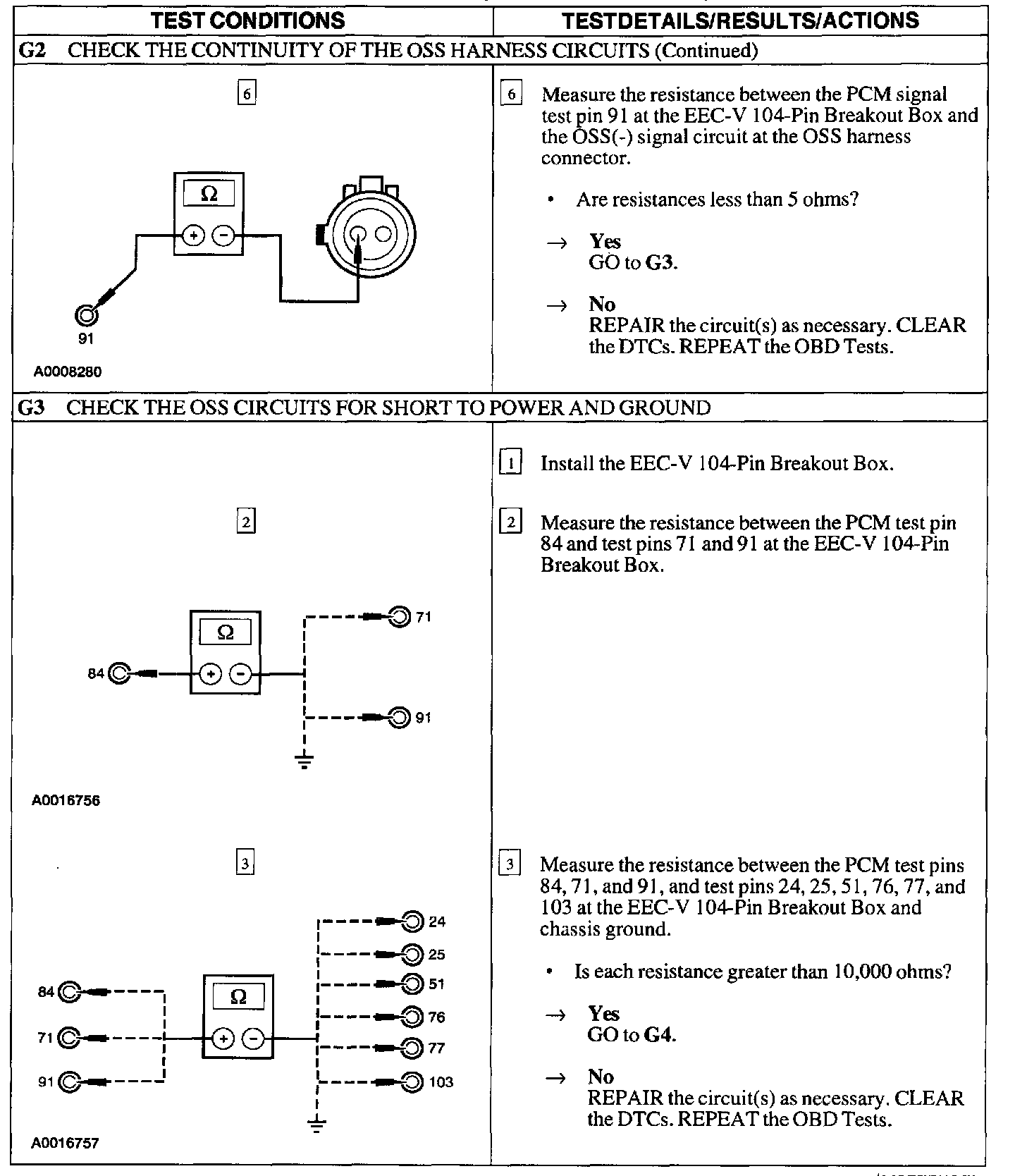

G2 - G3

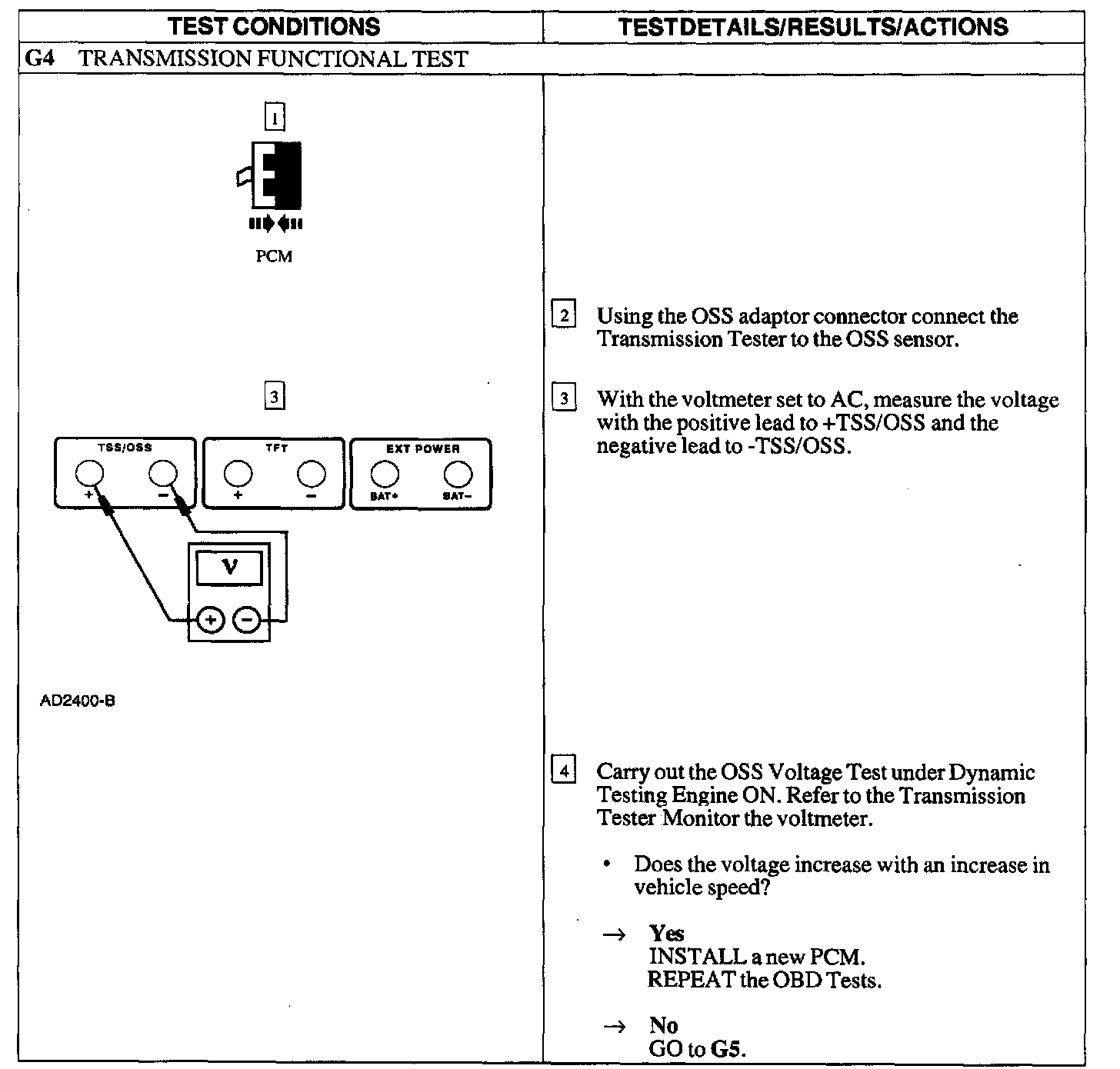

G4

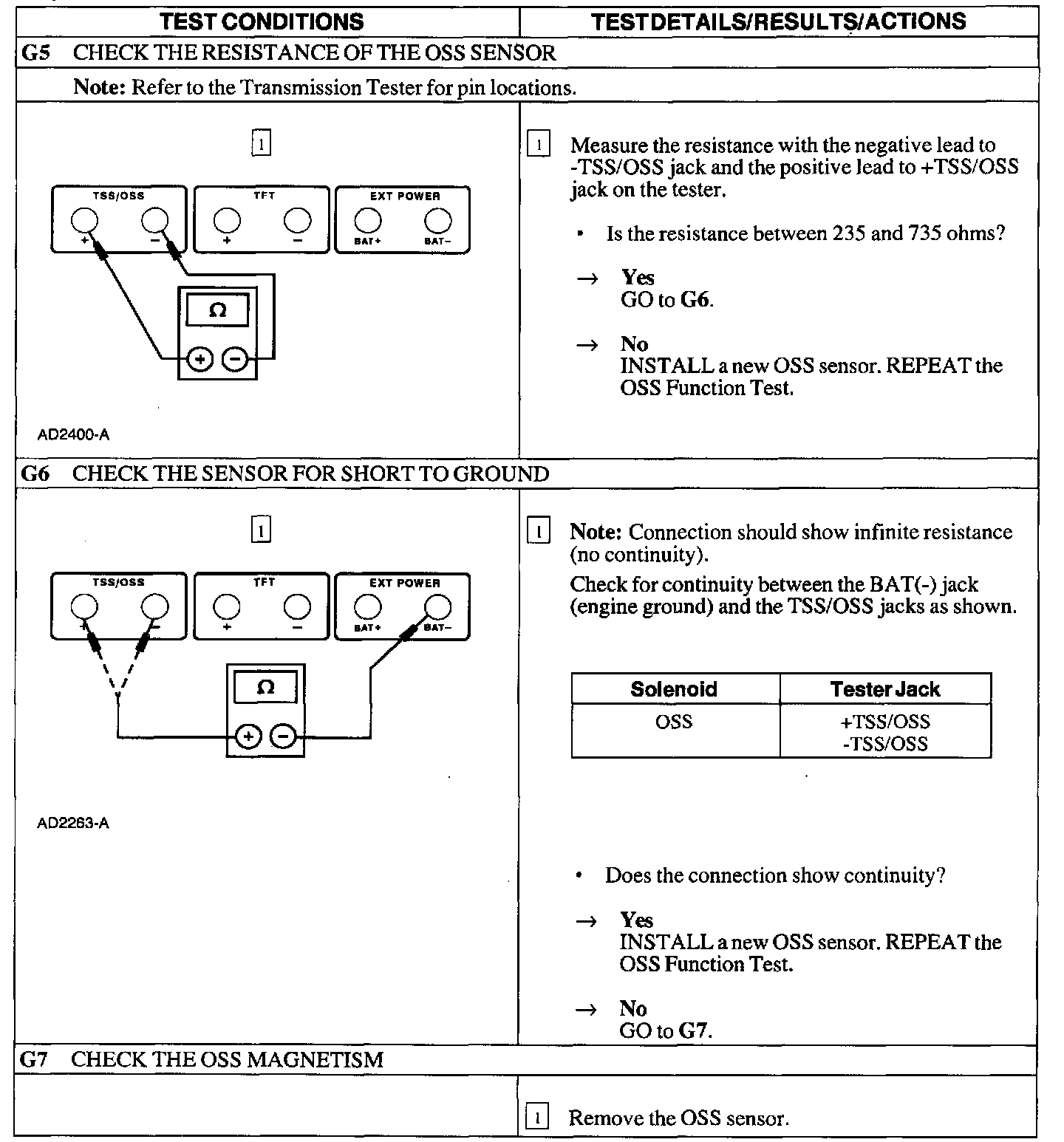

G5 - G7

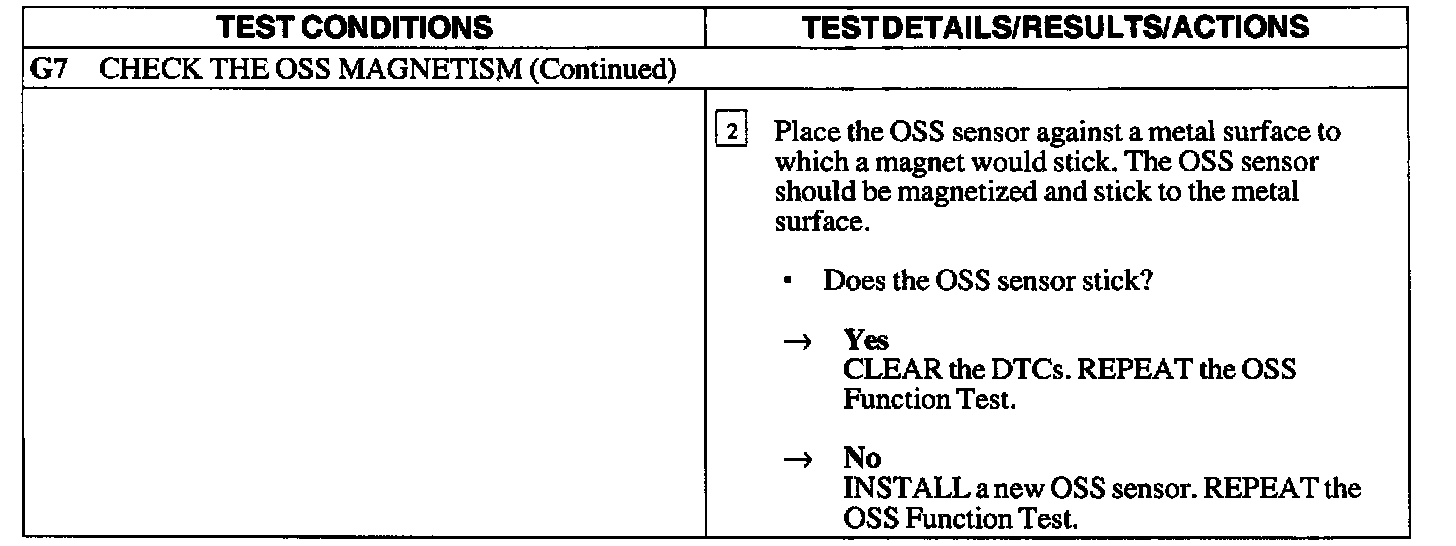

G7

Note: If necessary, refer to the Transaxle Connector Layouts.
