Test D: Digital Transmission Range (TR) Sensor

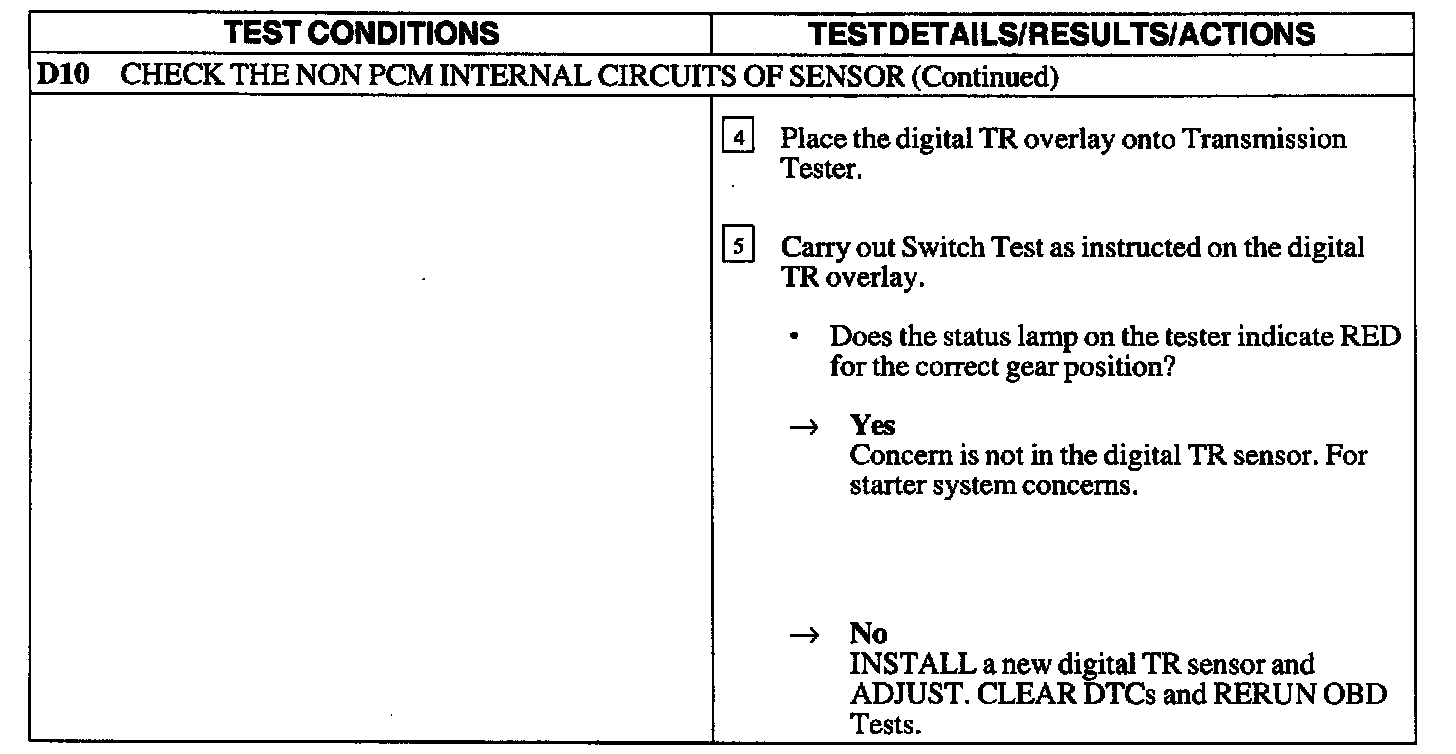

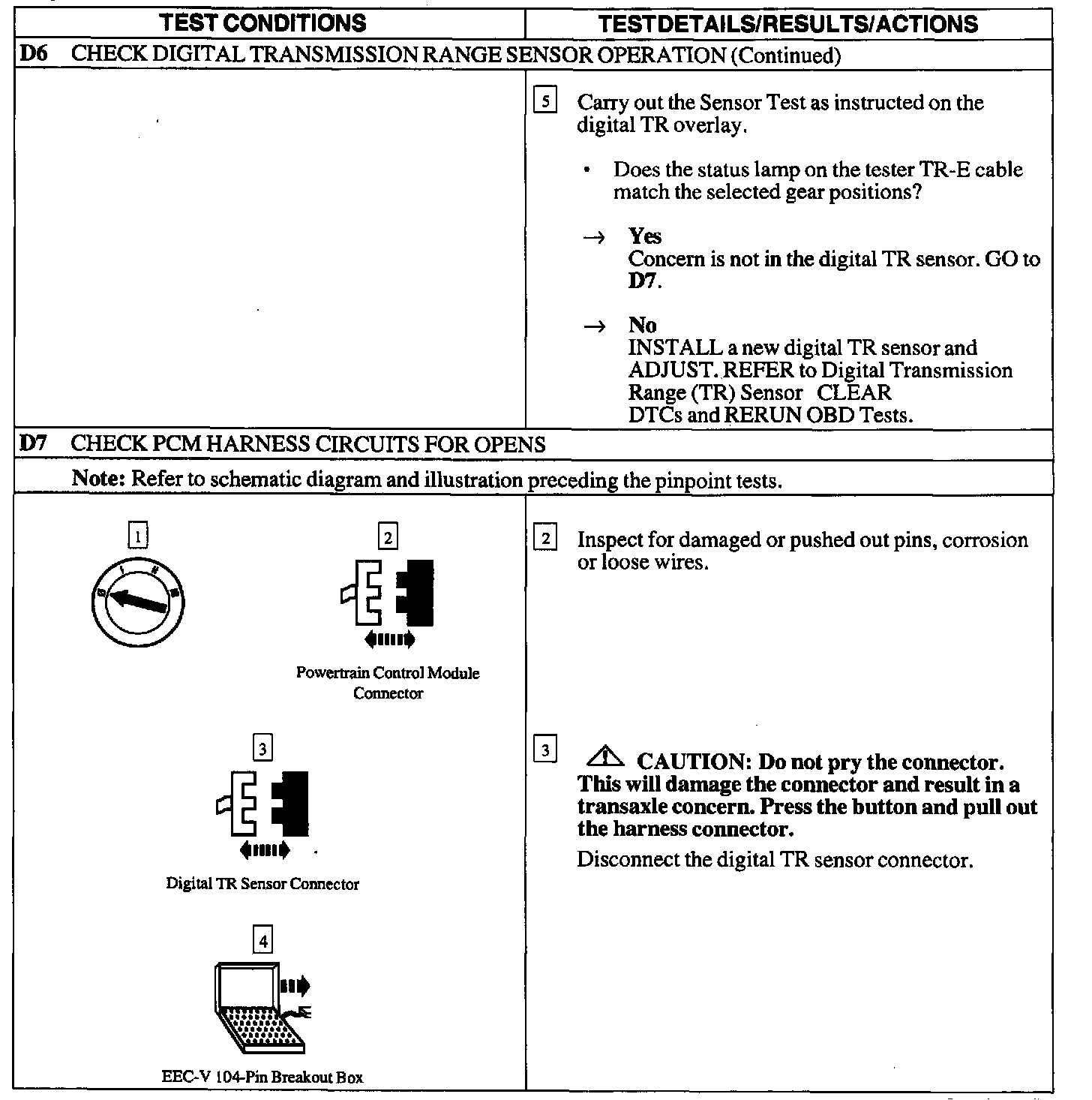

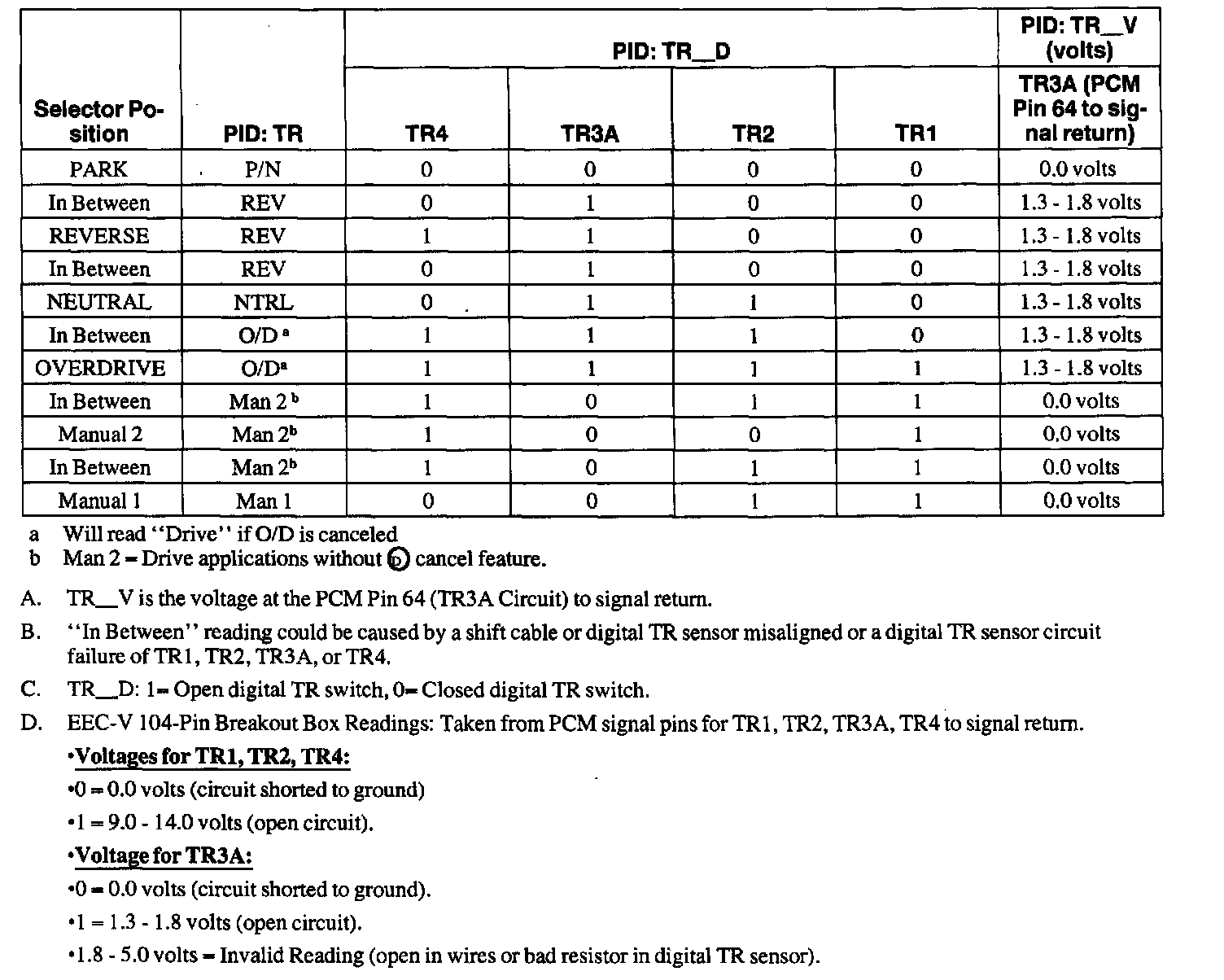

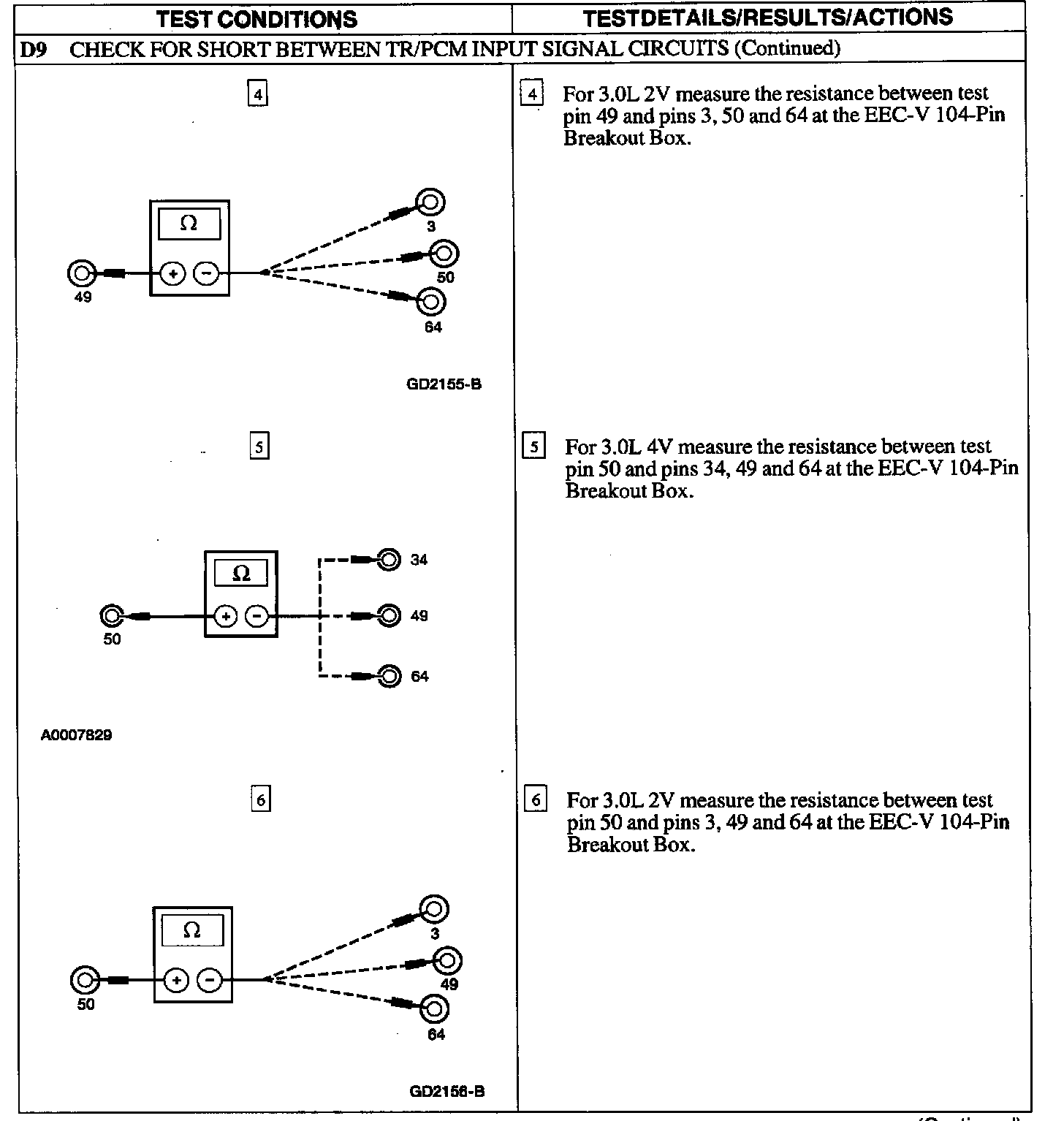

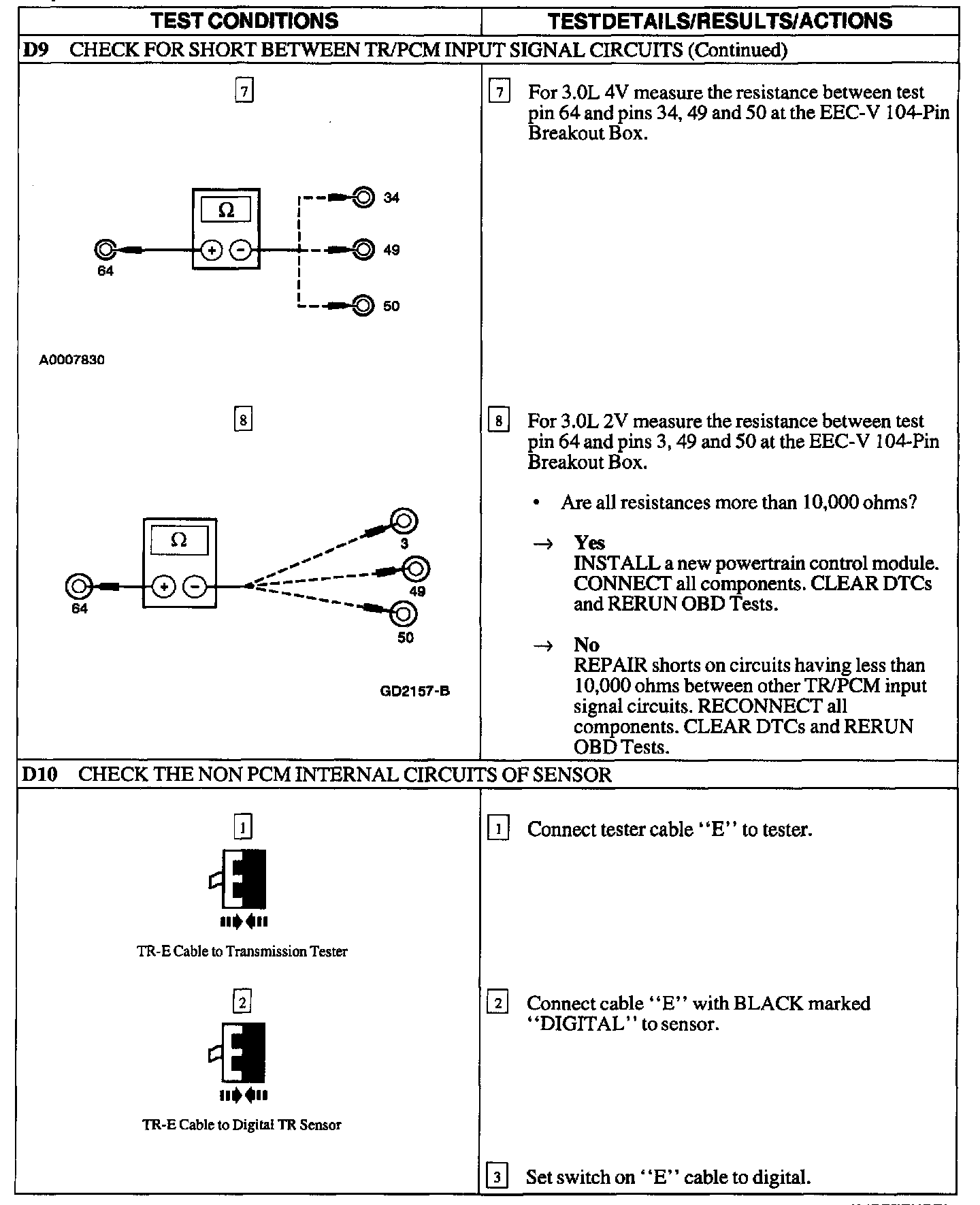

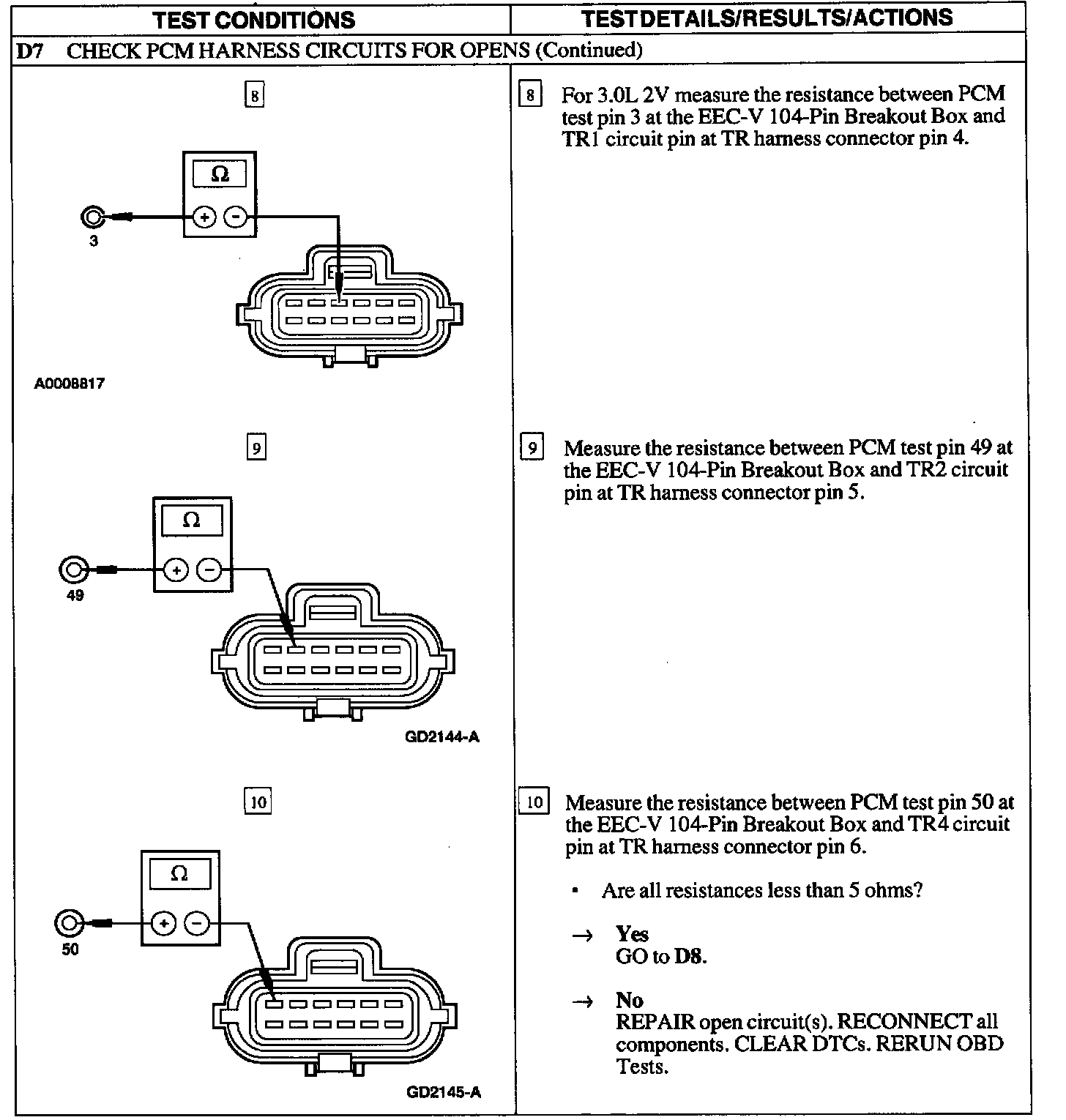

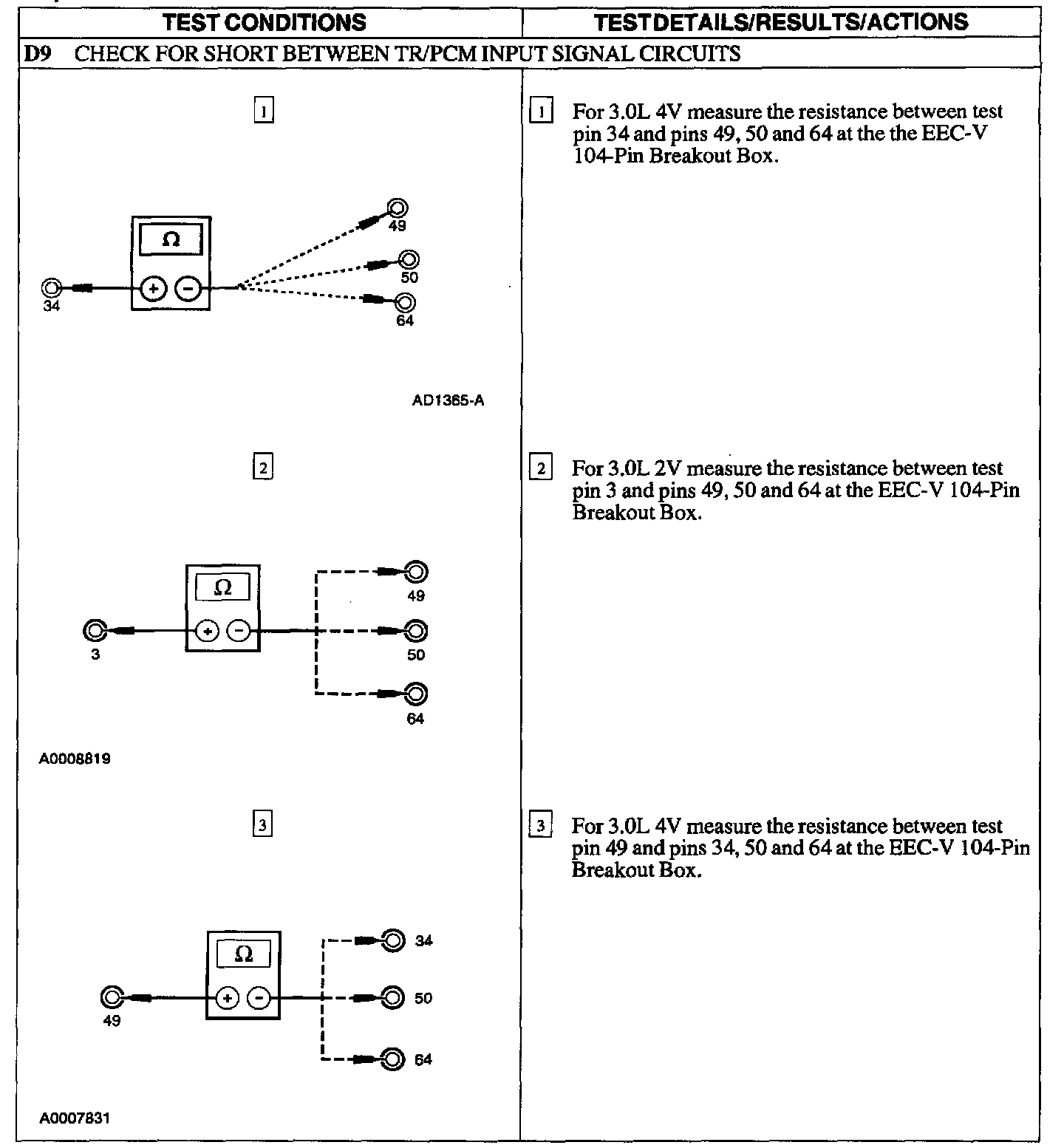

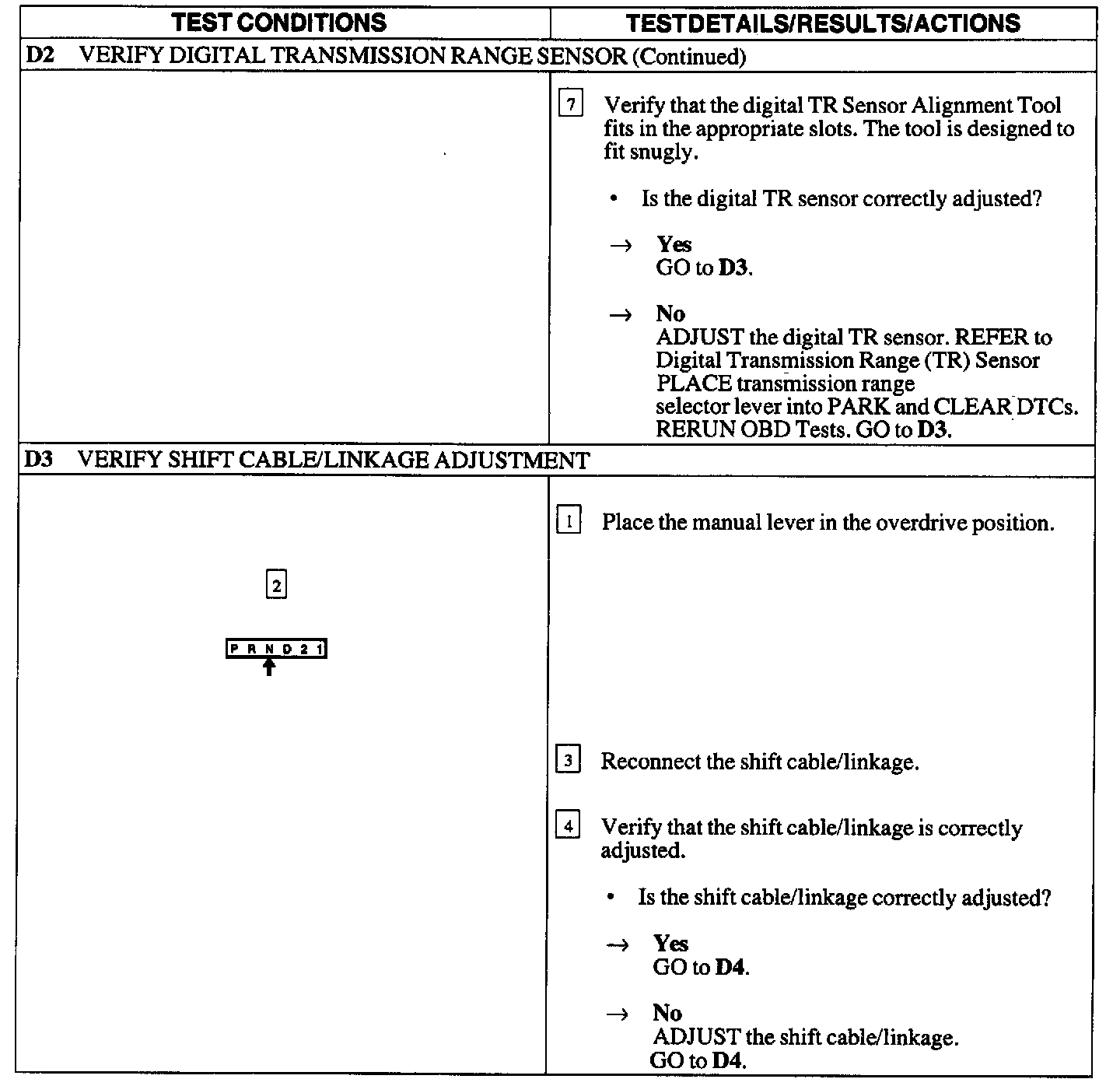

Digital Transmission Range (TR) Sensor Diagnosis Chart


Pinpoint Test Steps

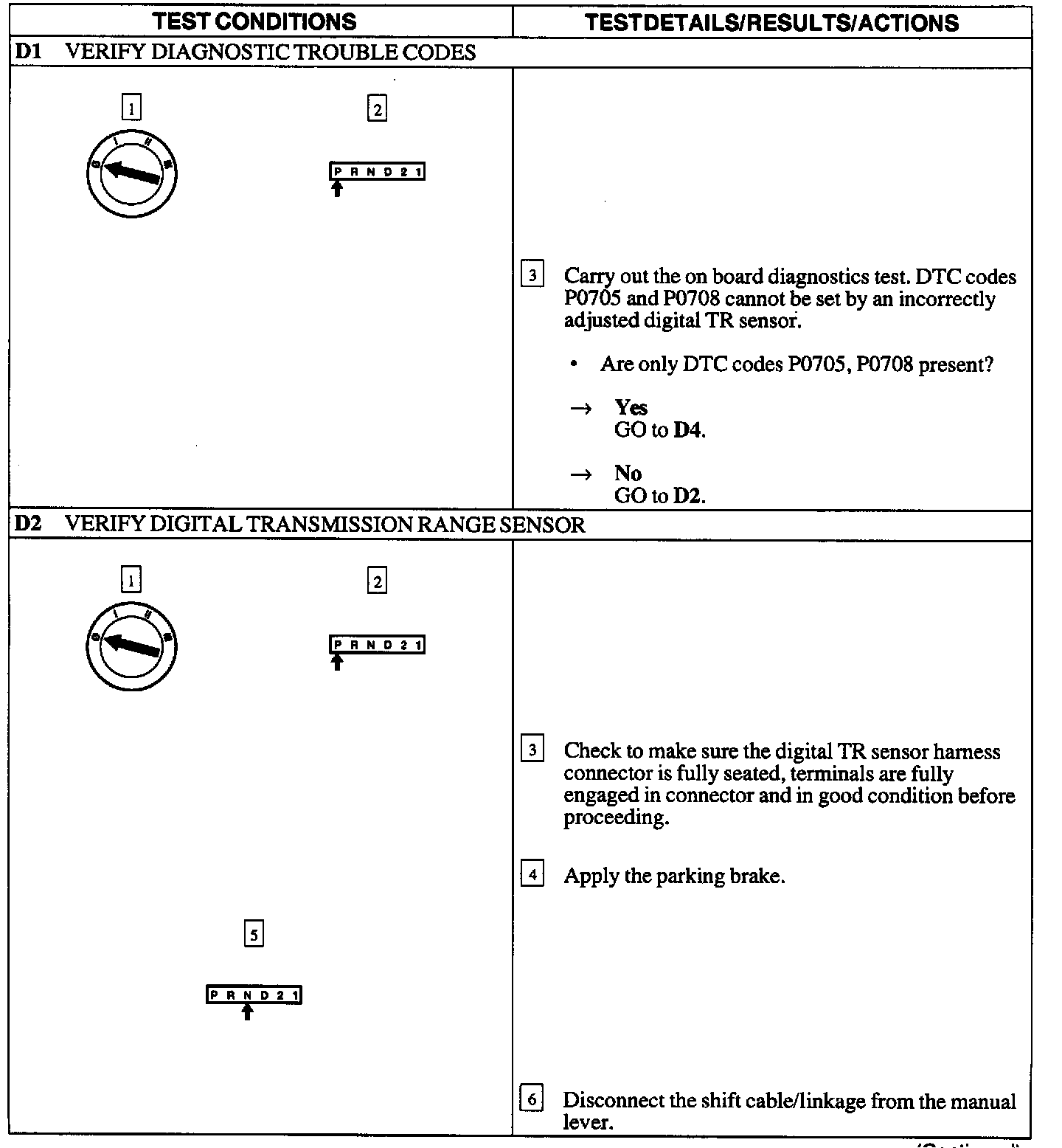

D1 - D2





D2 - D3

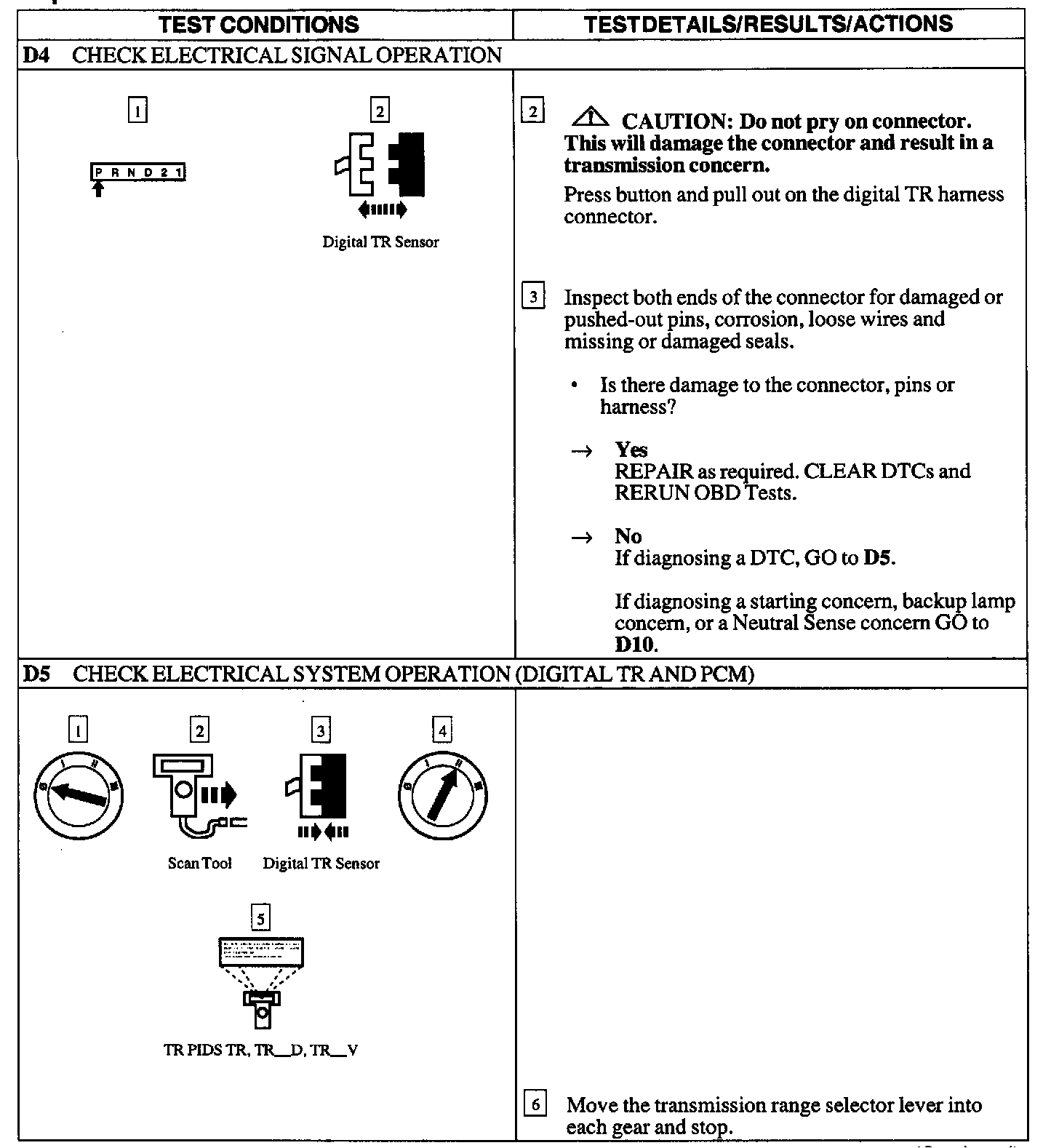

D4 - D5

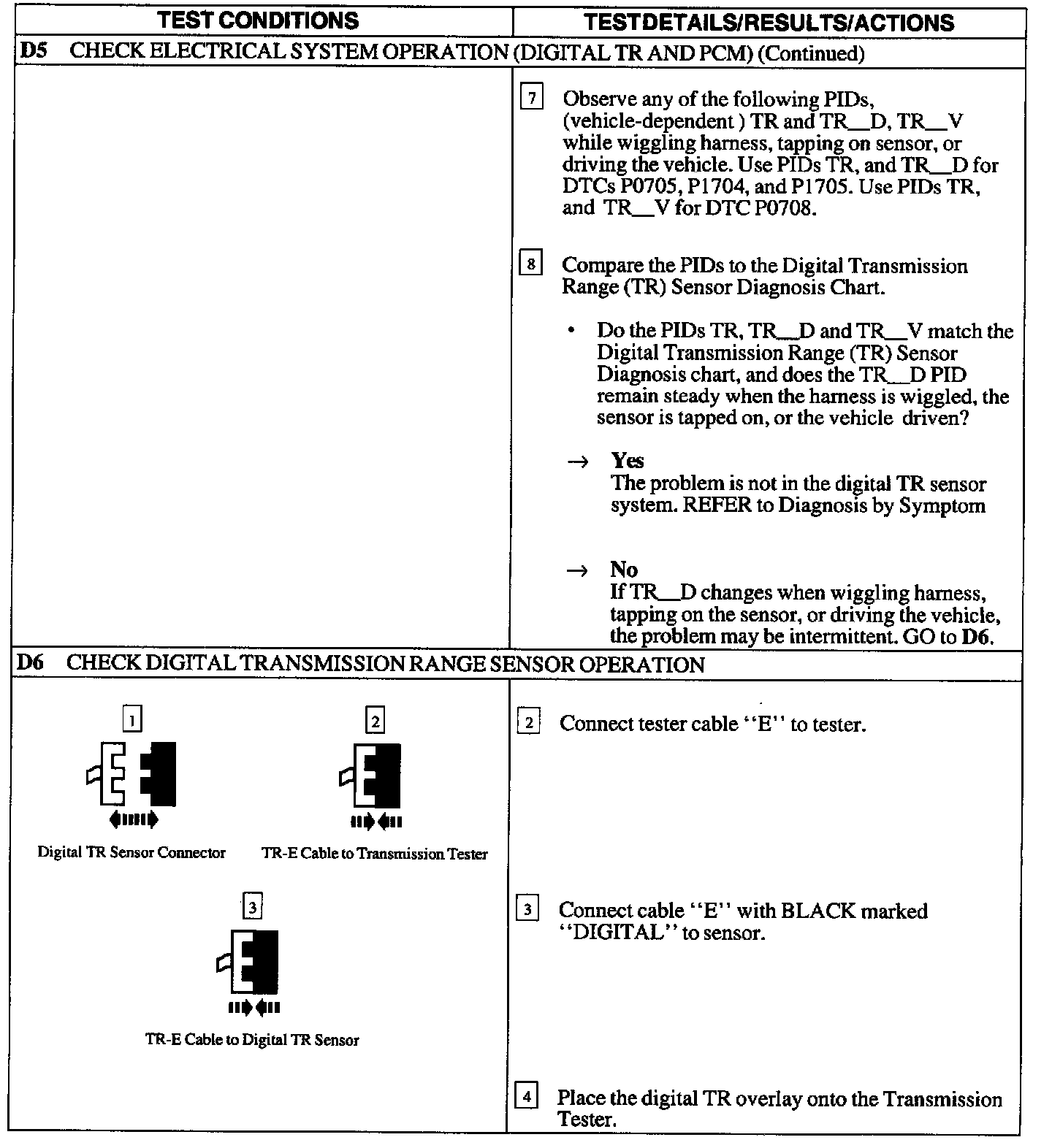

D5 - D6





D6 - D7

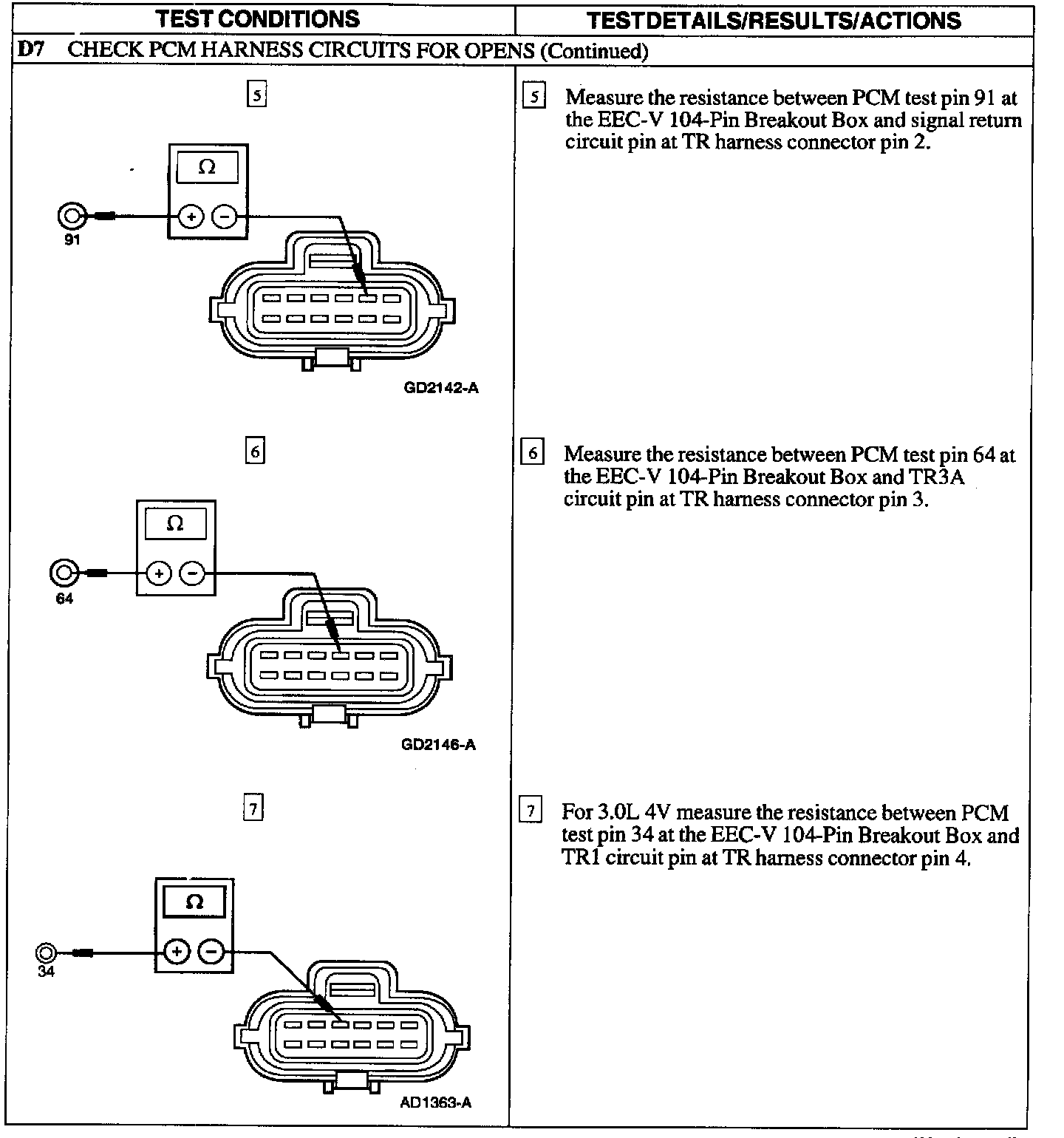

D7





D7

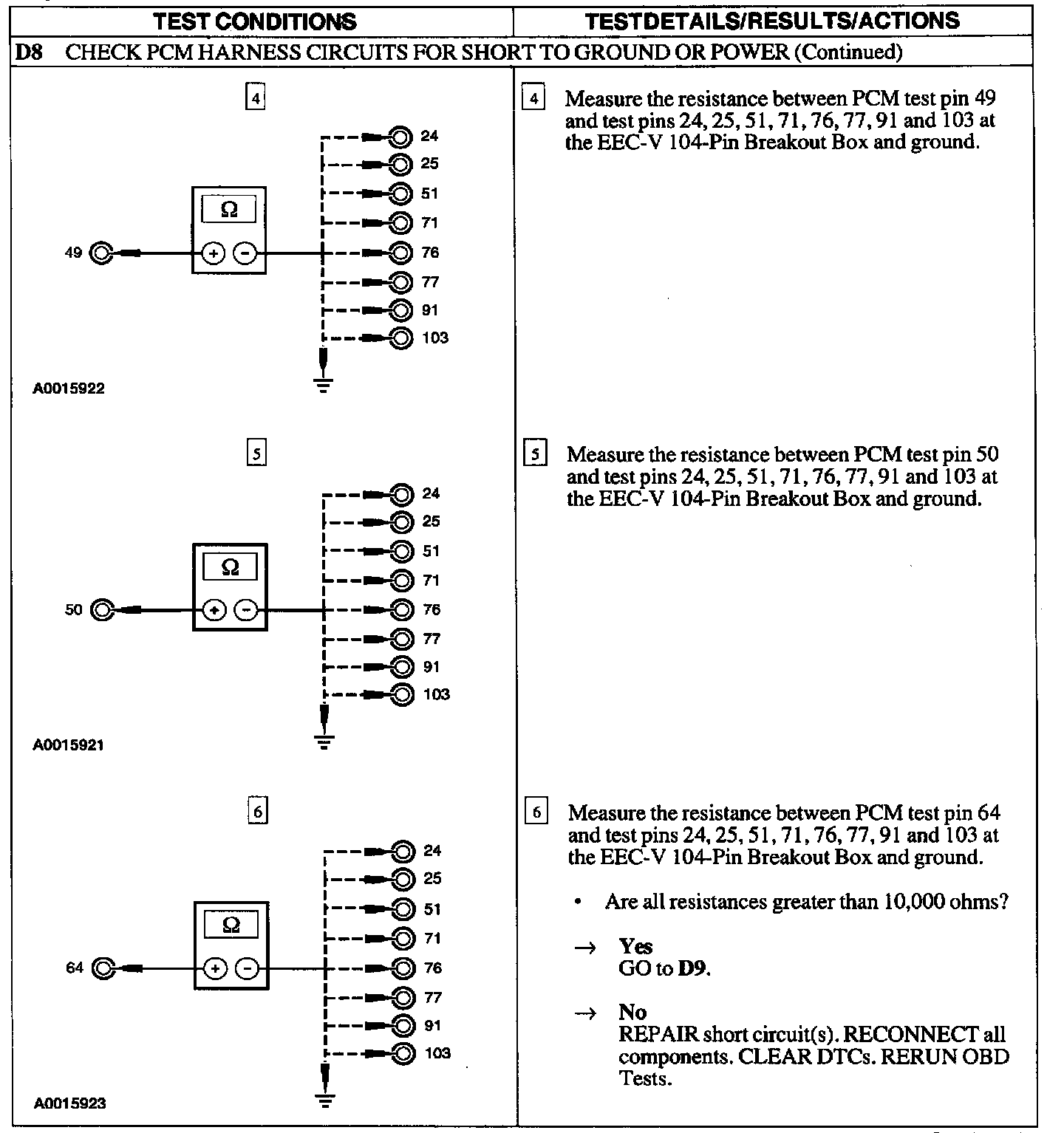

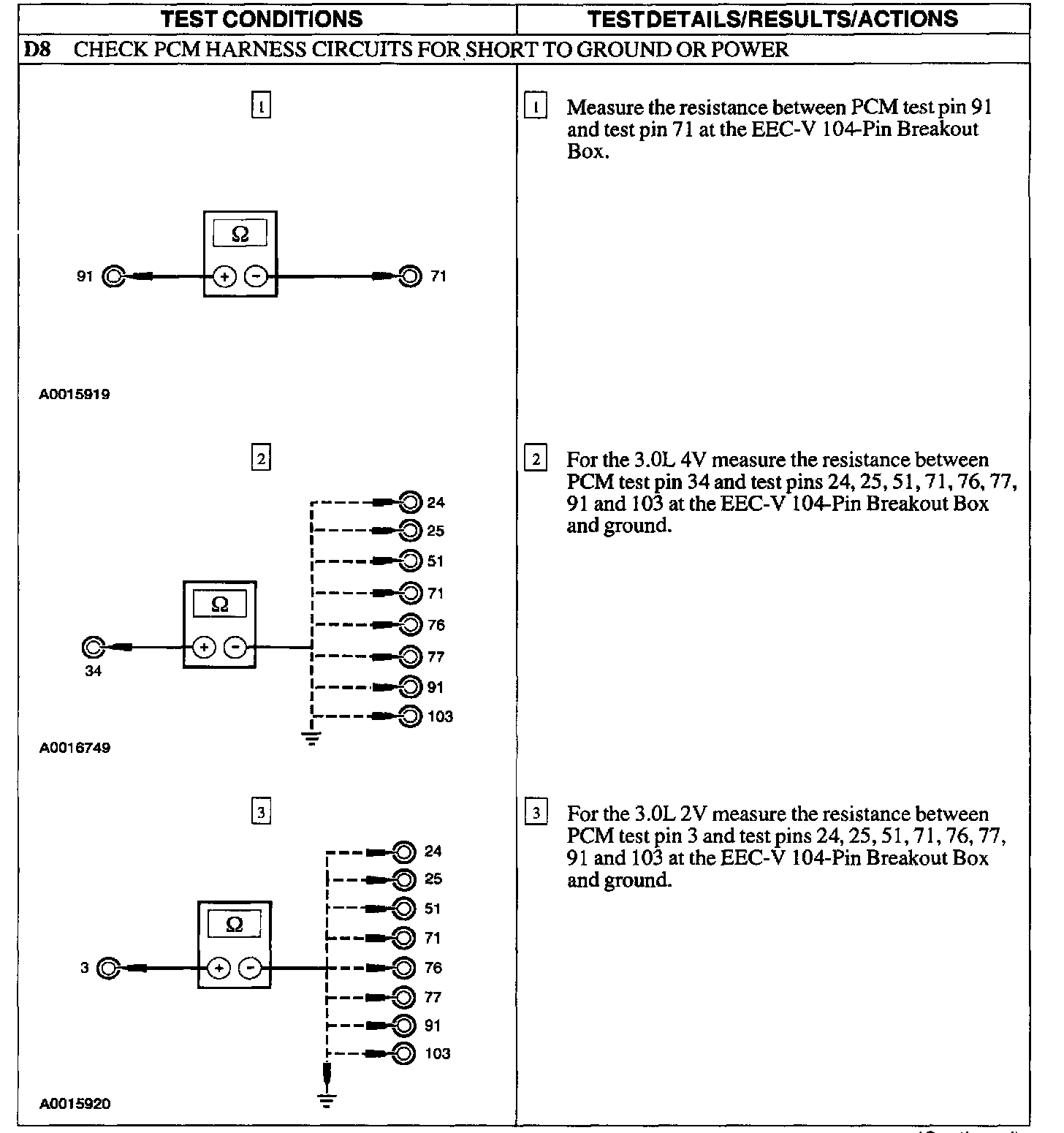

D8





D8





D9





D9





D9 - D10





D10

Note: If necessary, refer to the Transaxle Connector Layouts.
