End Play Check

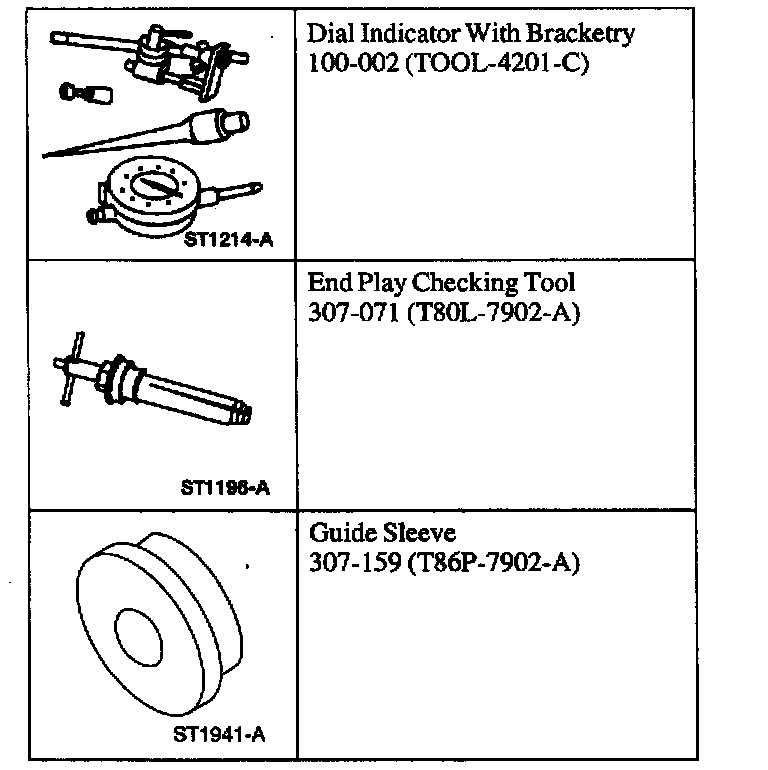

Special Tools:

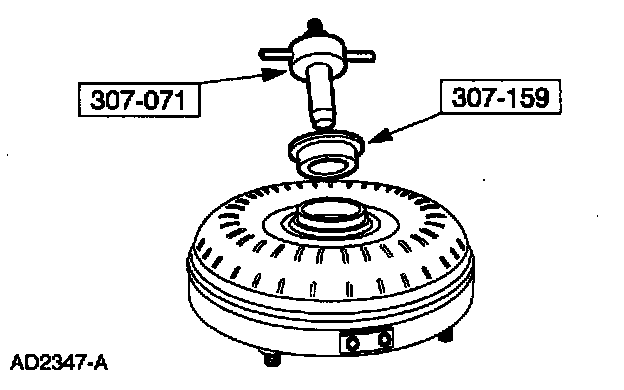

1. Install the special tools into the torque converter.

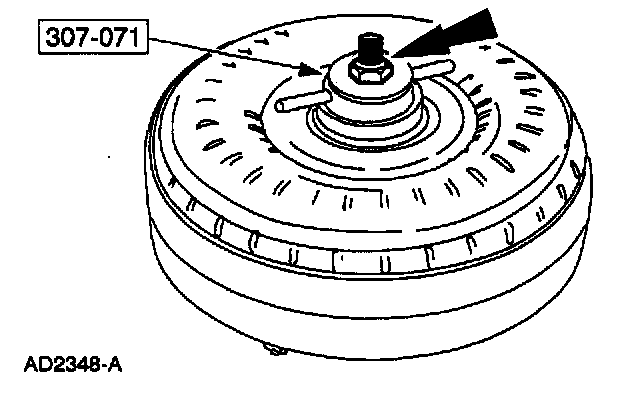

2. Tighten the nut.

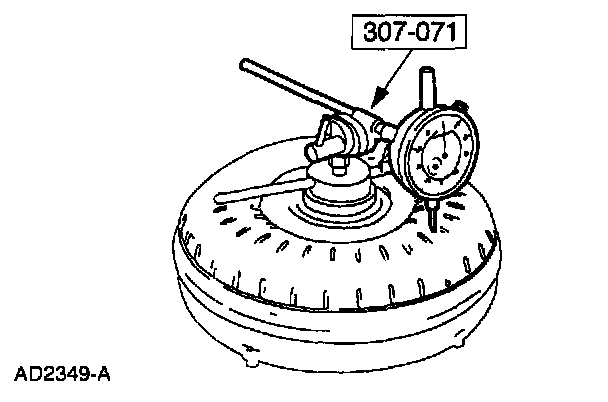

3. Install the special tool.

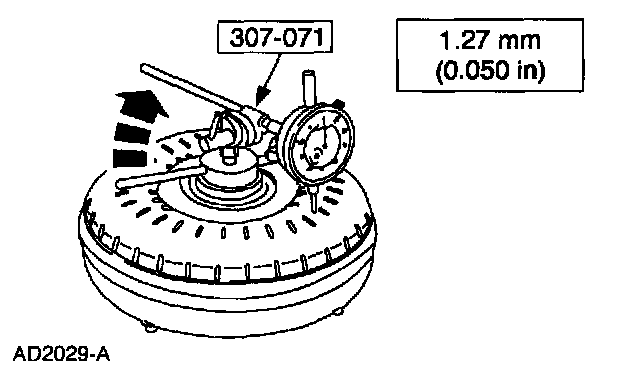

4. Note: If the indicator reading is above specification, install a new or remanufactured torque converter.





With the stylus contacting the converter shell and the dial indicator set to zero lift up on the handles of the checking tool.
