Home >> Mercury >> 2000 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Transmission and Drivetrain >> Automatic Transmission/Transaxle >> Service and Repair >> Automatic Transmission - AX4N >> Disassembly and Assembly of Subassemblies >> Neutral Drive Accumulator

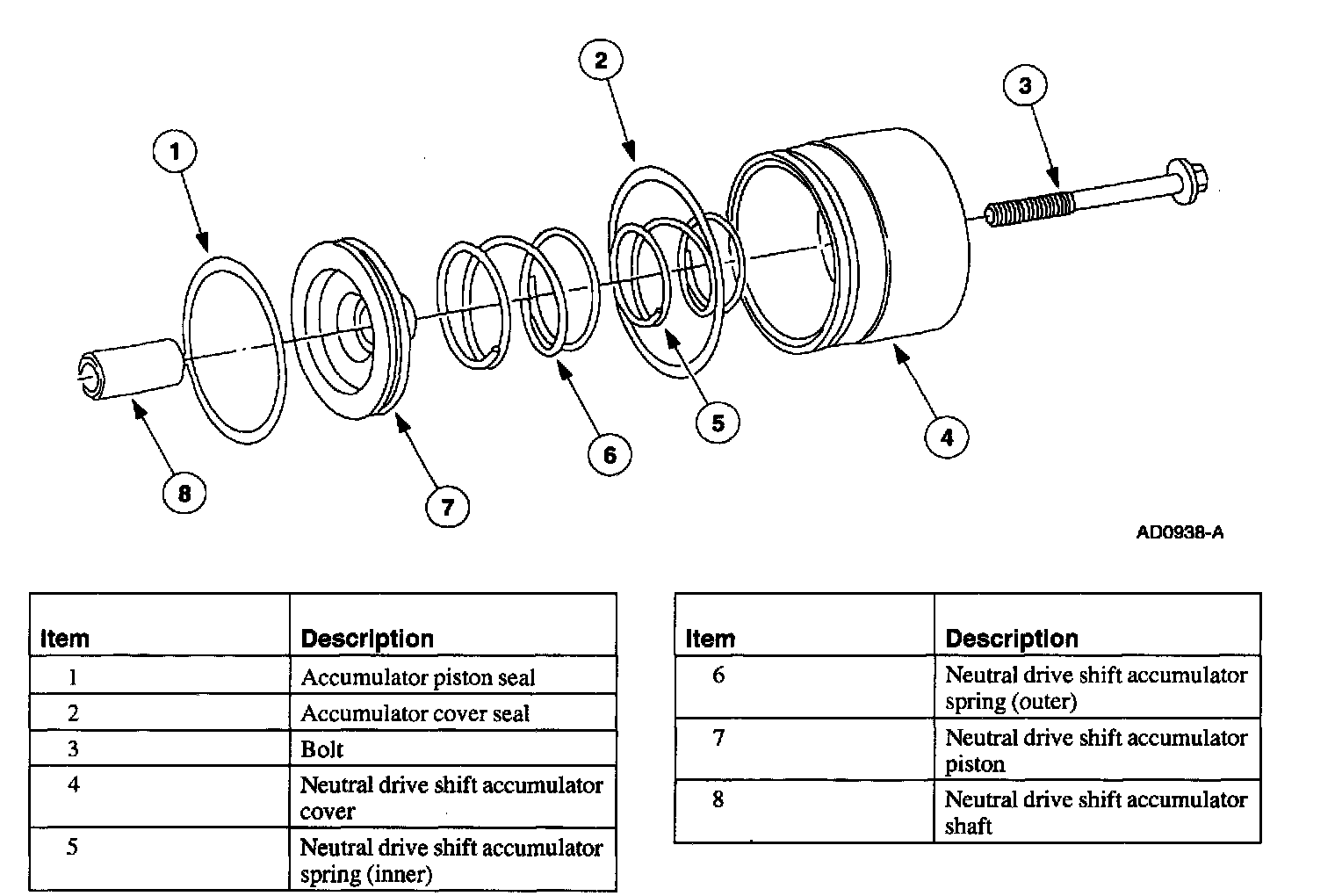

Neutral Drive Accumulator

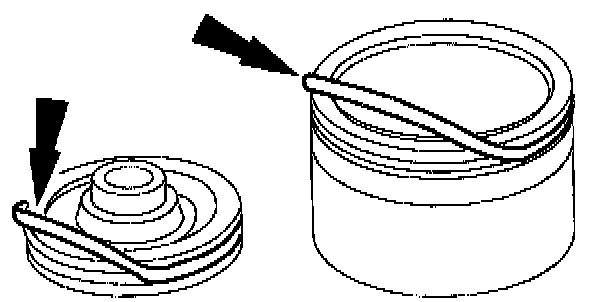

1. Note: Lightly coat the seals with petroleum jelly prior to installation.





- Remove and install a new neutral drive accumulator piston seal.
- Remove and install a new neutral drive accumulator cover seal.
