Turbine Shaft Speed (TSS) Sensor

Removal and Installation
1. Disconnect the battery ground cable.
2. Raise the vehicle on a hoist.
3. Remove LH front wheel and tire.

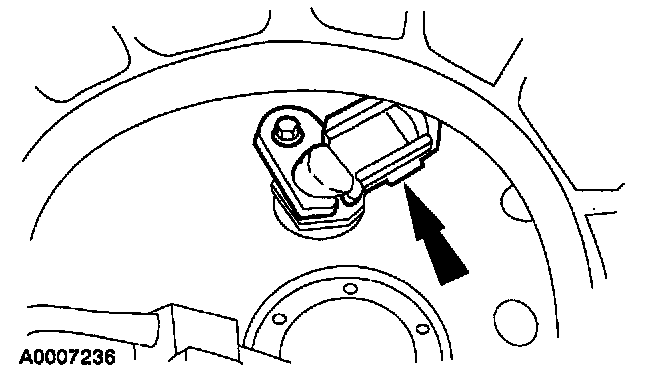

4. Disconnect the Turbine Shaft Speed (TSS) sensor connector.





5. Remove the Turbine Shaft Speed (TSS) sensor.

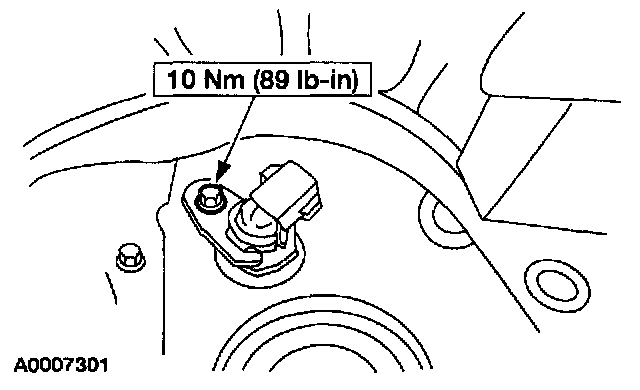

6. To install, reverse the removal procedure.
