Transaxle Description

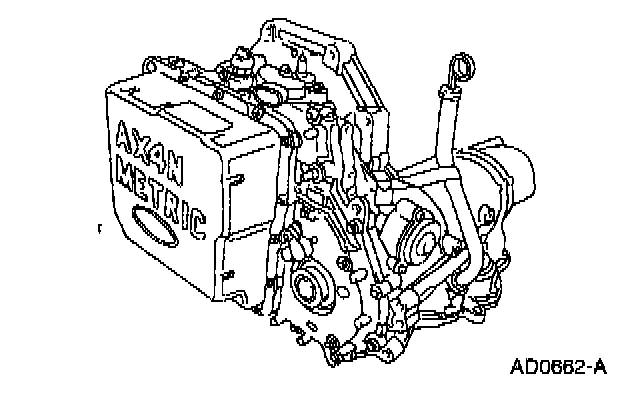

The AX4N automatic transaxle is a four-speed unit with electronic shift control. It is designed for operation in a transverse powertrain for front-wheel drive vehicles and has the following major components:
- case with chain cover
- chain drive apply components:
+ two friction bands: overdrive, coast
+ five friction clutches: forward, direct, intermediate, reverse, 10w-intermediate
+ three one-way clutches: low, direct, low-intermediate

- two simple planetary gearsets:
+ front
+ rear

- final drive planetary gearset
- differential
- pump assembly
- main control





When servicing the automatic transaxle, use the identification tag located on top of the converter housing.
