Stabilizer Bar and Connecting Link - Four Door

Removal and Installation

CAUTION: Suspension fasteners are critical parts because they affect performance of vital components and systems and their failure can result in major service expense. A new part with the same part number must be installed if installation is necessary. Do not use a new part of lesser quality or substitute design. Torque values must be used as specified to make sure of correct retention of these parts.

Note: The stabilizer bar bushing and bracket are part of the stabilizer bar assembly. The stabilizer bar will not easily turn in the bushing. The vehicle suspension must be raised to ride height to remove and install the stabilizer tear end link.

Note: Both sides of the stabilizer bar and link must be removed and installed. Only one side is shown.

1. Remove the hub cap or wheel cover.





2. Measure the distance from the center of the hub to the lip of the fender with the vehicle in a level, static ground position (curb height).
3. Remove both rear wheel and tire assemblies.
4. Position a safety stand at the front of the vehicle under the subframe.





5. Detach the front muffler insulator from the muffler.
6. Position jack stands under the rear suspension and raise the suspension until the distance between the center of the hub and the lip of the fender is equal to the measurement taken previously (curb height).

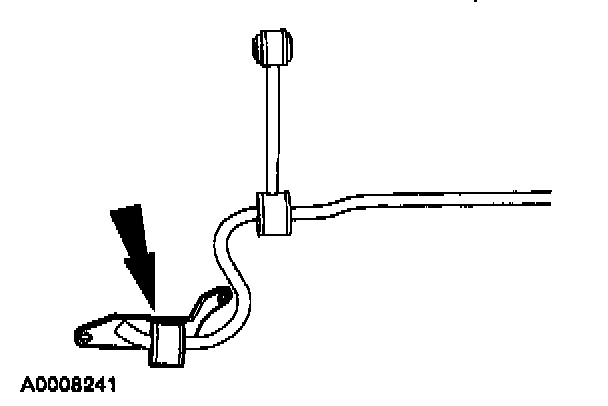

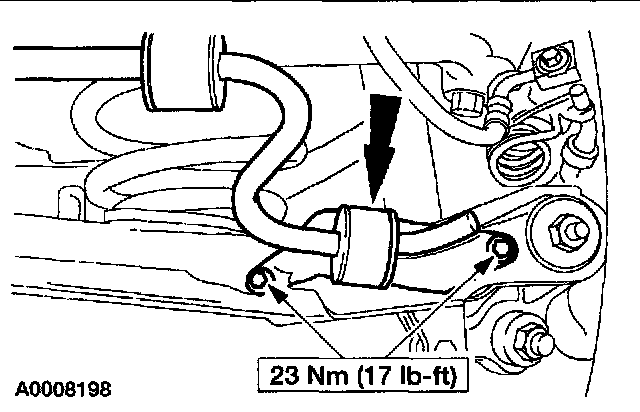

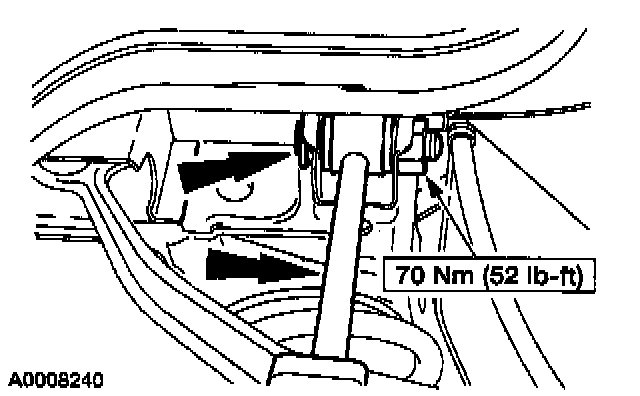

7. Remove the nuts, washers, bushings, and bolts. Detach the stabilizer bar assembly from the body and the links.
- Discard the nuts and bolts.
8. Lower the suspension and remove the jack stands.
9. Carefully remove the stabilizer bar assembly out of the right wheel well.

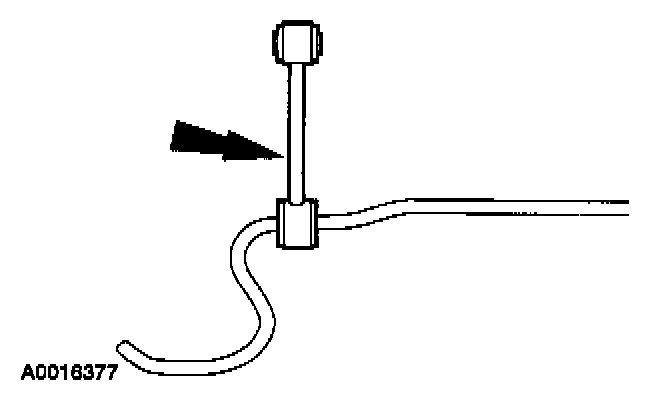

10. Remove the nuts, washers, bushings and links from the strut.
- Discard the nuts.
11. To install reverse the removal procedure.
- Use new fasteners.
