Home >> Mercury >> 2000 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Diagrams (By Ground Number) >> G200

G200

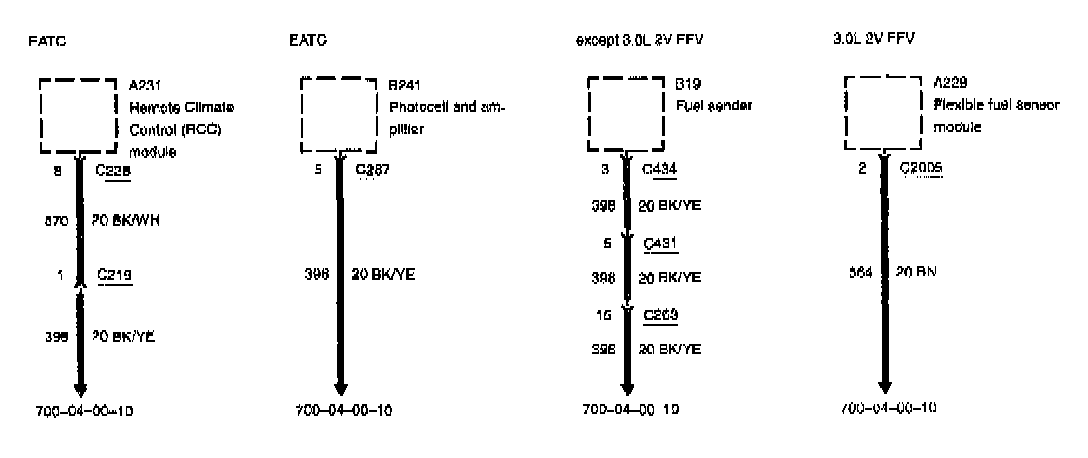

Diagram 700-04-00-5:

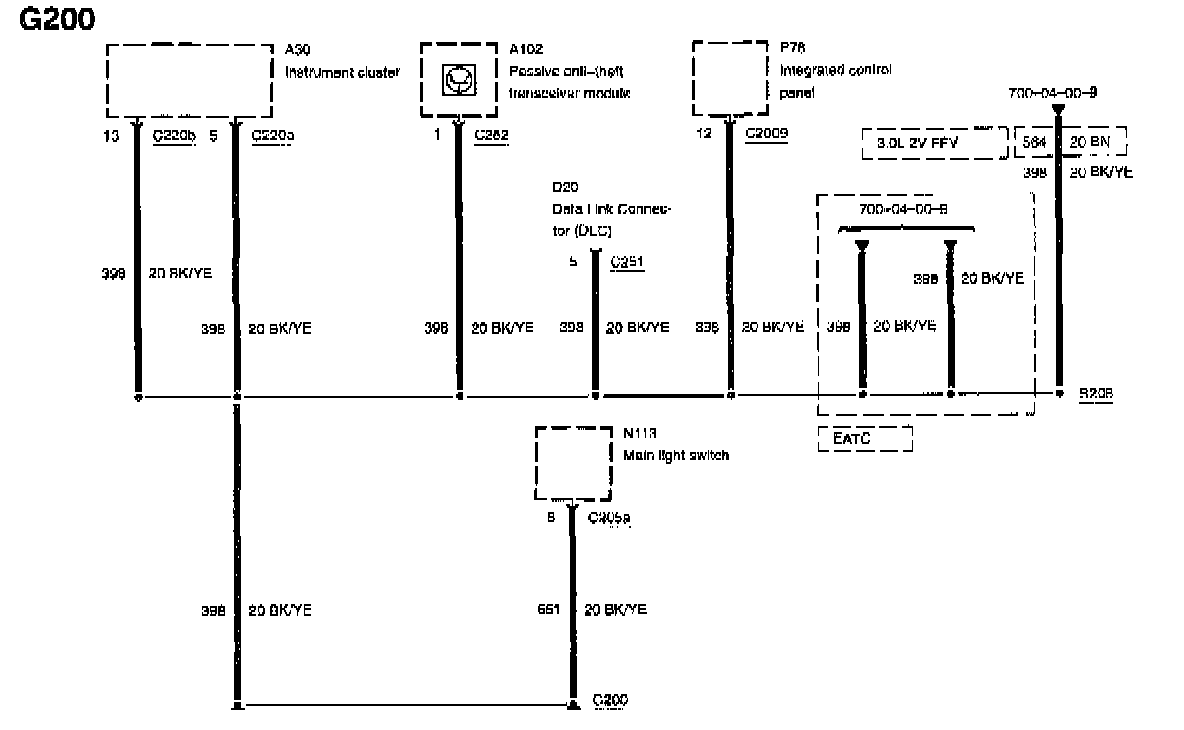

Diagram 700-04-00-10:
