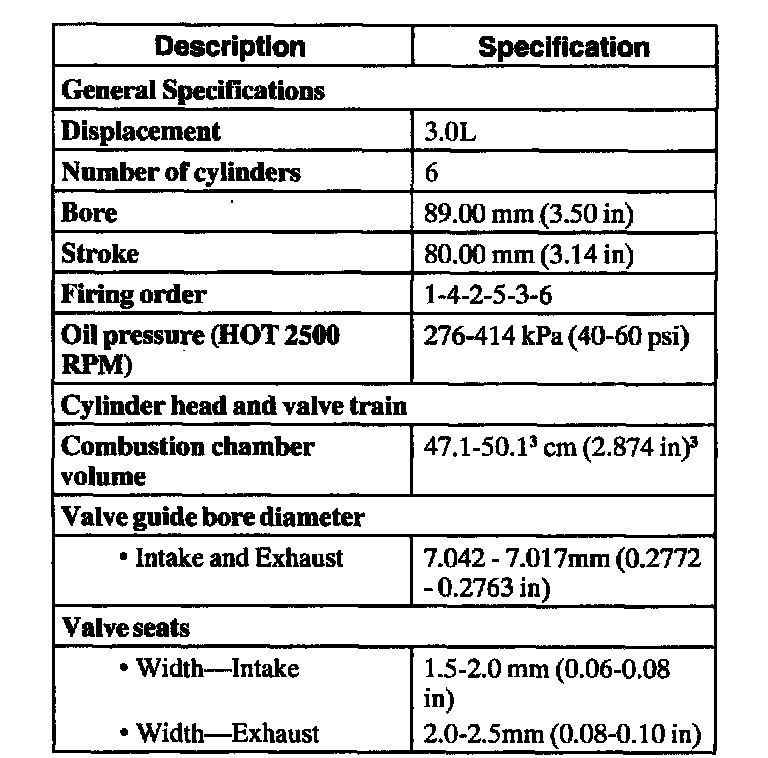

Engine General Specifications

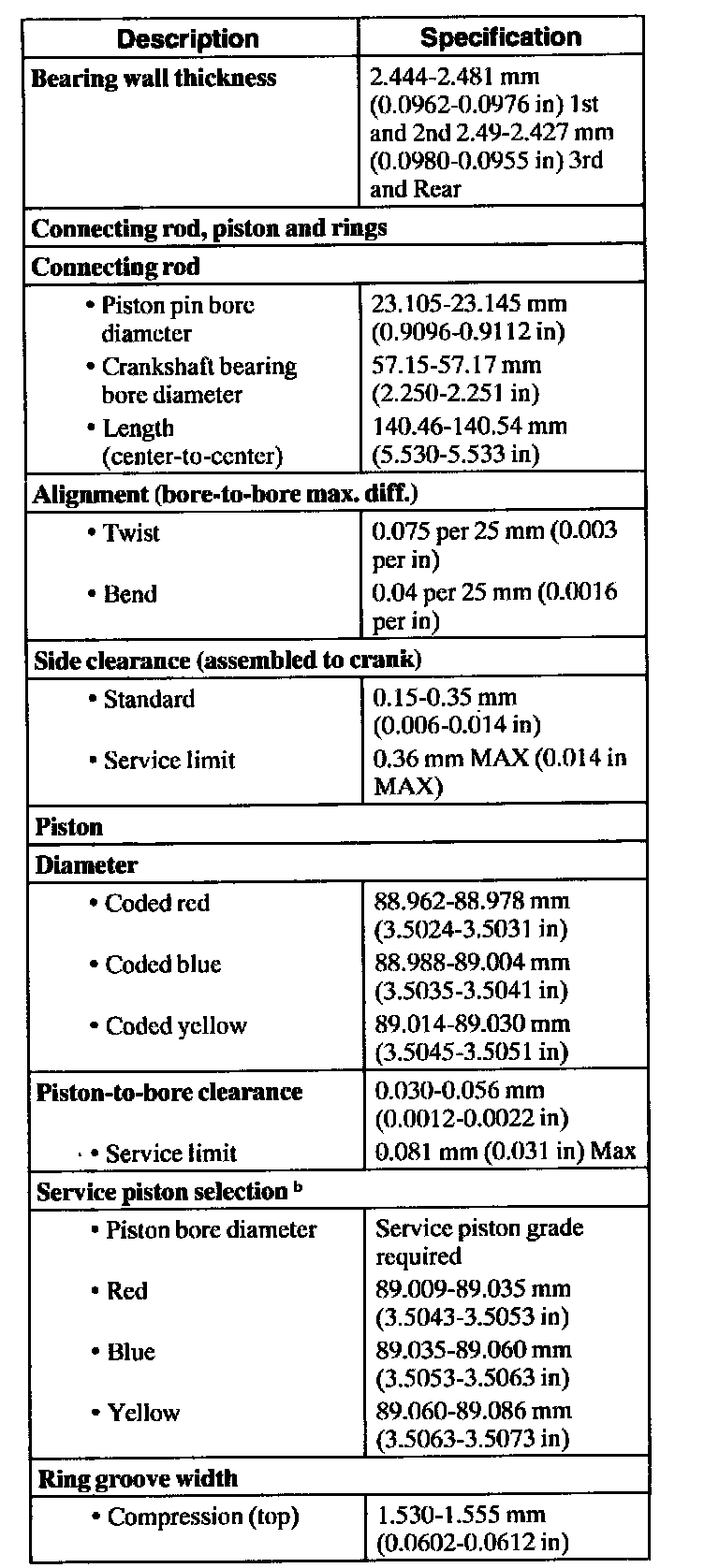

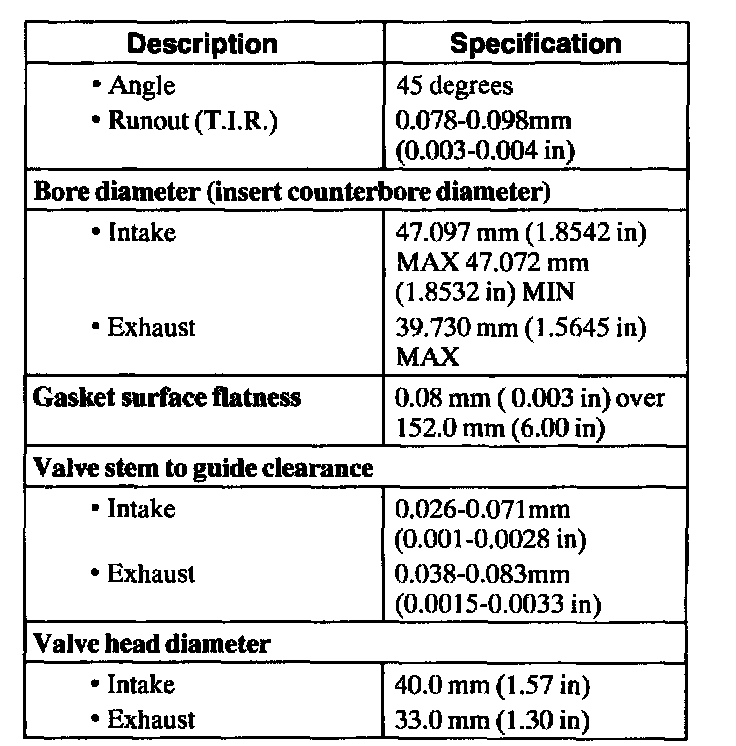

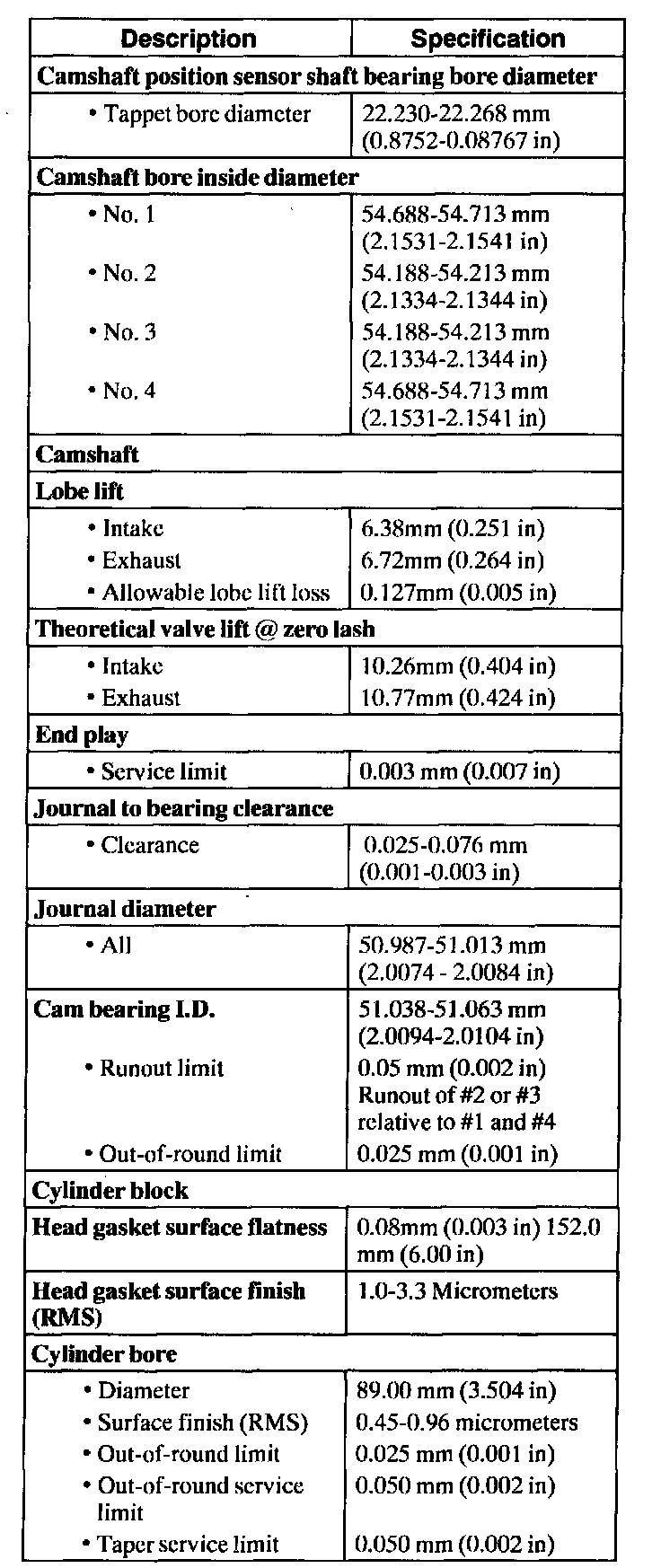

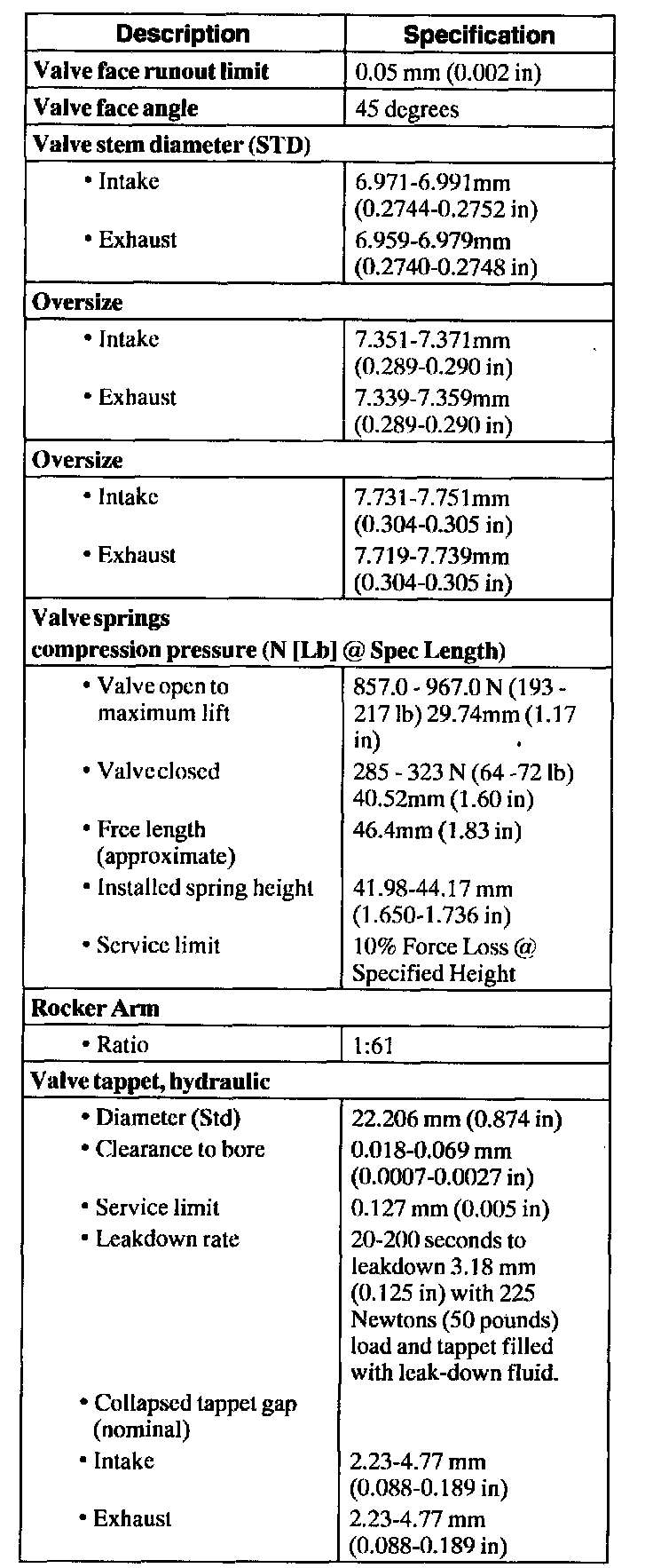

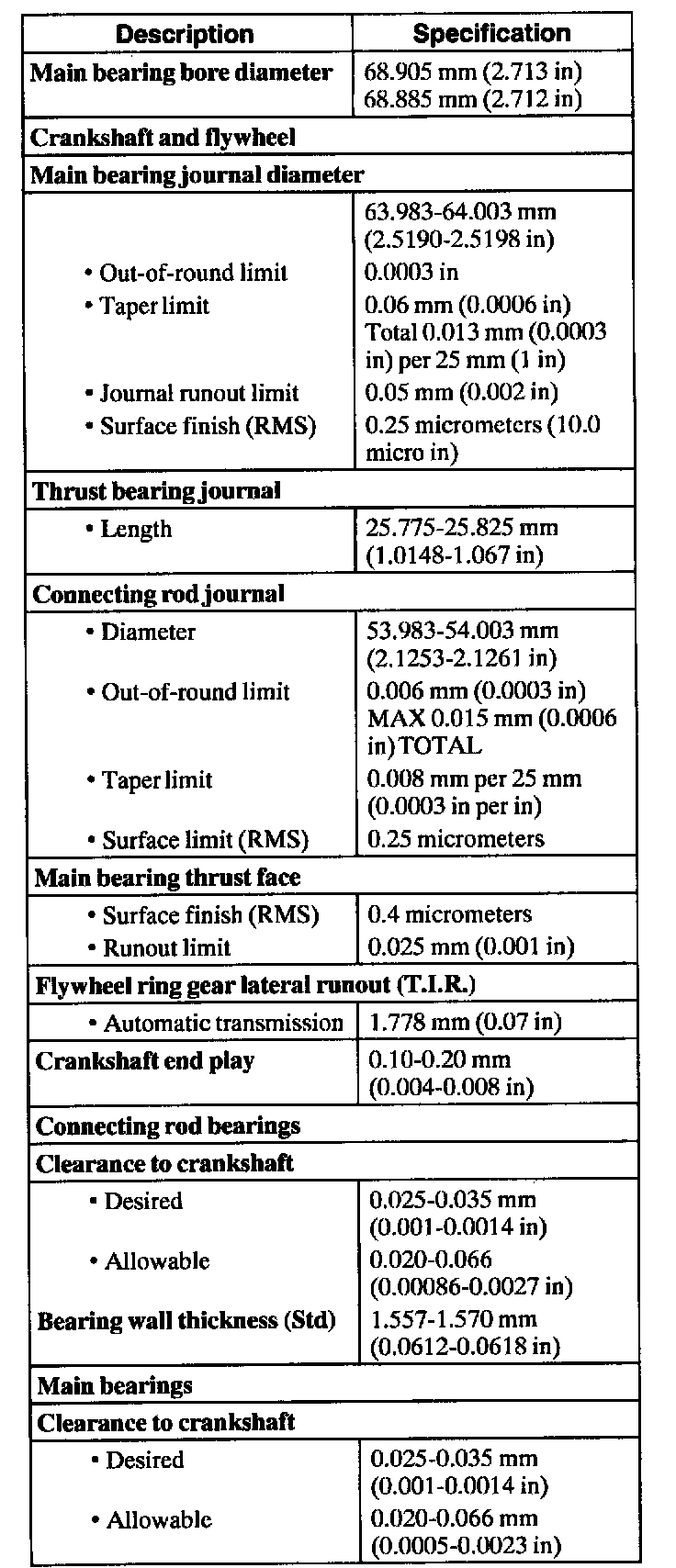

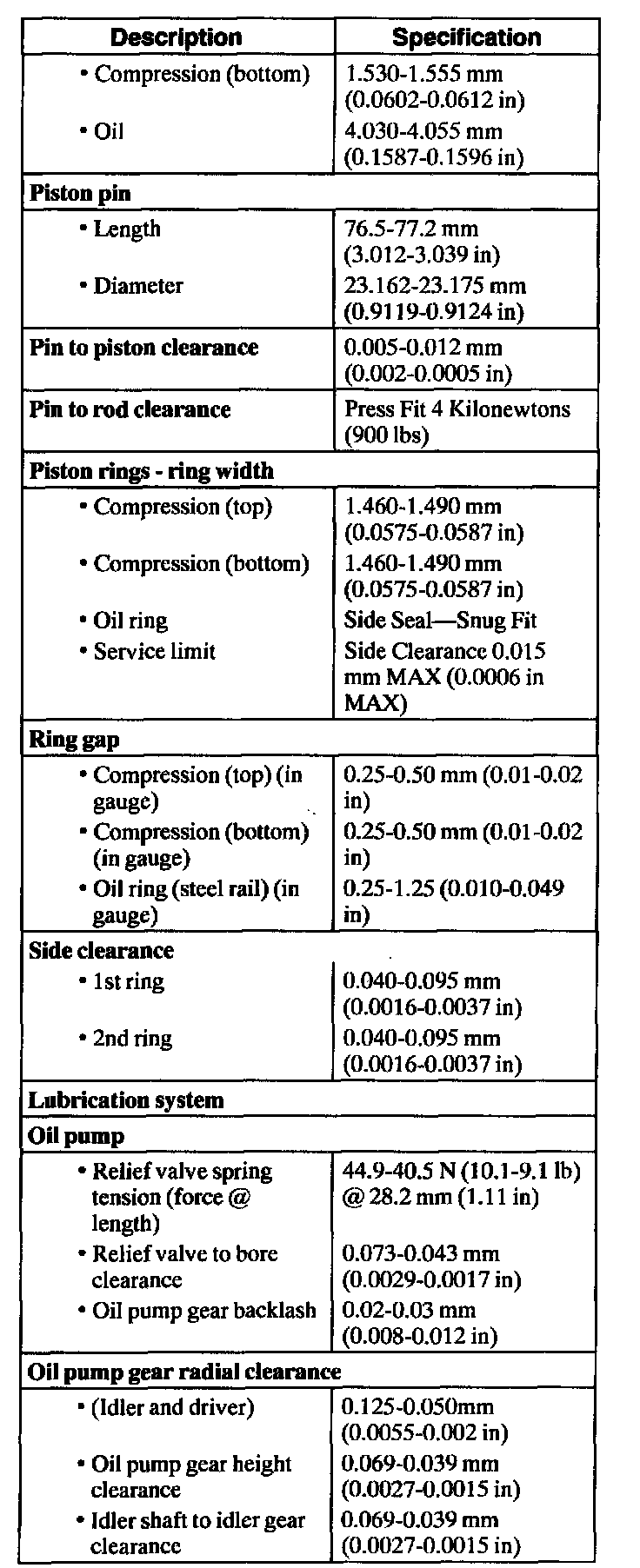

1 of 8





2 of 8





3 of 8





4 of 8





5 of 8





6 of 8





7 of 8





8 of 8

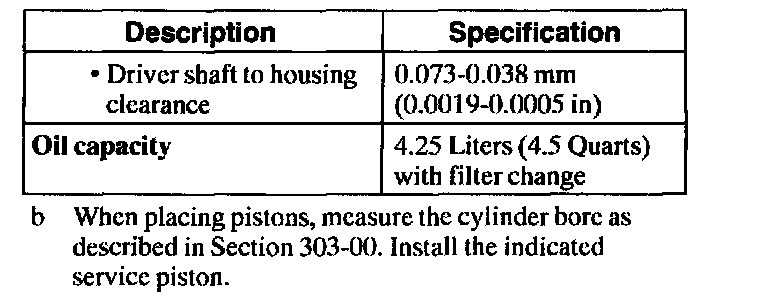

Footnotes:
b When replacing pistons, measure the cylinder bore as described in Engine; Service and Repair; General Procedures. Install the indicated service piston.
