Outboard Tether Anchors

Seat Belt Bolt Bit:

Special Service Tool(s)

REMOVAL AND INSTALLATION

NOTE: New safety belt buckles, height adjusters, center adjust tongues and belts and retractors can be installed separately. However, if a safety belt assembly was in use during a collision, a new belt and retractor must be installed as well as the center adjust tongue and belt and buckle assembly or the center adjust tongue and the cable and buckle assembly. When installing new safety belts and buckles, height adjusters, safety cables and buckles, center adjust tongues and belt and retractors, use only the parts specified in the Ford Master Parts Catalog for the make and model of the vehicle being repaired. Safety belt assemblies must not be interchanged between vehicle models.

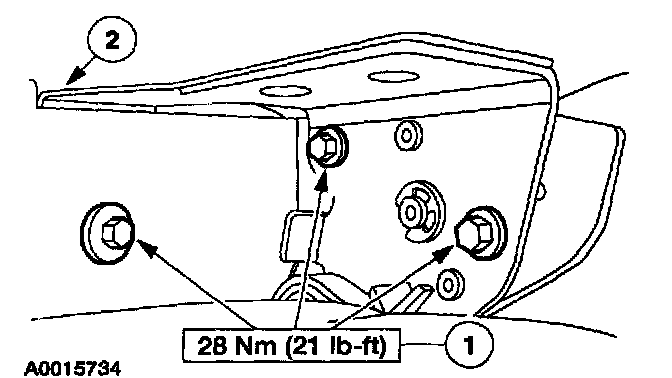

1. Remove the outboard tether anchor bolts.

NOTE: The driver side is shown, the passenger side is similar.

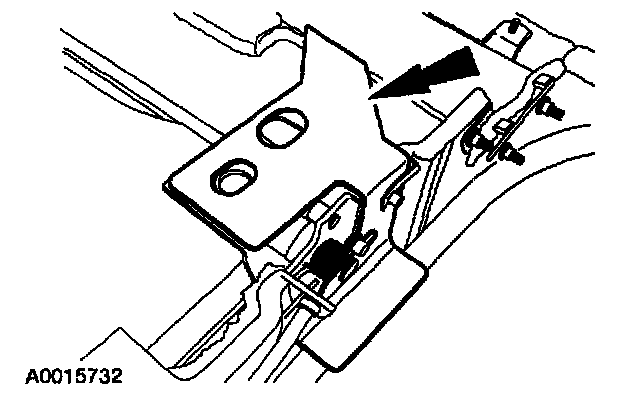

2. Remove the outboard tether anchor.

NOTE: The driver side is shown, the passenger side is similar.
