Coil Pack

"AllData Editors Note:

Customers have reported success using the following spark plug wire placement on the coil pack."






REMOVAL

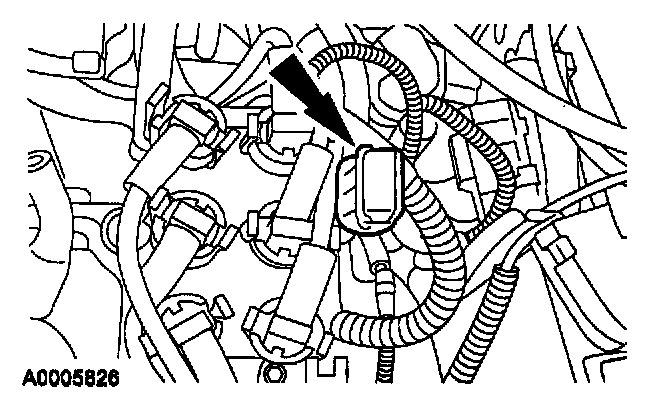

1. Disconnect the electrical connector from the ignition coil.







2. Disconnect the spark plug wires by squeezing the locking tabs and twisting while pulling upward.

CAUTION:
^ Spark plug wires must be connected to the correct ignition coil terminal. Mark spark plug wire locations before removing them.
^ It is important to twist the spark plug wire boots while pulling upward to avoid possible damage to the spark plug wire.

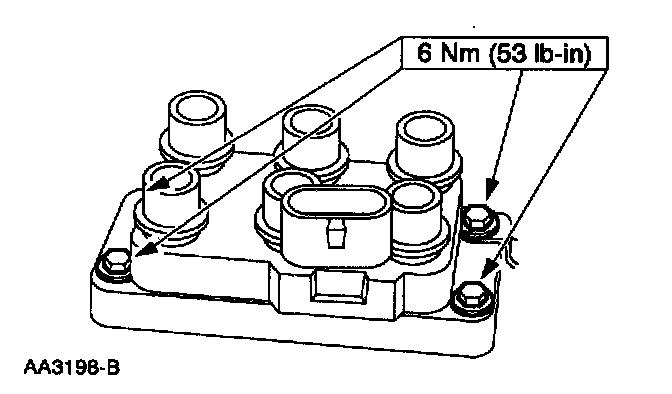

3. Remove the ignition coil.
^ Remove the four bolts.
^ Wipe the ignition coil towers with a clean cloth dampened with soap and water.

INSTALLATION
1. To install, reverse the removal procedure.
