EGR Valve

REMOVAL

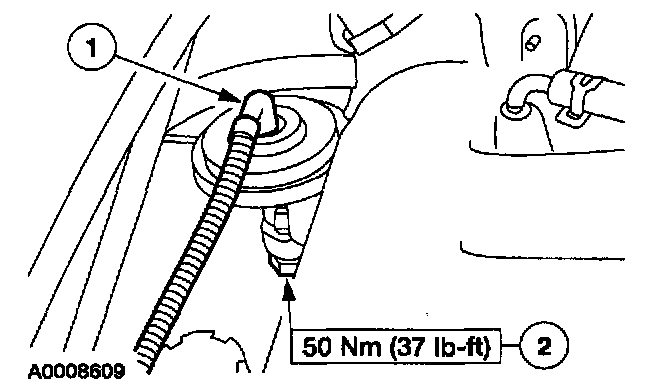

1. Disconnect the Exhaust Gas Recirculation (EGR) valve.
1 Disconnect the vacuum line.
2 Disconnect EGR tube nut.

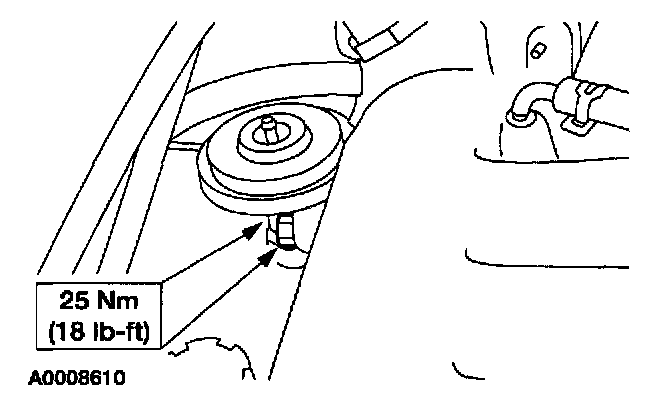

2. Remove the EGR valve.
^ Remove the two bolts.
^ Remove and discard the gasket.

INSTALLATION
1. To install, reverse the removal procedure.
^ Carefully clean both sealing surfaces and install a new EGR valve gasket.

NOTE: The sealing surfaces are soft metal.
