Tests FF: Power Steering Pressure (PSP) Switch

NOTE
This Pinpoint Test is intended to diagnose the following:
- Power Steering Pressure (PSP) switch
- Harness circuits: PSP and SIG RTN
- Powertrain Control Module (PCM)

Pinpoint Test Schematics and Connectors

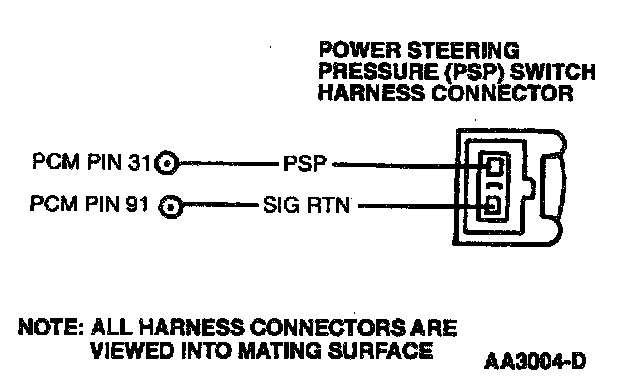

Contour/Mystique (PSP):

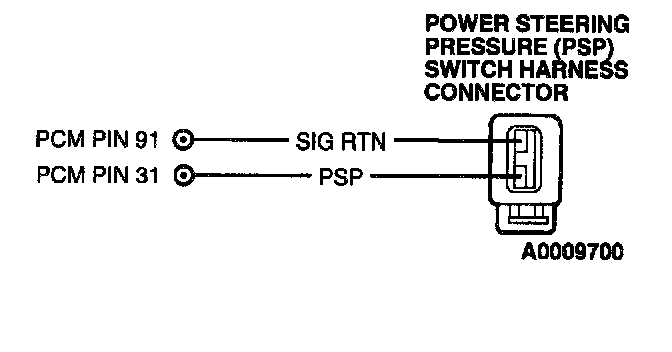

Focus (PSP):

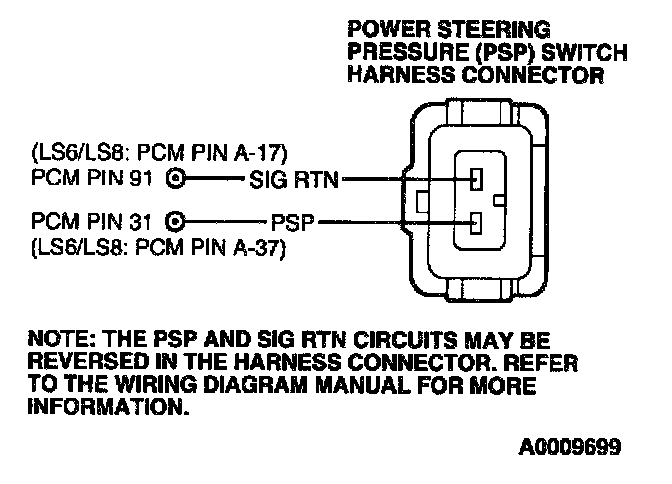

All Others (PSP):

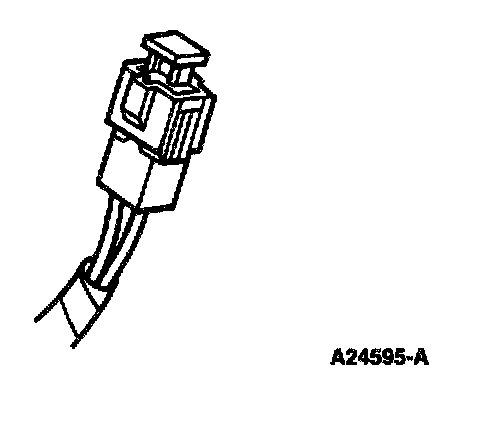

Shorting Bar for Harness Circuit without PSP Switch:

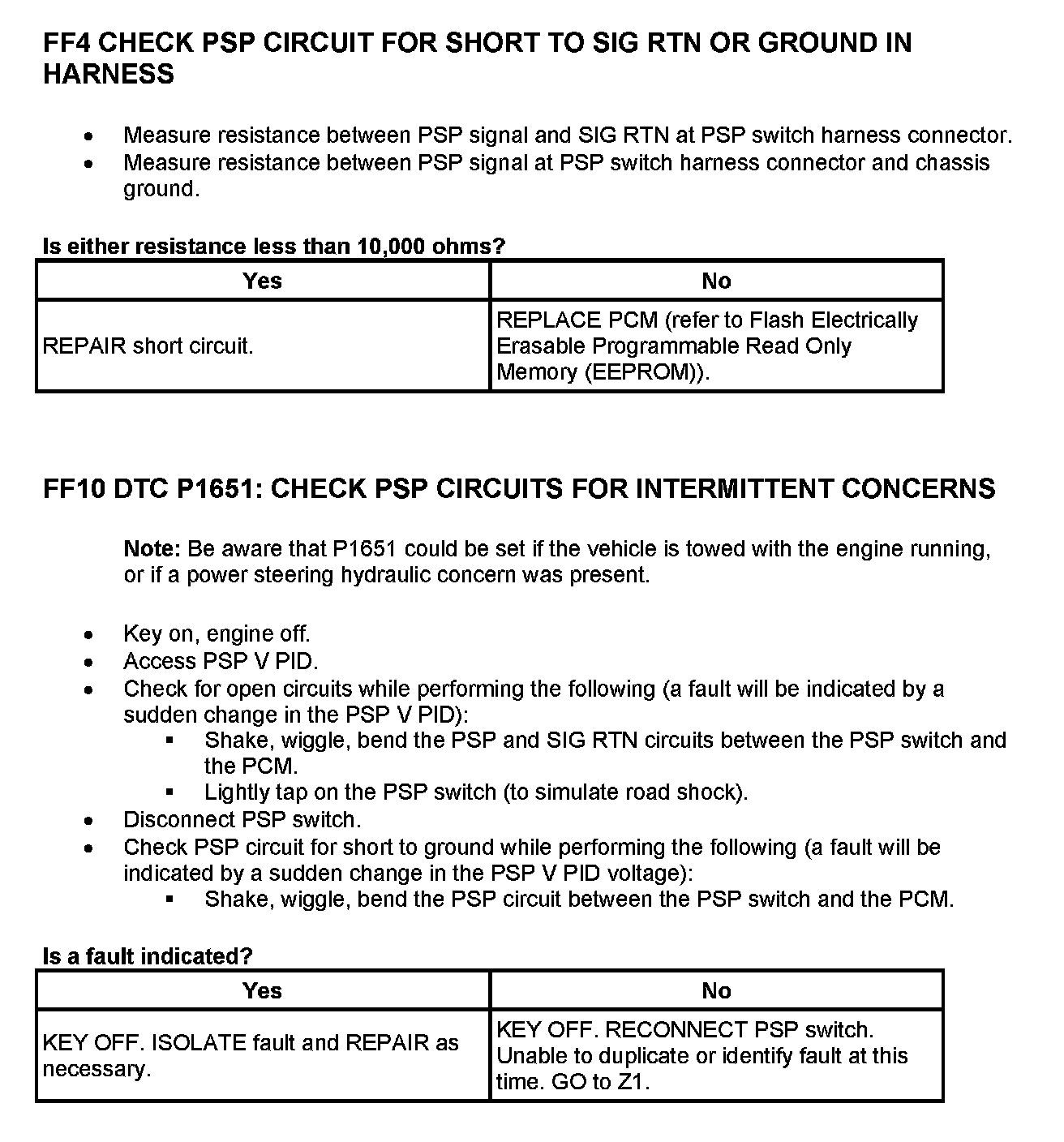

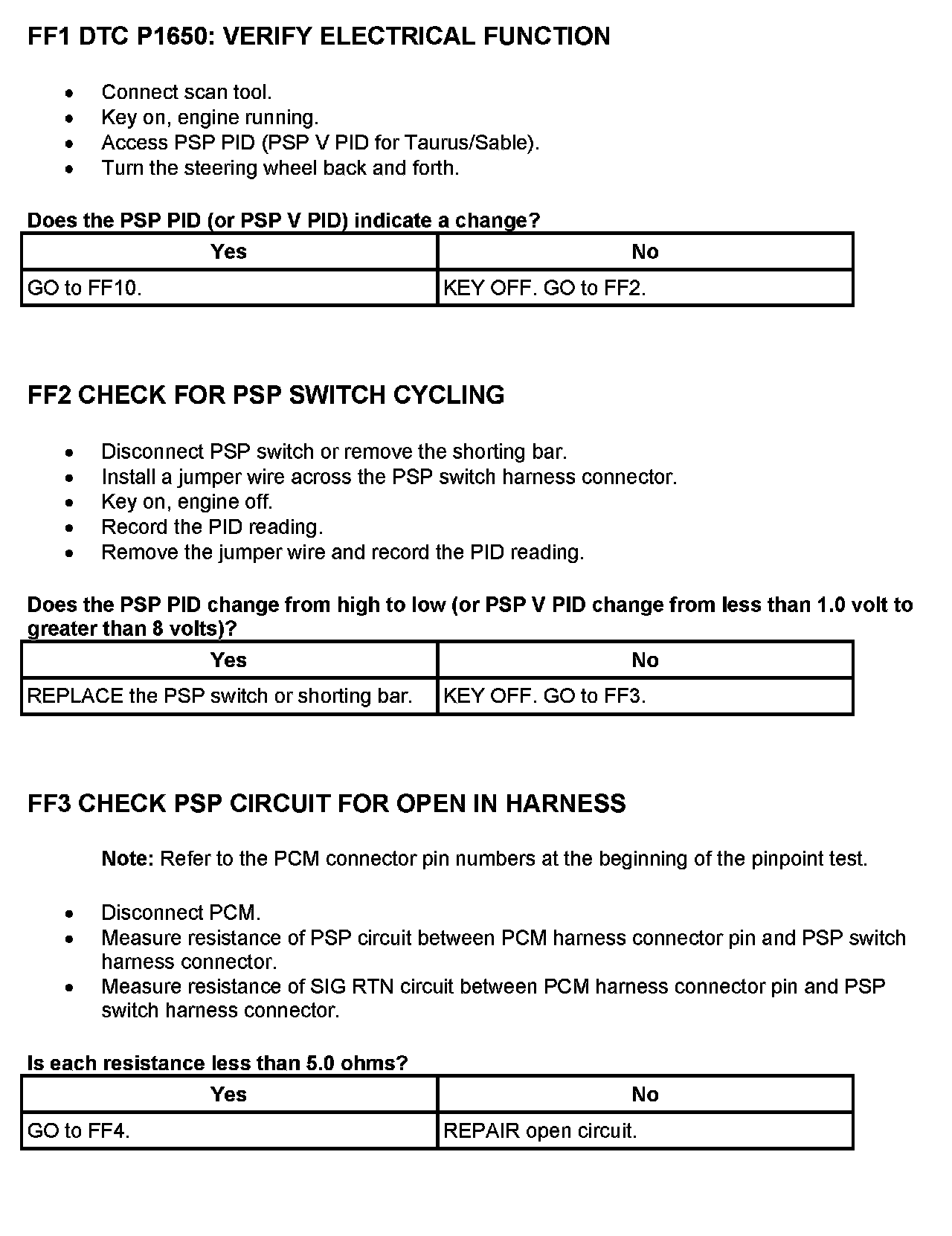

Pinpoint Tests
