Test E: PCM Does Not Respond to the Diagnostic Tool
Test E: PCM Does Not Respond to the Diagnostic Tool

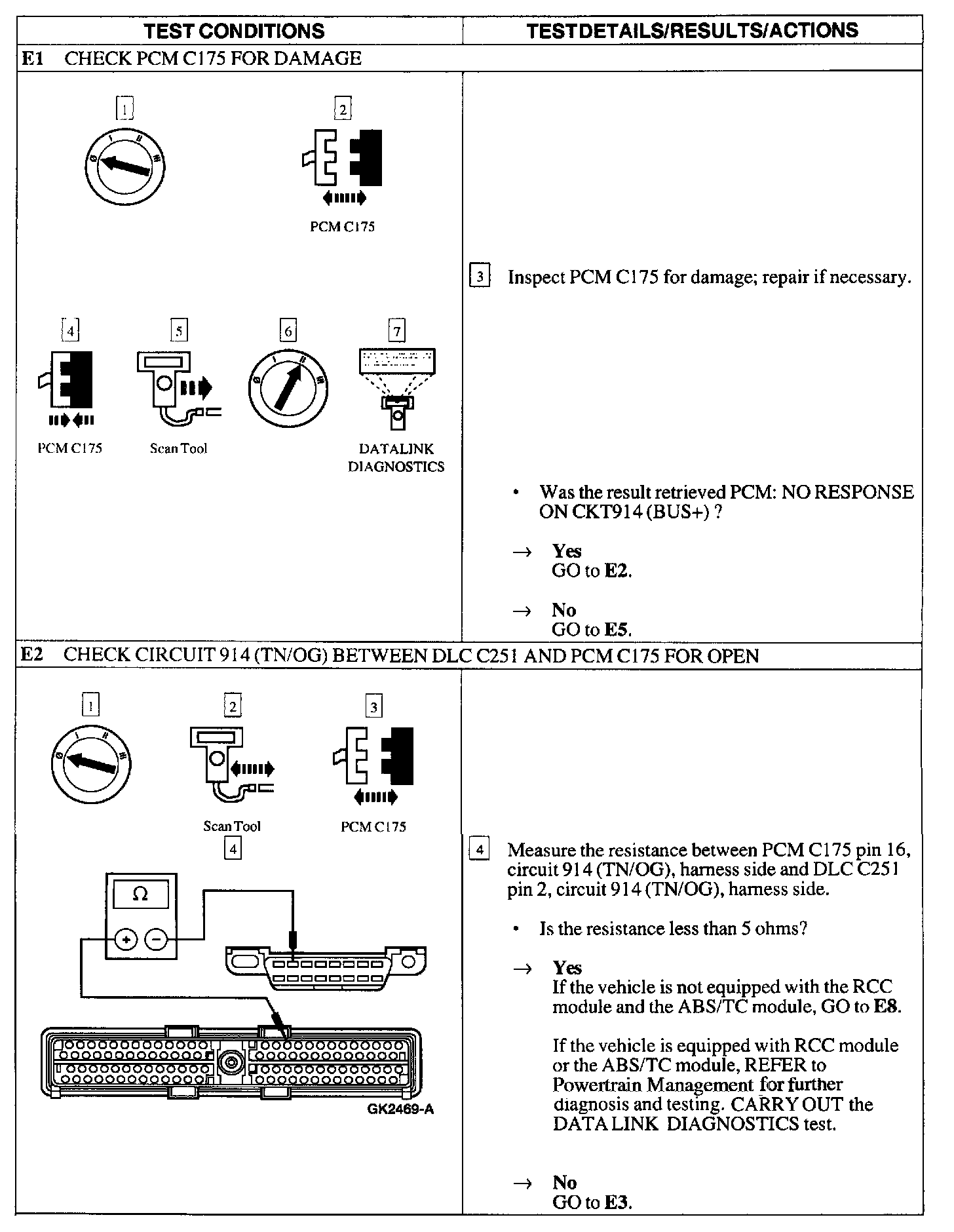

E1 - E2:

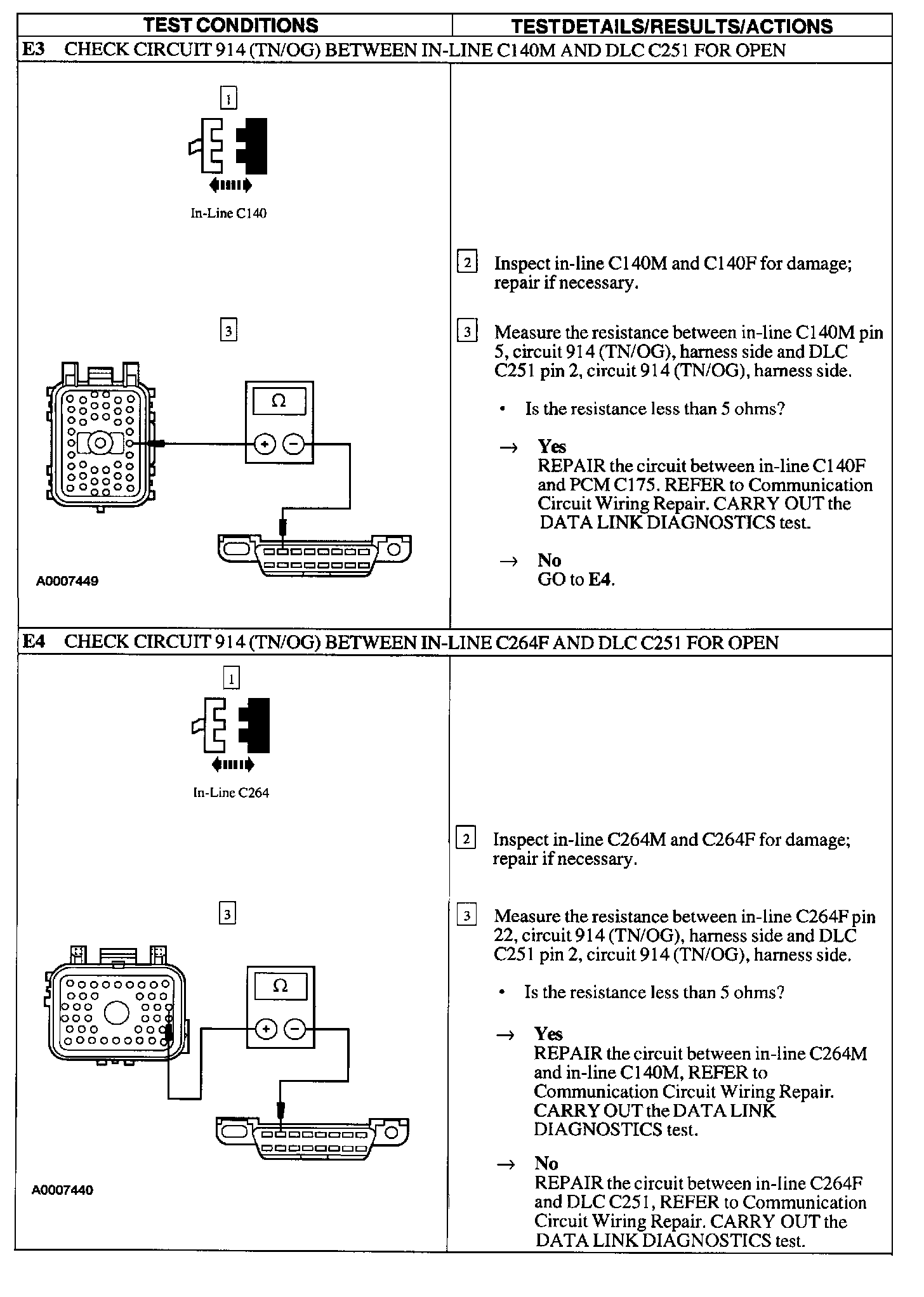

E3 - E4:

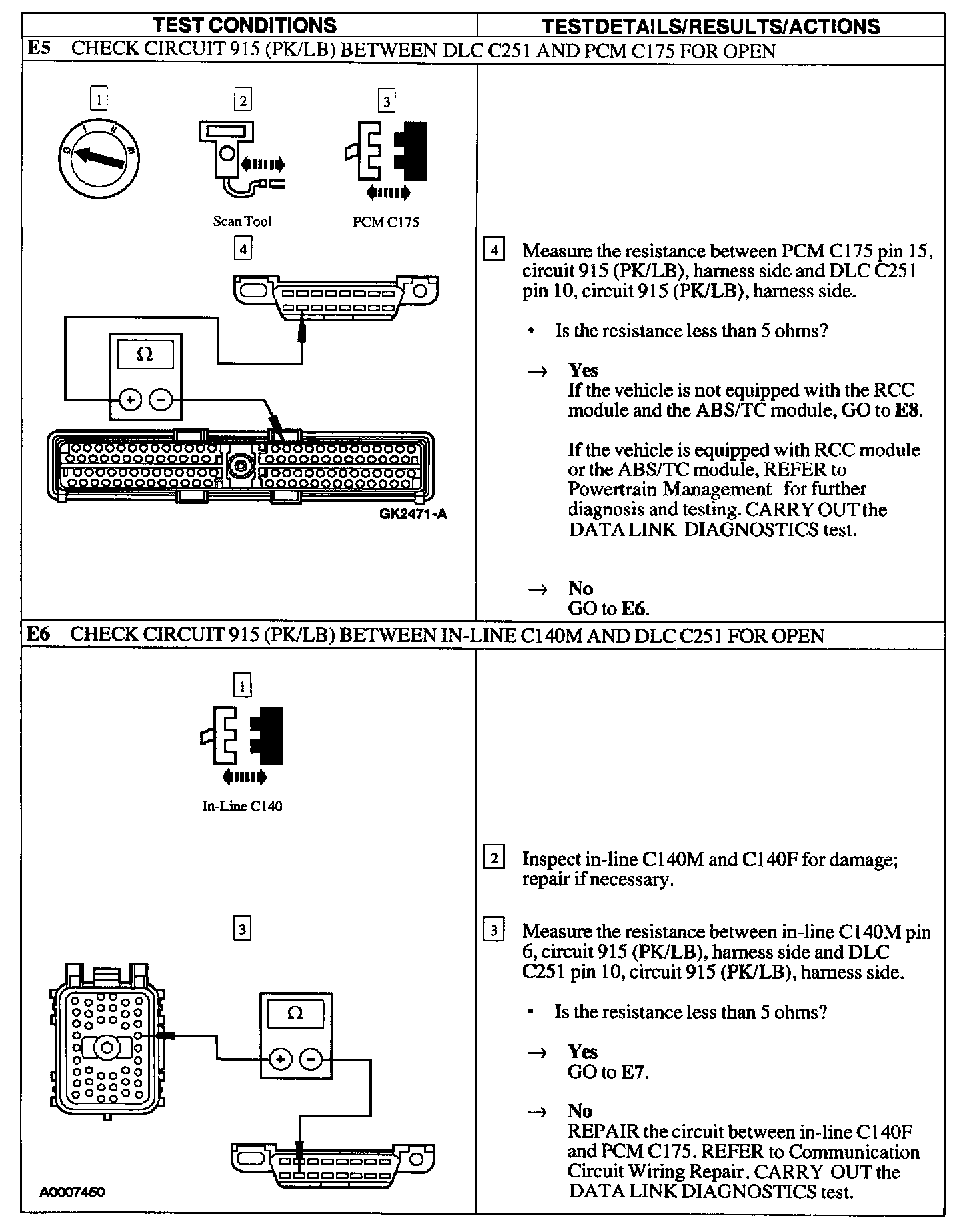

E5 - E6:

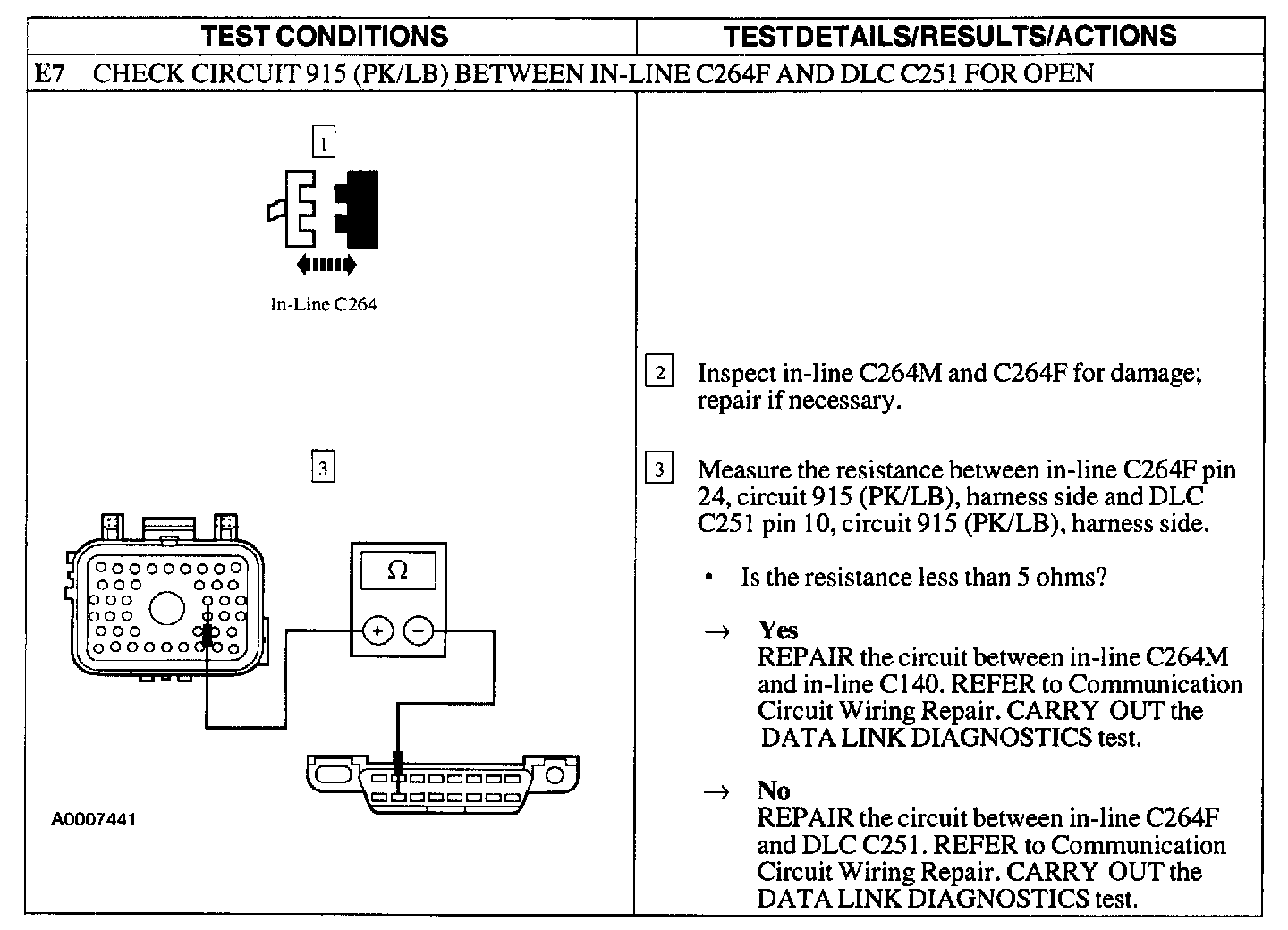

E7:

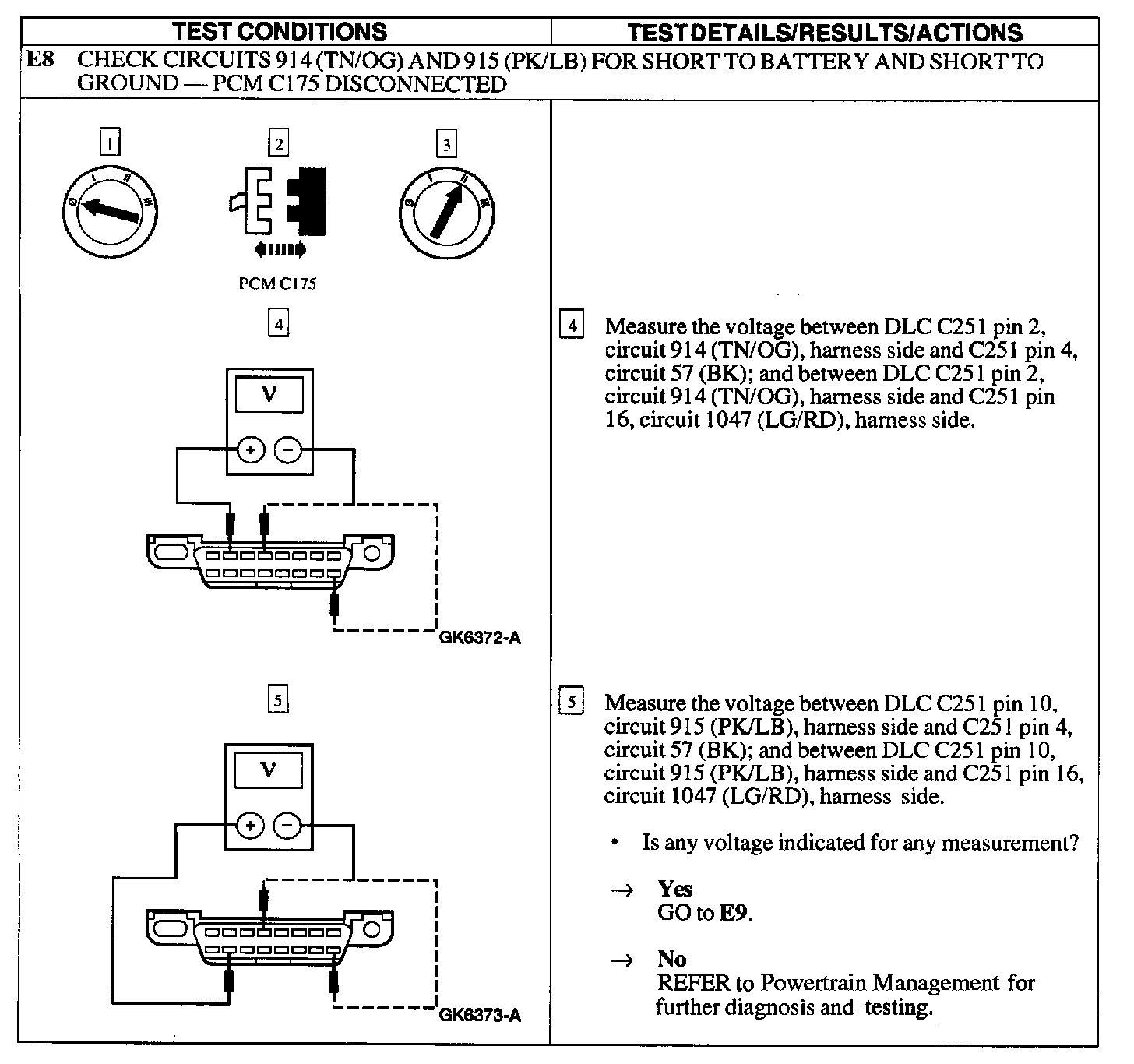

E8:

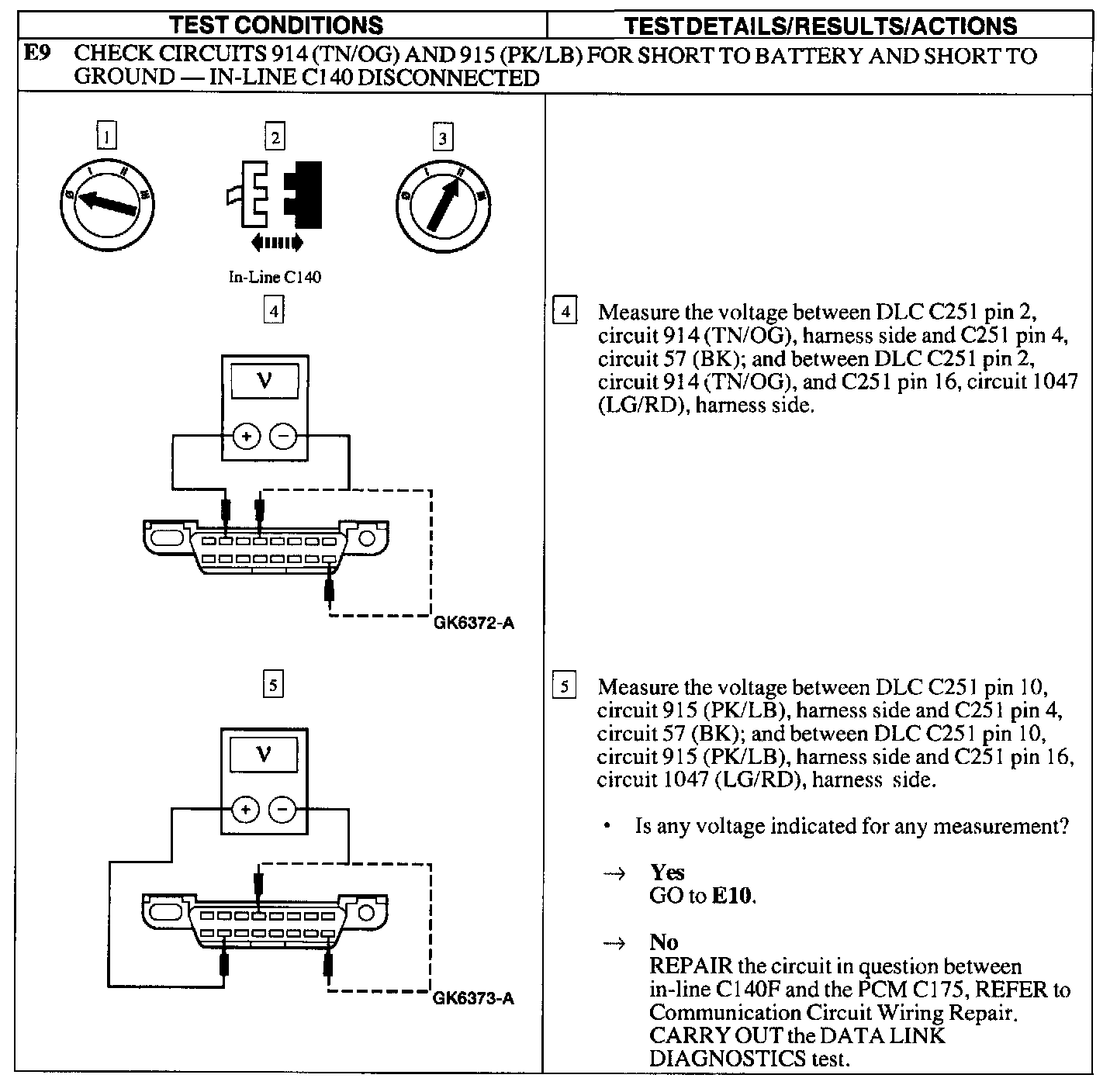

E9:

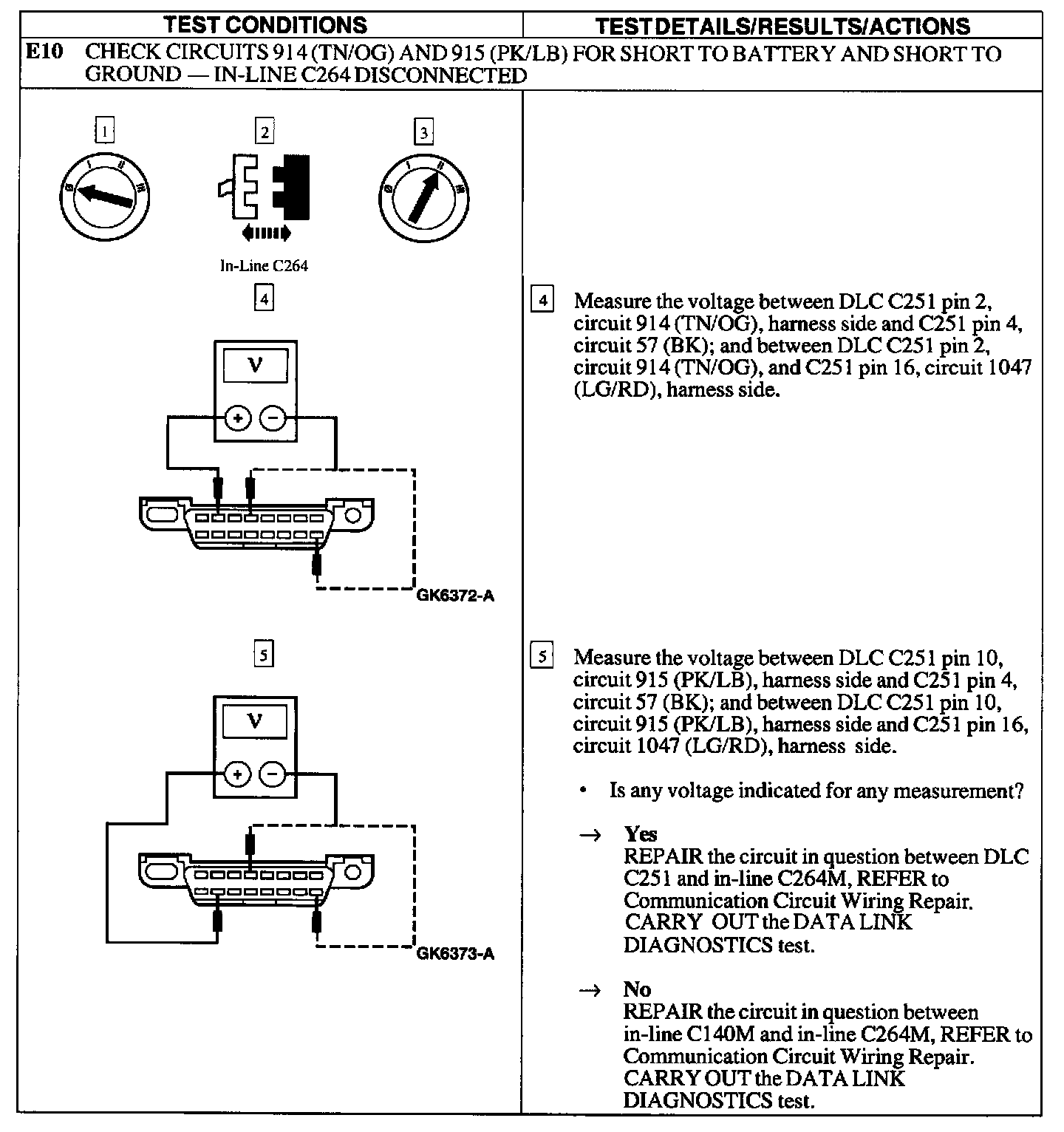

E10:
