Home >> Mercury >> 2000 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Power and Ground Distribution >> Relays and Modules - Power and Ground Distribution >> Relay Box >> Diagrams >> Relay Center Box 1 and 2

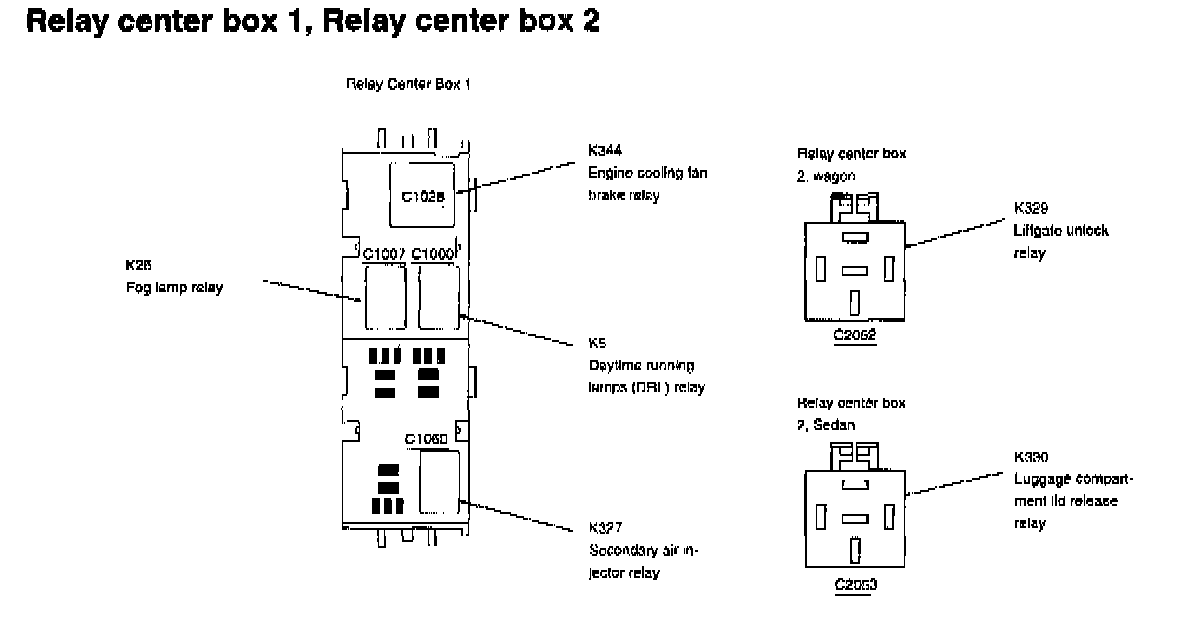

Relay Center Box 1 and 2

Diagram 700-01-00-2:
