Cabin Air Filter / Purifier: Service and Repair

CABIN AIR FILTER

REMOVAL

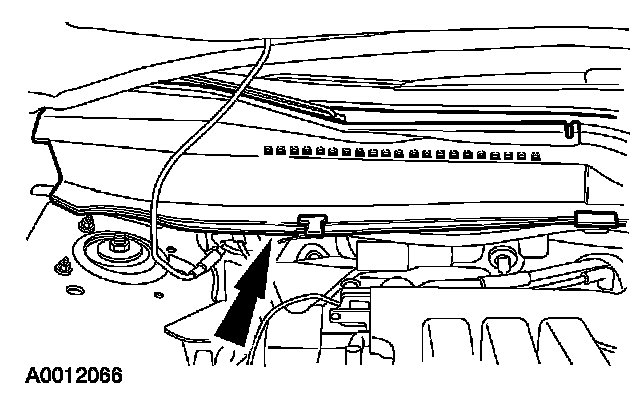

1. Remove the right side cowl vent screen.

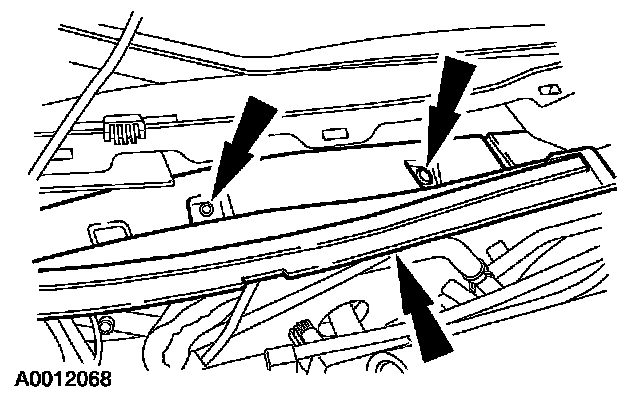

2. Remove the screws and the water shield.

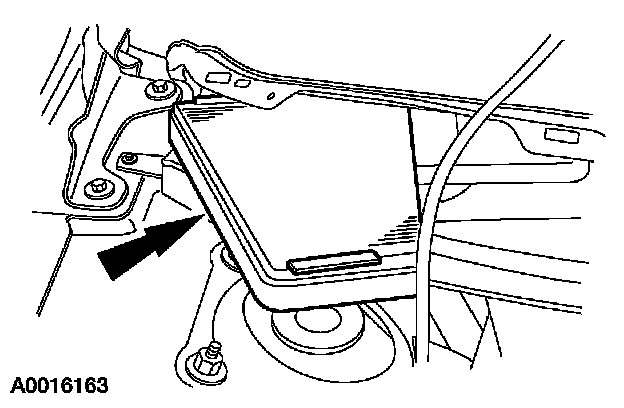

3. Remove the cabin air filter.


INSTALLATION
1. To install, reverse the removal procedure.
