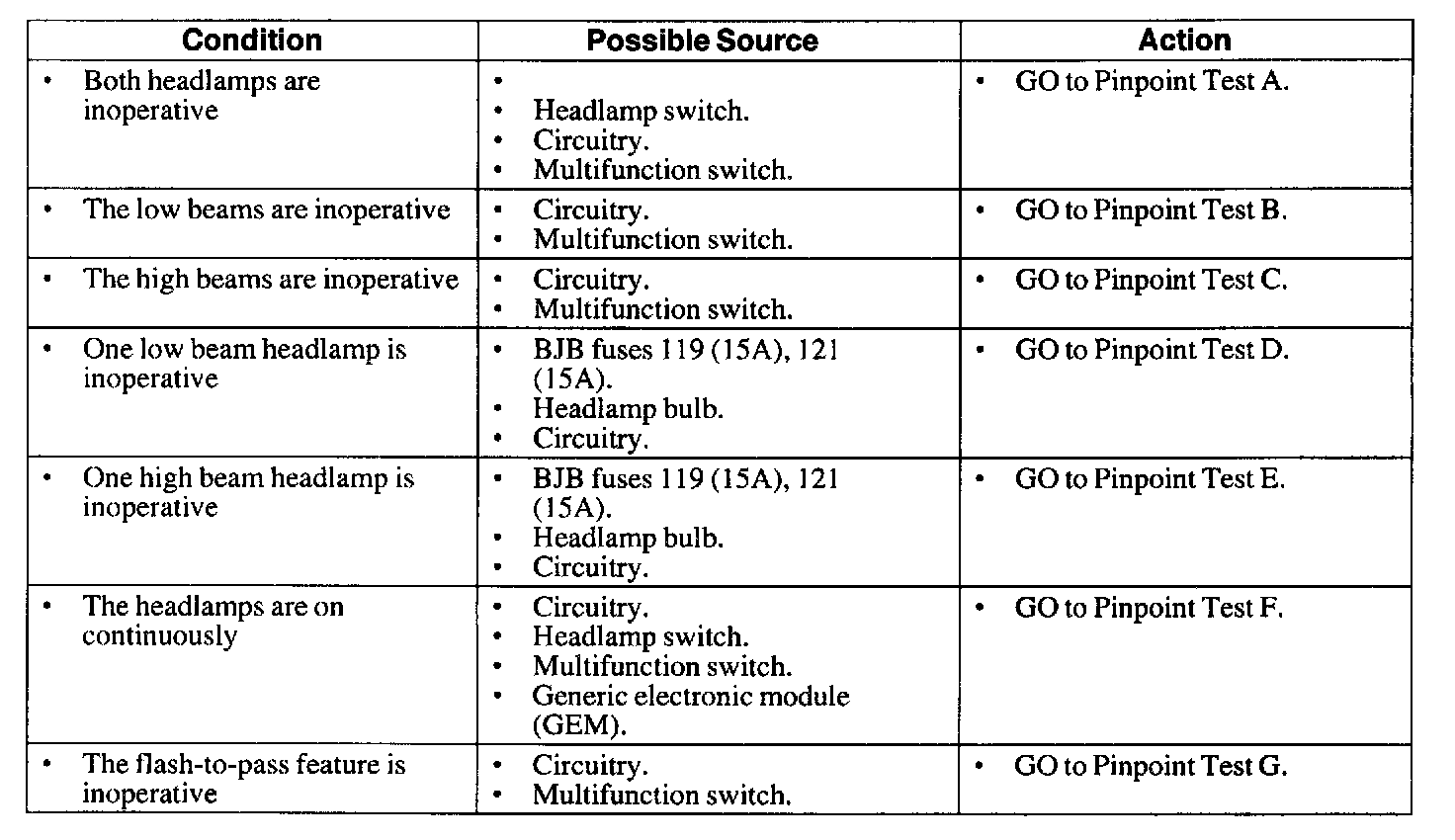

Headlmaps






NOTE: Refer to the Vehicle/Diagrams for the connector numbers stated in the Pinpoint Tests.
