Home >> Mercury >> 2000 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> Pinpoint Tests >> Headlamps >> Test F: Headlamps Are on Continuously

Test F: Headlamps Are on Continuously

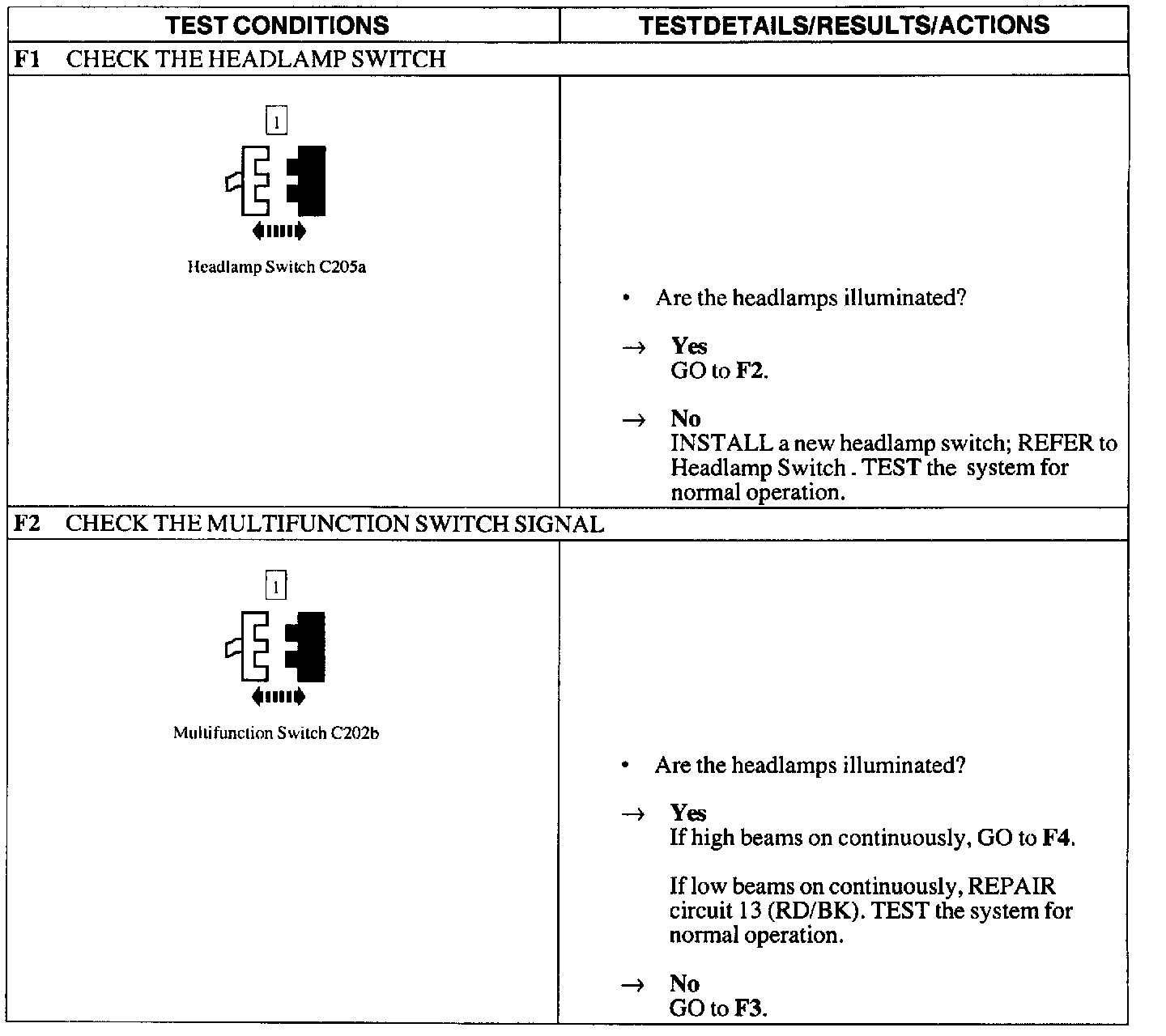

F1 - F2:

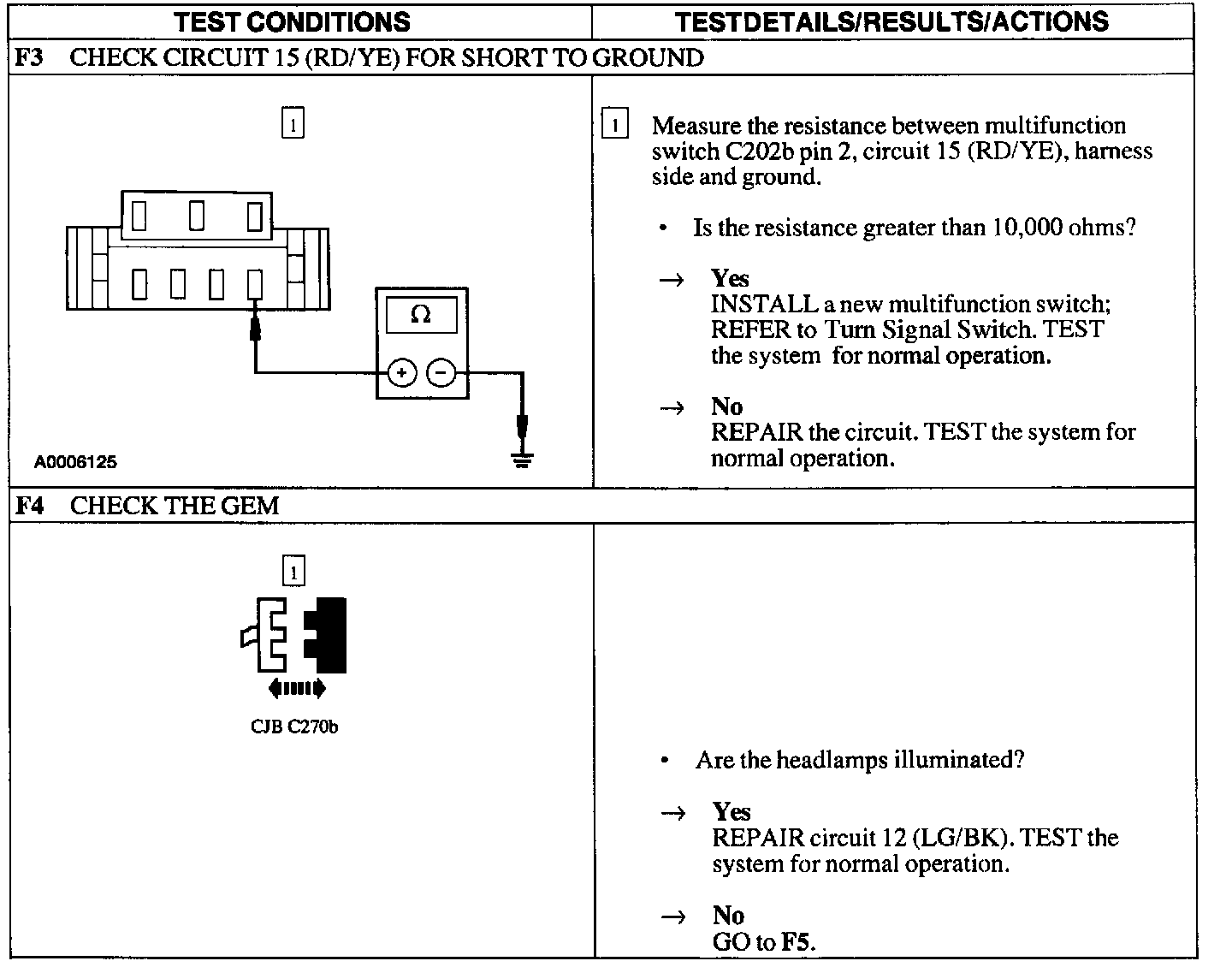

F3 - F4:

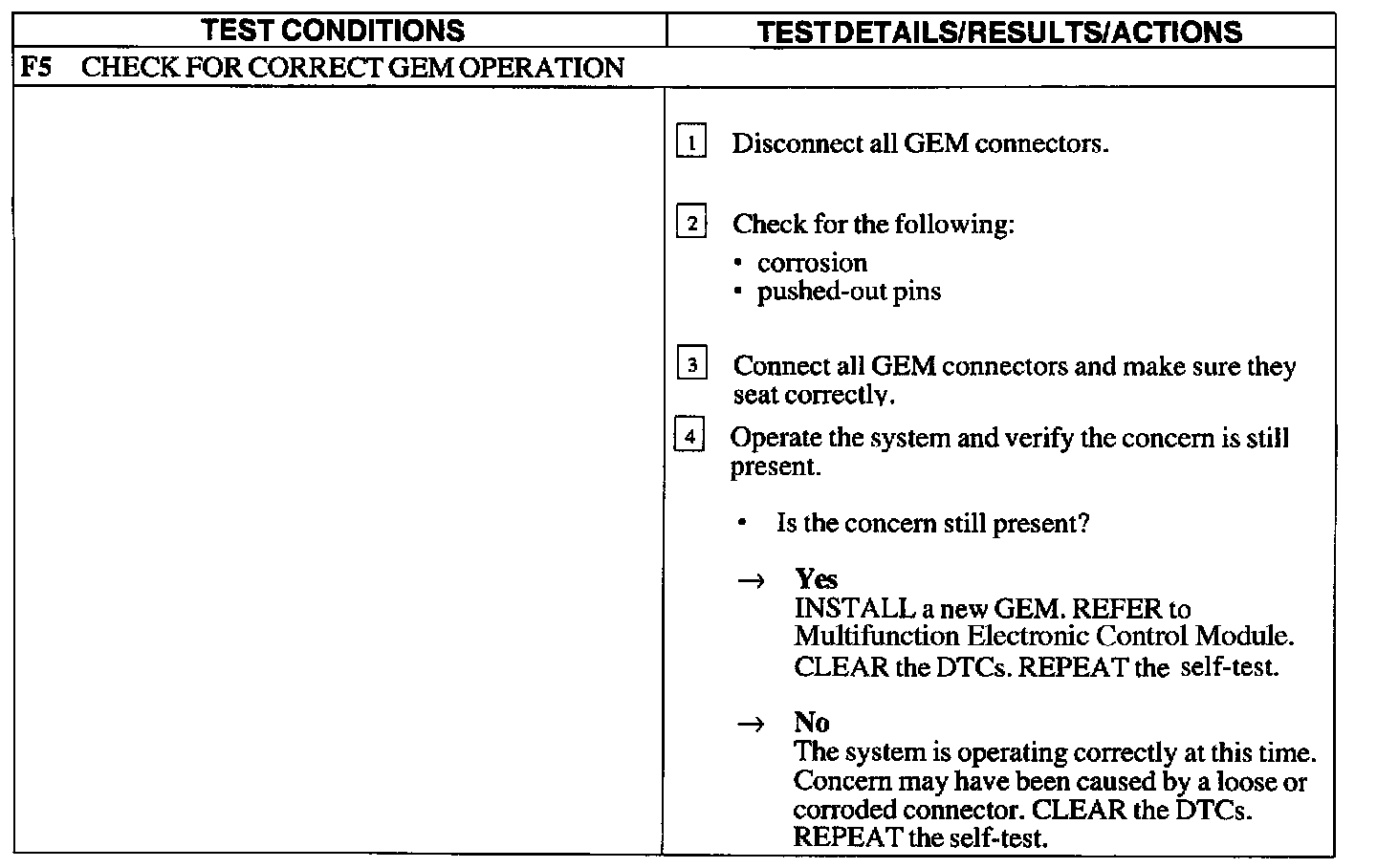

F5:
