Home >> Mercury >> 2000 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Lighting and Horns >> Headlamp >> Testing and Inspection >> Pinpoint Tests >> Autolamps >> Test K: Autolamps Are on Continuously

Test K: Autolamps Are on Continuously

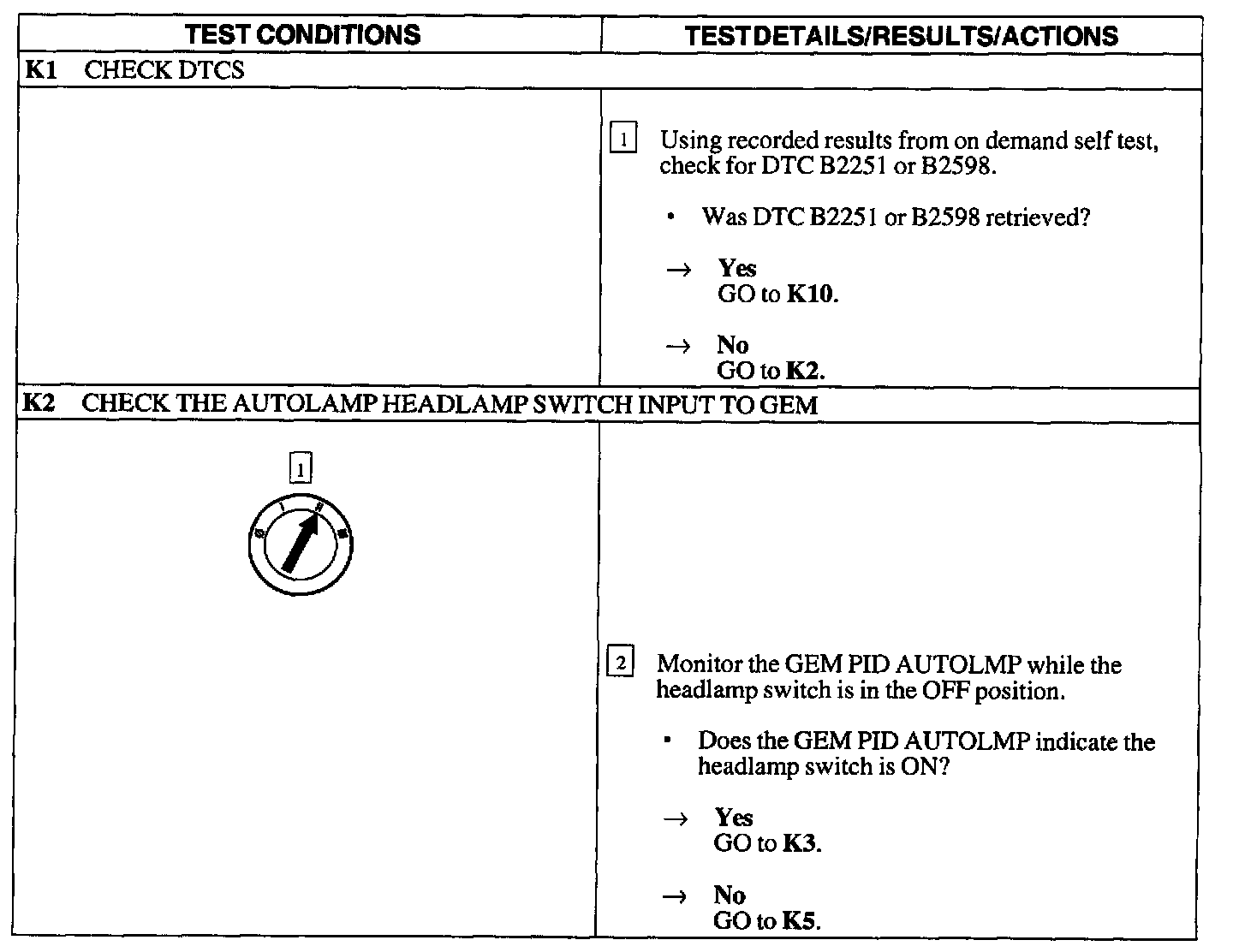

K1 - K2:

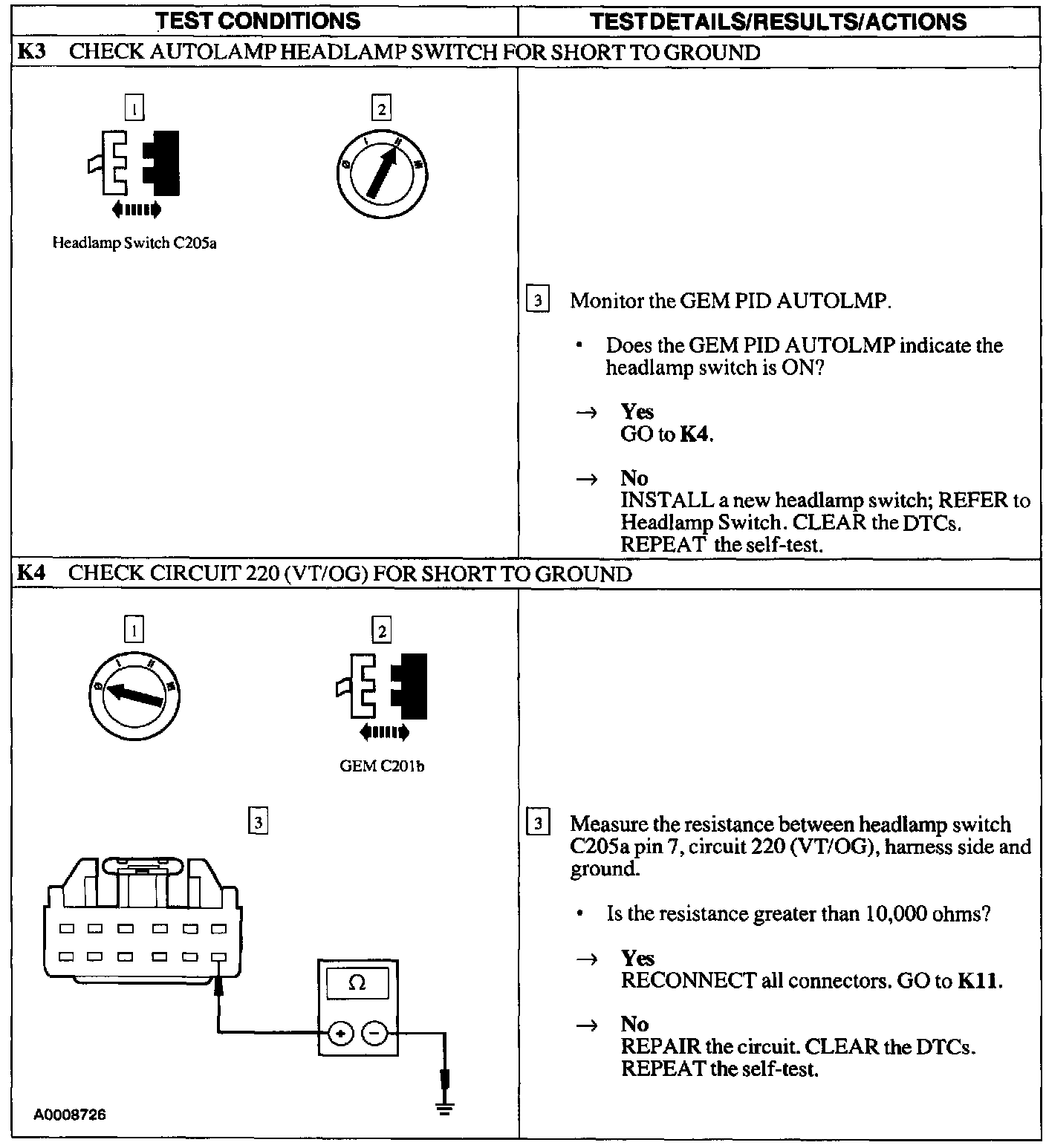

K3 - K4:

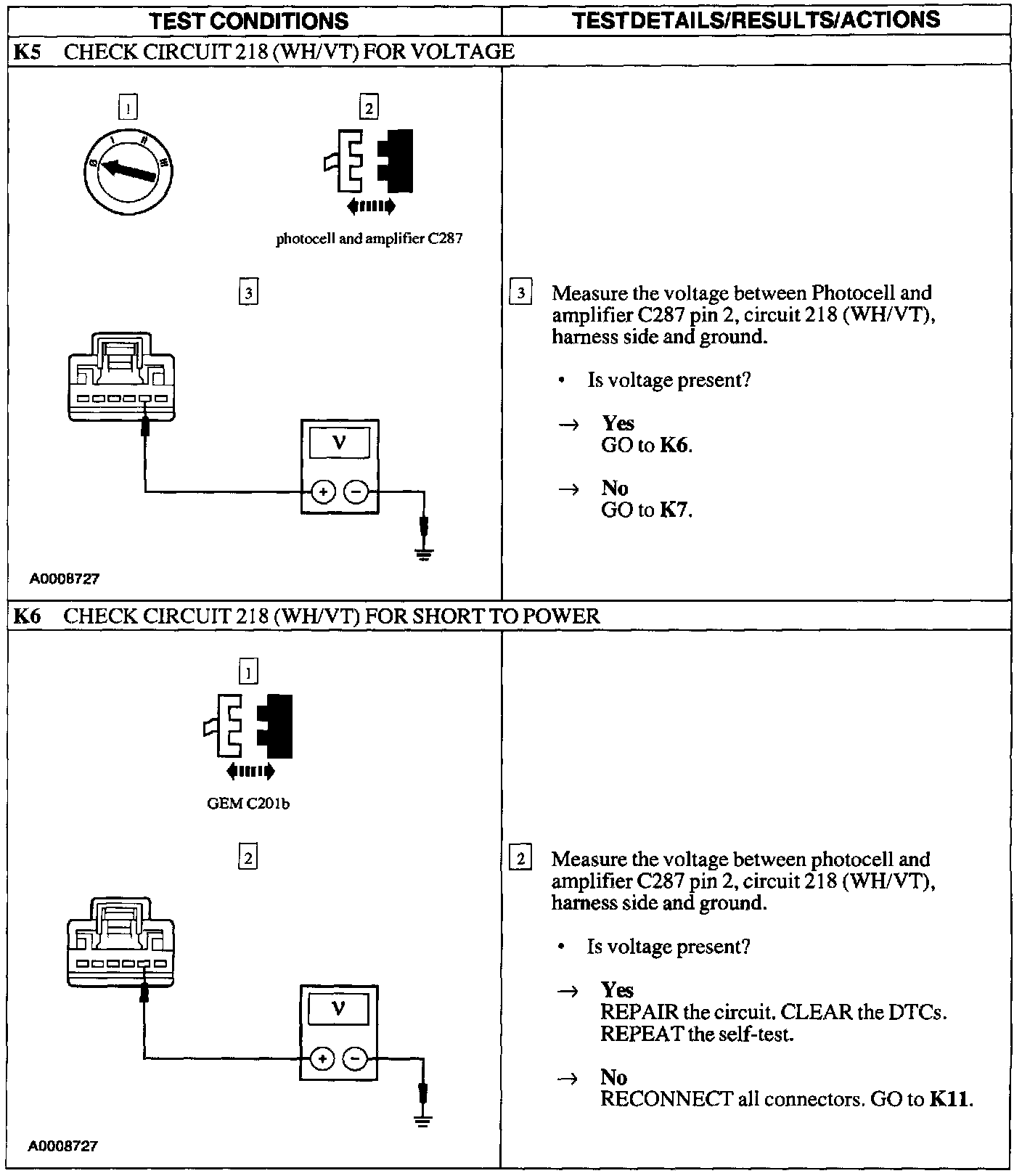

K5 - K6:

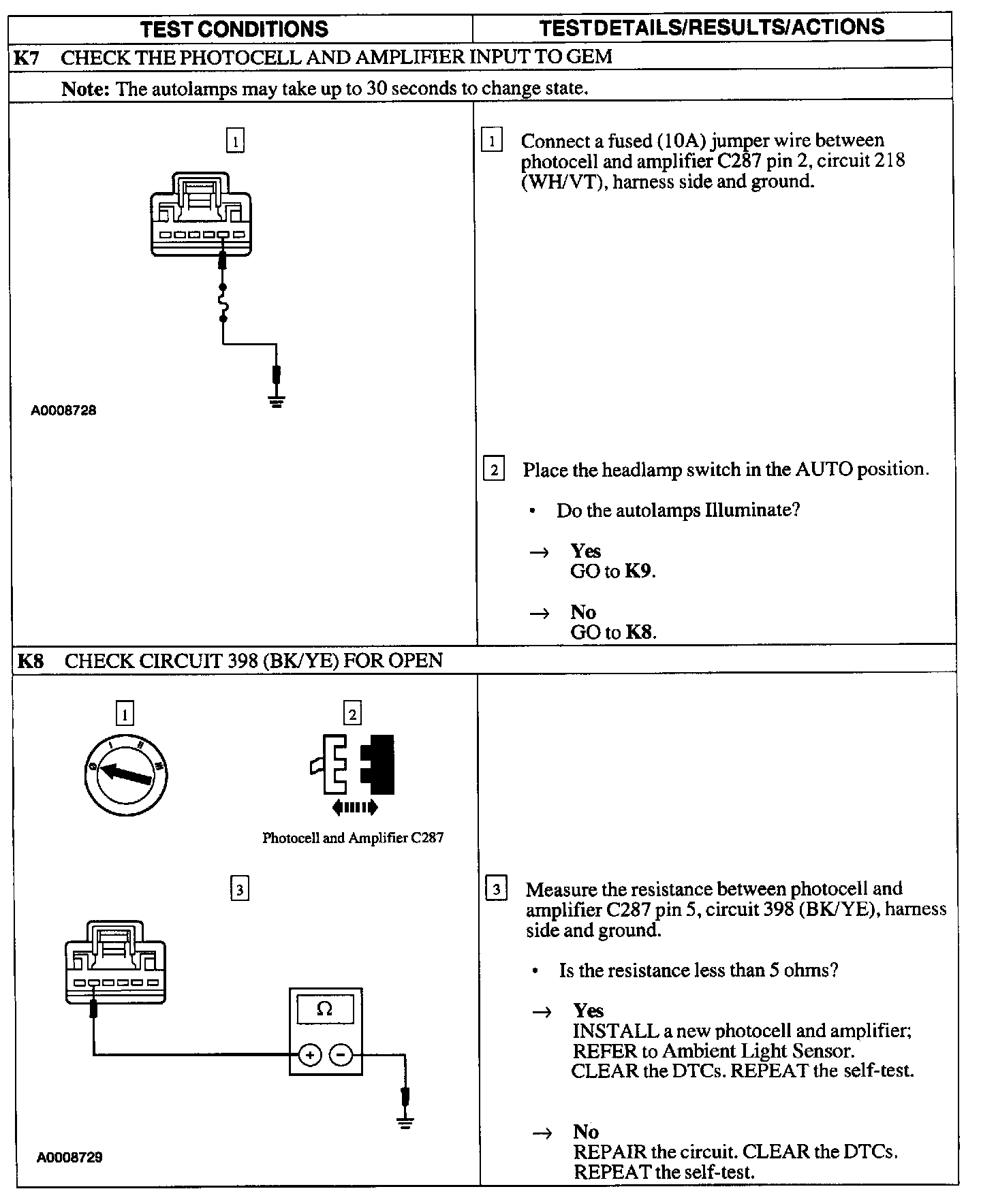

K7 - K8:

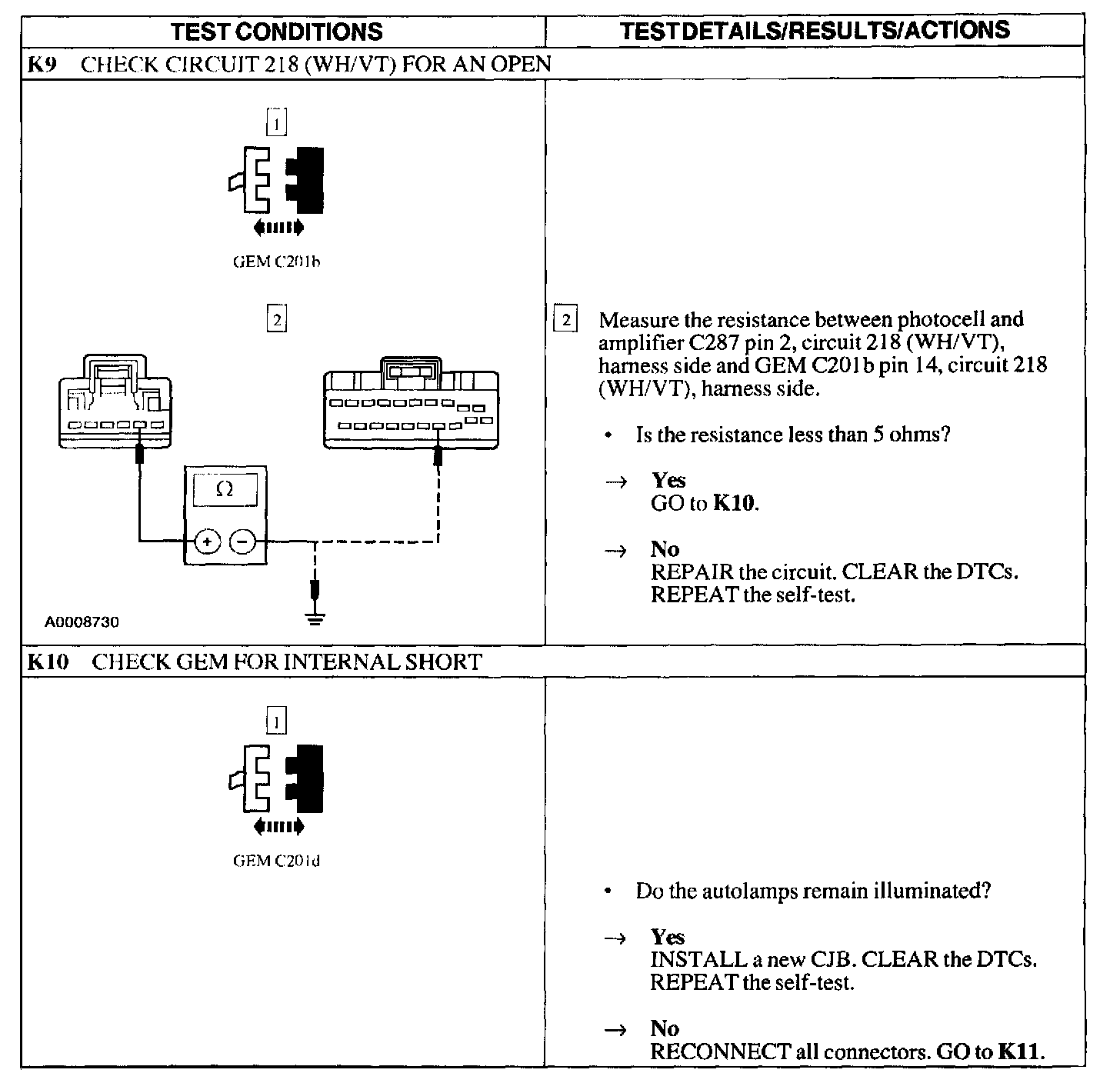

K9 - K10:

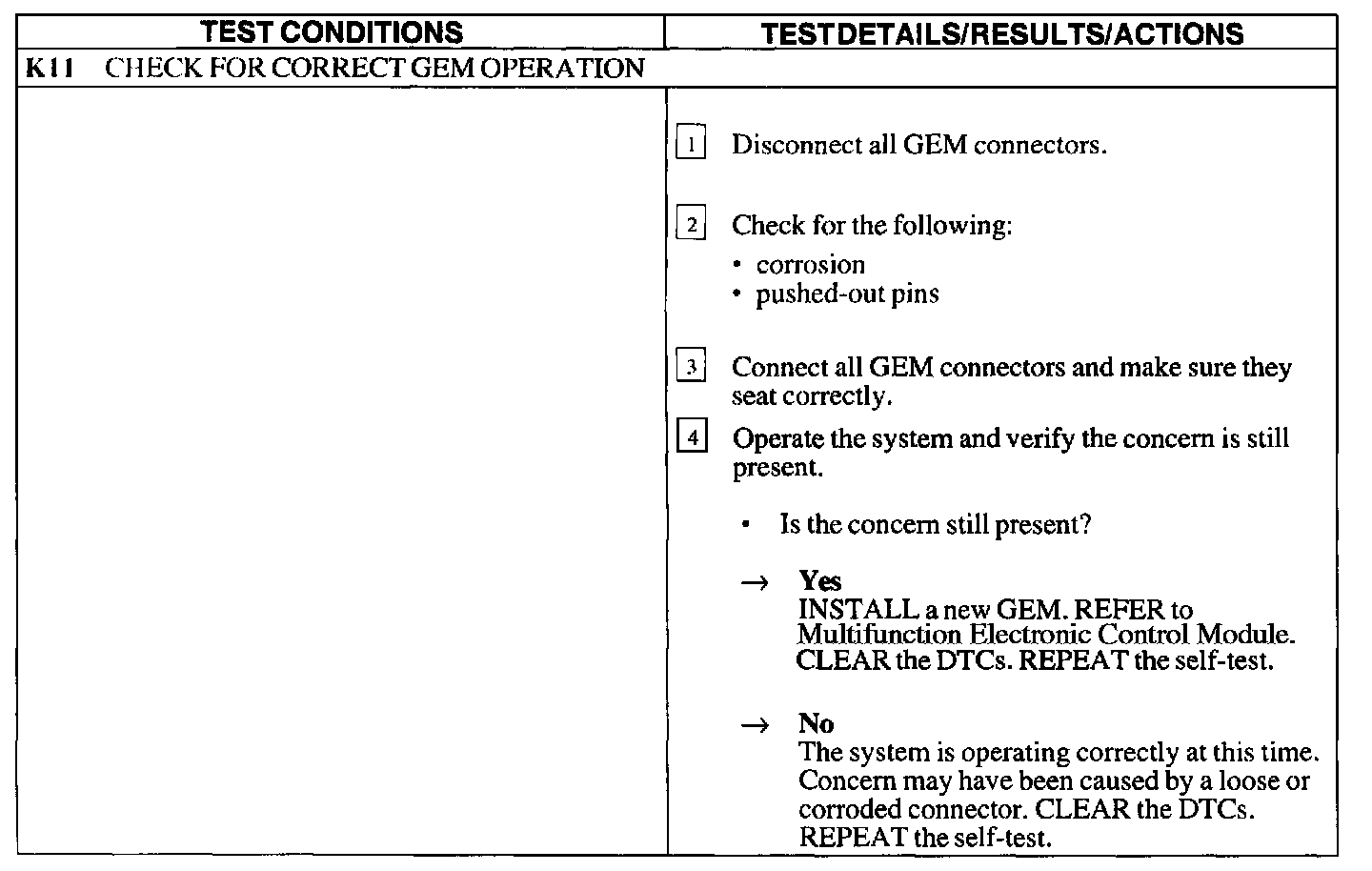

K11:
