Inspection and Verification

1. Verify the customer concern by operating the autolamps.
2. Visually inspect for the following obvious signs of mechanical and electrical damage.

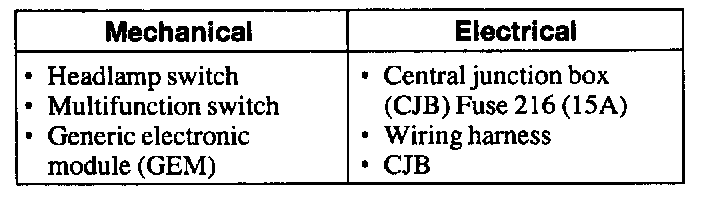

VISUAL INSPECTION CHART

3. If the fault is not visually evident, connect the scan tool to the data link connector located beneath the instrument panel and select the vehicle to be tested from the scan tool menu. If the scan tool does not communicate with the vehicle:
^ check that the program card is correctly installed.
^ check the connections to the vehicle.
^ check the ignition switch position.

4. If the scan tool still does not communicate with the vehicle, refer to the scan tool manual.
5. Carry out the DATA LINK DIAGNOSTIC TEST. If the scan tool responds with:
^ CKT914, CKT915, or CKT70 = ALL ECUS NO RESP/NOT EQUIP, refer to Module Communication Network (Information Bus)
^ NO RESP/NOT EQUIP for GEM, refer to Multifunction Electronic Control Module.
^ SYSTEM PASSED, retrieve and record the continuous Diagnostic Trouble Codes (DTCs), erase the continuous DTCs and carry out the self-test diagnostics for the GEM.

6. If the DTCs retrieved are related to the concern, go to GEM DTC Index to continue diagnostics. Diagnostic Trouble Code Tests and Associated Procedures
7. If no DTCs related to the concern are retrieved, proceed to Symptom Chart. Autolamps
