Home >> Mercury >> 2000 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Lighting and Horns >> Daytime Running Lamp >> Testing and Inspection >> Pinpoint Tests >> Test A: The Daytime Running Lamps Are Inoperative

Test A: The Daytime Running Lamps Are Inoperative

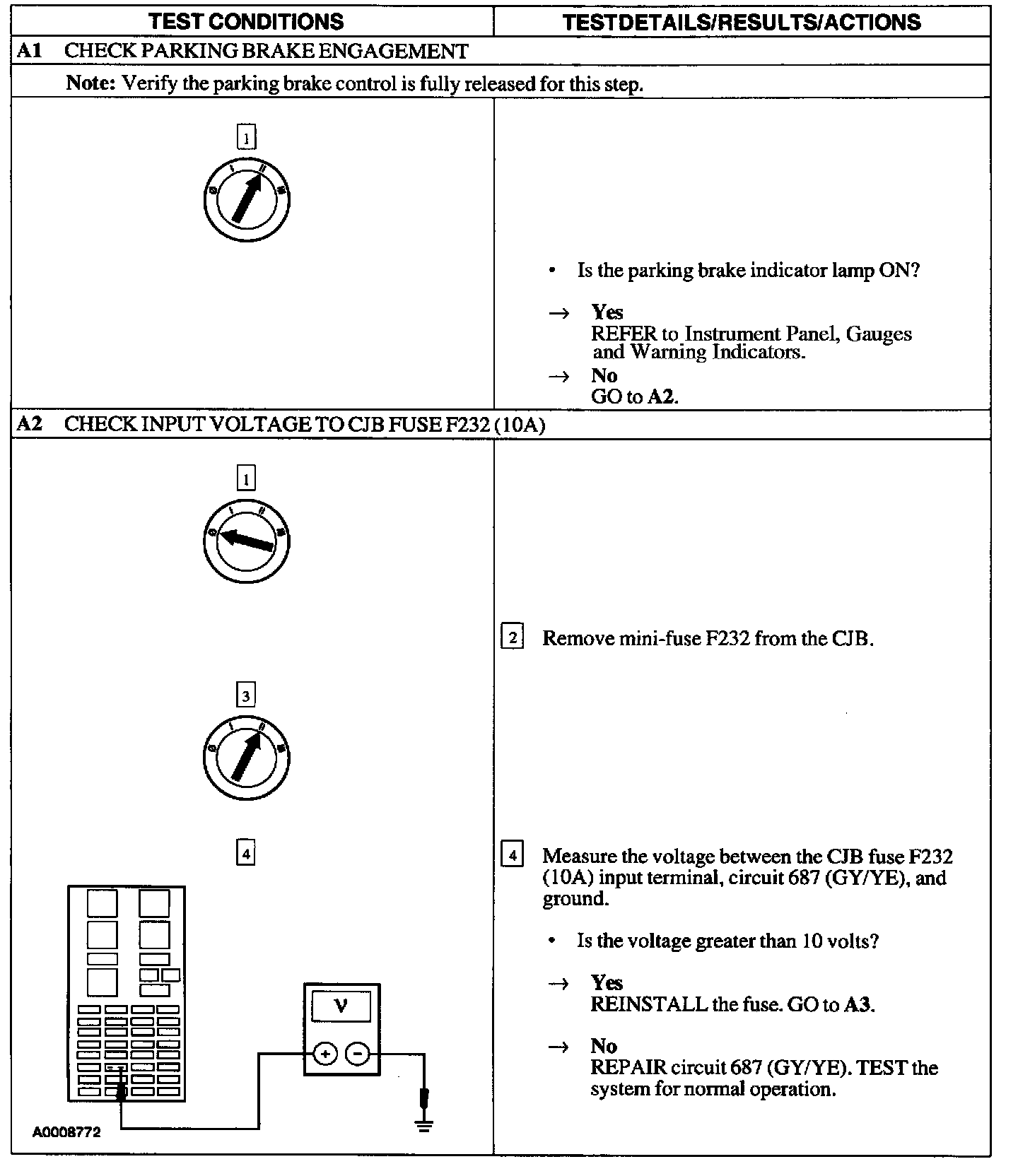

A1 - A2:

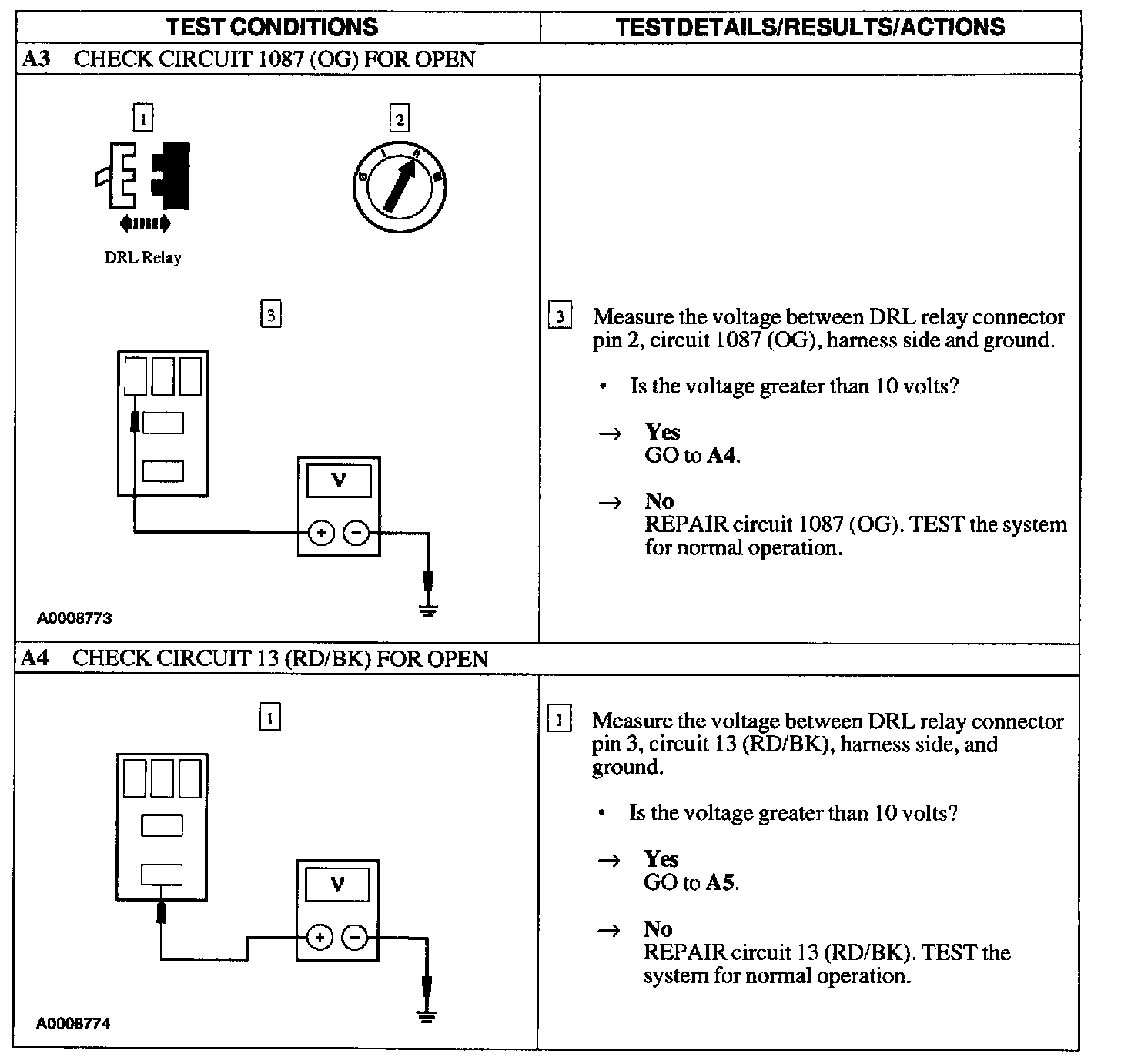

A3 - A4:

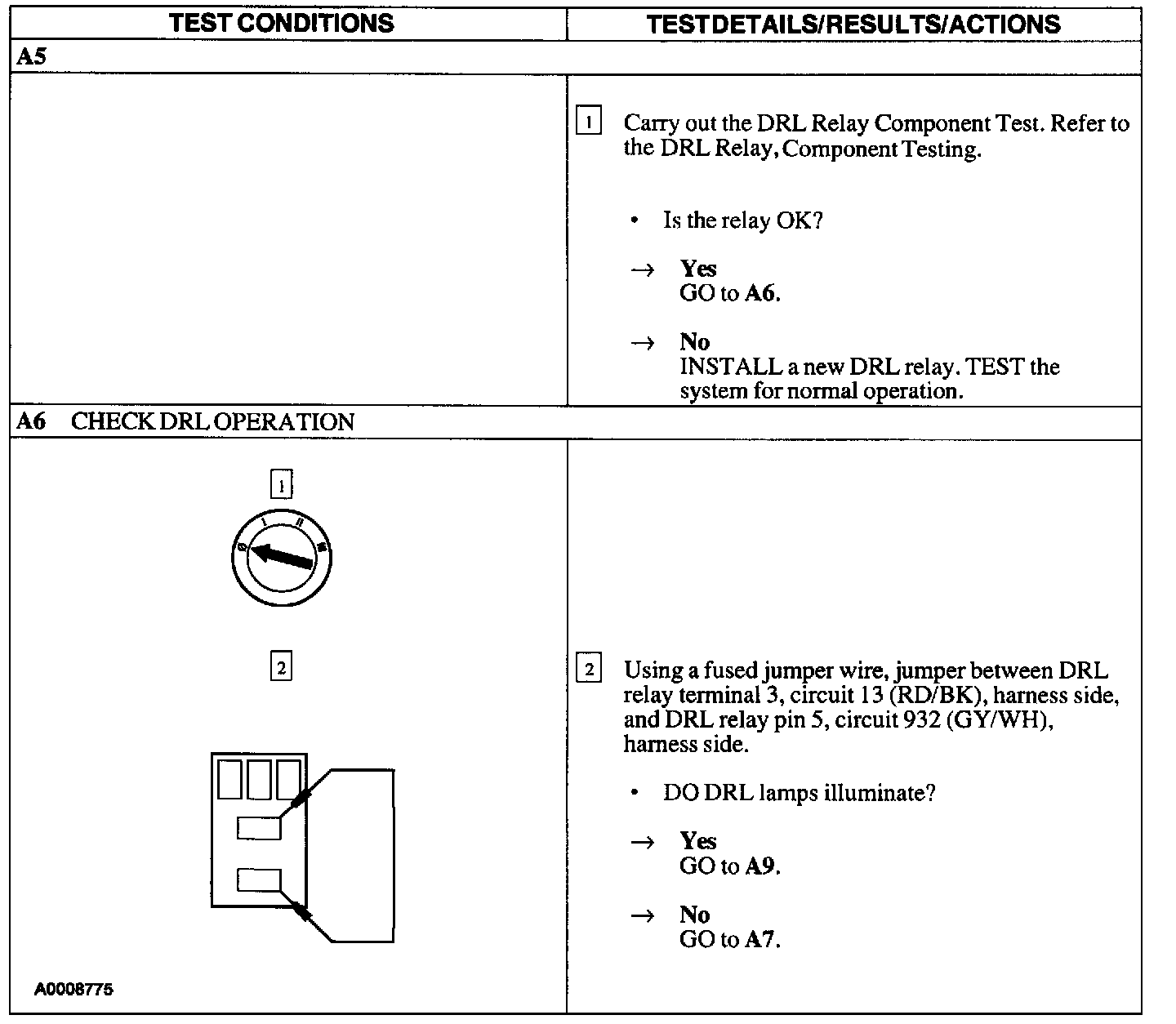

A5 - A6:

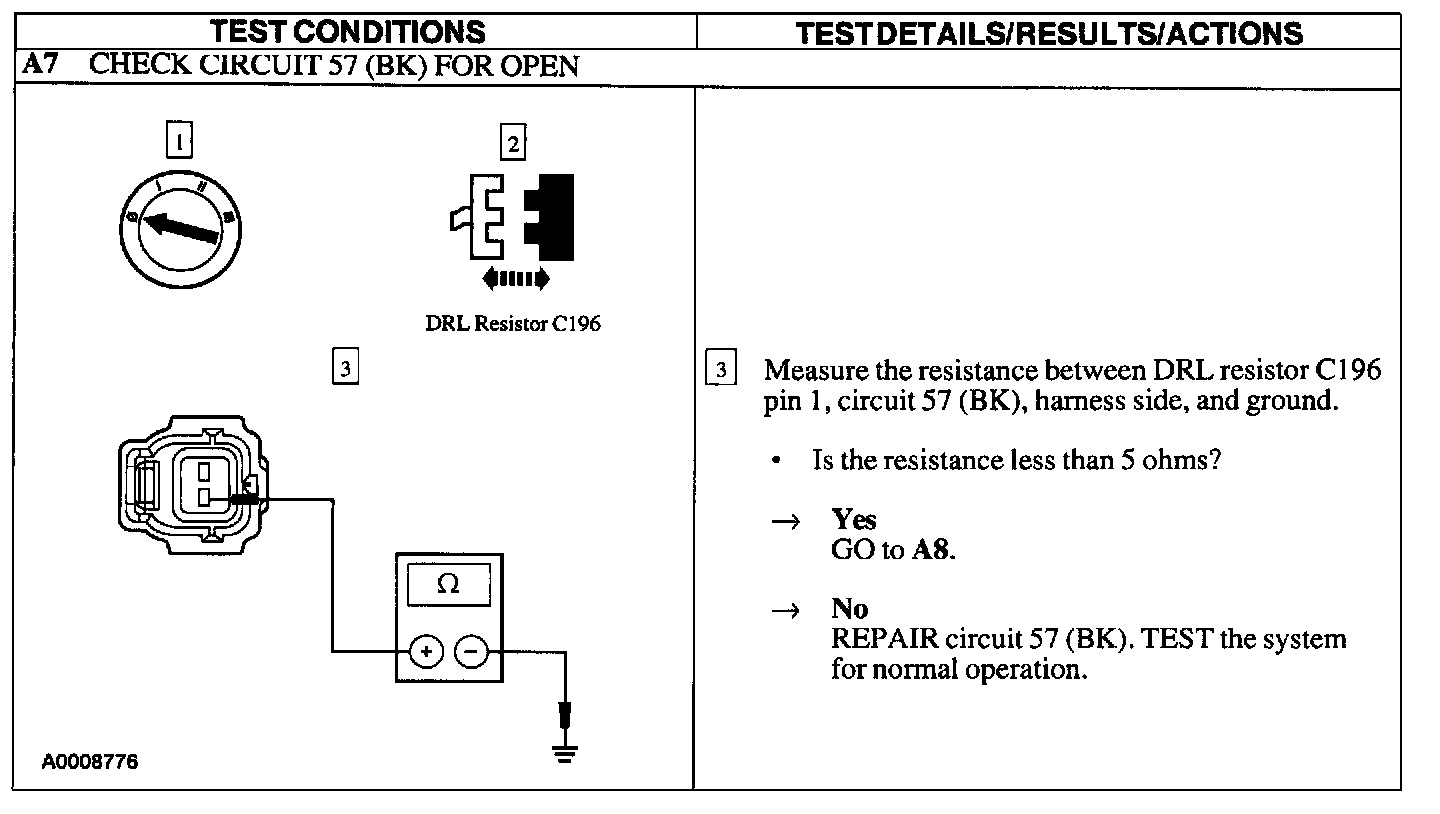

A7:

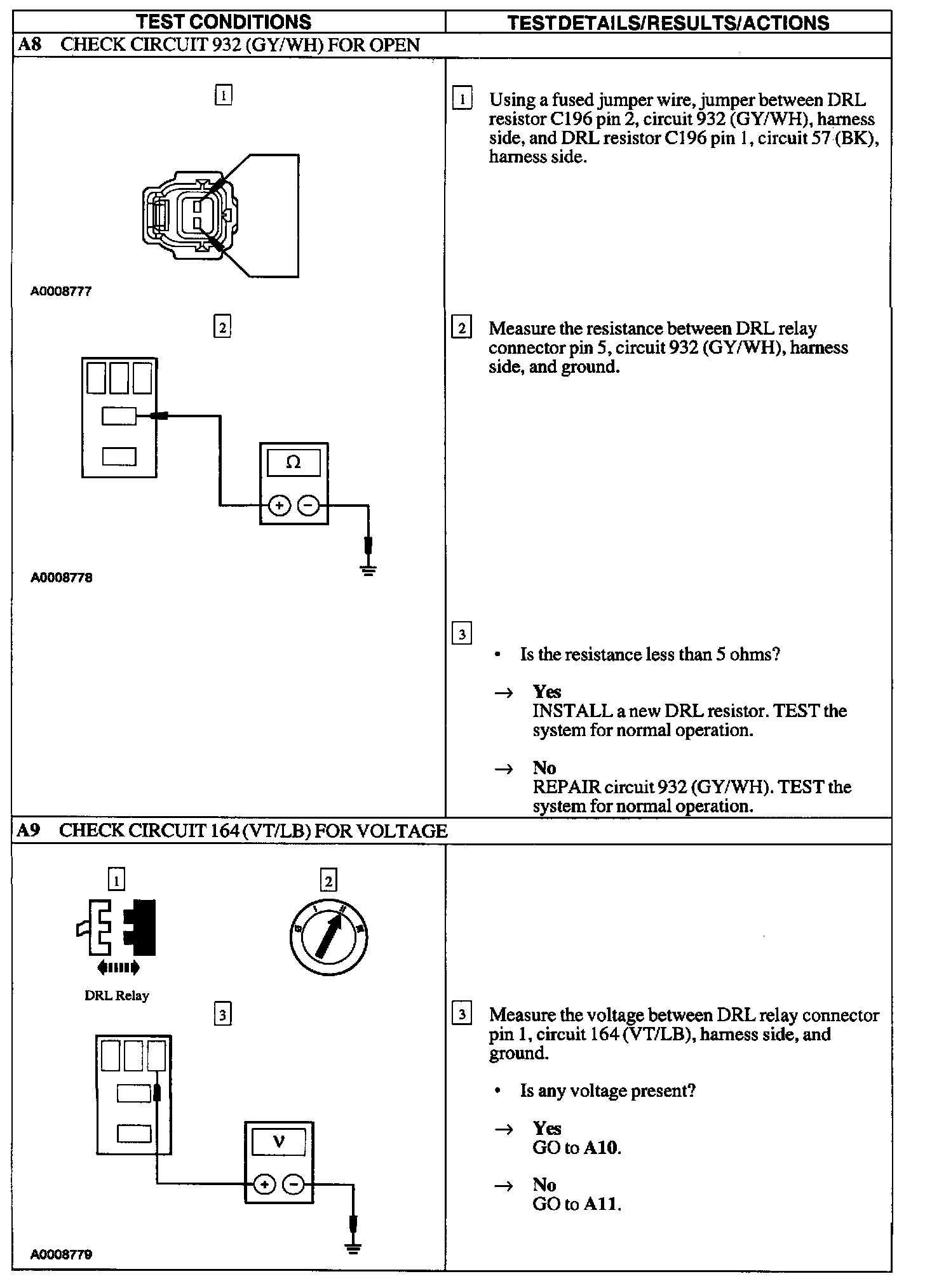

A8 - A9:

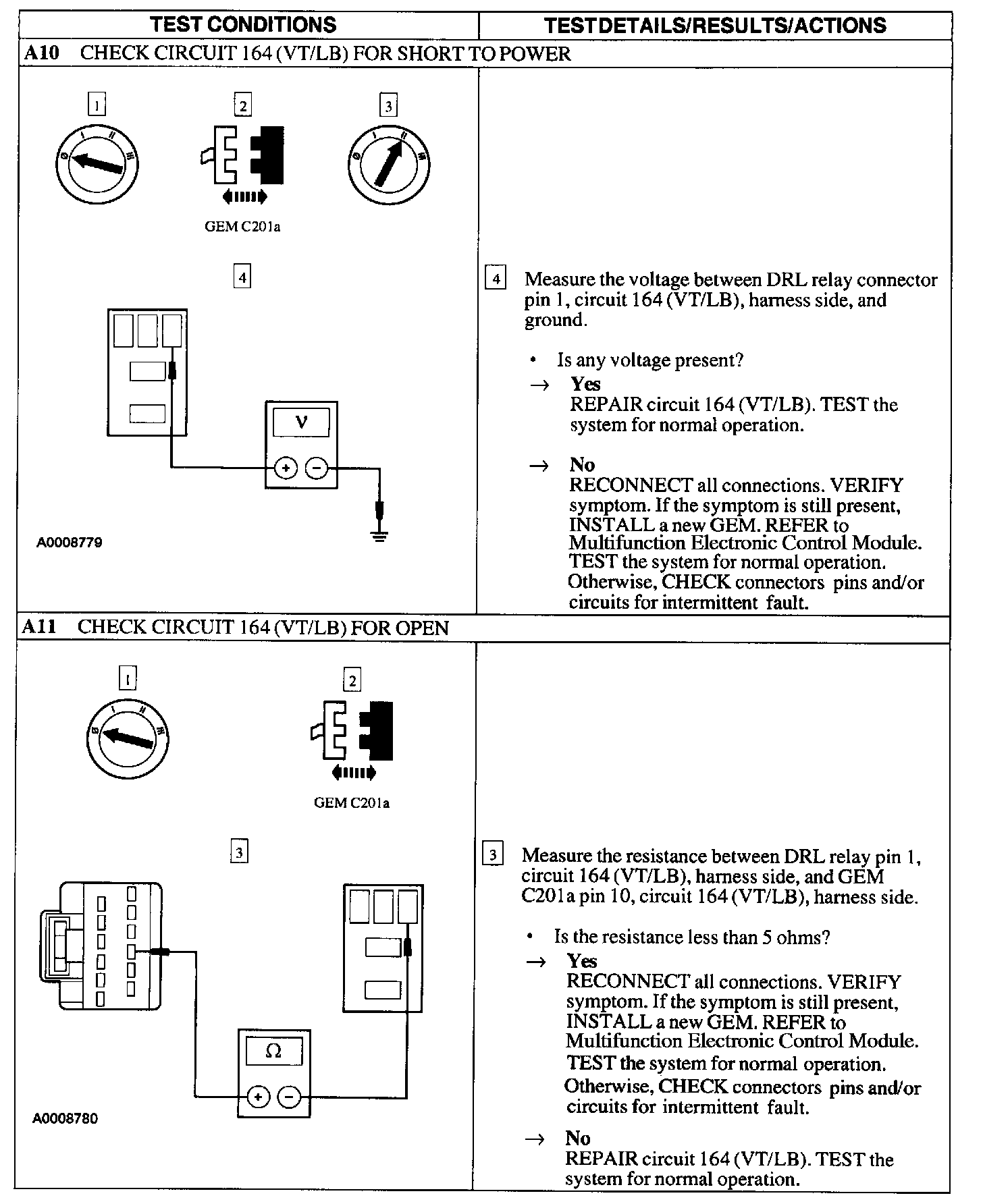

A10 - A11:
