Home >> Mercury >> 2000 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Testing and Inspection >> Pinpoint Tests >> Test C: Courtesy Lamps Stay On Continuously

Test C: Courtesy Lamps Stay On Continuously

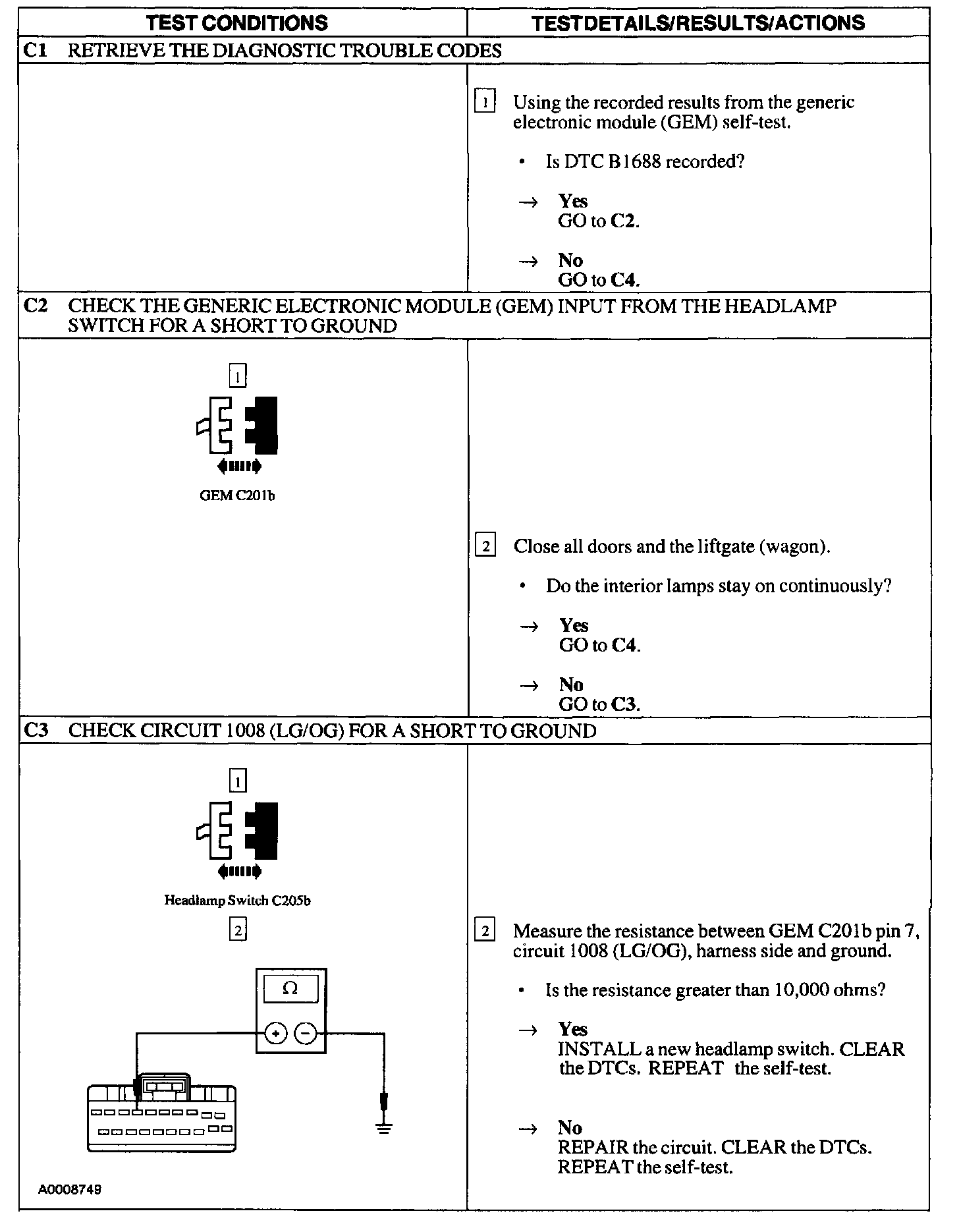

C1 - C3:

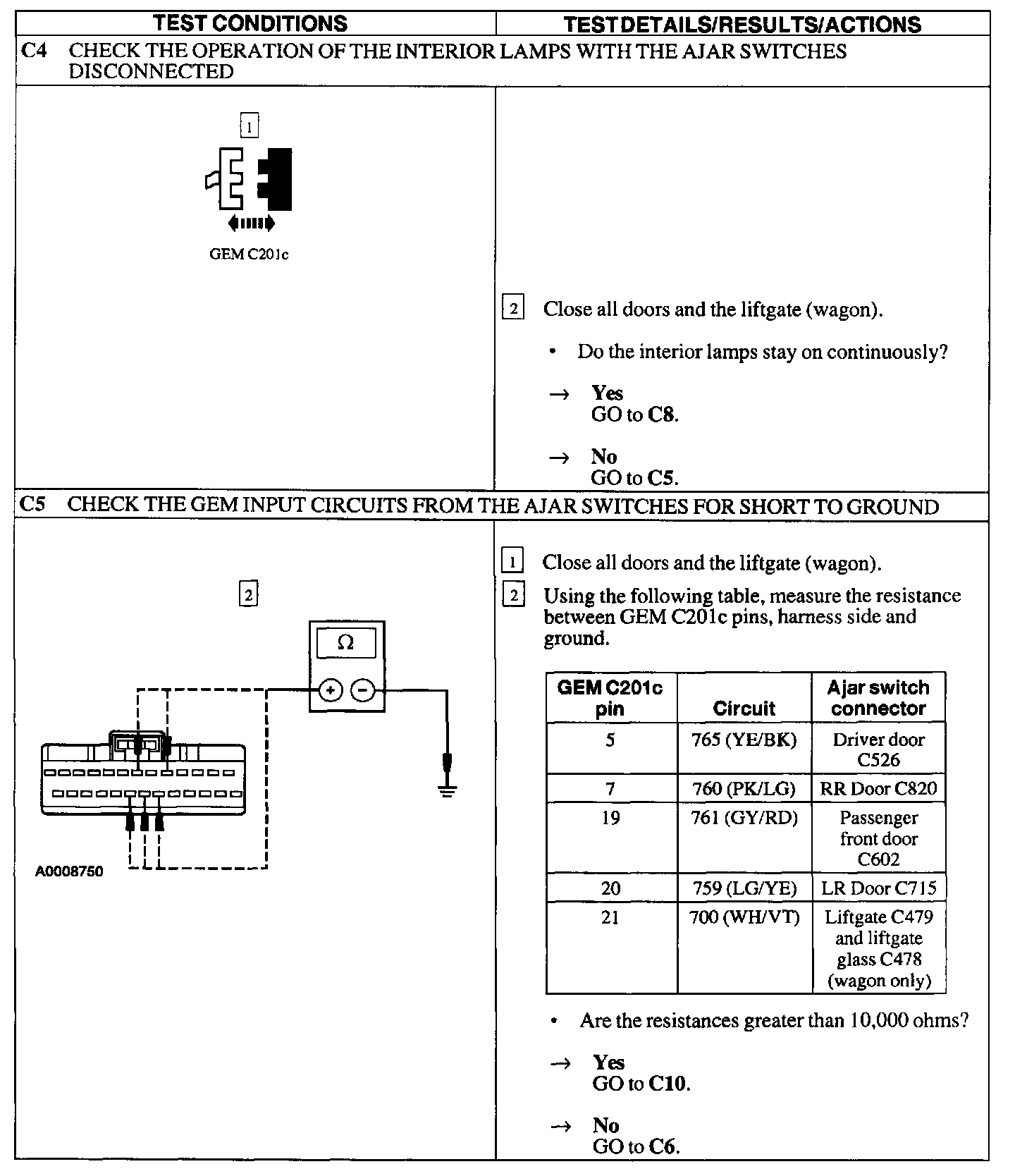

C4 - C5:

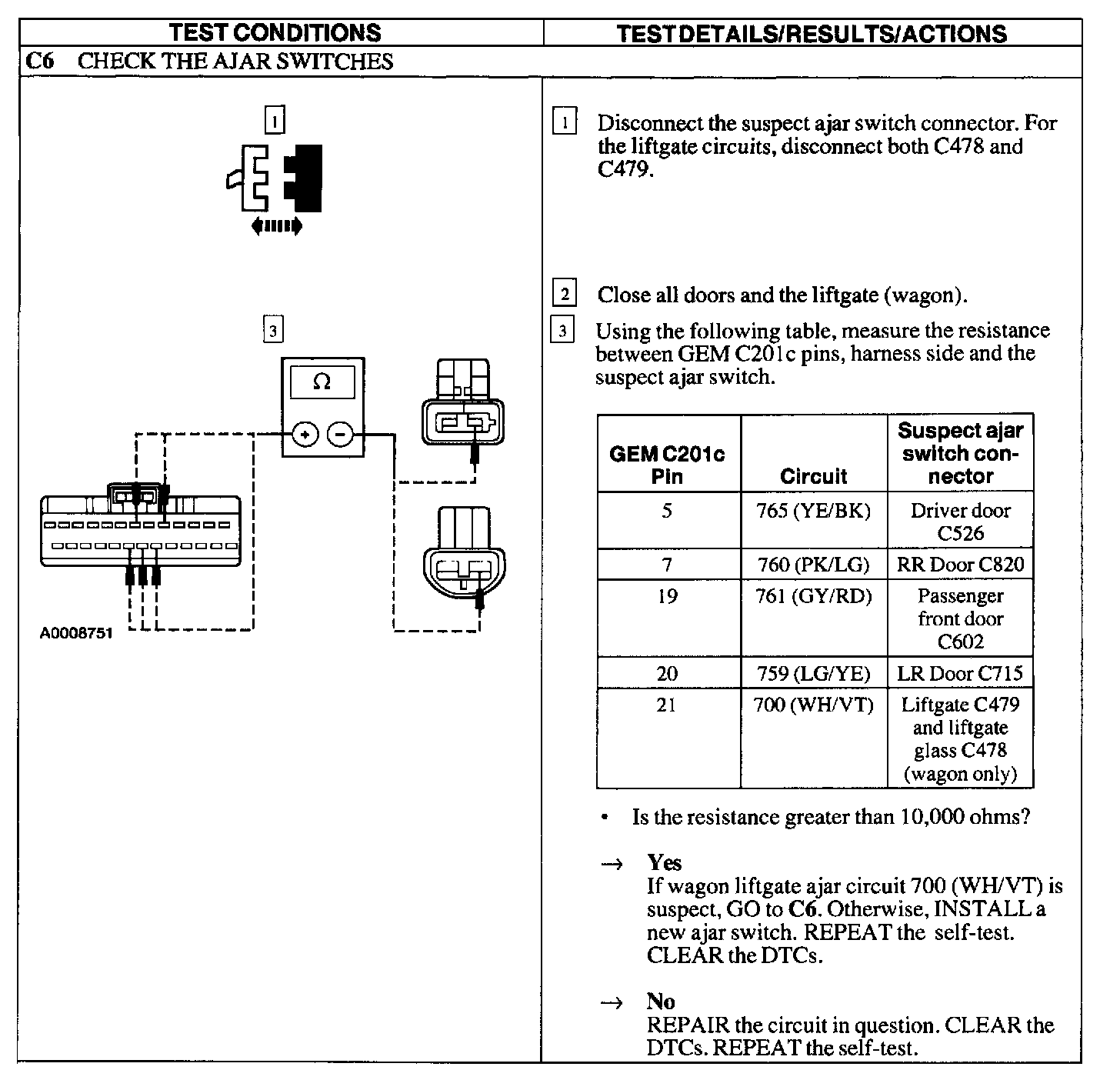

C6:

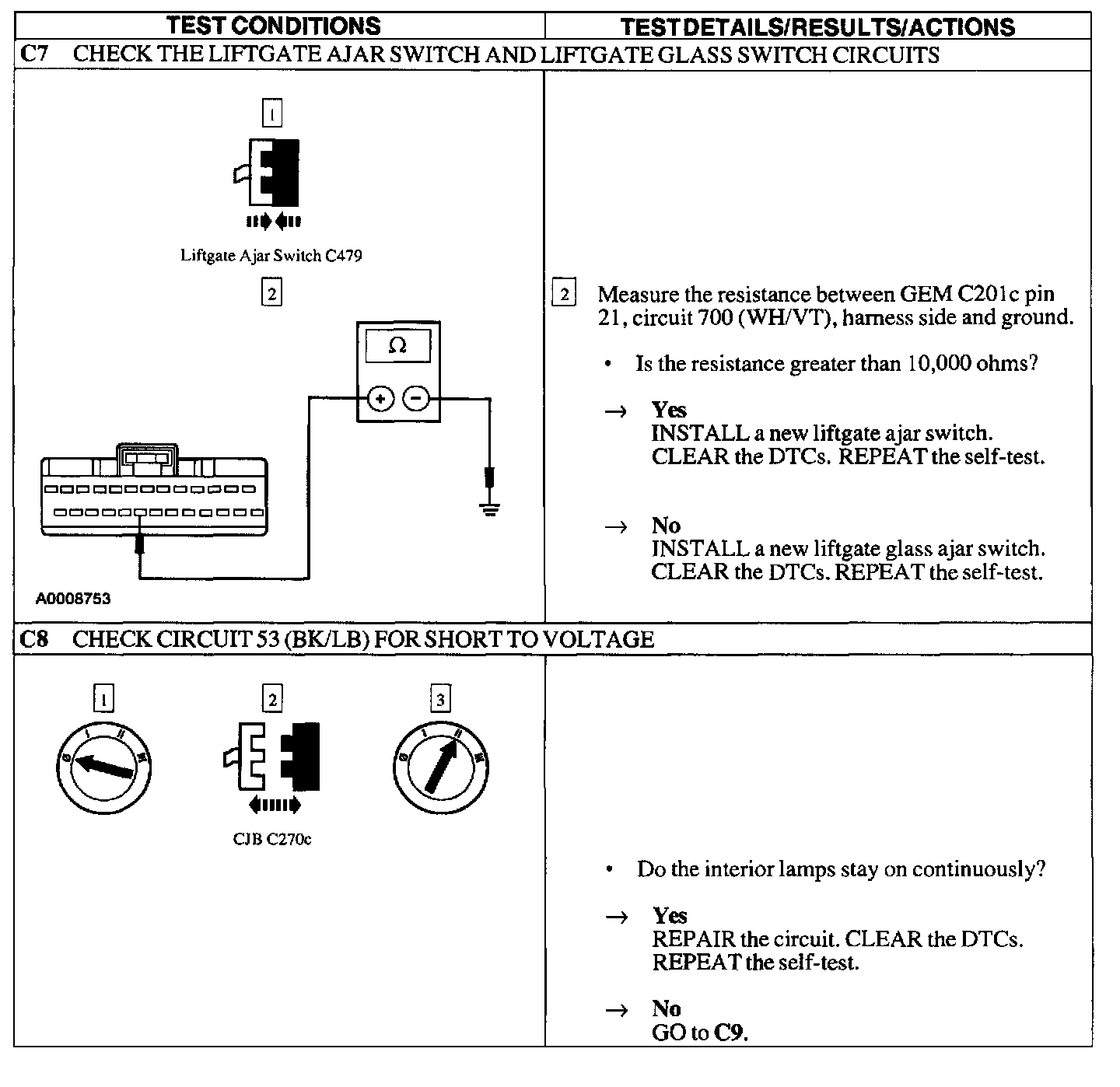

C7 - C8:

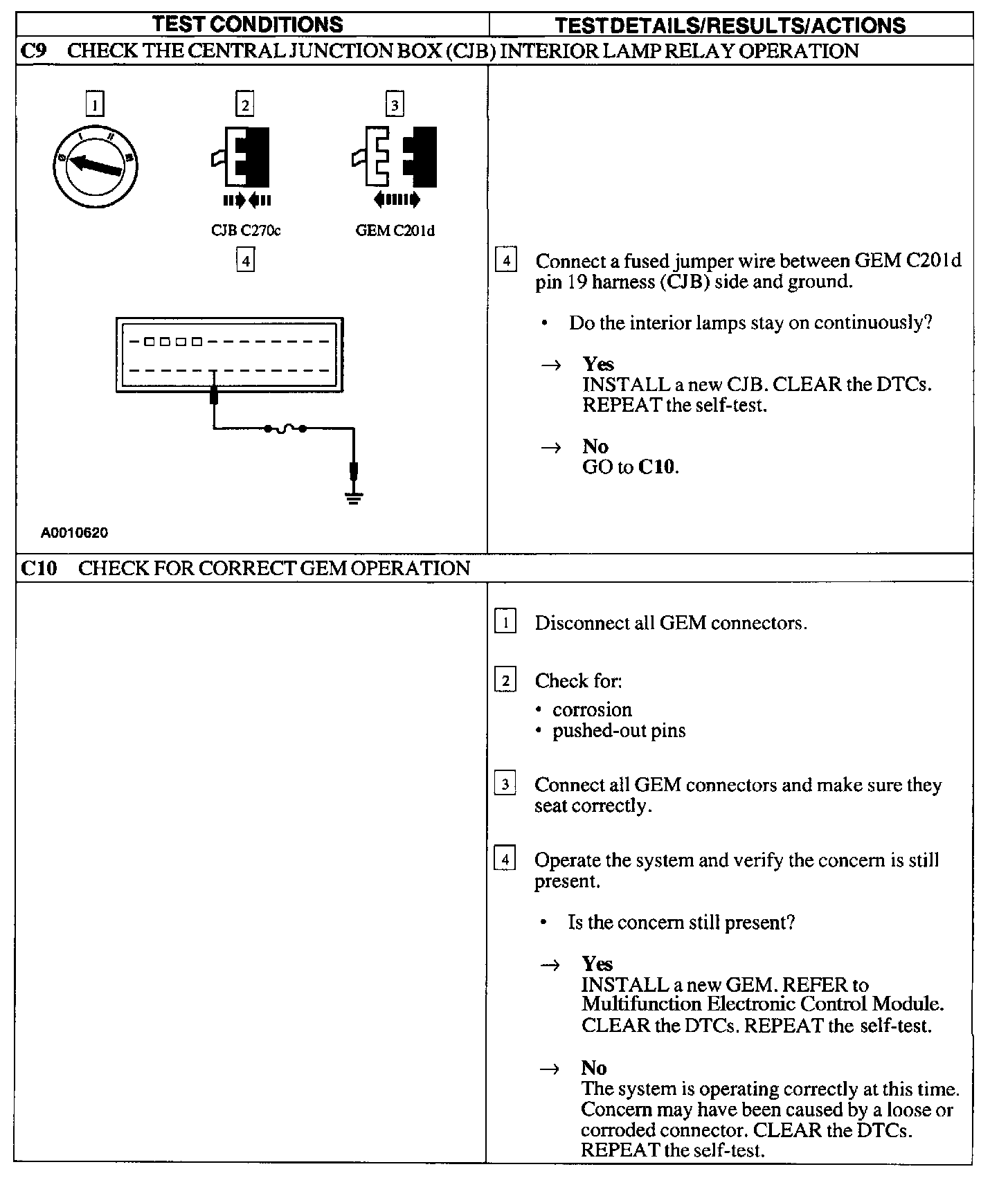

C9 - C10:
