Home >> Mercury >> 2000 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Lighting and Horns >> Courtesy Lamp >> Testing and Inspection >> Pinpoint Tests >> Test A: Interior Lamps Are Inoperative

Test A: Interior Lamps Are Inoperative

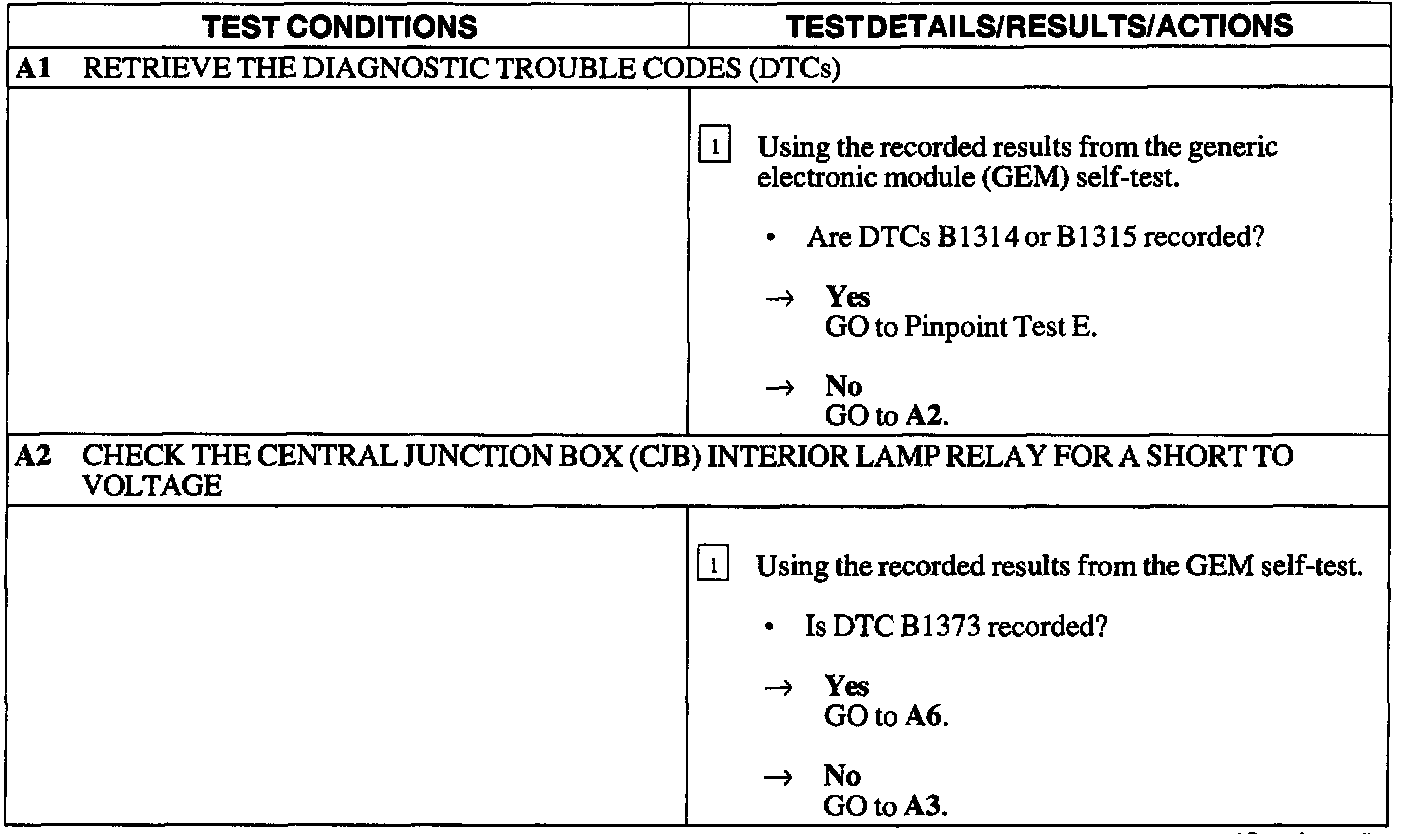

A1 - A2:

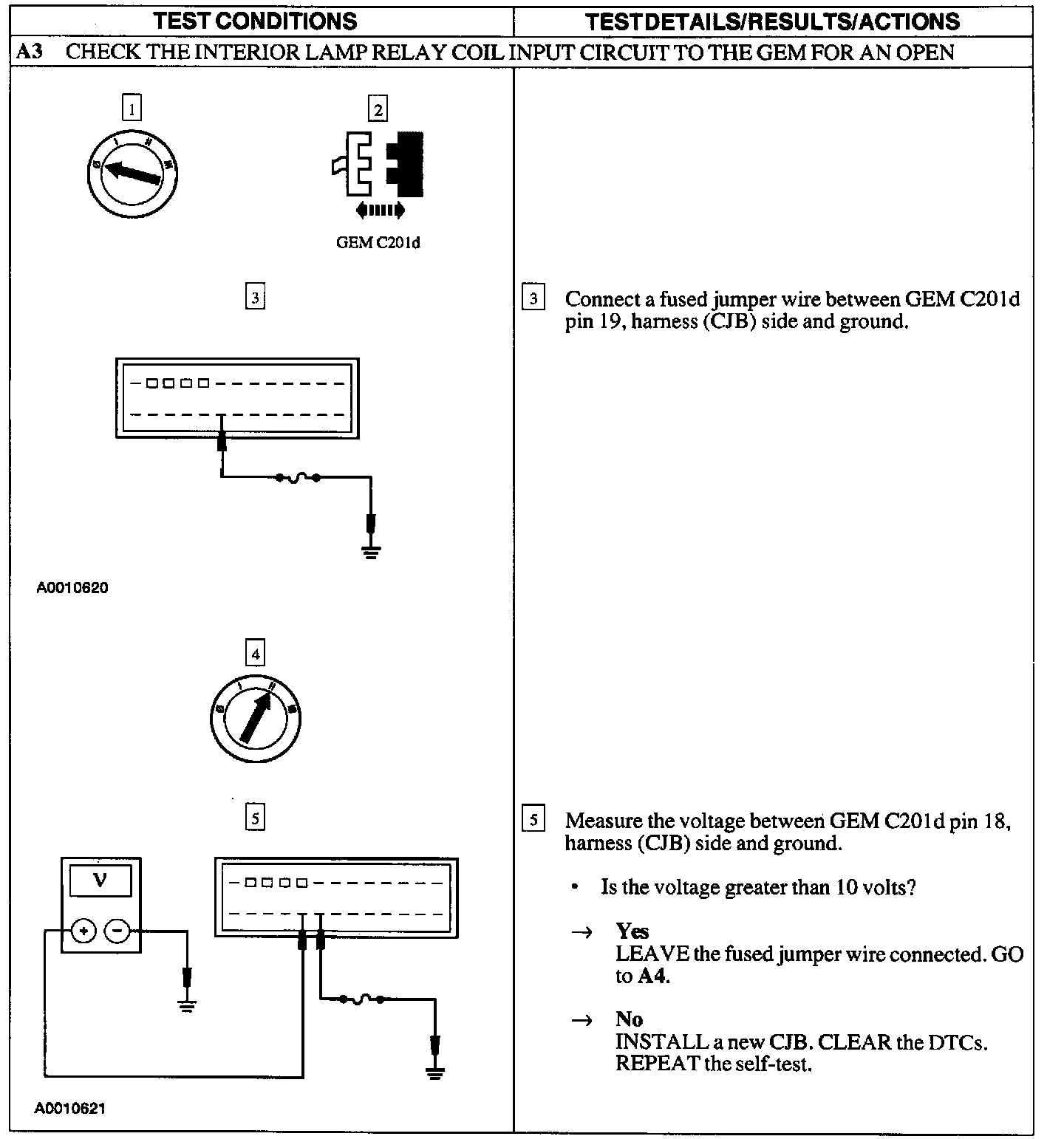

A3:

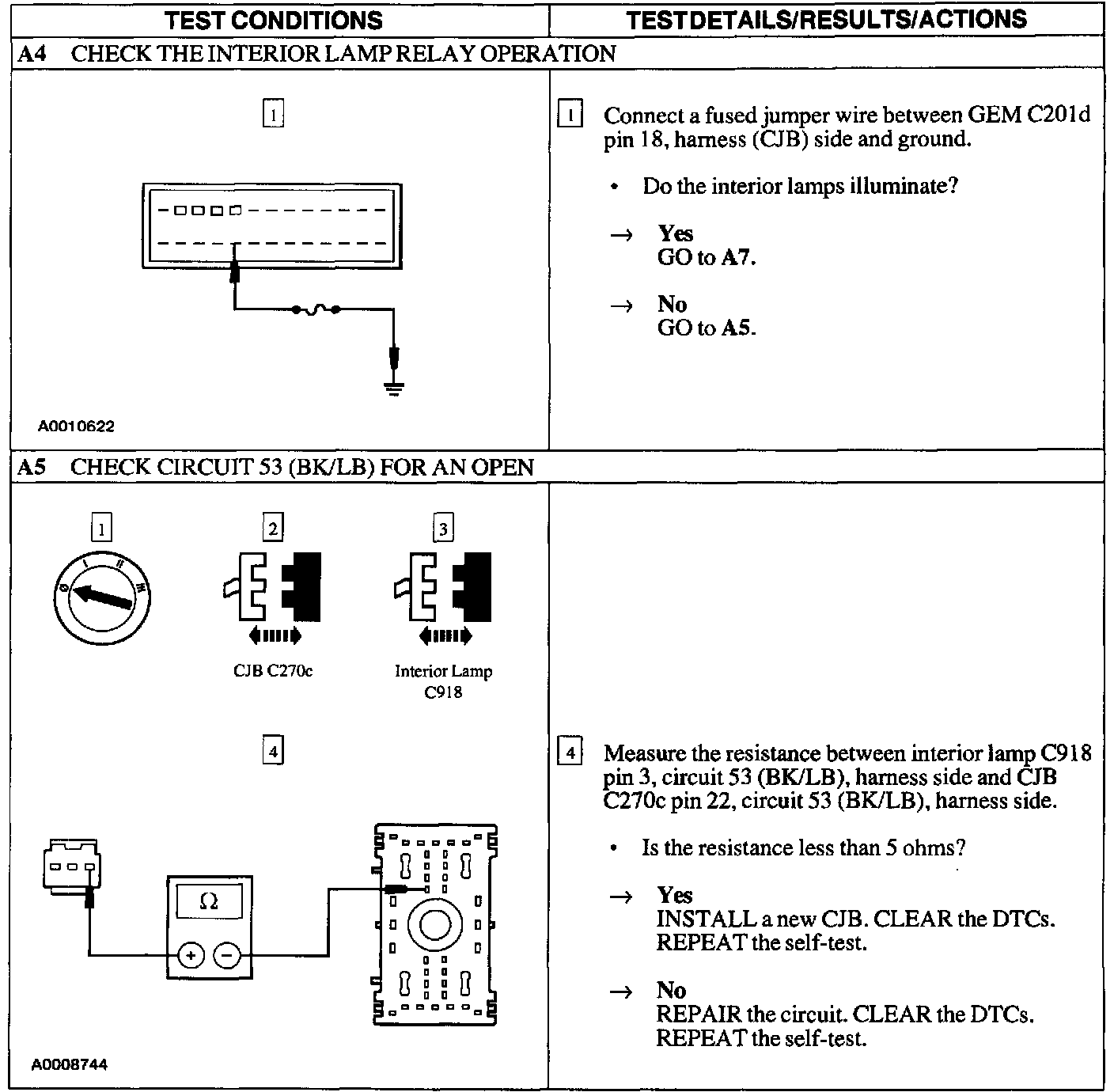

A4 - A5:

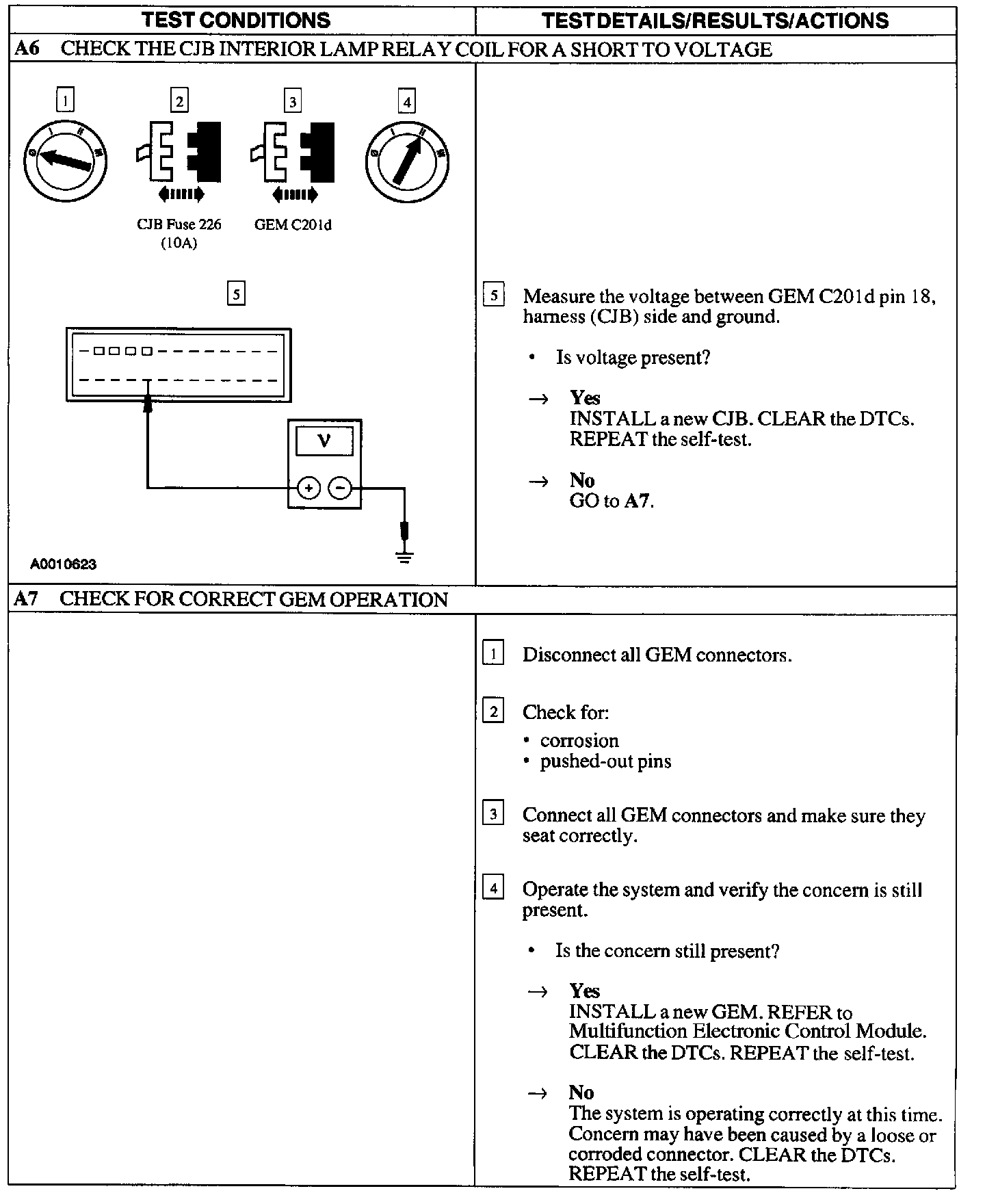

A6 - A7:
