Home >> Mercury >> 2000 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Warning Devices >> Test E: Chime - Drivers Door Ajar(No Key In Ignition/Headlights Off)

Test E: Chime - Drivers Door Ajar(No Key In Ignition/Headlights Off)

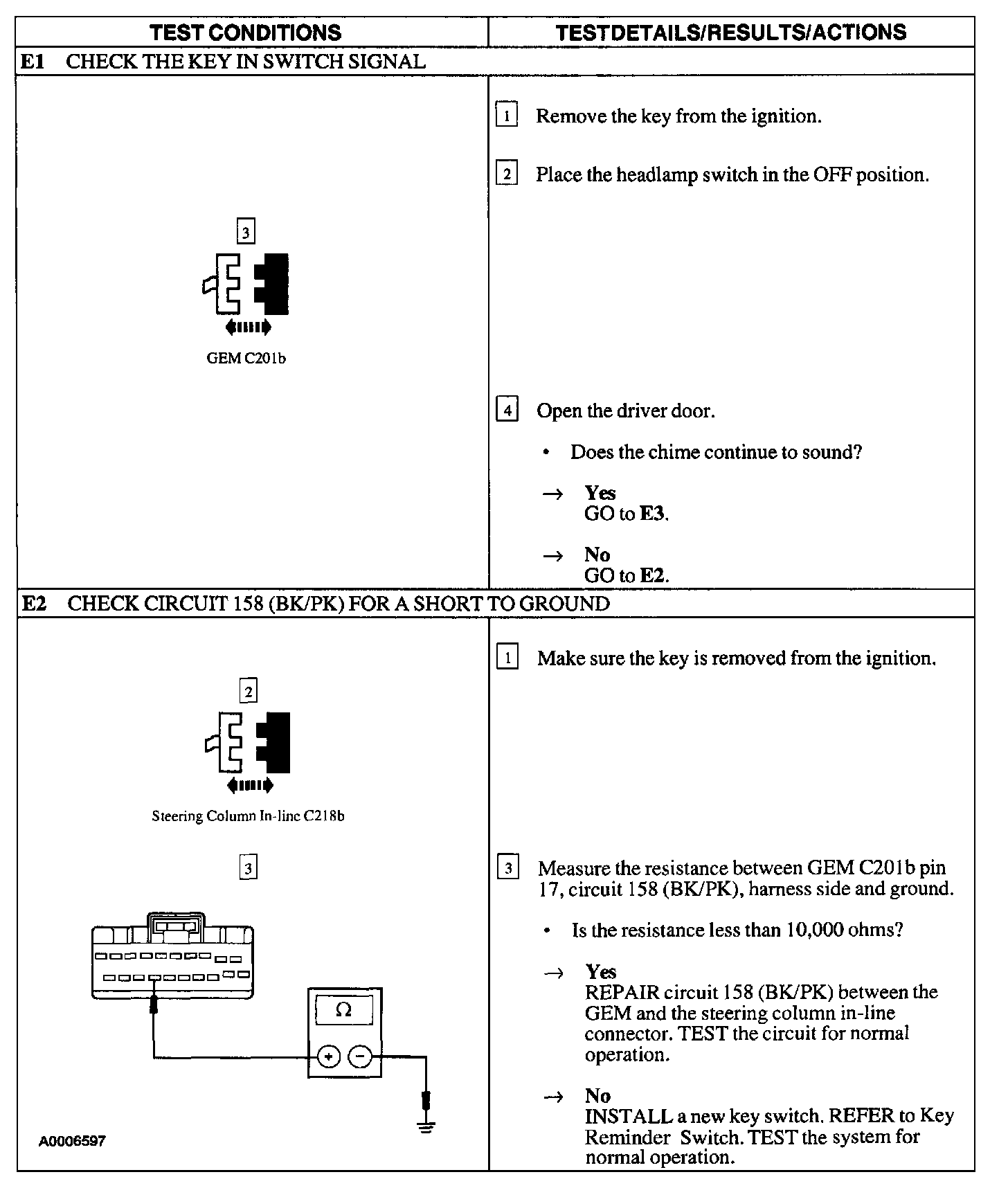

E1 - E2:

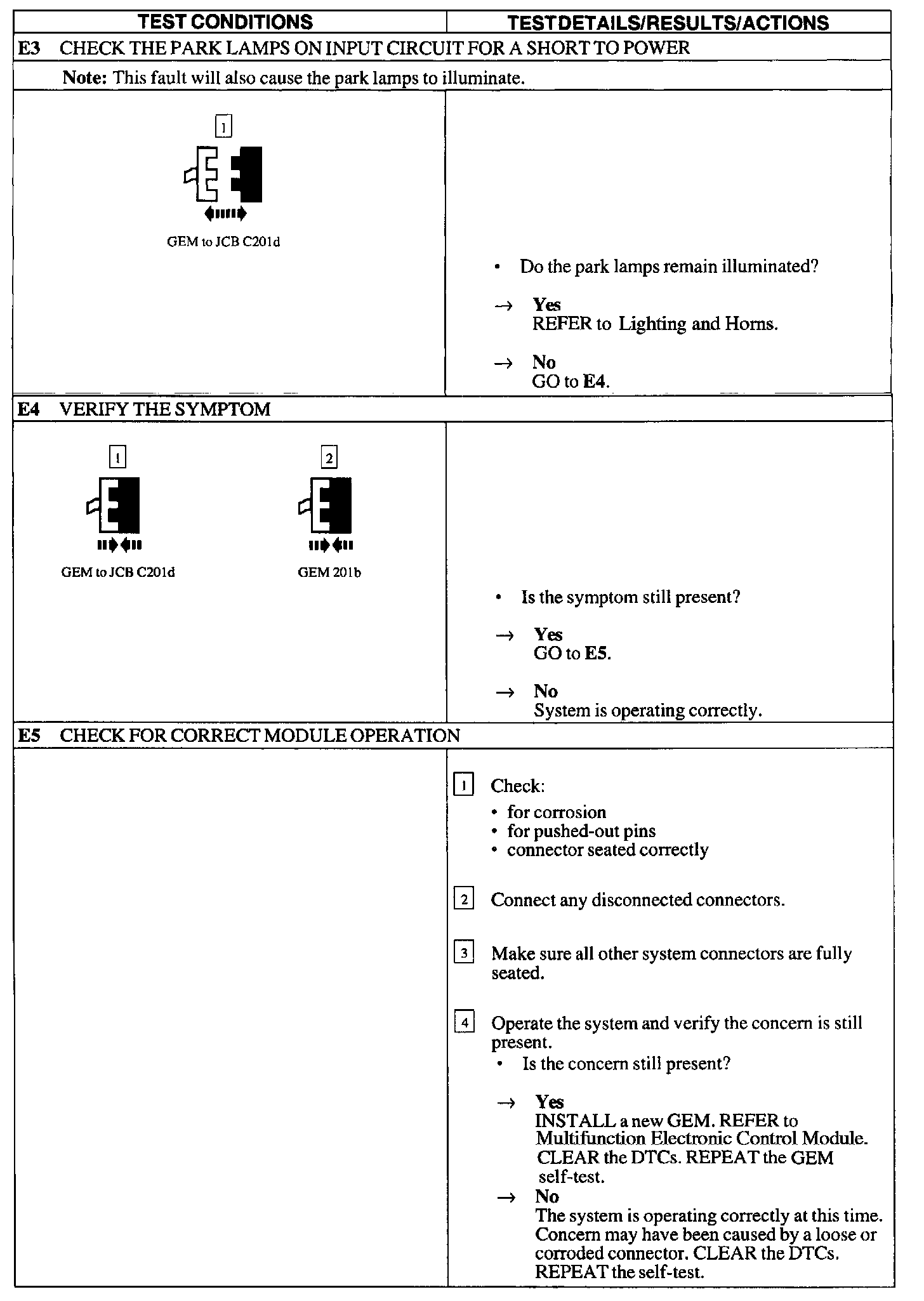

E3 - E5:
