Home >> Mercury >> 2000 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Instrument Panel, Gauges and Warning Indicators >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests - Instrument Cluster >> Test U: Low Coolant Indicator Is Inoperative

Test U: Low Coolant Indicator Is Inoperative

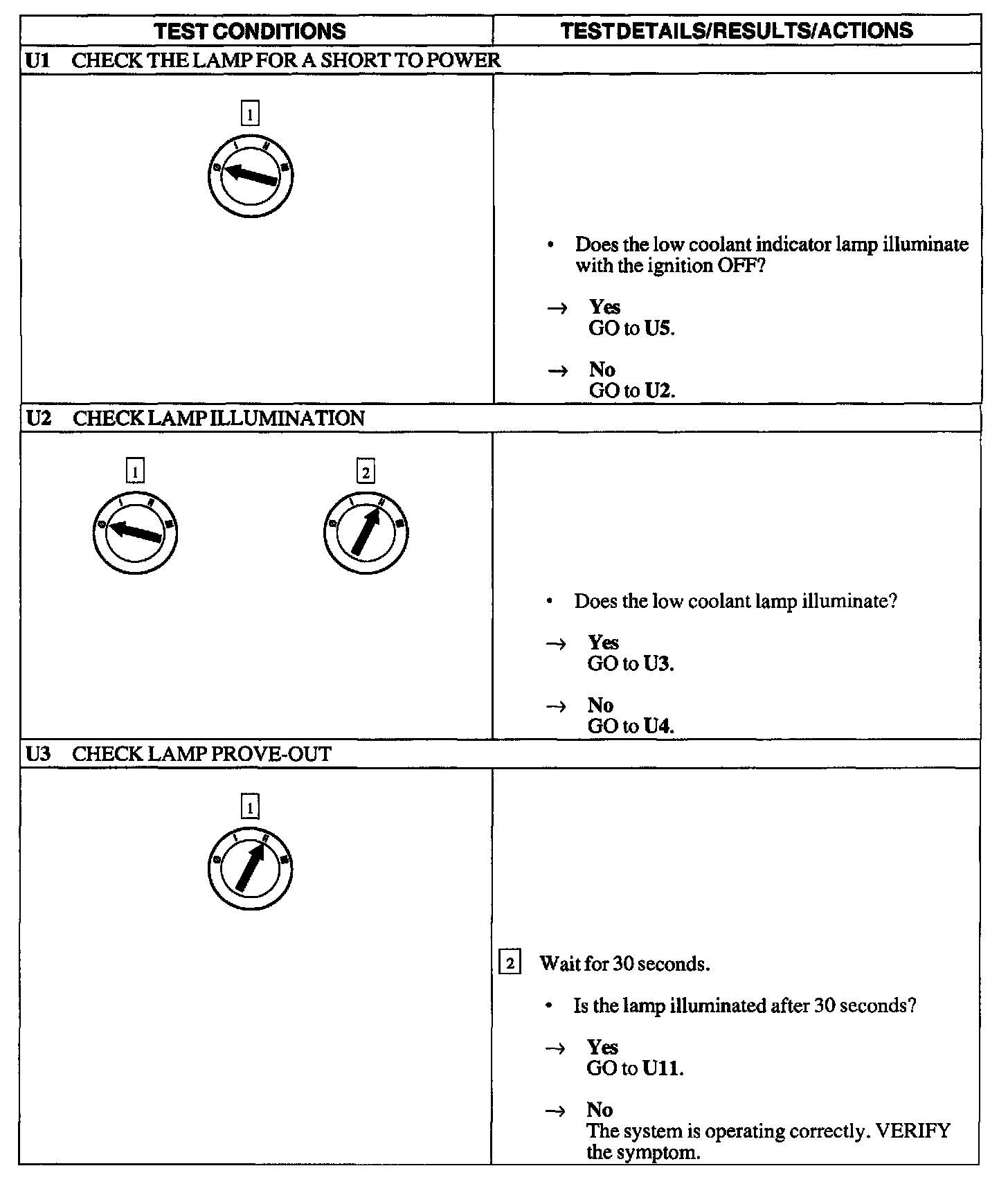

U1 - U3:

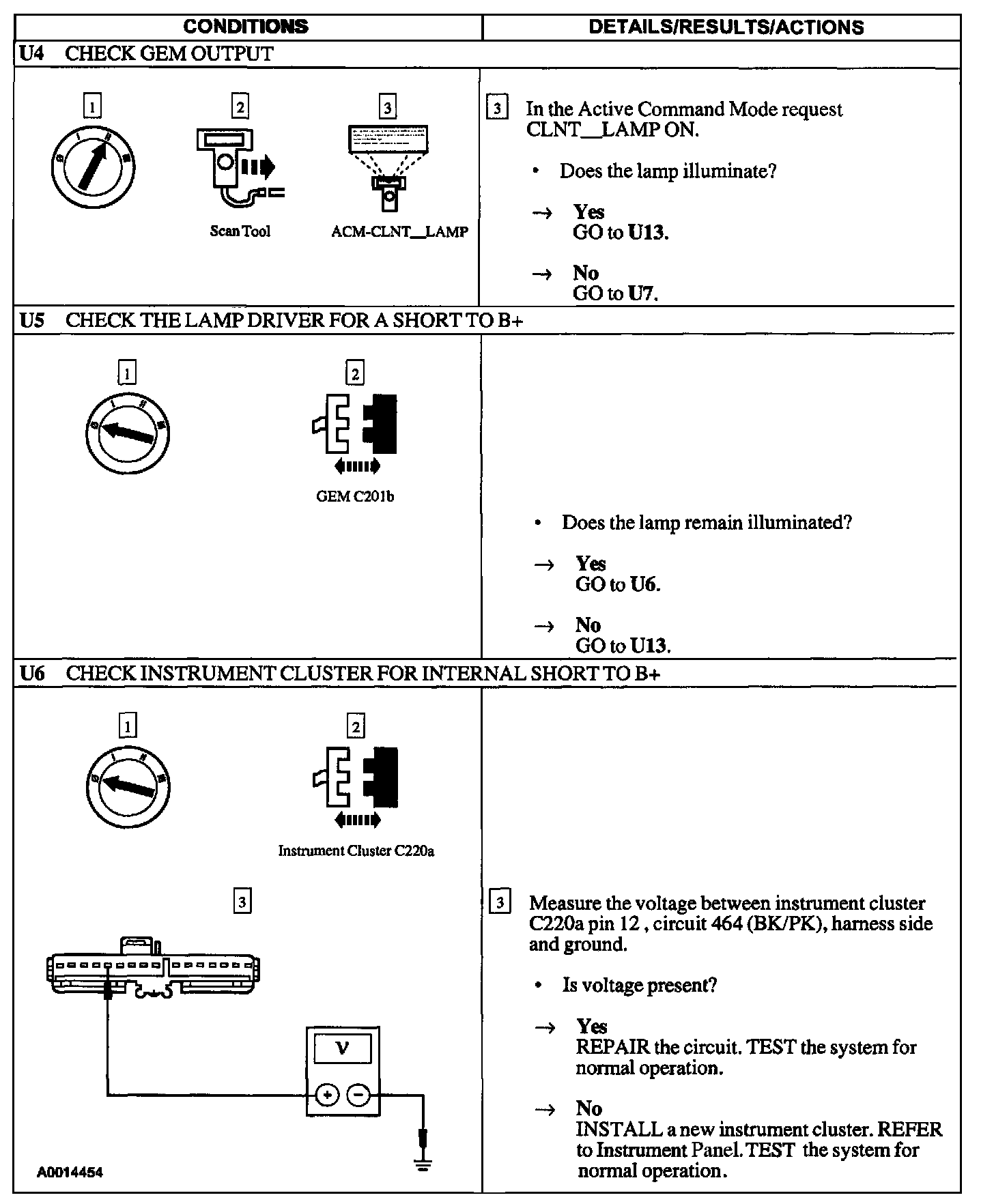

U4 - U6:

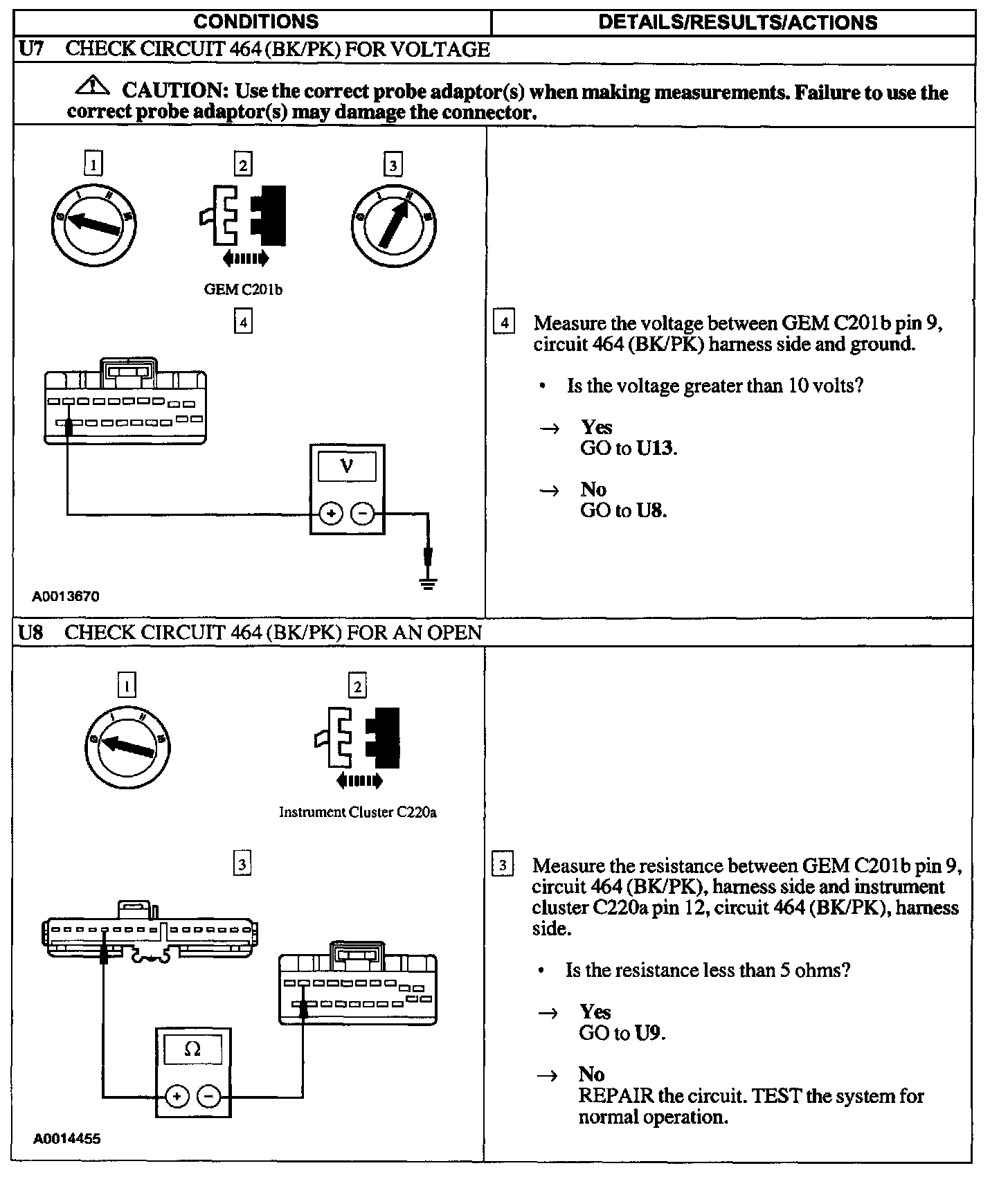

U7 - U8:

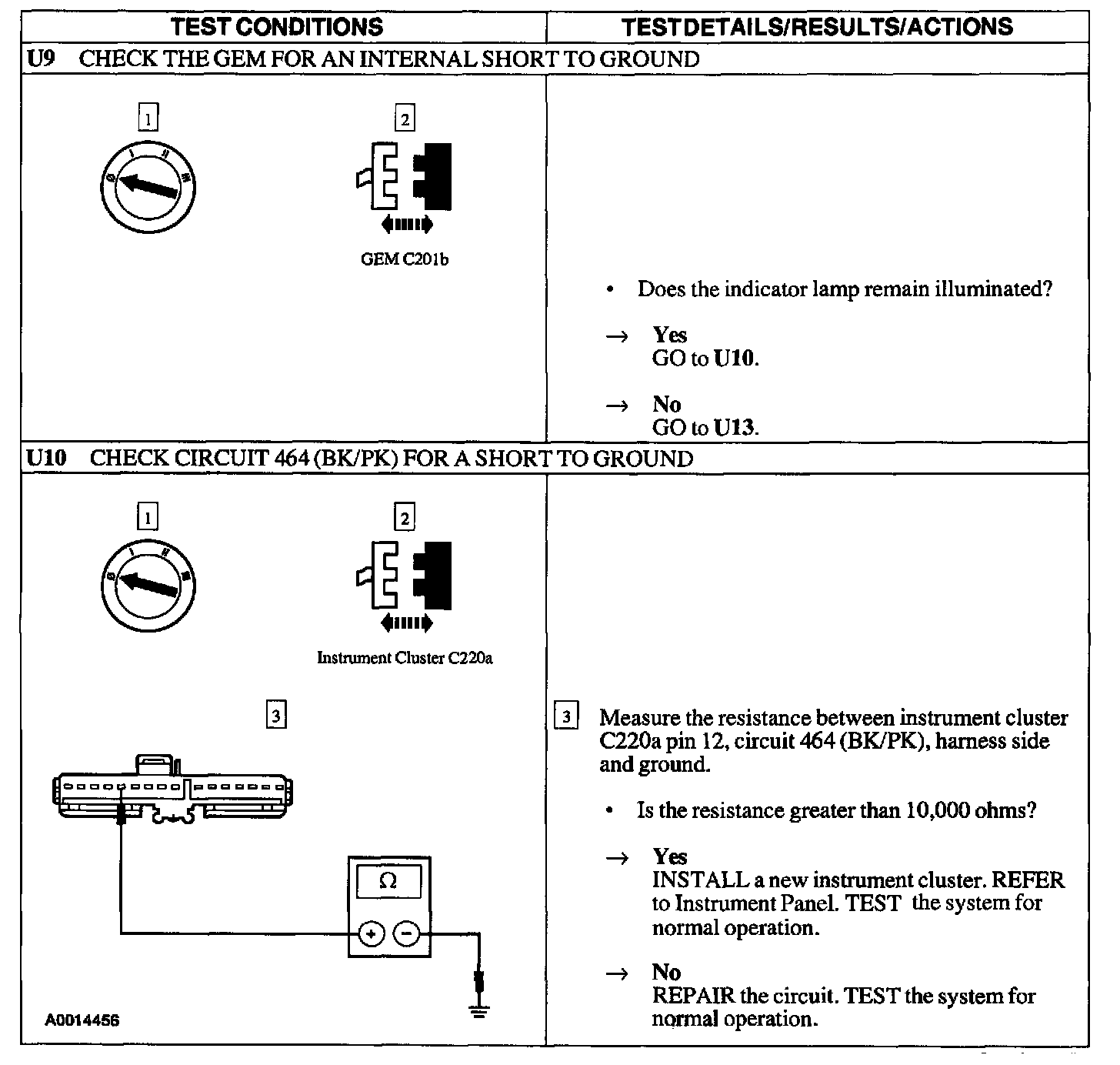

U9 - U10:






U11 - U12:

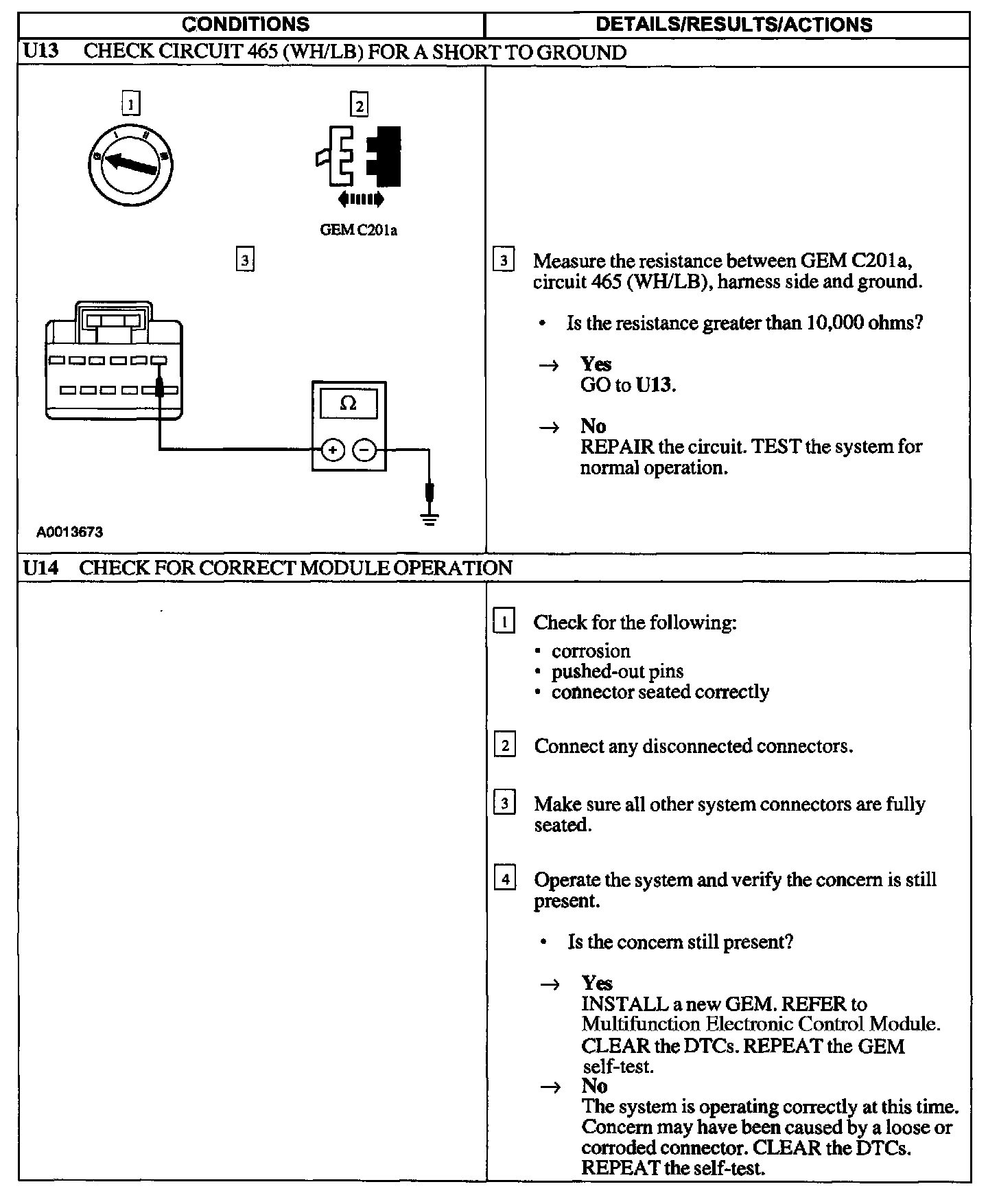

U13 - U14:
