FREE REPAIR MANUALS & LABOR GUIDES 1982-2013 Vehicles
Courtesy of Operation CHARM
:
Car repair manuals for everyone.
Home
>>
Mercury
>>
2000
>>
Sable V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Instrument Panel, Gauges and Warning Indicators
>>
Description and Operation
>>
Instrument Cluster
>>
Description
Description
Standard
Metric

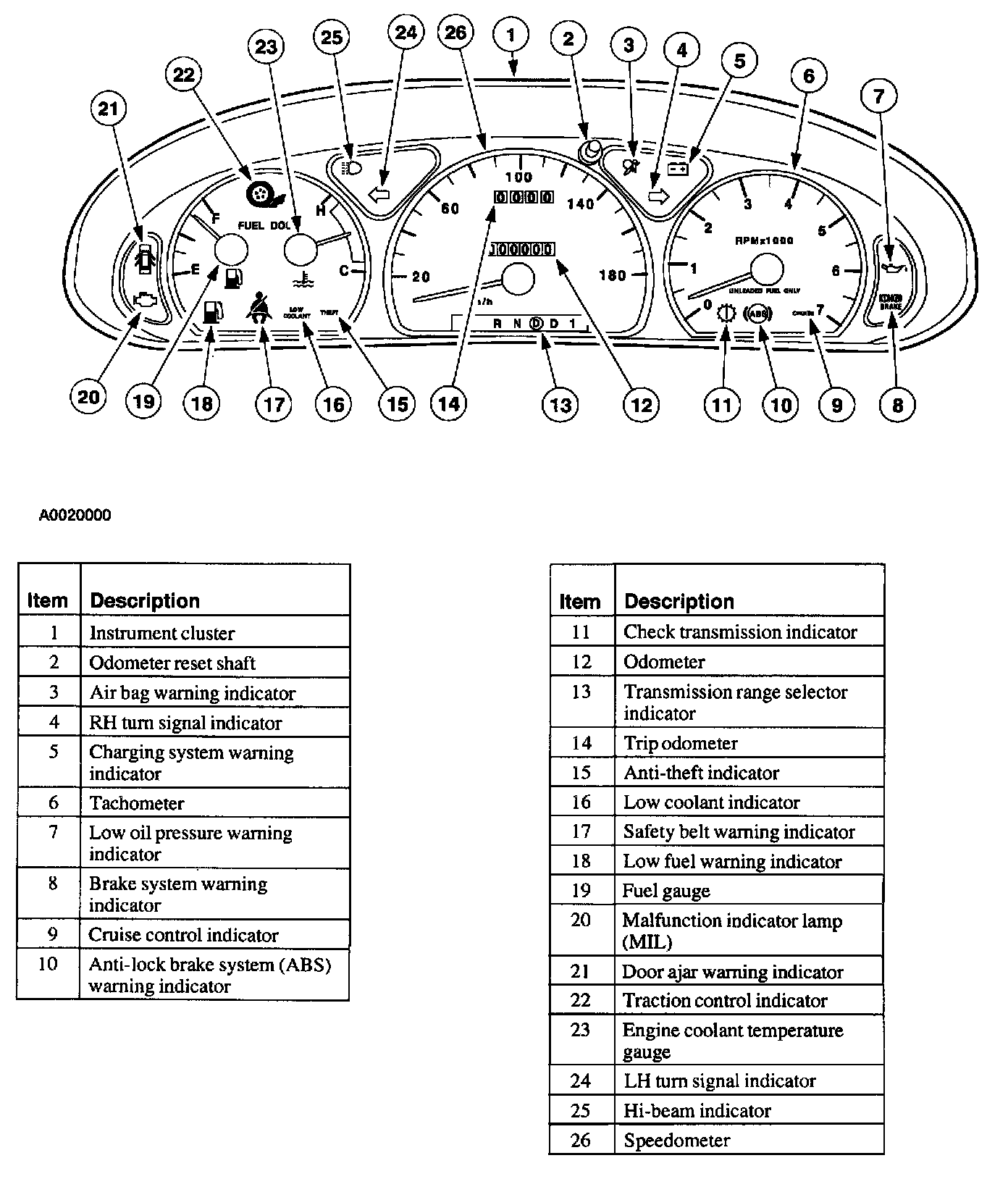

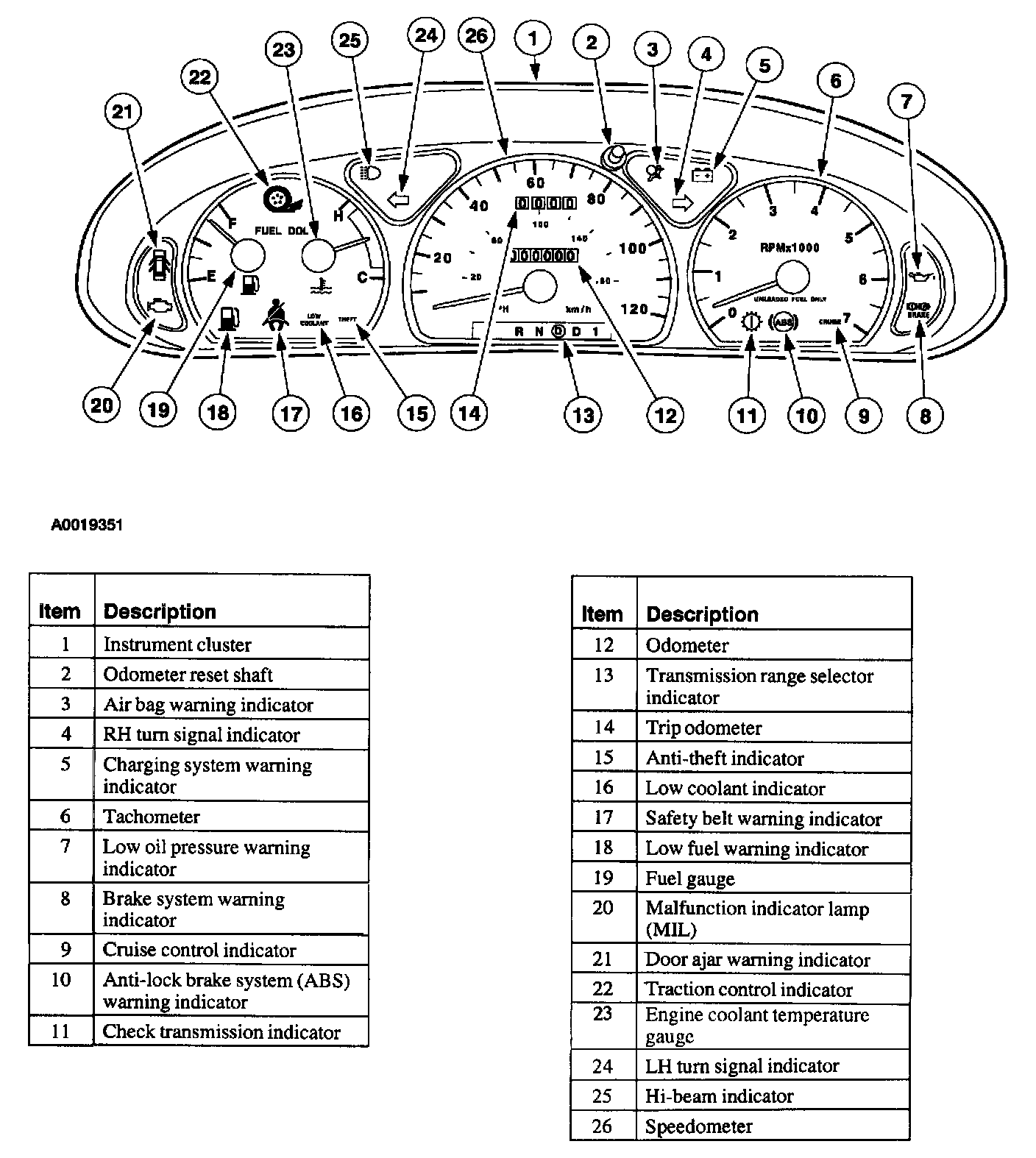

The standard instrument cluster consists of the listed components:
