Vacuum Reservoir HVAC: Service and Repair

REMOVAL
1. Remove the right front tire and wheel assembly. Refer to Wheels, Tires and Alignment.

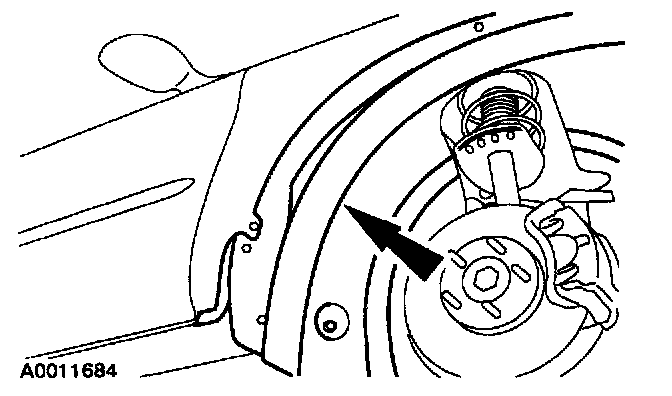

2. Remove the rear half of the right front fender splash shield.

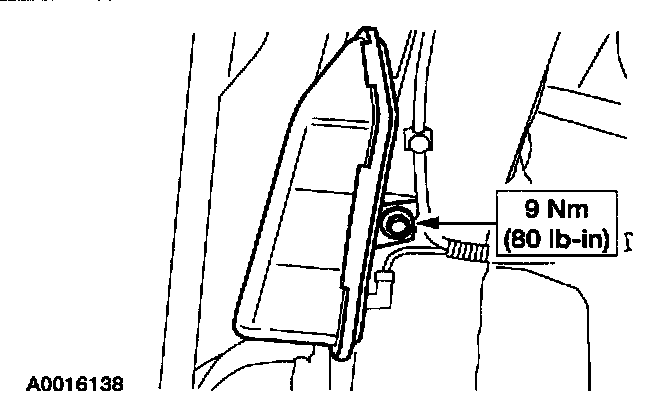

3. Remove the bolt.







4. Disconnect the vacuum hose. Remove the vacuum reservoir and bracket.

INSTALLATION
1. To install, reverse the removal procedure.
