Home >> Mercury >> 2000 >> Sable V6-3.0L VIN U >> Repair and Diagnosis >> Heating and Air Conditioning >> Testing and Inspection >> Pinpoint Tests >> Test O: The Blower Motor Is Inoperative - EATC

Test O: The Blower Motor Is Inoperative - EATC

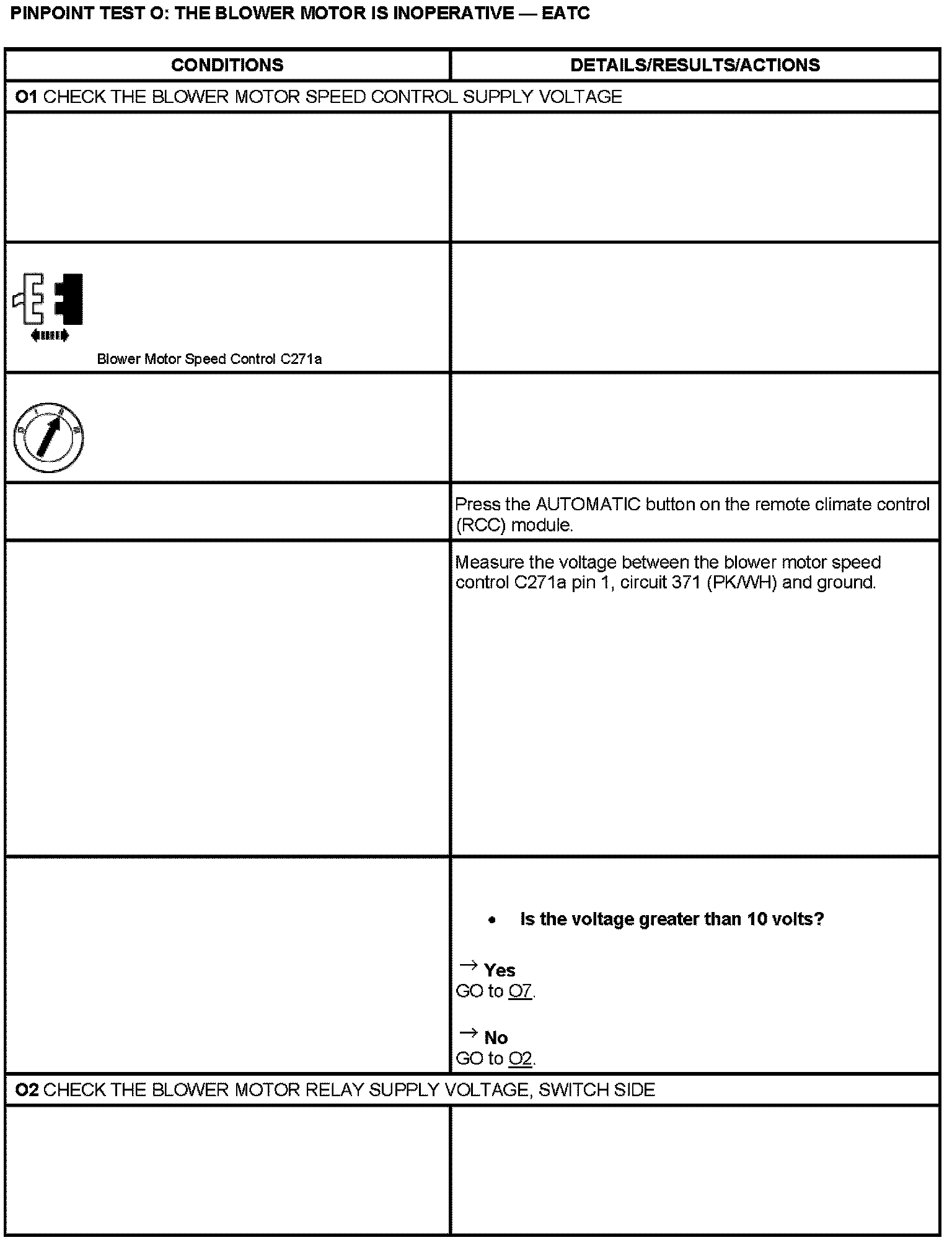

Test O: O1-O2:

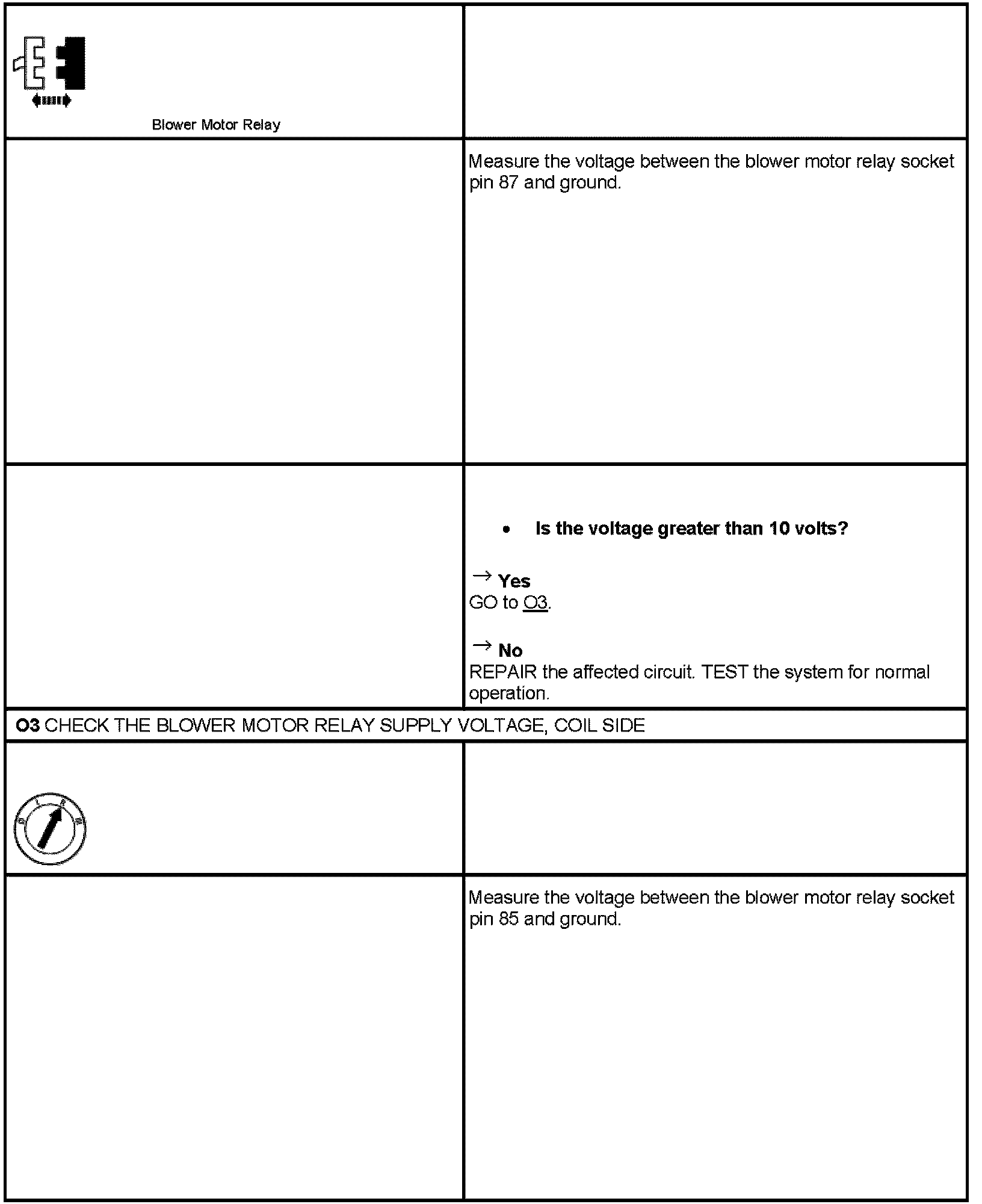

Test O: O2-O3:

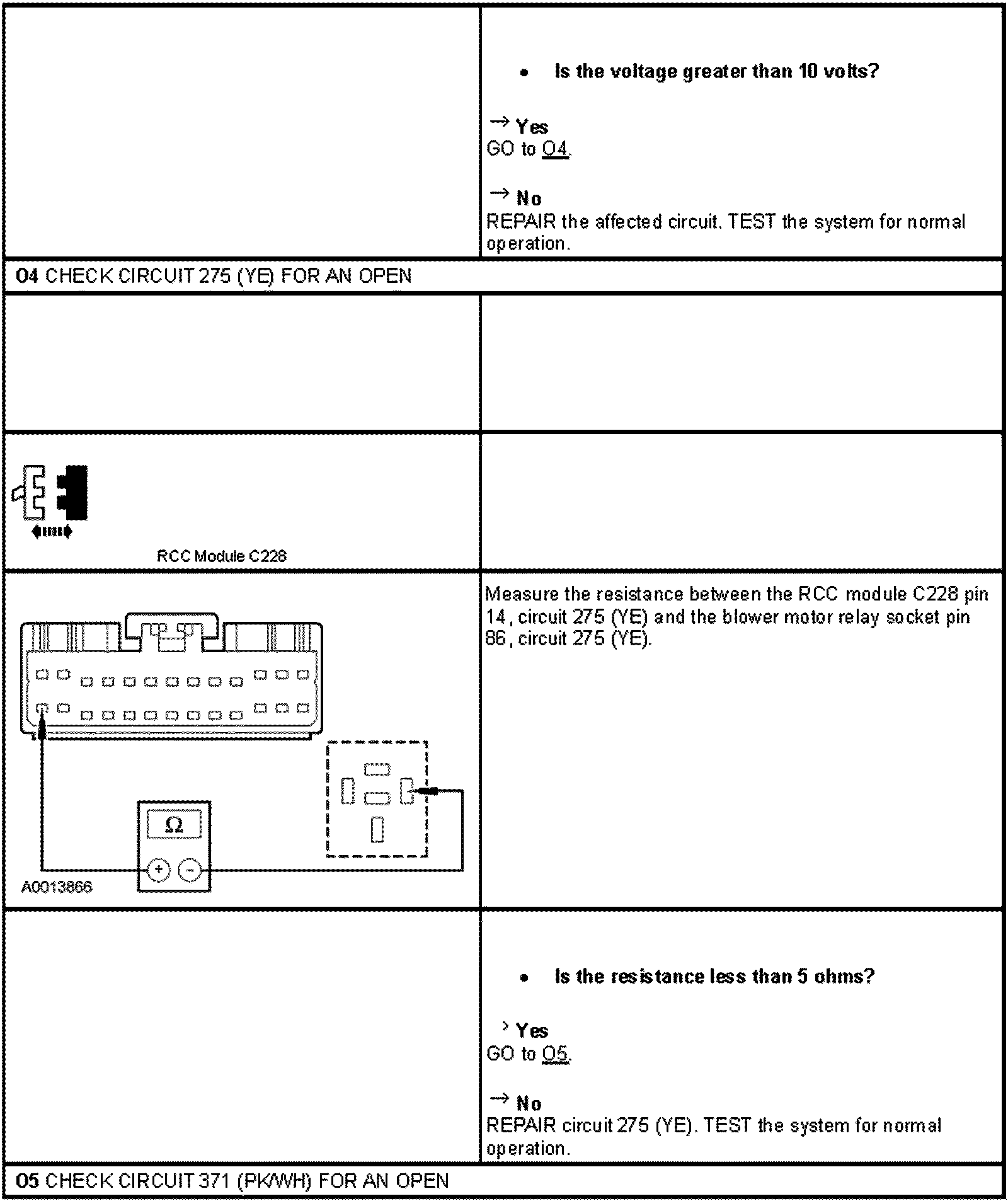

Test O: O3-O5:

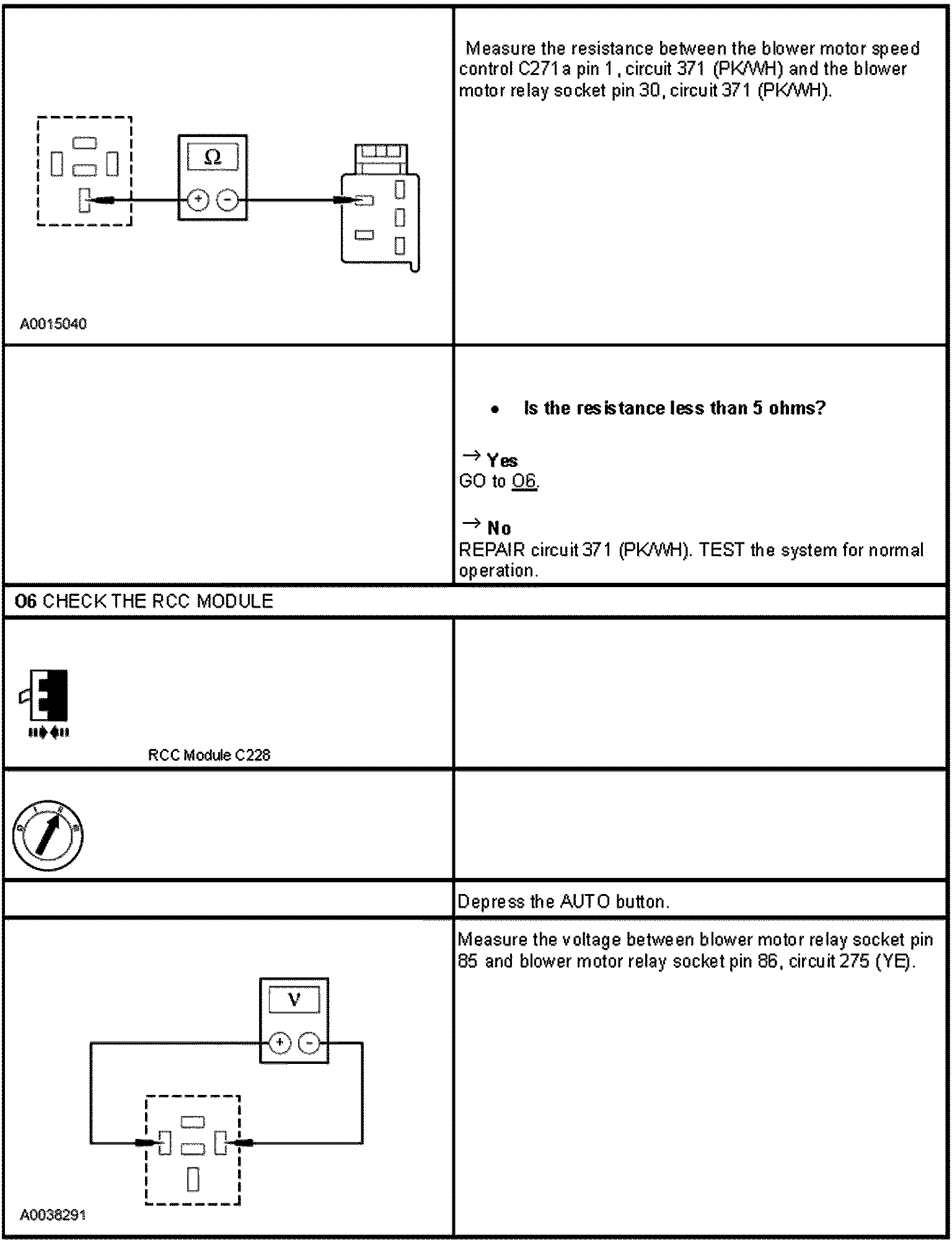

Test O: O5-O6:

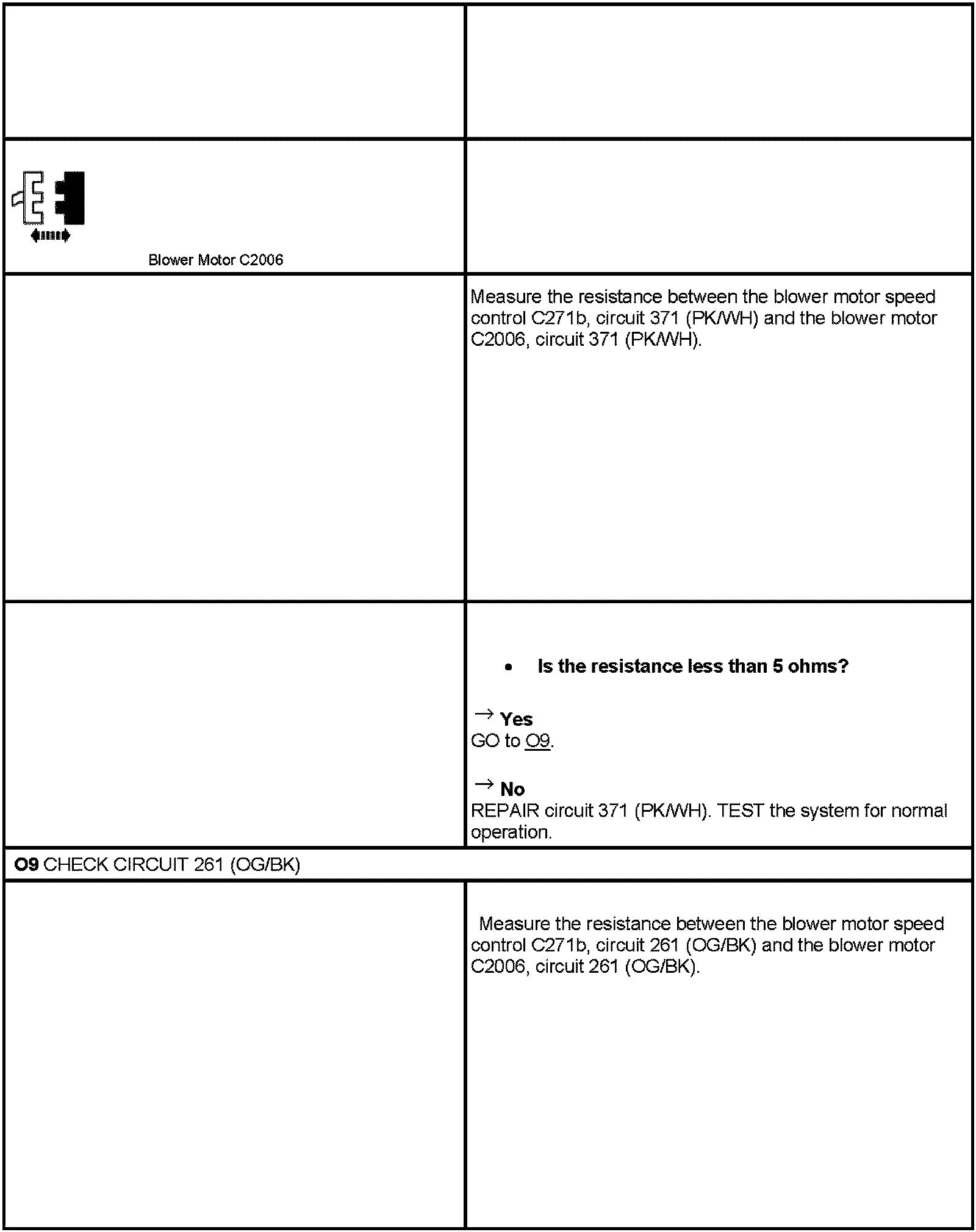

Test O: O6-O8:

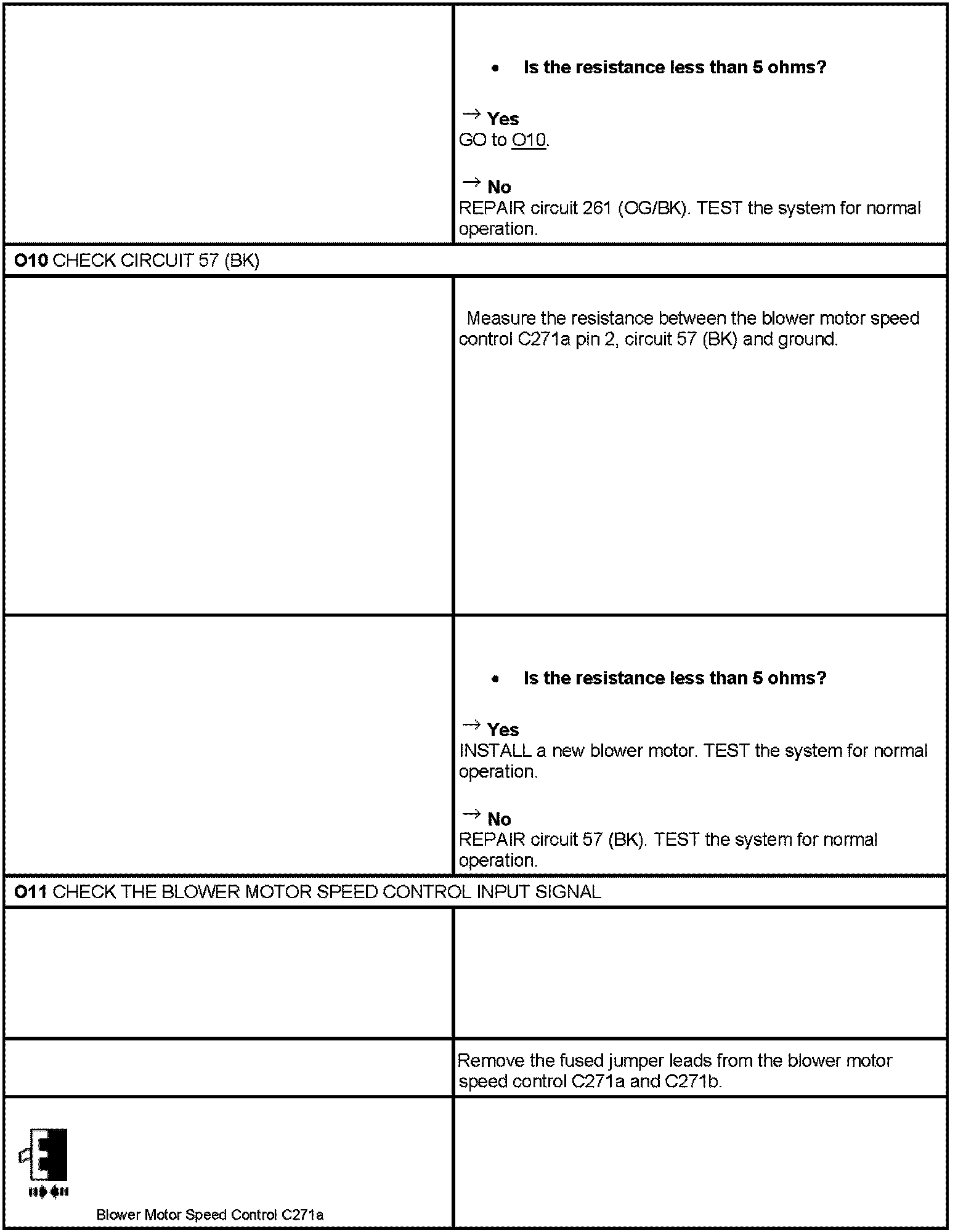

Test O: O8-O9:

Test O: O9-O11:

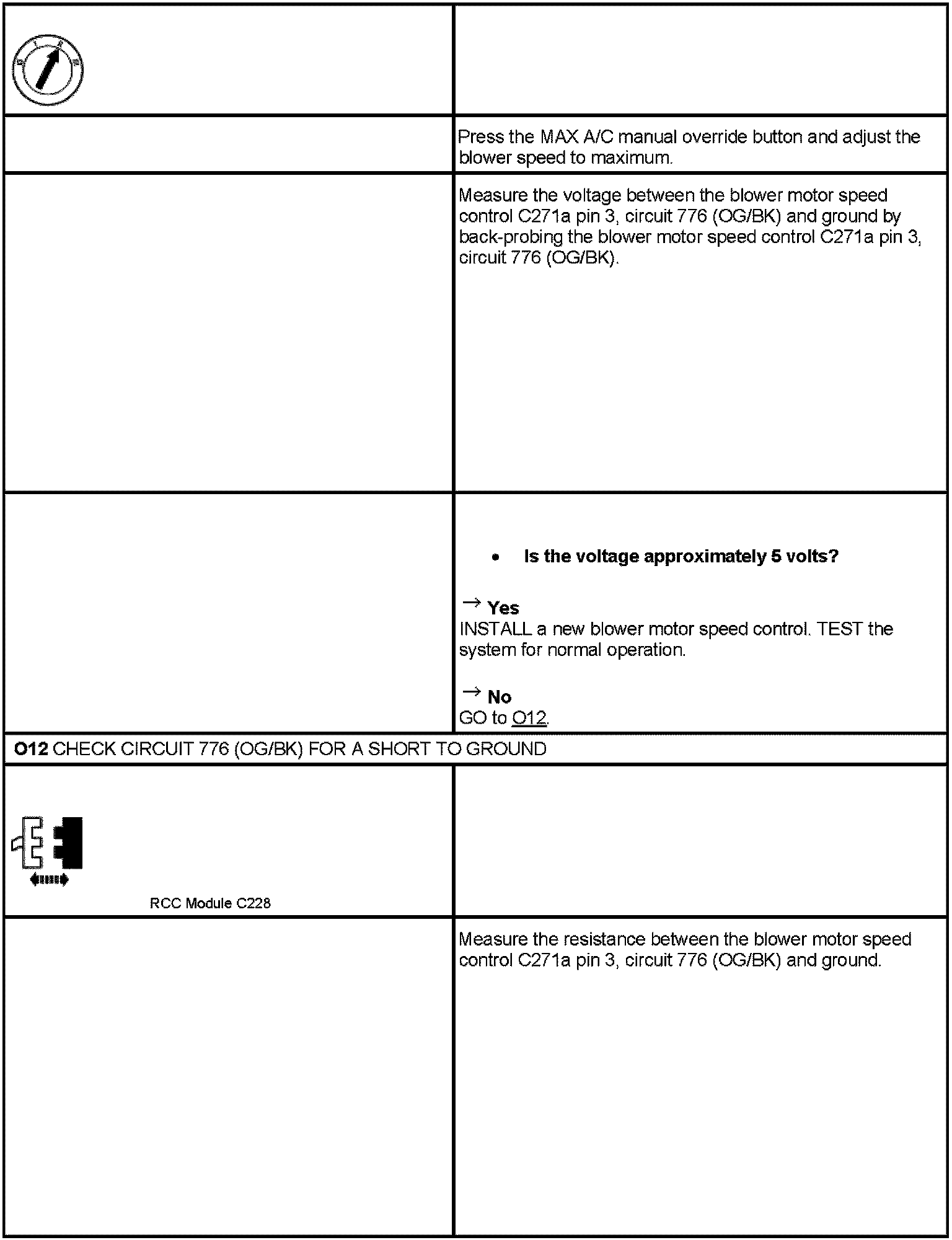

Test O: O11-O12:

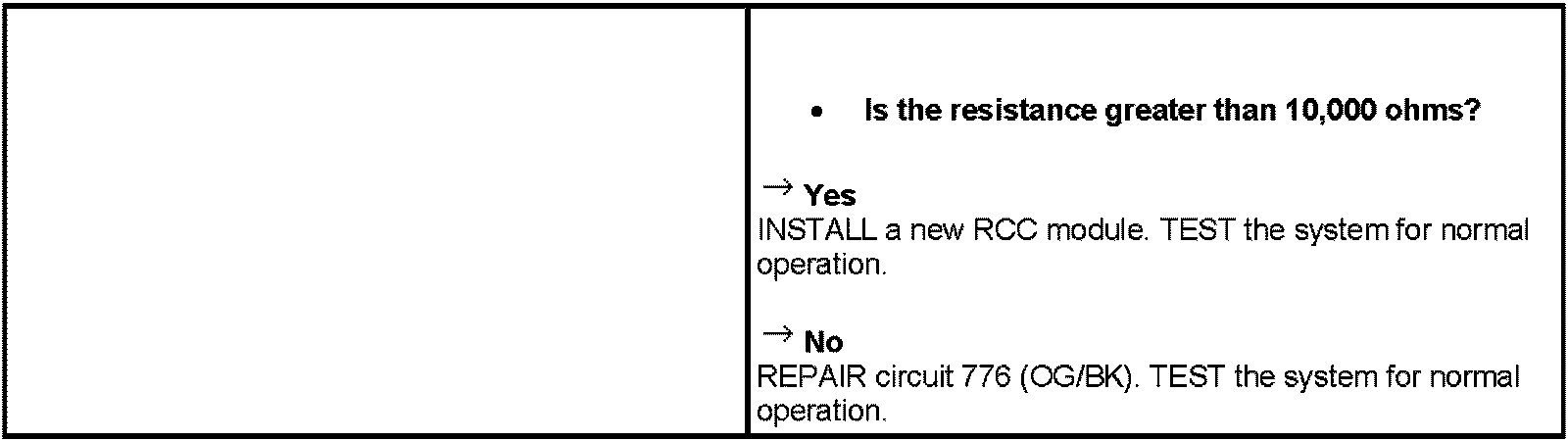

Test O: O12 Cont'd:
