Test G: The EATC System Is Inoperative, Intermittent Or Incorrect Operation

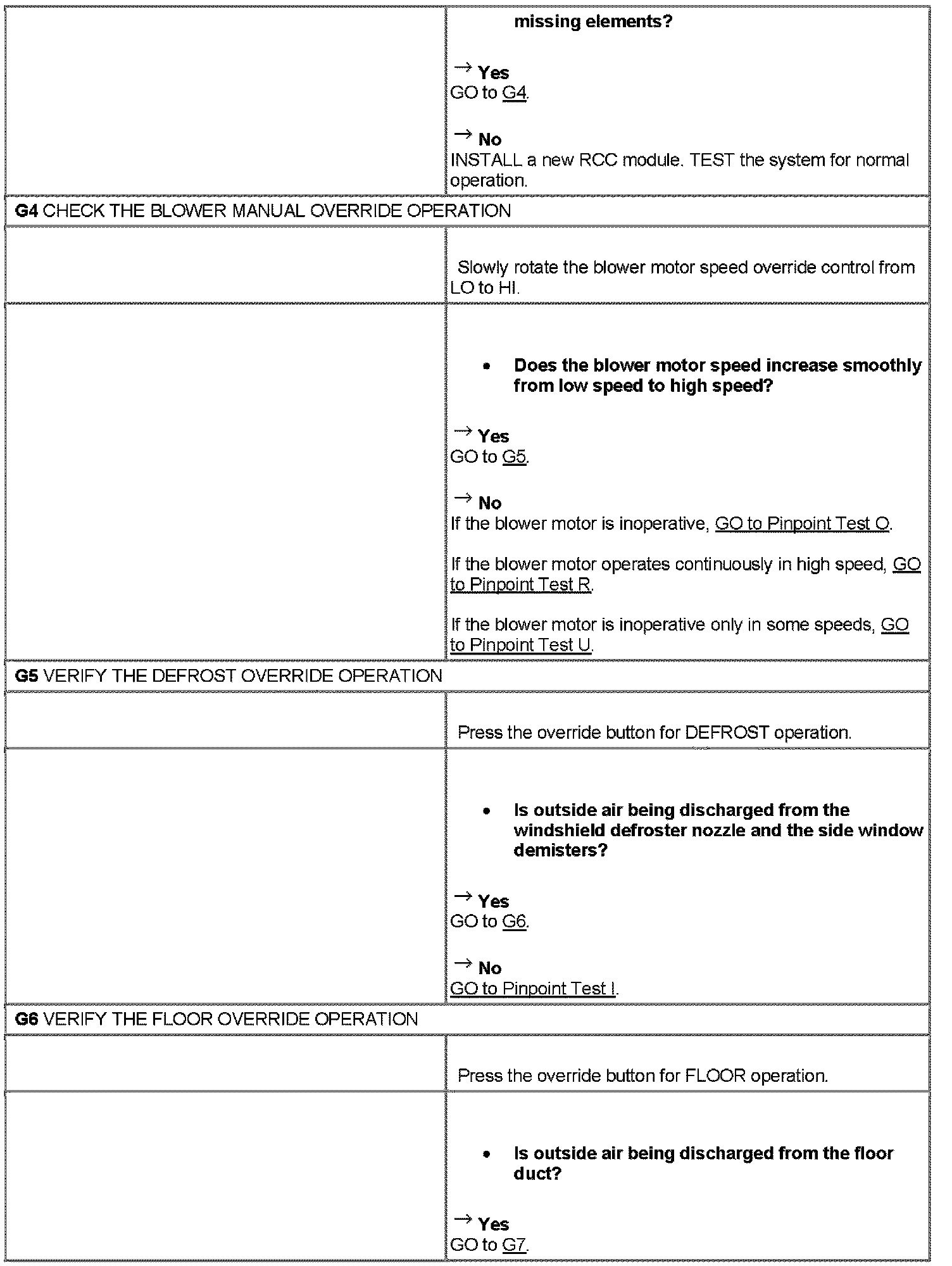

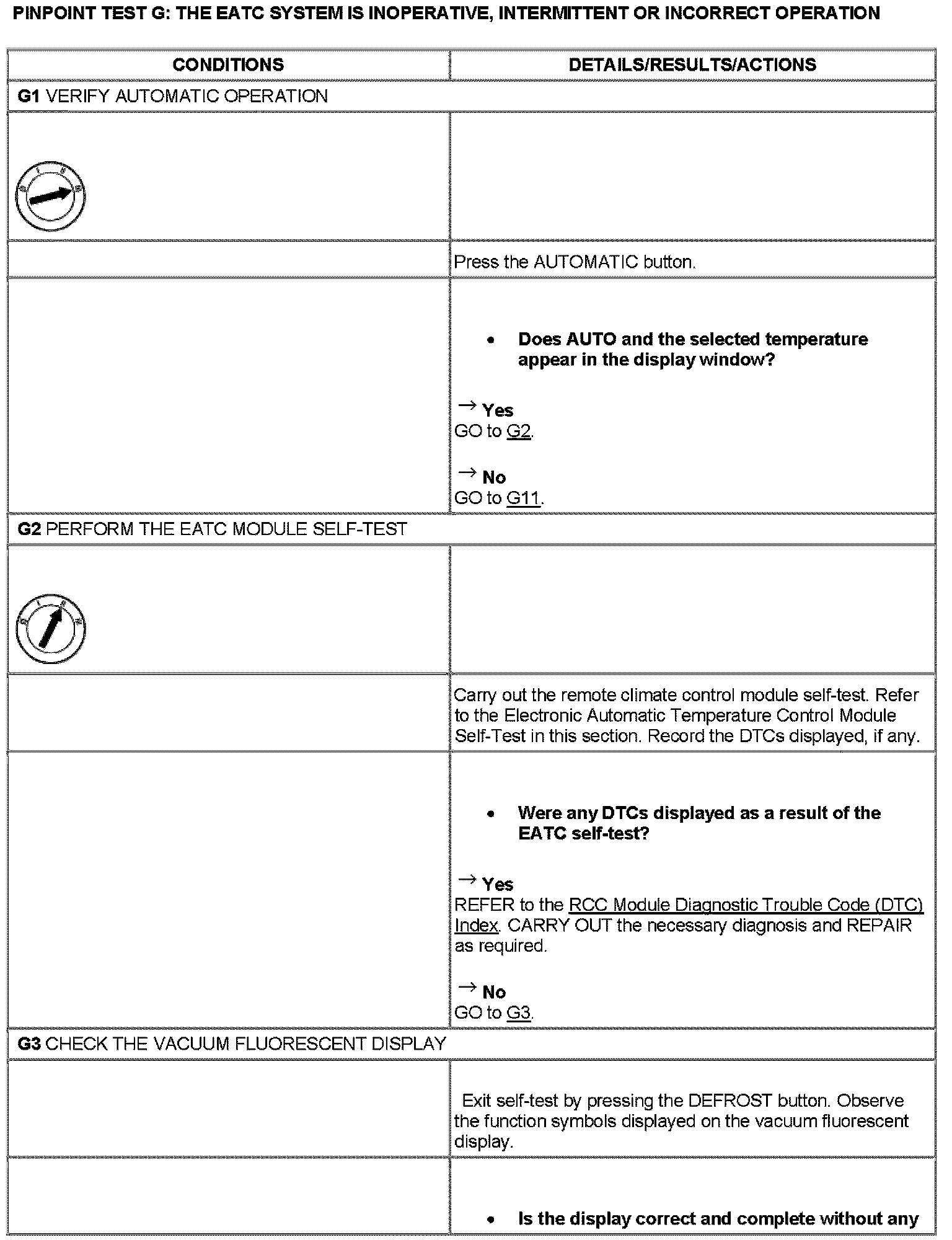

Test G: G1-G3:





Test G: G3-G6:

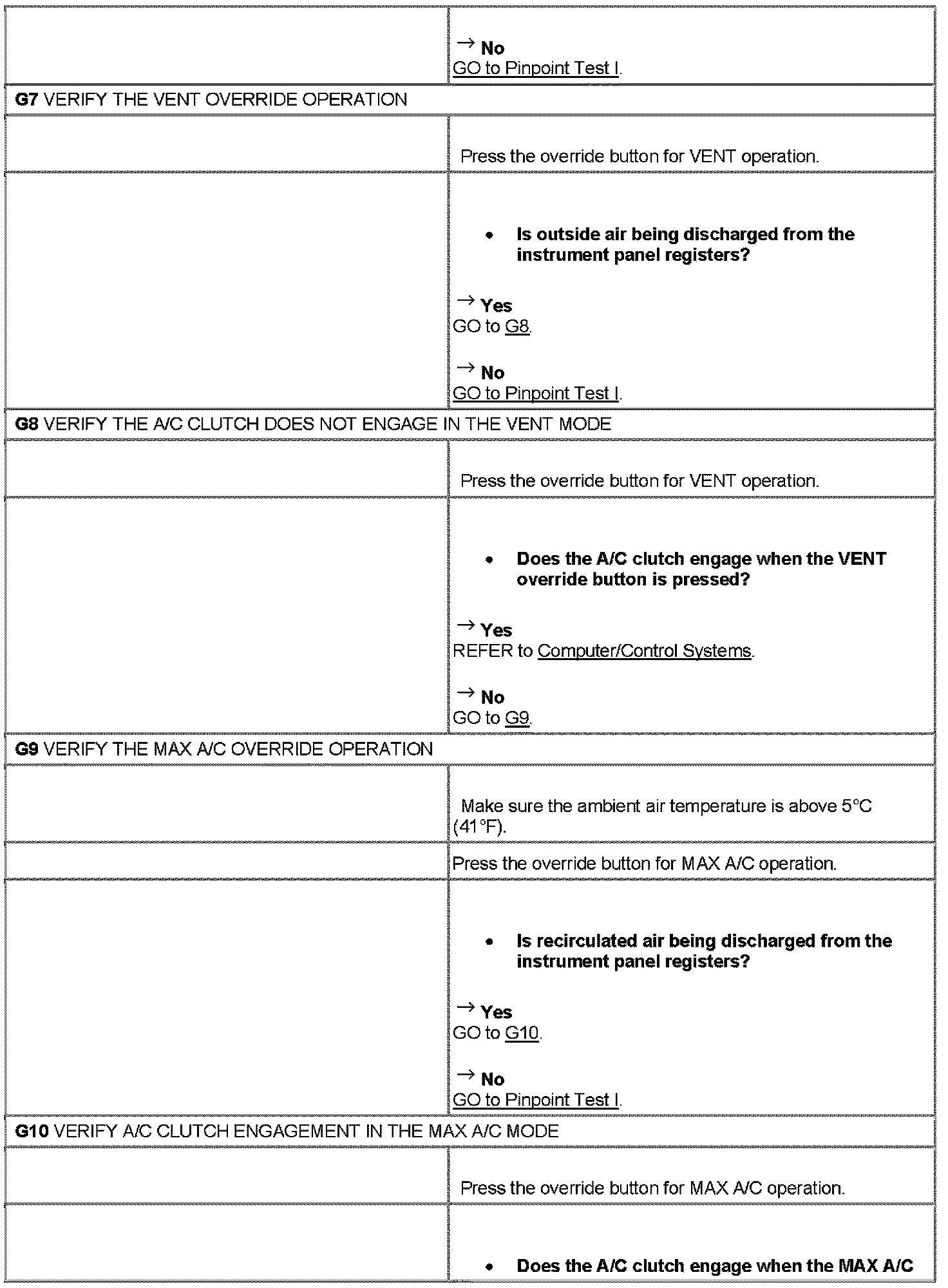

Test G: G6-G10:

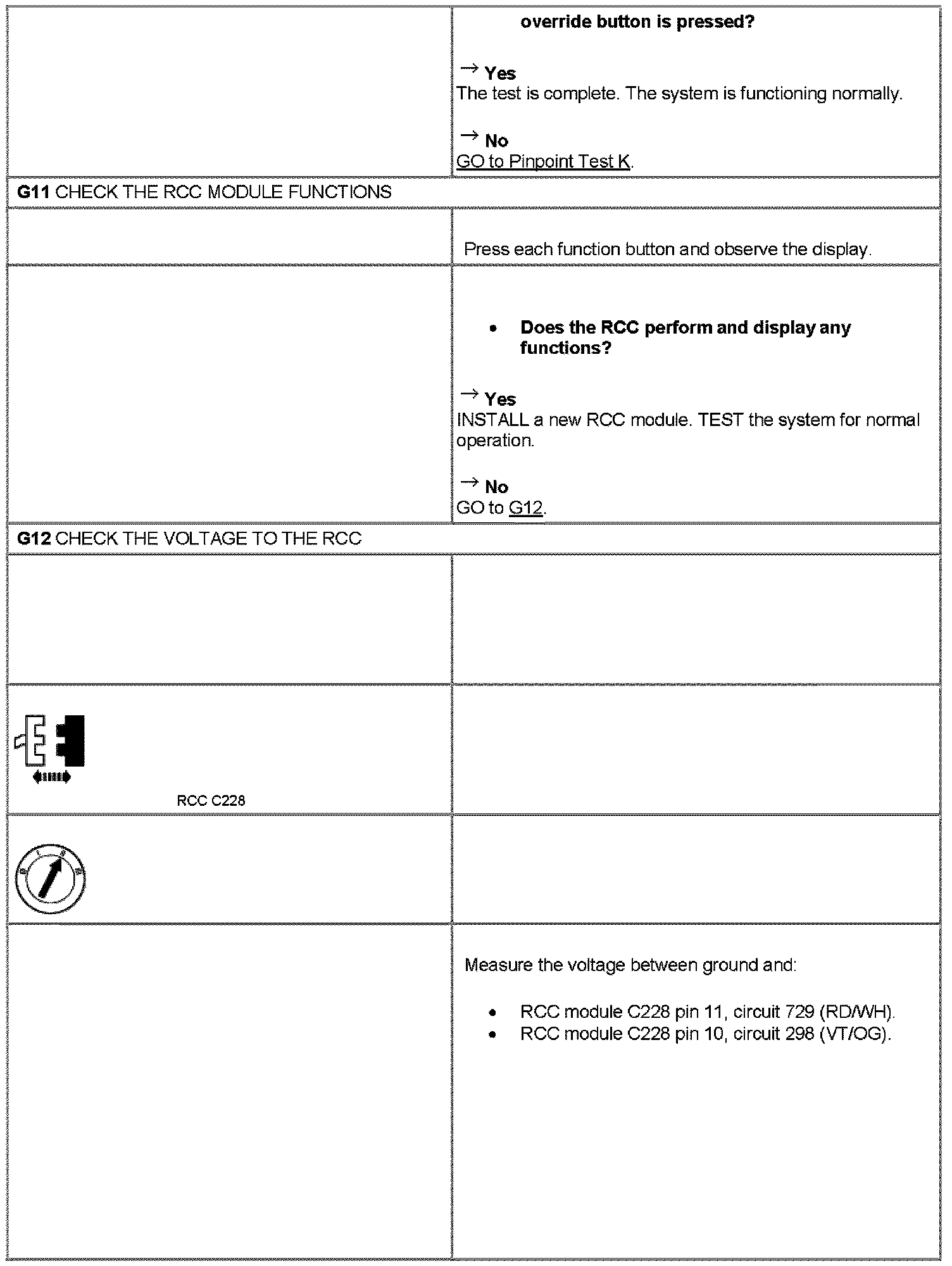

Test G: G10-G12:

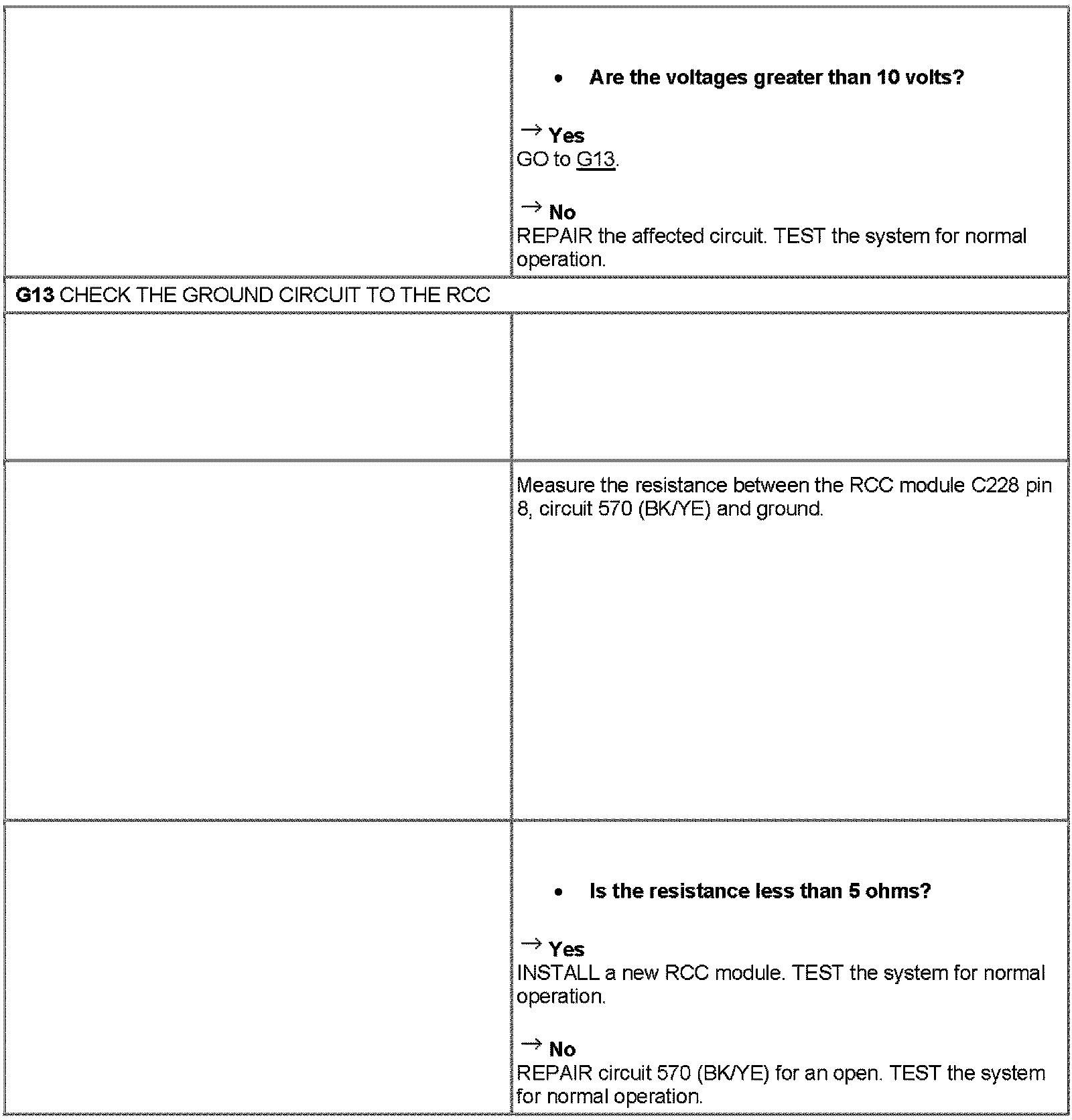

Test G: G12-G13:
