Diagnostic Vacuum Diagrams
>>
With Manual A/C
With Manual A/C

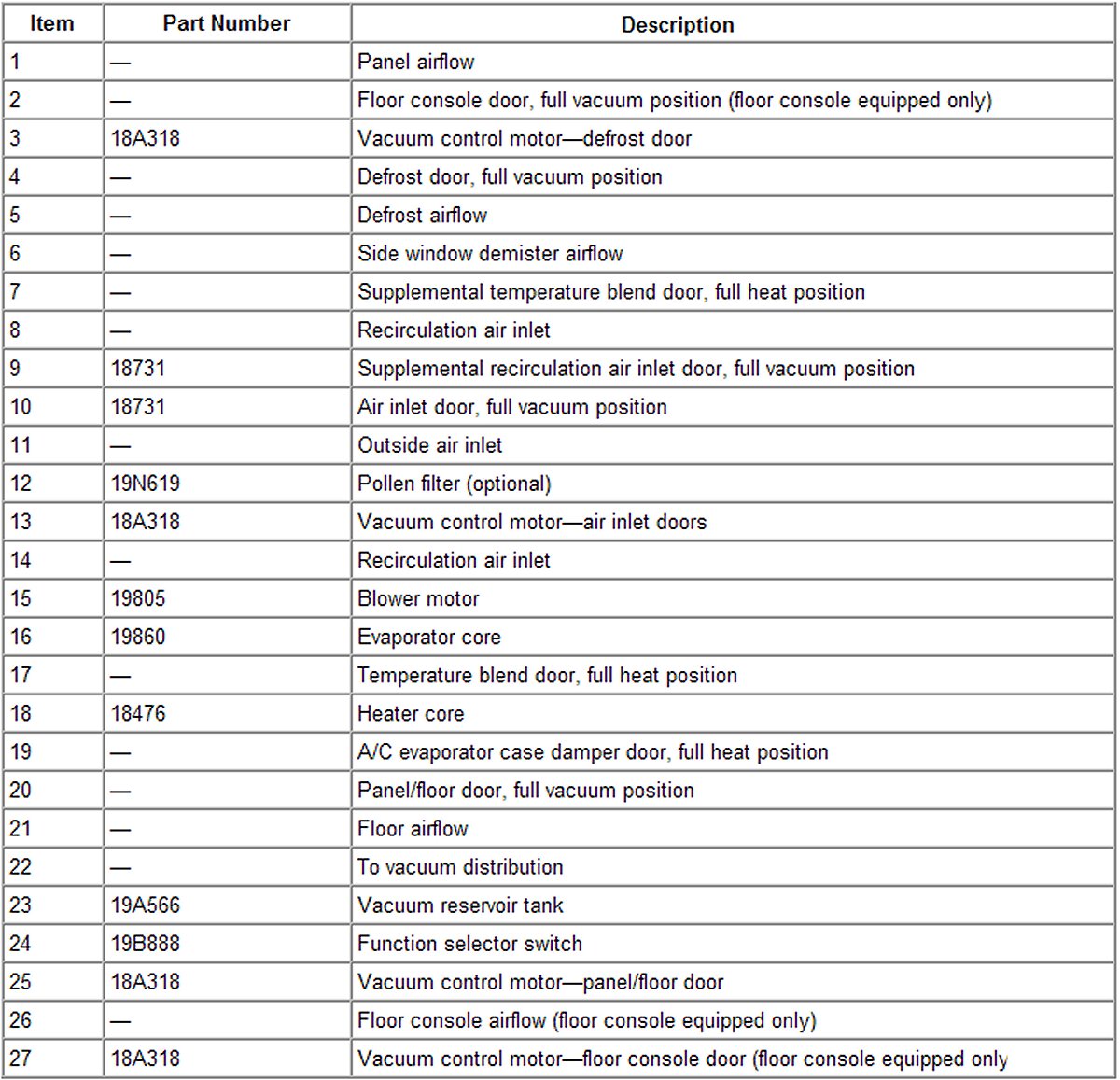

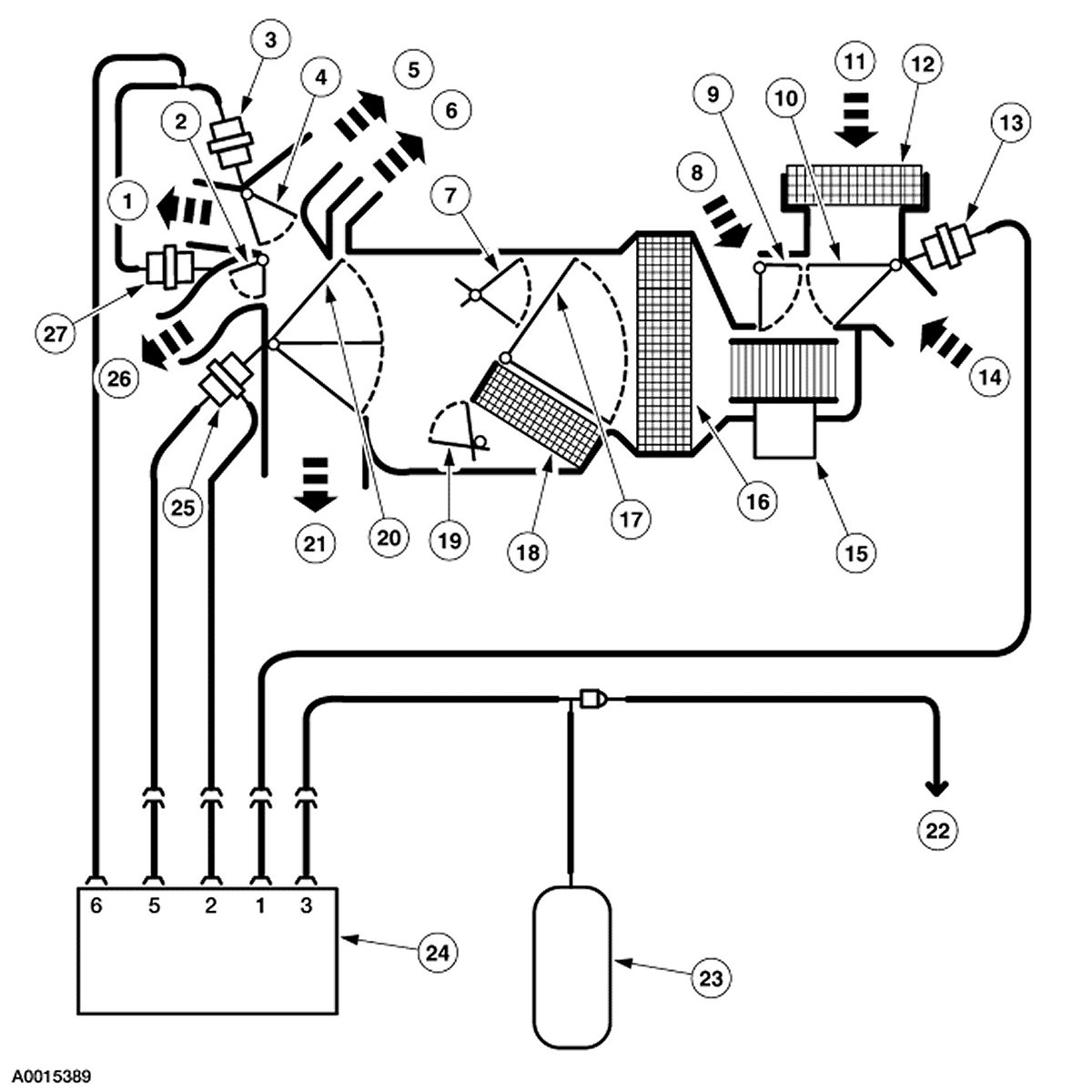

Manual Climate Control Vacuum Schematic (1 Of 2):

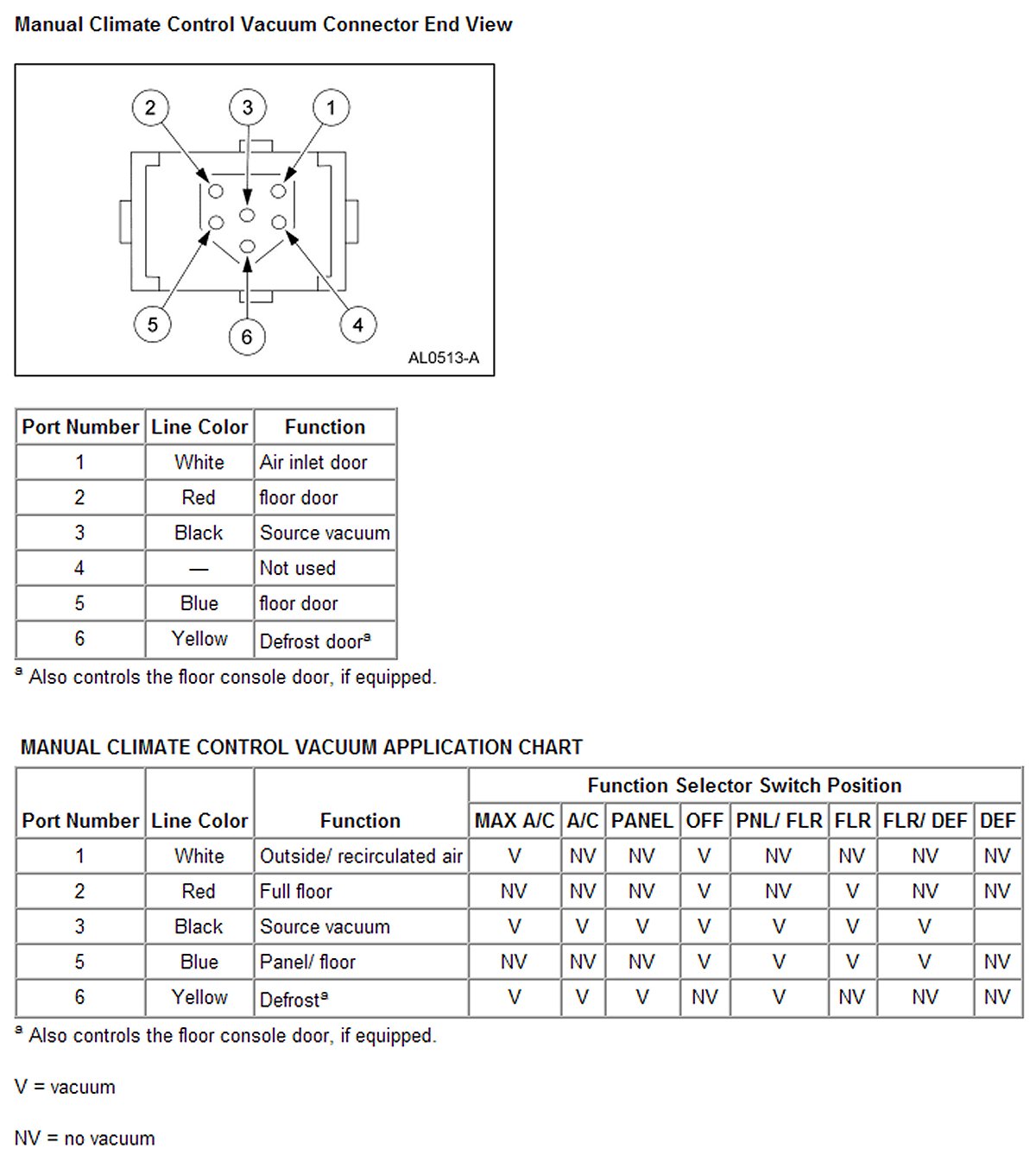

Manual Climate Control Vacuum Schematic (2 Of 2):
Manual Climate Control Vacuum:
