With Center Console

DISASSEMBLY
1. Remove the plenum chamber. Refer to Plenum Chamber. Refer to: Heating and Air Conditioning, Housing Assembly HVAC, Service and Repair, Removal and Installation, Plenum Chamber, Plenum Chamber






2. Remove the screws and the plenum demister adapter.







3. Remove the plenum/floor door vacuum control motor.
1. Disconnect the vacuum hose.
2. Remove the screws.
3. Rotate and remove the plenum/floor door vacuum control motor.







4. Remove the floor console register duct door vacuum control motor.
1. Remove the screws.
2. Rotate and remove the floor console register duct door vacuum control motor.







5. Cut the snap-loops around the housing flange of the plenum chamber.
6. Remove the three screws. Separate the plenum chamber.







7. While depressing the tab, remove the plenum/floor door and lever.

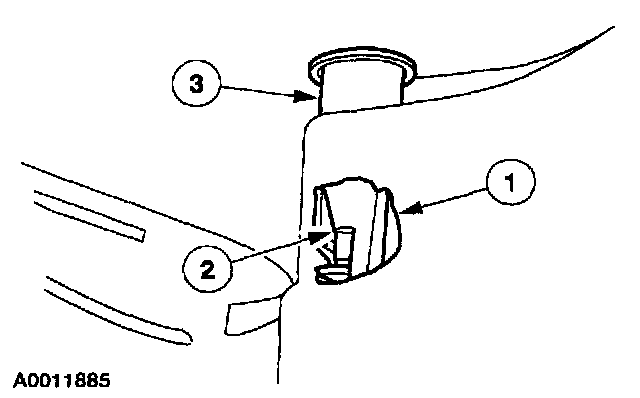

8. Remove the floor console register duct door.
1. Remove an area of the foam insulation.
2. Raise the tab to disengage the lever.
3. Remove the lever and the floor console register duct door.

ASSEMBLY9
1. To assemble, reverse the disassembly procedure.
