Integrated Control Panel

Radio Removal Tool:

SPECIAL TOOL(S)

REMOVAL







1. Using the special tool, pull-out the integrated control panel.

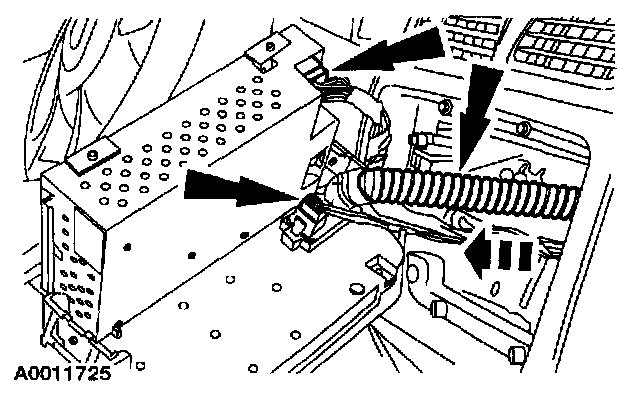

2. Label and disconnect the electrical connectors and the in-car temperature sensor hose. Remove the integrated control panel.

INSTALLATION

1. To install, reverse the removal procedure.
