Air Recirculating Duct

REMOVAL
1. Remove the heater core and evaporator core housing. Refer to: Heating and Air Conditioning, Housing Assembly HVAC, Service and Repair, Removal and Installation, Remove and Installation

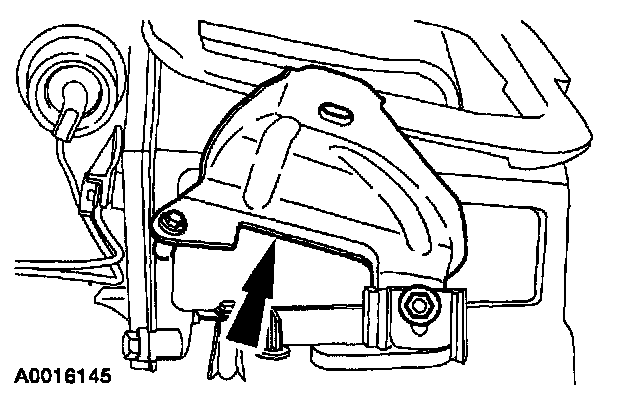

2. Remove the bracket.







3. Remove the recirculation air duct.

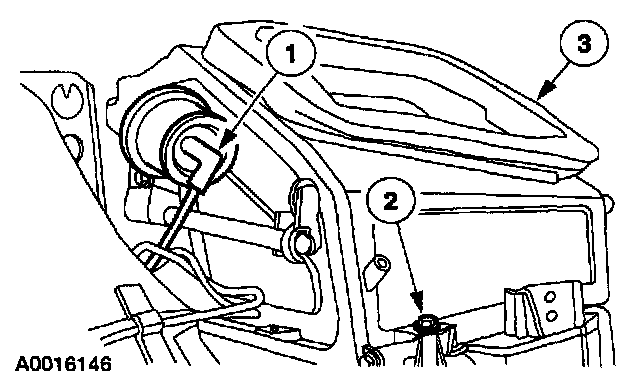

1. Disconnect the vacuum hose.
2. Remove the three screws.
3. Remove the recirculation air duct.

INSTALLATION
1. To install, reverse the removal procedure.
