Engine Oil Dip Stick - Dip Stick Tube: Service and Repair

Removal

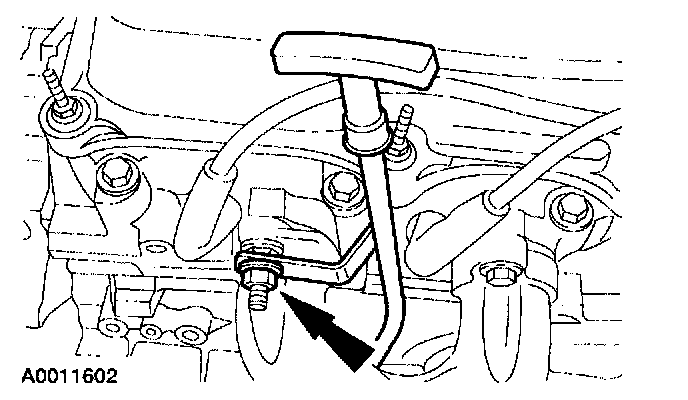

1. Remove the oil level indicator and tube.
- Remove the nut.
- Remove the tube.

Installation

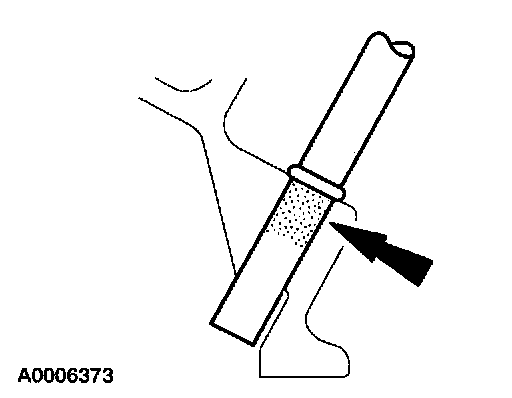

1. Coat the sealing surface of the oil level indicator tube with Silicone Gasket and Sealant F7AZ-19554-EA or equivalent meeting Ford specification WSE-M4G323-A4.

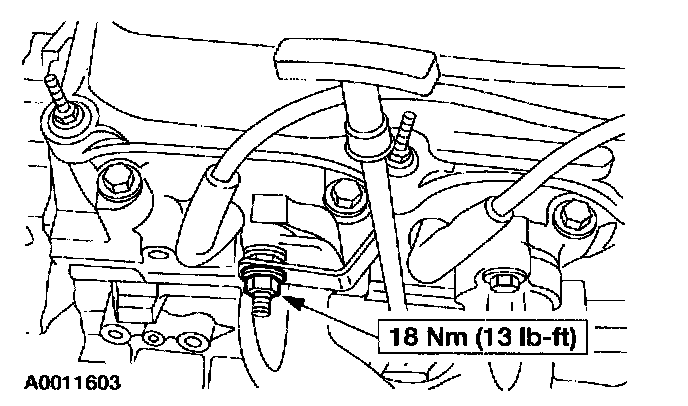

2. Install the oil level indicator tube.
- Install the tube.
- Install the nut.
