RH

Removal
1. Remove the upper intake manifold.

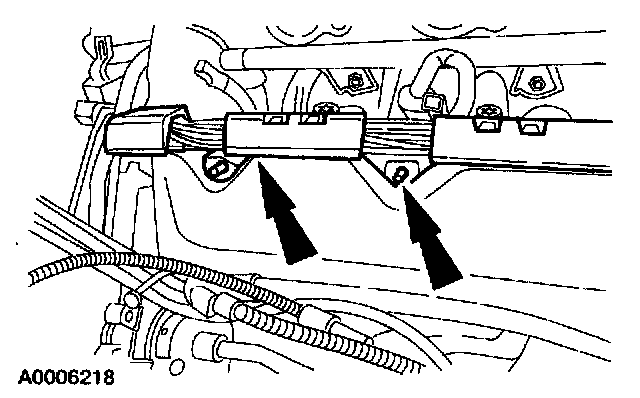

2. Position fuel charging wire harness aside.
- Lift the wire harness retainers off the valve cover studs.

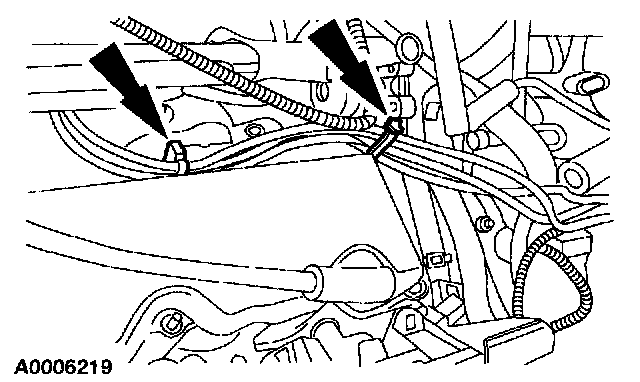

3. Position the spark plug wires aside.
- Remove the wire harness retainers.
- Position the wires aside.

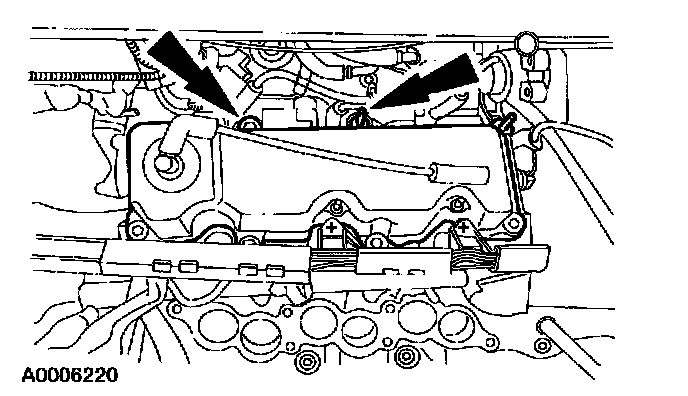

4. Remove the valve cover.
- Remove the five bolts.

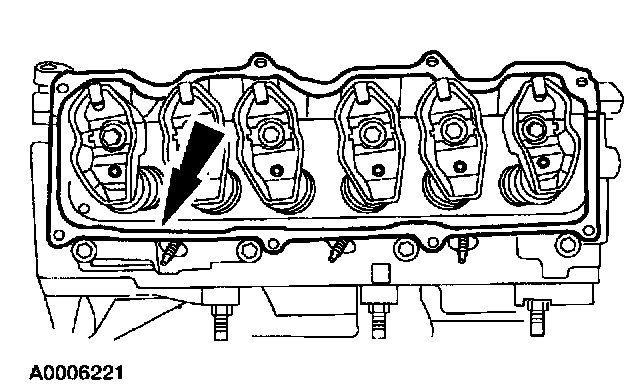

- Remove the three stud bolts.

Installation





1. Note: Do not clean the valve cover gasket with solvent. Damage to the valve cover gasket may occur.

Clean all the mating surfaces.

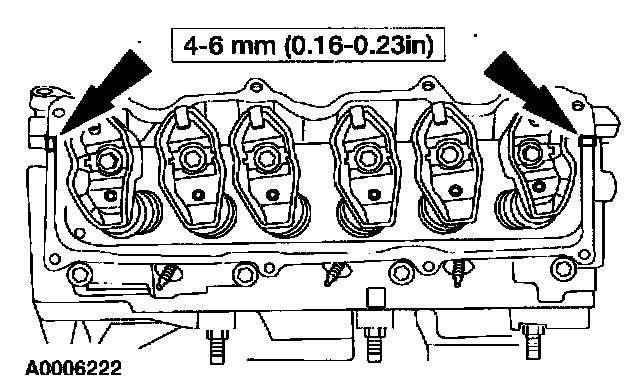

2. Apply a bead of Silicone Gasket and Sealant in two places where the cylinder head and intake manifold meet.
- Use Silicone Gasket and Sealant F7AZ-19554-EA or equivalent meeting Ford specification WSE-M4G323-A4.

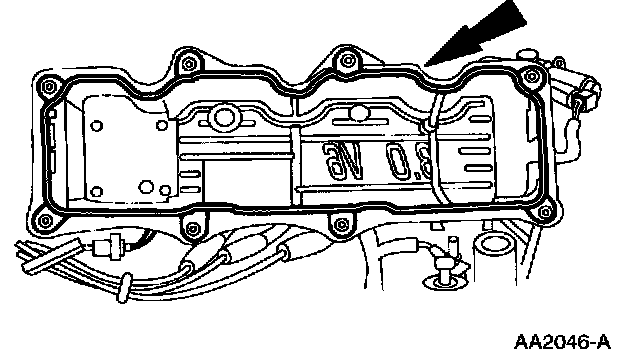

3. Install the valve cover gasket, if removed.





4. Install the valve cover.
- Position the valve cover.
- Install the five bolts.
- Install the three stud bolts.





5. Reposition the spark plug wires.
- Position the wires.
- Install the wire harness retainers.





6. Install the fuel charging wire harness.
7. Install the upper intake manifold.
8. Connect the battery ground cable.
