LH

Removal
1. Disconnect the battery ground cable.
2. Remove the ignition coil and ignition coil bracket assembly.





3. Disconnect the crankcase ventilation hose.





4. Position the spark plug wires aside.
- Remove the spark plug wire retainers.





5. Remove the LH valve cover.
- Remove the six stud bolts.
- Remove the two bolts.





6. Remove the valve cover gasket, if required.

Installation





1. Note: Do not clean the valve cover gasket with solvent. Damage to the valve cover gasket may occur.

Clean all mating surfaces.





2. Apply a bead of Silicone Gasket and Sealant in two places where the cylinder head and intake manifold meet.
- Use Silicone Gasket and Sealant F7AZ-19554-EA or equivalent meeting Ford specification WSE-M4G323-A4.





3. If removed, install the valve cover gasket.

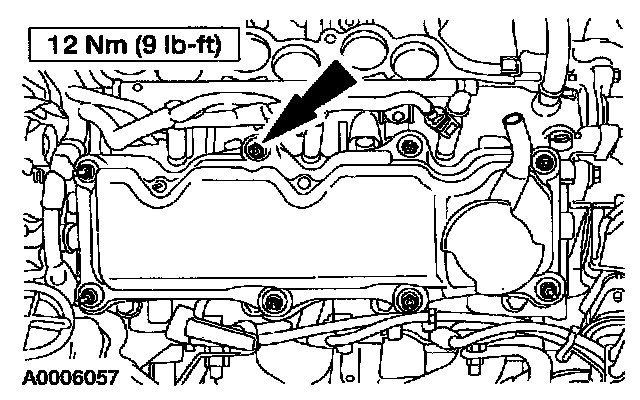

4. Install the valve cover.
- Install the six stud bolts.
- Install the two bolts.

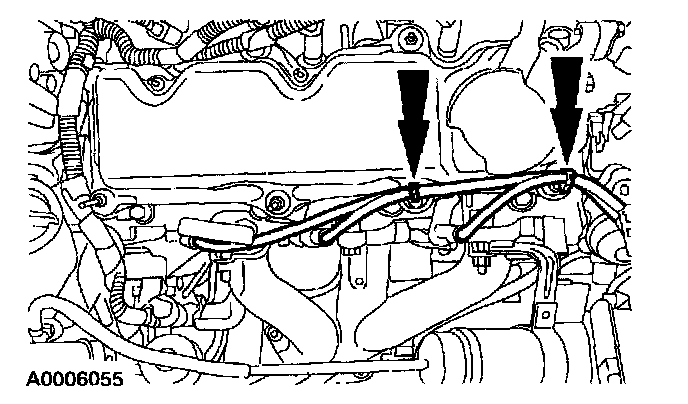

5. Reposition the spark plug wires.
- Position the wires.
- Install the spark plug wire retainers.

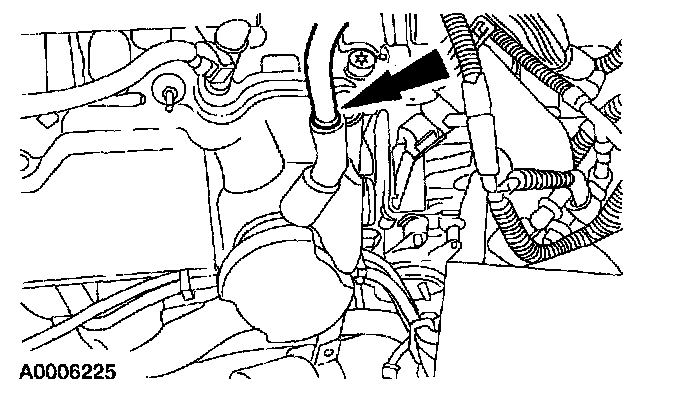

6. Connect the crankcase vent tube.
7. Install the ignition coil bracket and ignition coil assembly.
8. Connect the battery ground cable.
