Disassembly and Assembly

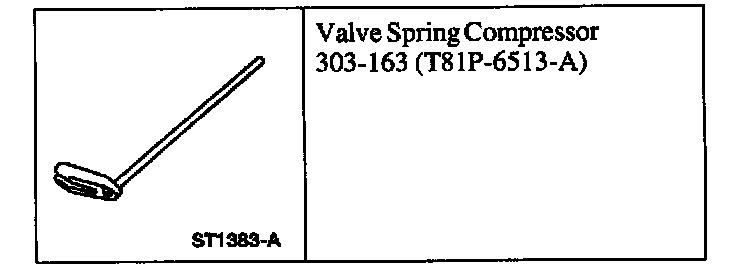

Special Tools:

Disassembly

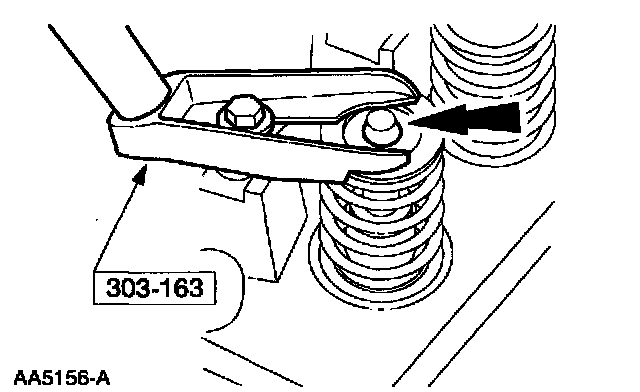

1. Using the special tool, compress the valve spring and remove the valve spring retainers.

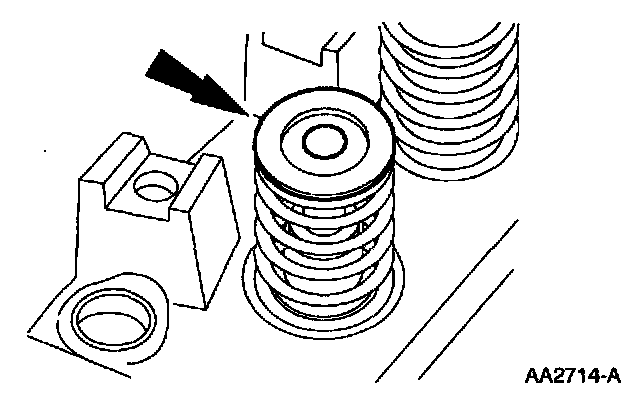

2. Remove the valve springs.

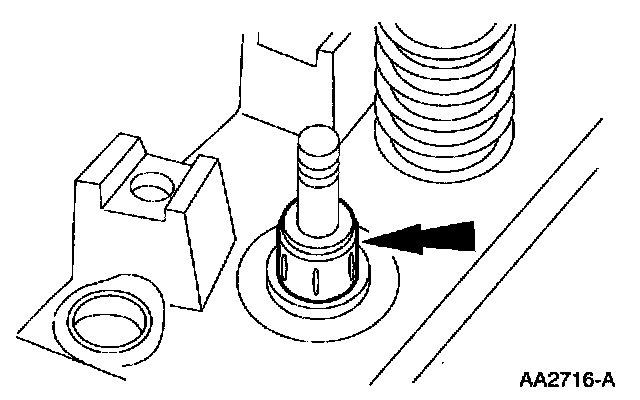

3. Remove the valve seal.

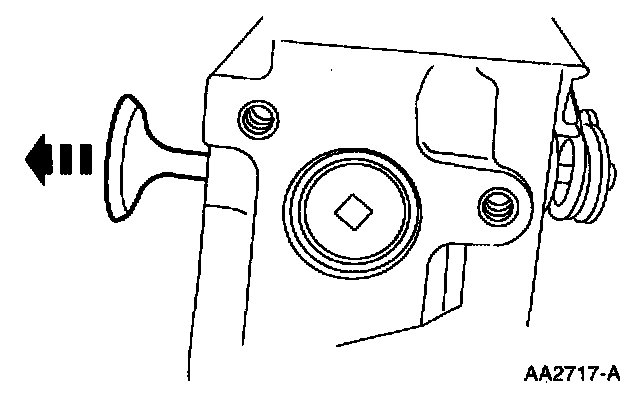

4. Remove the valve.

Assembly
1. To assemble, reverse the disassembly procedure.
- Lubricate the valve stem and the valve seal with Super Premium SAE 5W30 Motor Oil XO-5W30-QSP or equivalent meeting Ford specification WSS-M2C153-G.
