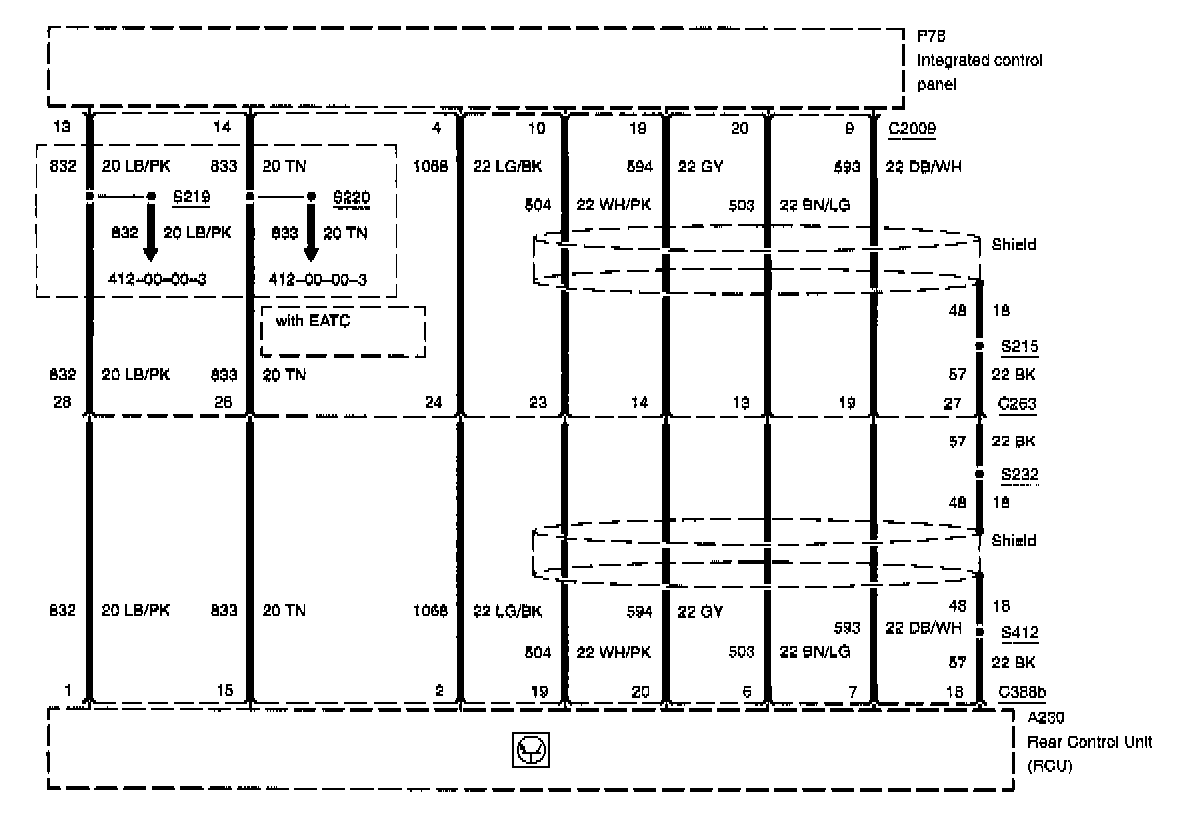

Electronic Automatic Temperature Control

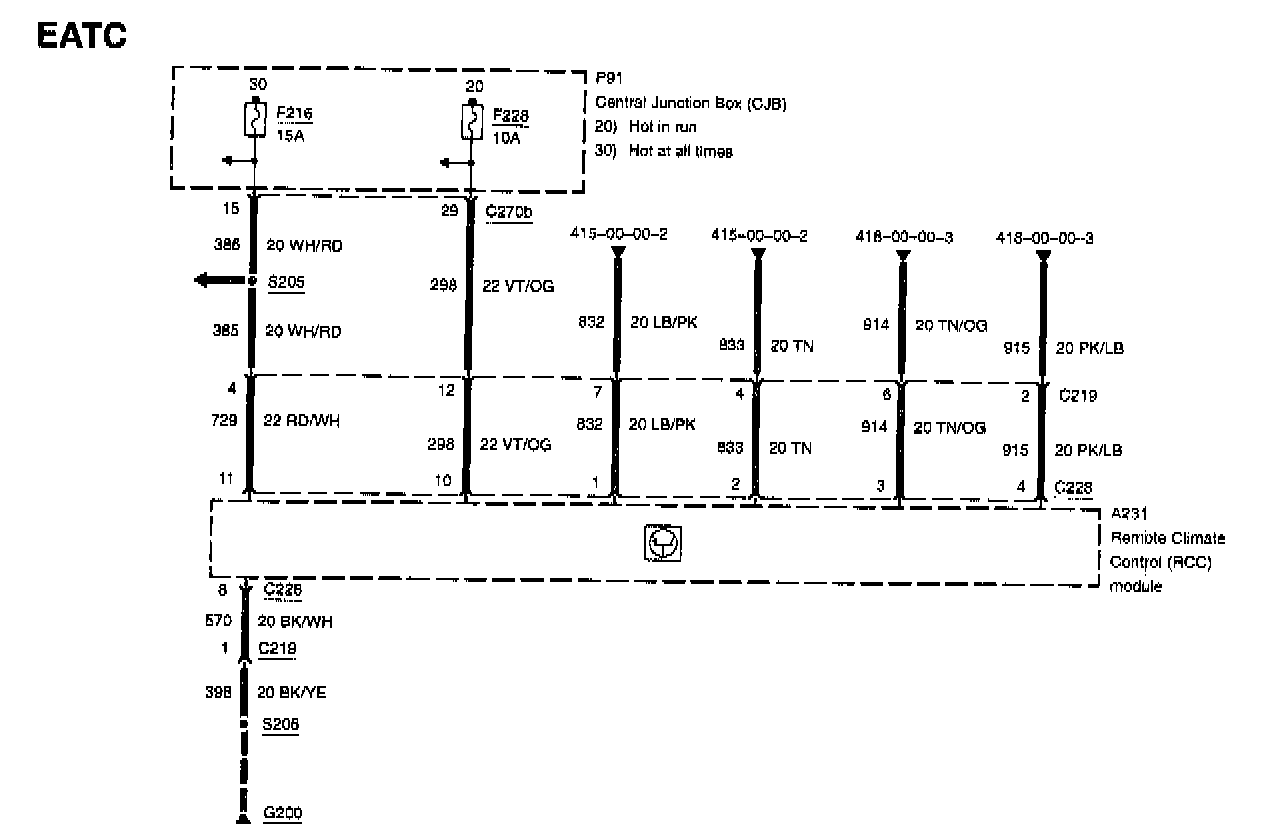

DETAILED DIAGRAMSDiagram 412-00-00-3:
Central Junction Box
Fuse F216
Fuse F228
Remote Climate Control Module

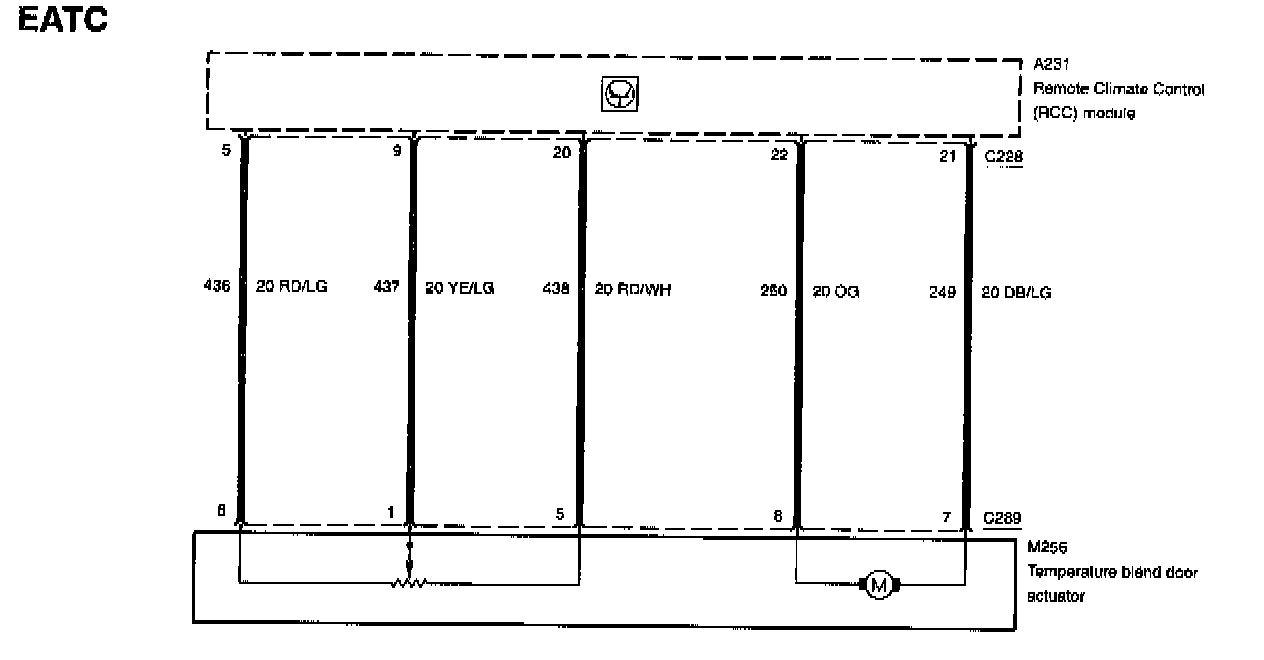

Diagram 412-00-00-4:
Remote Climate Control Module
Temperature Blend Door Actuator

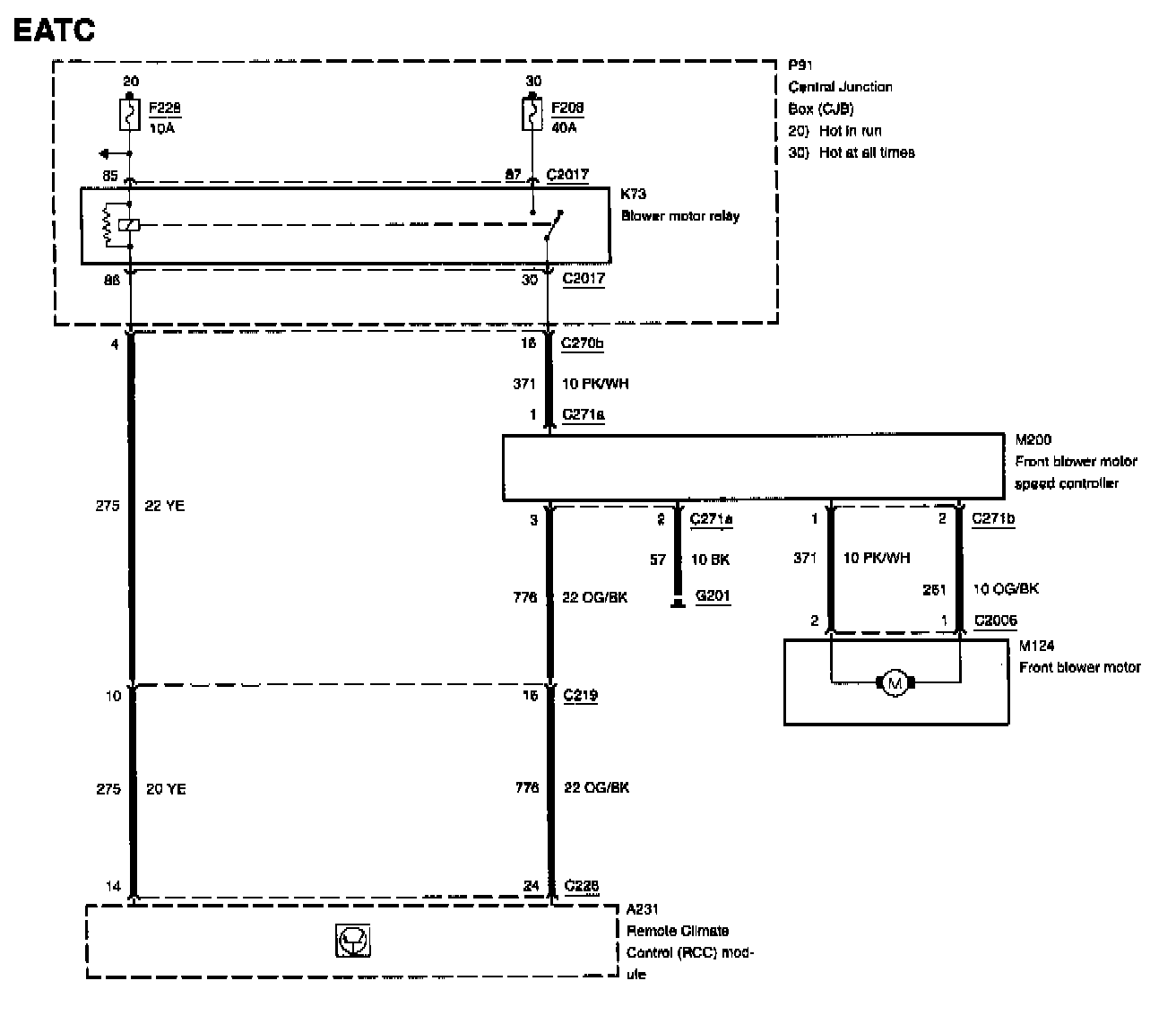

Diagram 412-00-00-5:
[1][2]Blower Motor Relay
Central Junction Box
Front Blower Motor
Front Blower Motor Speed Controller
Fuse F228
Fuse F208
Remote Climate Control Module

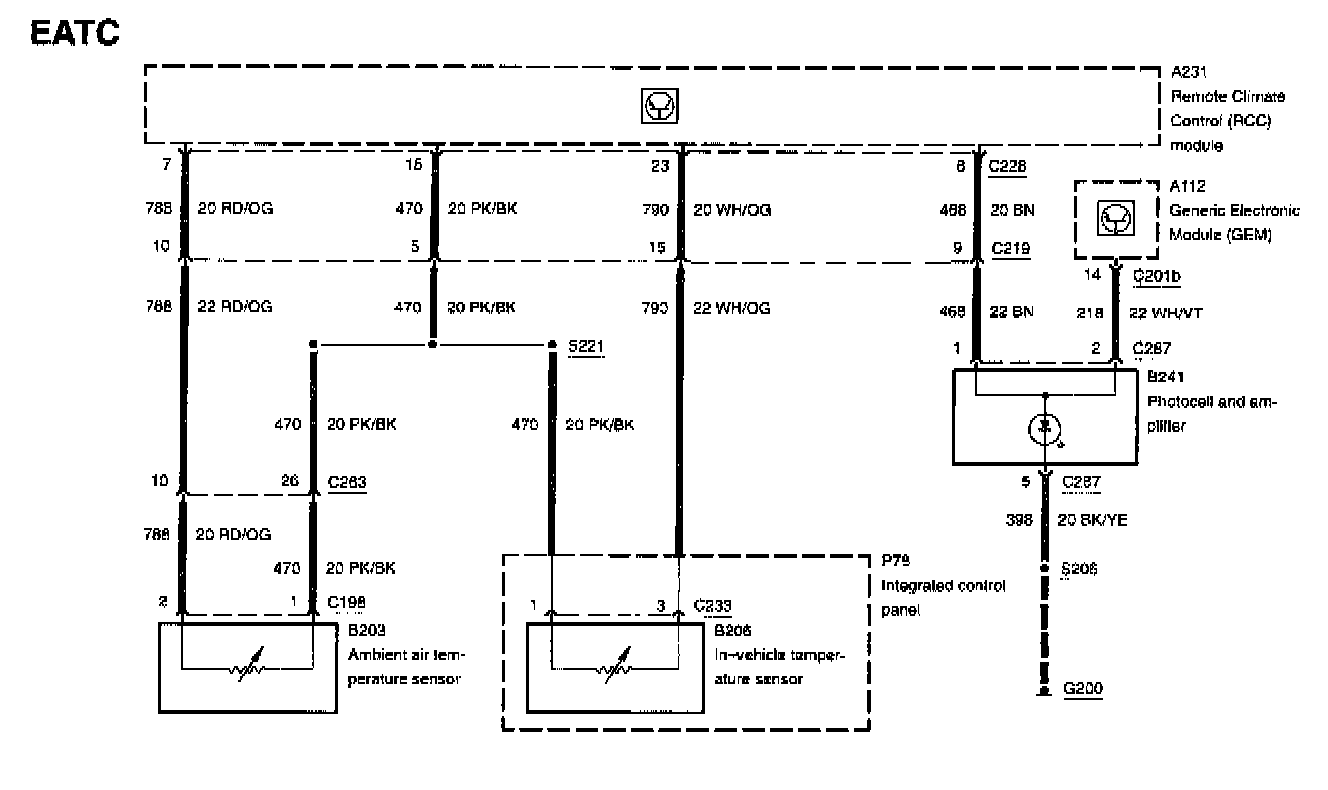

Diagram 412-00-00-6:
Ambient Air Temperature Sensor
Generic Electronic Module
In-Vehicle Temperature Sensor
Integrated Control Panel
Photocell And Amplifier
Remote Climate Control Module

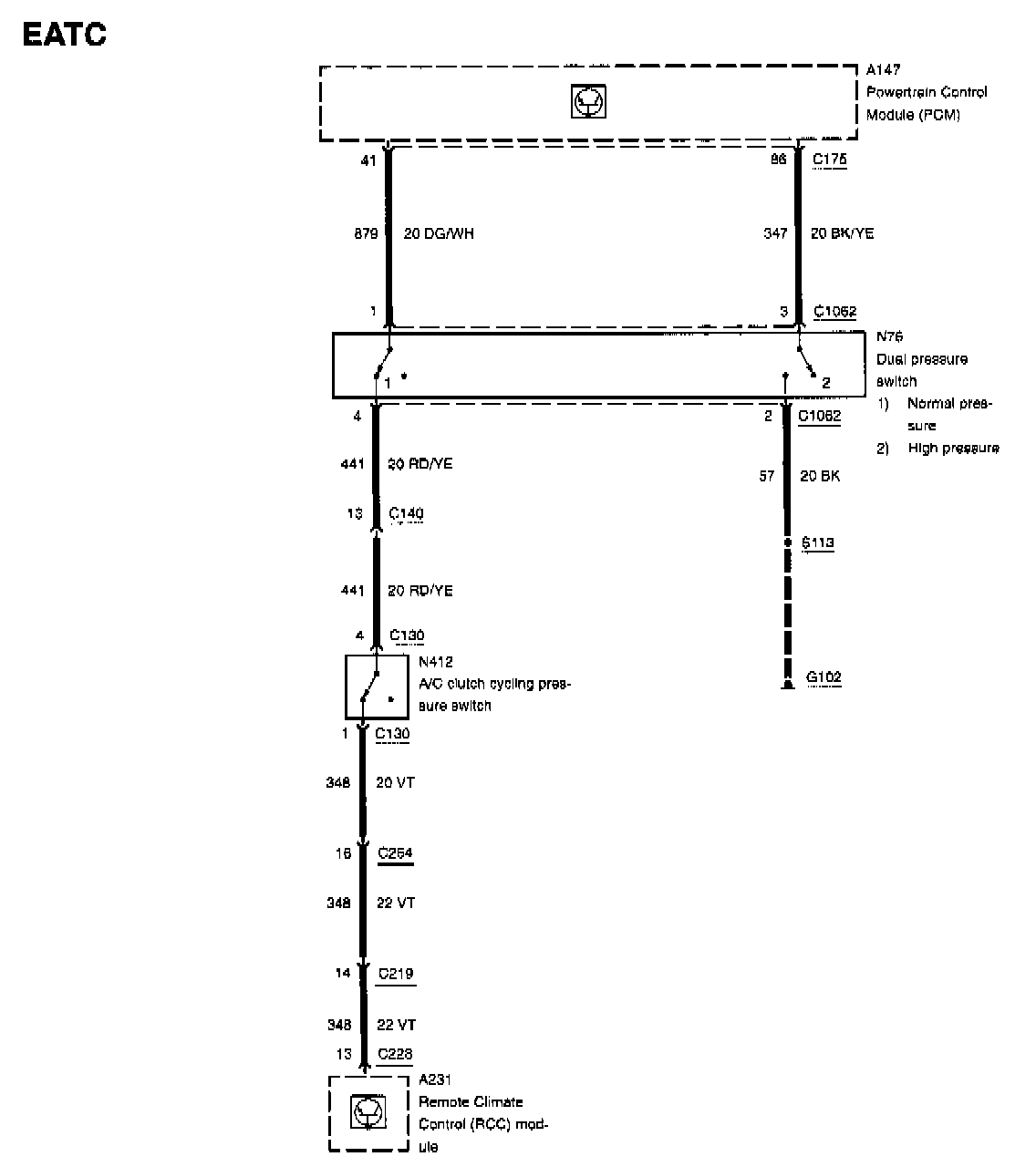

Diagram 412-00-00-7:
A/C Clutch Cycling Pressure Switch
Dual Pressure Switch
Powertrain Control Module
Remote Climate Control Module

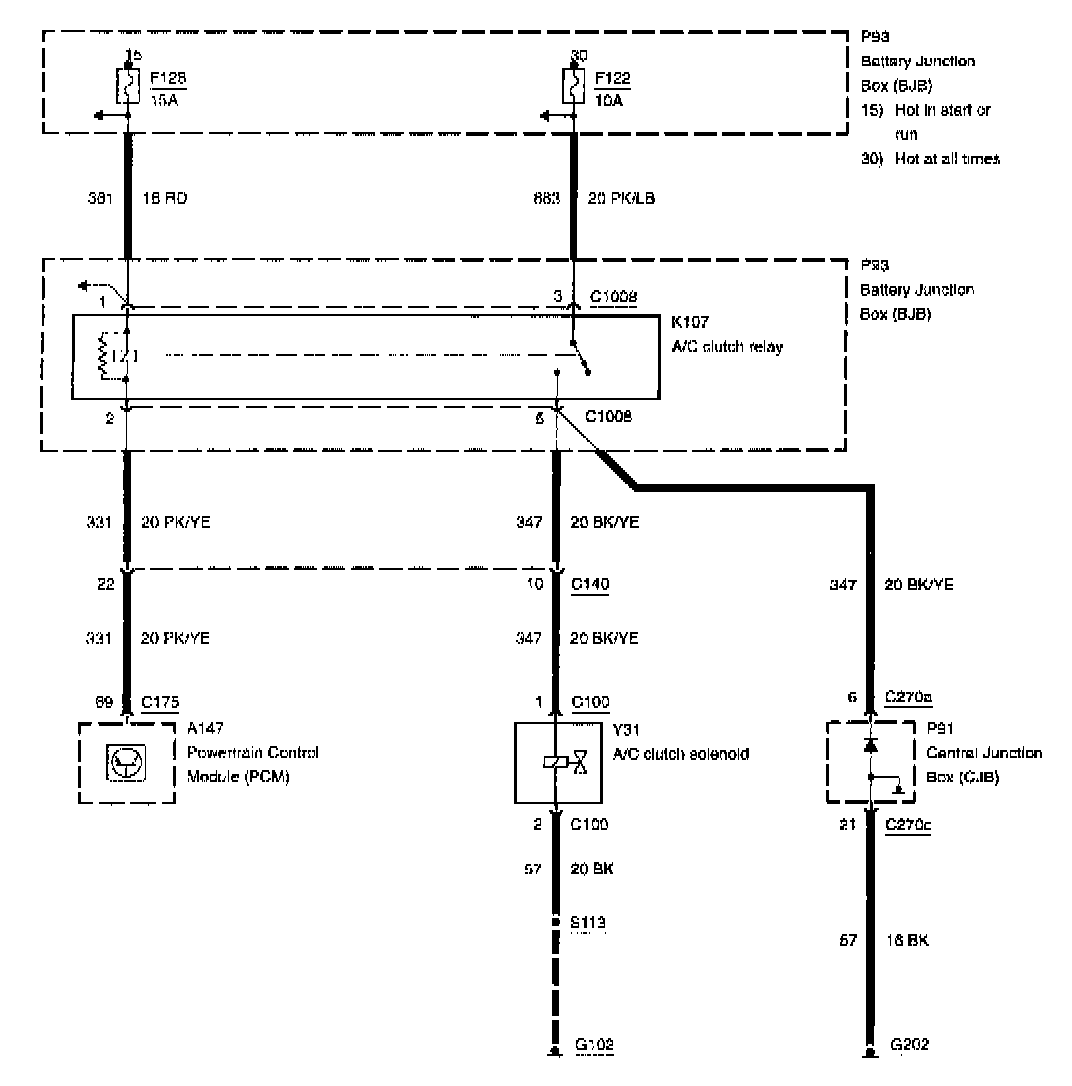

Diagram 412-00-00-8:
A/C Clutch Relay
A/C Clutch Solenoid
Battery Junction Box
Central Junction Box
Fuse F122
Fuse F128
Powertrain Control Module
