Home
>>
Mercury
>>
2000
>>
Sable V6-3.0L VIN U
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Charging System
>>
System Diagram
System Diagram

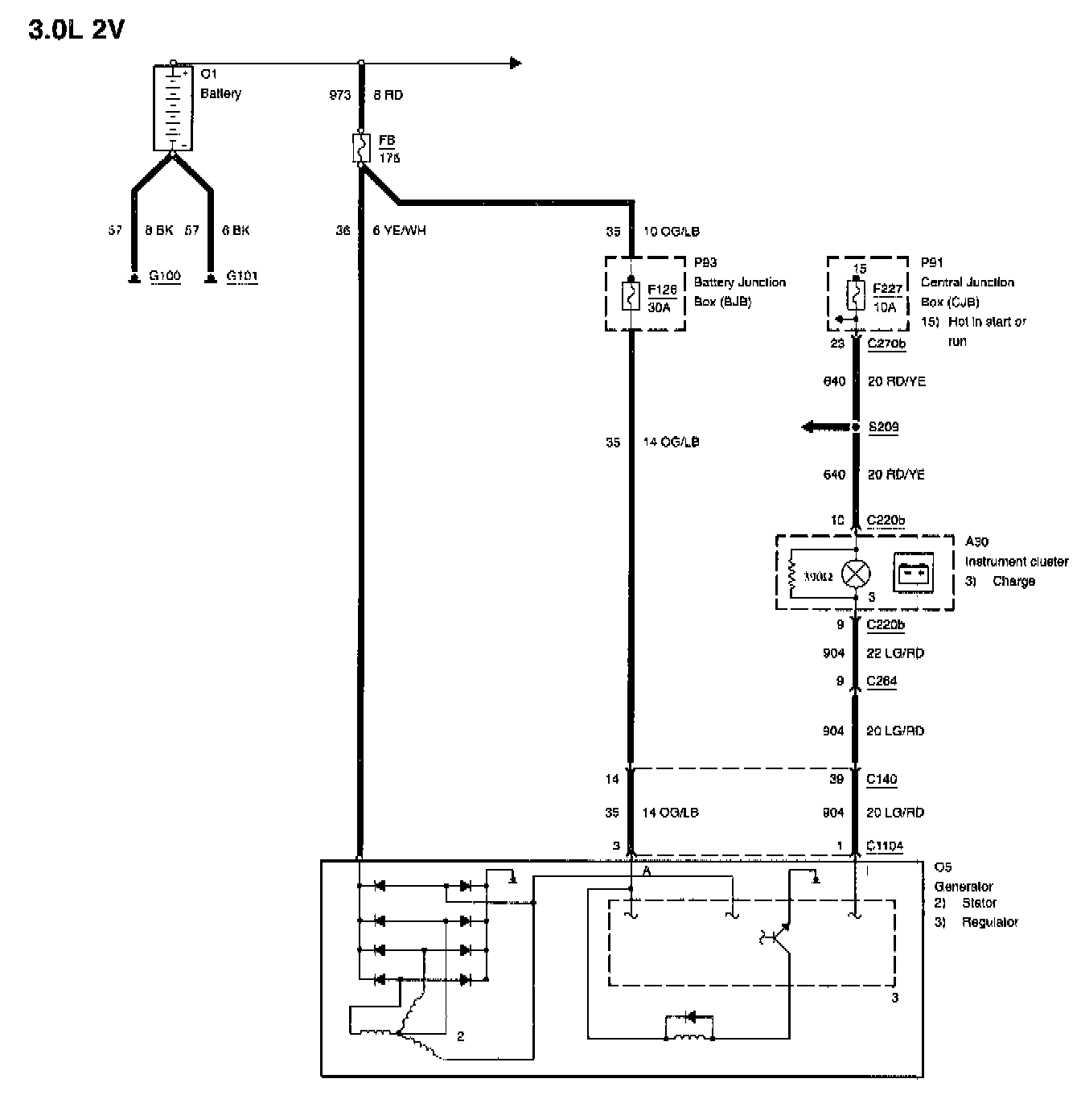

Diagram 414-00-00-1:
